TRH112V-RHPDK (2003)
Toyota Hiace/Regiusace
(0308- )TRH102,112,12#..4FC
A45DE

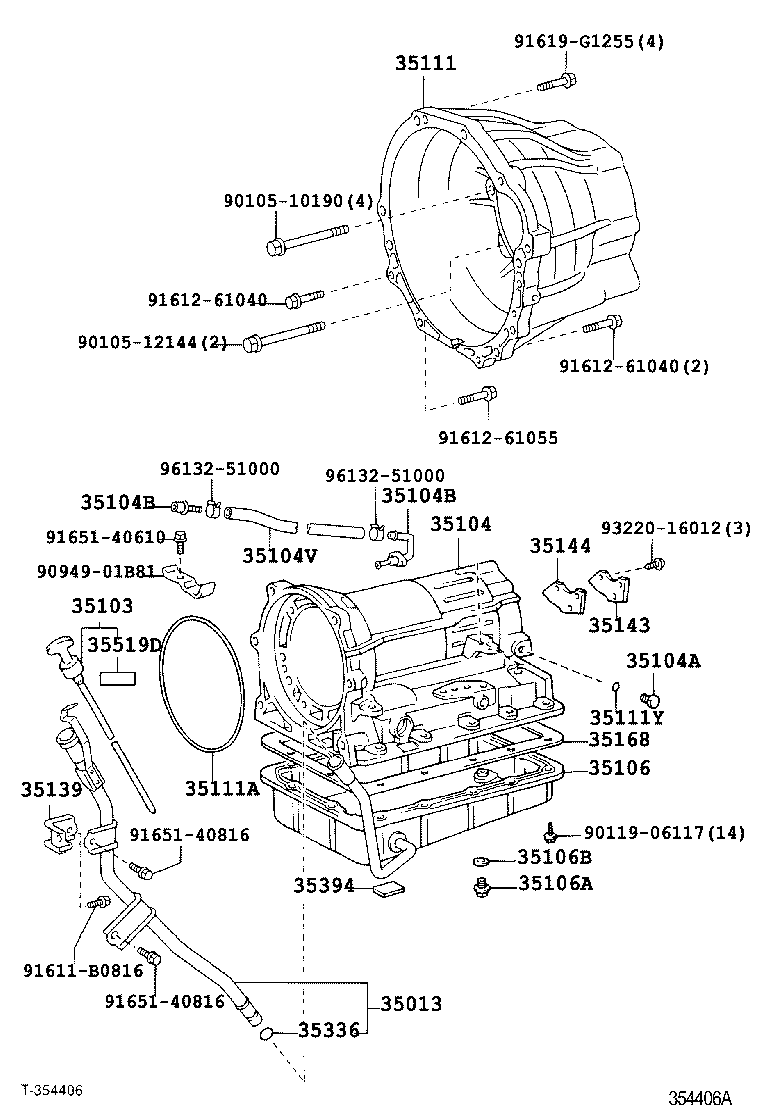

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-26070 |
RZH102,112..4FC |
1 | ||
| 35013-26350 |
TRH102,112..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-26050 |
RZH102,112..4FC |
1 | ||
| 35103-26060 |
RZH10#,111,112,124,125,133..4FC..EFI |
1 | ||
| 35103-26300 |
TRH102,112..4FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26021 |
LH102,103,113,123,162,172,182,184,RZH102,112,124..4FC |
1 | ||
| 35104-22060 |
TRH102,112..4FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
KZH100,110,120,132,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
LH100,102,107,113,119,120,123,RZH10#,112..4FC ﾐｯｼｮﾝ ｹｰｽ側 |
1 | ||
| 90930-03099 |
LH100..4FC..TD;KZH10#,11#,120,13#,LH102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC ﾎﾞﾃﾞｰ側 |
1 | ||
| 90930-03168 |
TRH102,112..4FC ﾎﾞﾃﾞｰ側 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
LH100,102,107,113,119,120,123,RZH10#,112..4FC ﾐｯｼｮﾝ ｹｰｽ側 |
1 | ||
| 90930-03099 |
LH100..4FC..TD;KZH10#,11#,120,13#,LH102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC ﾎﾞﾃﾞｰ側 |
1 | ||
| 90930-03168 |
TRH102,112..4FC ﾎﾞﾃﾞｰ側 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11084 |
LH100,102,107,113,119,120,123,RZH10#,112..4FC |
1 | ||
| 90445-11145 |
TRH102,112..4FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30050 |
LH100,102,107,113,119,123,RZH10#,112..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-26010 |
RZH10#,112..4FC |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99054 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC |
2 | ||
| 35139 - BRACKET, OIL FILLER TUBE | ||||
| 35139-26020 |
TRH102,112..4FC |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-22010 |
LH100,102,107,113,119,123,RZH10#,112..4FC |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
2 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-20030 |
TRH102,112..4FC |
1 | ||
| Common parts | ||||
| 90105-10190 | ||||
| 90105-12144 | ||||
| 90119-06117 | ||||
| 90949-01B81 | ||||
| 91611-B0816 | ||||
| 91612-61040 | ||||
| 91612-61055 | ||||
| 91619-G1255 | ||||
| 91651-40610 | ||||
| 91651-40816 | ||||
| 93220-16012 | ||||
| 96132-51000 | ||||
