TRH112V-RBMBK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Aug 2004
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

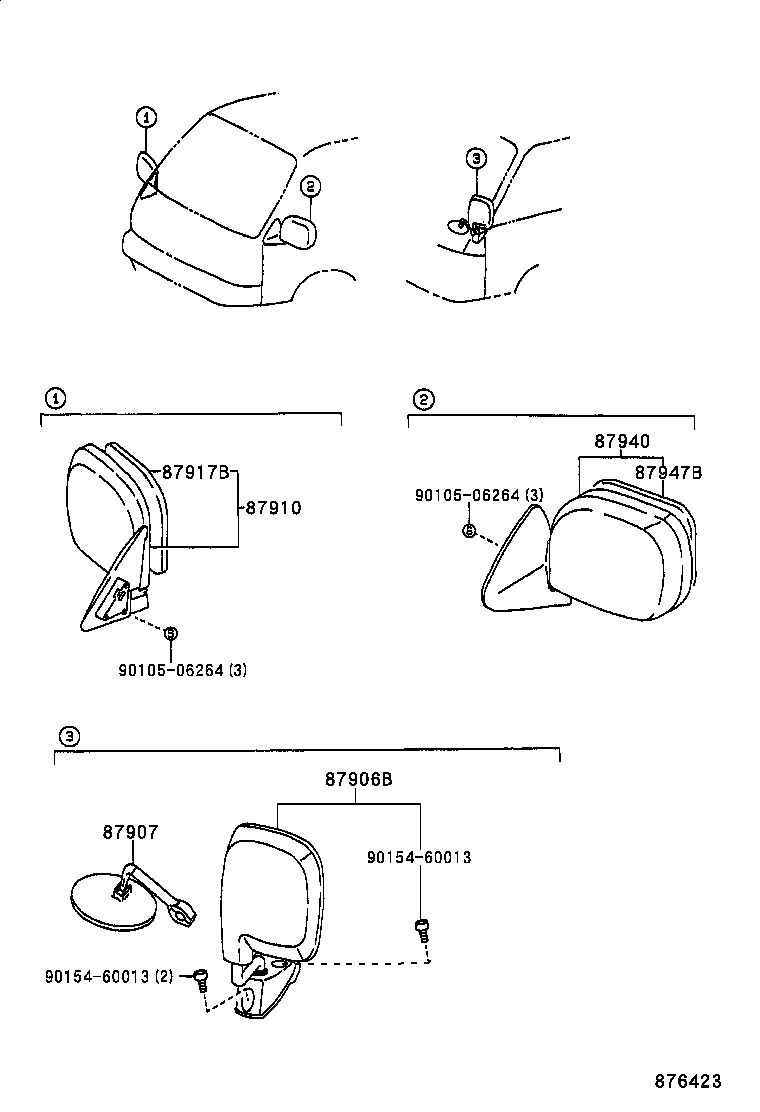

ILLUST NO. 2 OF 3(0308- )TRH102,112,12#..CD,DX,GL,SGL

Click highlighted areas on diagram

ｱｳﾀﾐﾗ-

diagram 87906B 87907 87910 87917B 87940 87947B 9010506264 9010506264 9015460013 9015460013
Part # Description Qty Price
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87906-95J16

LH100,102,109,11#,12#,140,RZH101,102,11#,12#..CD,CTM,DX,GL,SW

ﾒｯｷ,ｵｵｶﾞﾀ ﾐﾗ-

 1
87906-95J00

KZH10#,11#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SW

塗装不要

 1
87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW
87907-95J10

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW

ｵｵｶﾞﾀ ﾐﾗ-

 1
87907-95J09

LH162,17#,RZH102,112..CD,DX,GL;KZH10#,11#,LH100,102,103,109,11#,12#,140,168,18#,RZH100,101,110,111,12#,133..CD,CTM,DX,GL,SGL,SW

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95J39

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SW

ﾒｯｷ,ｵｵｶﾞﾀ ﾐﾗ- & ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ

 1
87910-95J33

LH113,119;KZH10#,11#,13#,LH100,102,103,109,110,115,117,12#,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SW

塗装不要

 1
Common parts
90105-06264
90154-60013

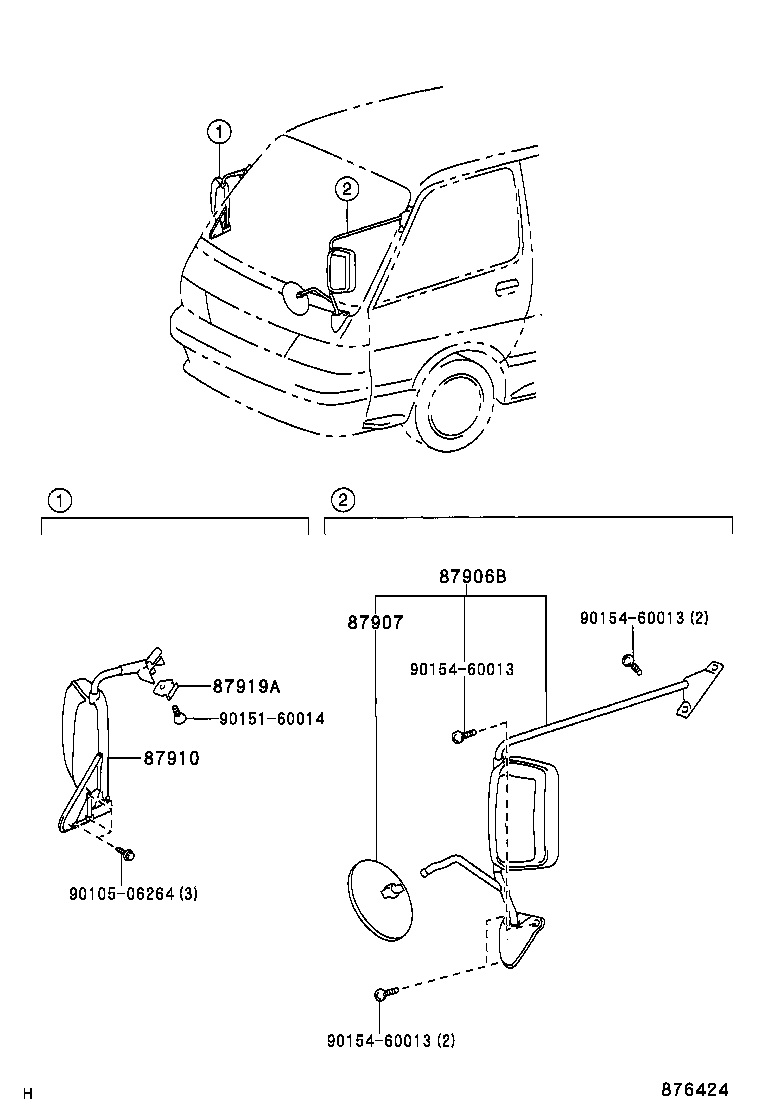

ILLUST NO. 2 OF 3(0308- )LH178..DX ; (0308- )TRH102,112..SG; (0308- )LH178..5D..SGLE ; (03

Click highlighted areas on diagram

ｱｳﾀﾐﾗ-(ｵｵｶﾞﾀﾐﾗ-)

diagram 87906B 87907 87910 87919A 9010506264 9015160014 9015460013 9015460013 9015460013
Part # Description Qty Price
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87906-95J16

LH100,102,109,11#,12#,140,RZH101,102,11#,12#..CD,CTM,DX,GL,SW

ﾒｯｷ,ｵｵｶﾞﾀ ﾐﾗ-

 1
87906-95J00

KZH10#,11#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SW

塗装不要

 1
87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW
87907-95J10

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW

ｵｵｶﾞﾀ ﾐﾗ-

 1
87907-95J09

LH162,17#,RZH102,112..CD,DX,GL;KZH10#,11#,LH100,102,103,109,11#,12#,140,168,18#,RZH100,101,110,111,12#,133..CD,CTM,DX,GL,SGL,SW

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95J39

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SW

ﾒｯｷ,ｵｵｶﾞﾀ ﾐﾗ- & ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ

 1
87910-95J33

LH113,119;KZH10#,11#,13#,LH100,102,103,109,110,115,117,12#,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SW

塗装不要

 1
Common parts
90105-06264
90151-60014
90154-60013
