RZH133V-EFPDE (1995)

Toyota Hiace/Regiusace

Production Aug 1995 - Jul 1999
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

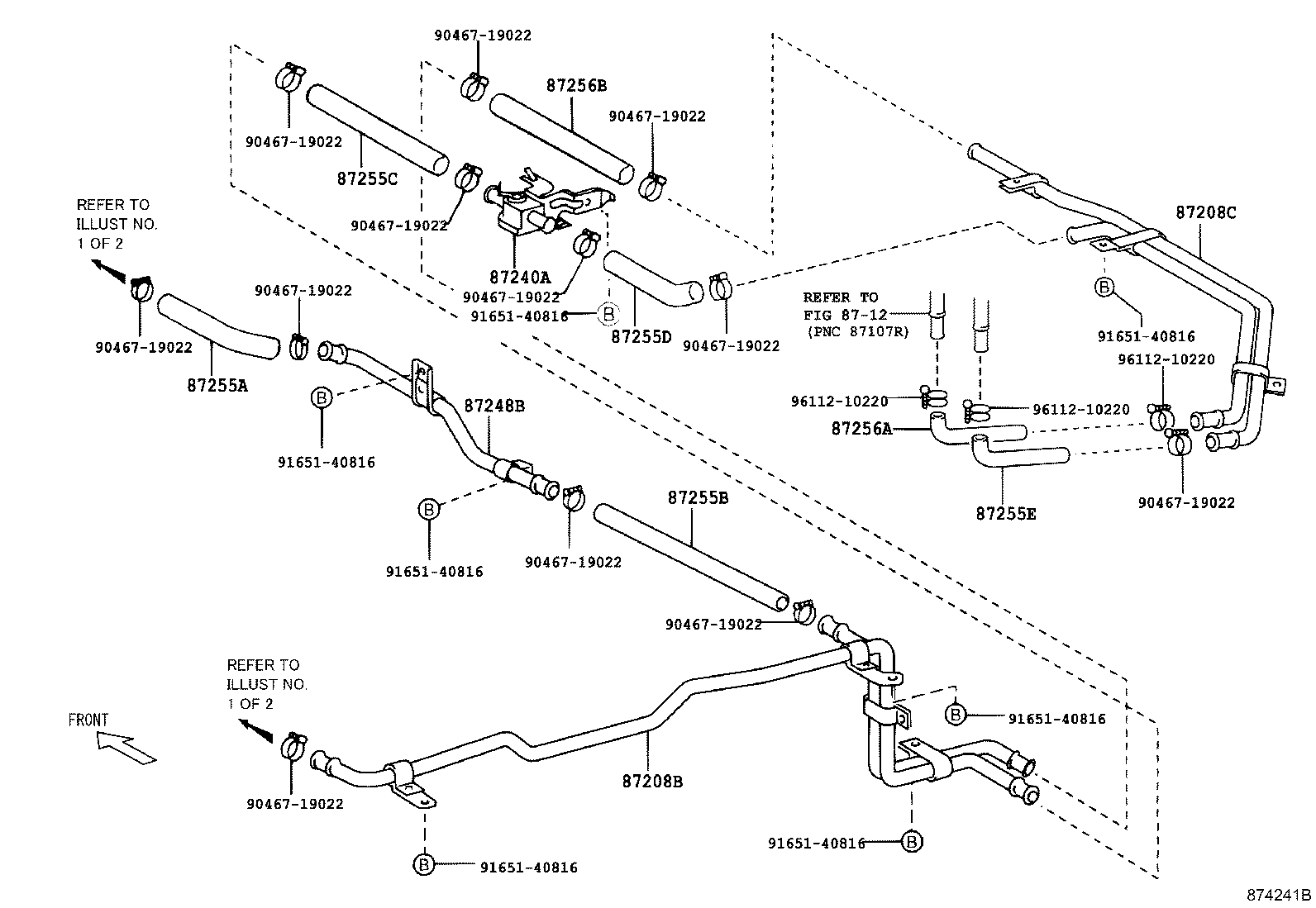

ILLUST NO. 2 OF 2(8908-9808)KZH11#,13#,RZH102,112,12#,133 ; (8908- )KZH10#,RZH100,101,110,111

Click highlighted areas on diagram

ﾘﾔ-ﾄﾘﾑ(1)

diagram 8712 8712428040 8712428040 8712428040 8712428040 87208B 87208C 87240A 87248B 87248Y 87248Y 87255A 87255B 87255C 87255C 87255D 87255E 87256A 87256B 87256C 9033913009 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-26510

KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM)

 1
87208-26610

KZH11#,13#..4FC

ｱﾘ(ﾊﾞﾂﾃﾘ=115F51)

 1
87208-26880

KZH11#,13#..4FC

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87208-2F020

KZH11#,13#..4FC

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87208-26880

KZH11#..5F;KZH10#,12#,RZH10#,11#,12#,133..COM,V1,WG

 1
87208-26610

KZH11#,13#..4FC

ｱﾘ(ﾊﾞﾂﾃﾘ=115F51)

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-26580

LH123..06S..4FC;LH125,129,RZH124,133

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87208-2F120

LH184,186,RZH12#,133

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87248B - PIPE, HEATER WATER INLET, B
87208-26840

KZH10#,11#,12#,13#,RZH10#,11#,12#,133

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

KZH11#,13#..4FC

*H,L=165

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

KZH11#,13#..4FC

*H,L=165

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J63

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J57

LH184,186,RZH12#,133

 2
87245-95J57

LH123..06S..4FC;LH125,129,184,186,RZH12#,133

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J64

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=300

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20200

KZH11#,13#..4FC

*H,L=165

 1
Common parts
87124-28040
90339-13009
90467-19022
91651-40816
Linked diagrams
8712

ILLUST NO. 1 OF 2(8908-9907)RZH10#,11#,12#,133

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1603 1603 8712 8712428030 8712428030 8712428030 8712428040 87240 87245A 87245B 87245C 87245E 87246A 87246E 87248A 87248A 87249A 87249A 87256E 9046024039 9046722008 9046722008 9046722008 9165140816 9165140816 9165140816 9611230250 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-95J48

RZH10#,11#,12#,133

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30300

RZH10#,11#,12#,133

*H,L=220

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J05

LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

RZH10#,11#,124,133

*H,L=280

 1
99556-30300

RZH10#,11#,12#,133

*H,L=260

 1
87248A - PIPE, HEATER WATER INLET, A
87208-26740

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26700

RZH10#,11#,12#,133

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26720

KZH11#,13#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-26740

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26700

RZH10#,11#,12#,133

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26720

KZH11#,13#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-26750

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26710

RZH10#,11#,12#,133

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26730

KZH11#,13#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-26750

KZH10#,11#,12#,13#

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26710

RZH10#,11#,12#,133

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26730

KZH11#,13#

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

RZH102,112..GL;RZH112..5F..DX;RZH112..V2..SRF..4FC;KZH10#,11#,12#,13#,RZH111

*H,L=145

 1
Common parts
87124-28030
87124-28040
90460-24039
90467-22008
91651-40816
96112-30250
96134-42100
Linked diagrams
1603
8712

ILLUST NO. 2 OF 2(9808-9907)KZH11#,13#

Click highlighted areas on diagram

diagram 8712 87208B 87208C 87240A 87248B 87248Y 87248Y 87255A 87255B 87255C 87255C 87255D 87255E 87256A 87256B 87256C 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-26510

KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM)

 1
87208-26610

KZH11#,13#..4FC

ｱﾘ(ﾊﾞﾂﾃﾘ=115F51)

 1
87208-26880

KZH11#,13#..4FC

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87208-2F020

KZH11#,13#..4FC

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87208-26880

KZH11#..5F;KZH10#,12#,RZH10#,11#,12#,133..COM,V1,WG

 1
87208-26610

KZH11#,13#..4FC

ｱﾘ(ﾊﾞﾂﾃﾘ=115F51)

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-26580

LH123..06S..4FC;LH125,129,RZH124,133

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87208-2F120

LH184,186,RZH12#,133

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87248B - PIPE, HEATER WATER INLET, B
87208-26840

KZH10#,11#,12#,13#,RZH10#,11#,12#,133

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

KZH11#,13#..4FC

*H,L=165

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

KZH11#,13#..4FC

*H,L=165

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J63

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J57

LH184,186,RZH12#,133

 2
87245-95J57

LH123..06S..4FC;LH125,129,184,186,RZH12#,133

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J64

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=300

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20200

KZH11#,13#..4FC

*H,L=165

 1
Common parts
90467-19022
91651-40816
Linked diagrams
8712

ILLUST NO. 2 OF 2(9808- )RZH12#,133

Click highlighted areas on diagram

ﾘﾔ-ﾌﾛｱ

diagram 8712 87208B 87208C 87240A 87248B 87255A 87255B 87255C 87255D 87255E 87256A 87256B 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611210220 9611210220 9611210220
Part # Description Qty Price
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-26510

KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM)

 1
87208-26610

KZH11#,13#..4FC

ｱﾘ(ﾊﾞﾂﾃﾘ=115F51)

 1
87208-26880

KZH11#,13#..4FC

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87208-2F020

KZH11#,13#..4FC

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87208-26880

KZH11#..5F;KZH10#,12#,RZH10#,11#,12#,133..COM,V1,WG

 1
87208-26610

KZH11#,13#..4FC

ｱﾘ(ﾊﾞﾂﾃﾘ=115F51)

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-26580

LH123..06S..4FC;LH125,129,RZH124,133

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87208-2F120

LH184,186,RZH12#,133

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87248B - PIPE, HEATER WATER INLET, B
87208-26840

KZH10#,11#,12#,13#,RZH10#,11#,12#,133

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

KZH11#,13#..4FC

*H,L=165

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J63

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J57

LH184,186,RZH12#,133

 2
87245-95J57

LH123..06S..4FC;LH125,129,184,186,RZH12#,133

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J64

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=300

 1
Common parts
90467-19022
91651-40816
96112-10220
Linked diagrams
8712

ILLUST NO. 2 OF 2(8908-9808)RZH124,133

Click highlighted areas on diagram

ﾘﾔ-ﾌﾛｱ

diagram 8712 8712428040 8712428040 87208B 87208C 87240A 87248B 87255A 87255B 87255C 87255D 87255E 87256A 87256B 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220
Part # Description Qty Price
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-26510

KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM)

 1
87208-26610

KZH11#,13#..4FC

ｱﾘ(ﾊﾞﾂﾃﾘ=115F51)

 1
87208-26880

KZH11#,13#..4FC

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87208-2F020

KZH11#,13#..4FC

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87208-26880

KZH11#..5F;KZH10#,12#,RZH10#,11#,12#,133..COM,V1,WG

 1
87208-26610

KZH11#,13#..4FC

ｱﾘ(ﾊﾞﾂﾃﾘ=115F51)

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-26580

LH123..06S..4FC;LH125,129,RZH124,133

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87208-2F120

LH184,186,RZH12#,133

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87248B - PIPE, HEATER WATER INLET, B
87208-26840

KZH10#,11#,12#,13#,RZH10#,11#,12#,133

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

KZH10#,11#,12#,13#,RZH10#,11#,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20200

KZH11#,13#..4FC

*H,L=165

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95J63

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87245-95J57

LH184,186,RZH12#,133

 2
87245-95J57

LH123..06S..4FC;LH125,129,184,186,RZH12#,133

ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95J64

LH125,184,186,RZH125..GL;KZH10#,11#,13#,LH10#,11#,123,129,16#,17#,182,188,RZH10#,11#..(V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-20300

KZH10#,11#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

長さ=300

 1
Common parts
87124-28040
91651-40816
96112-30220
Linked diagrams
8712
