RZH125B-ZRPDE (1998)

Toyota Hiace/Regiusace

Production Aug 1998 - Aug 2003
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9907)

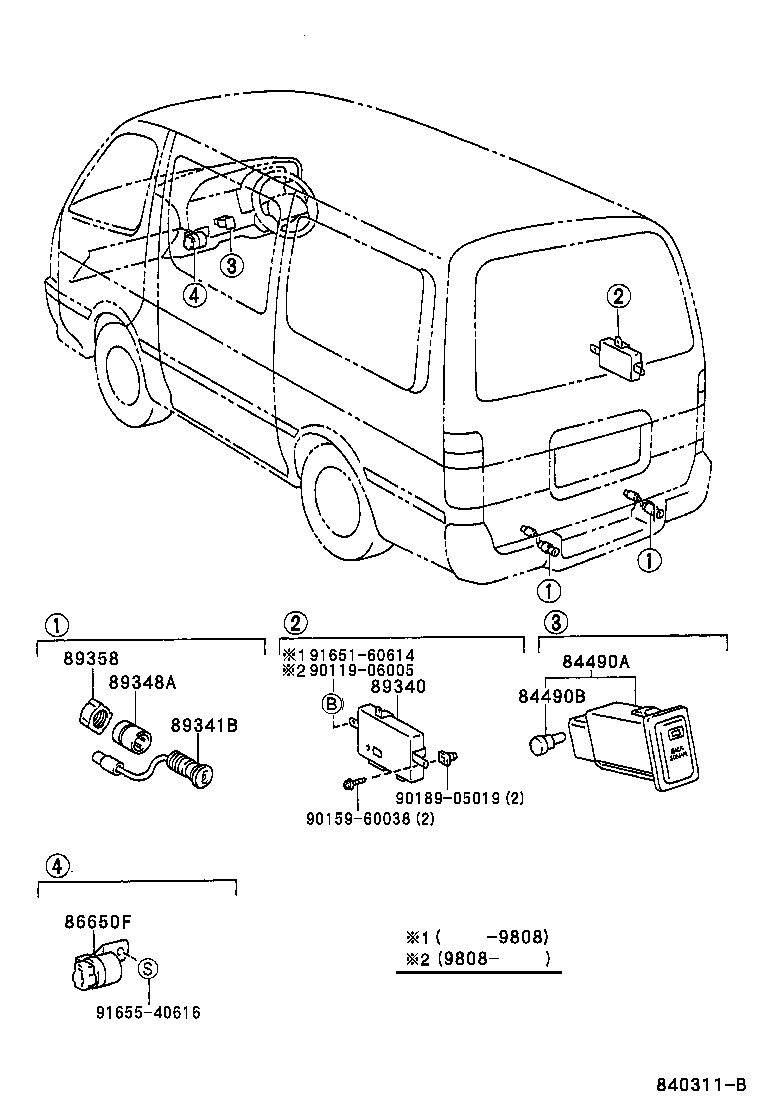

Click highlighted areas on diagram

ﾊﾞﾂｸｿﾅ-

diagram 84490A 84490B 86650F 89340 89341B 89348A 89358 9011906005 9015960038 9018905019 9165160614 9165540616
Part # Description Qty Price
84490A - SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
84490-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 1
84490B - BULB(FOR BACK SONAR SWITCH)
84999-10320

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

14V 0.84W

 1
89340 - COMPUTER ASSY, REAR CLEARANCE WARNING
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89341B - SENSOR, ULTRASONIC, NO.2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89348A - RETAINER, ULTRASONIC SENSOR, NO.2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89358 - NUT, ULTRASONIC SENSOR
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
Common parts
90119-06005
90159-60038
90189-05019
91651-60614
91655-40616

(8908-9907)LH100,102,107,109,110,115,117,120,125,140,RZH100,101,110,122

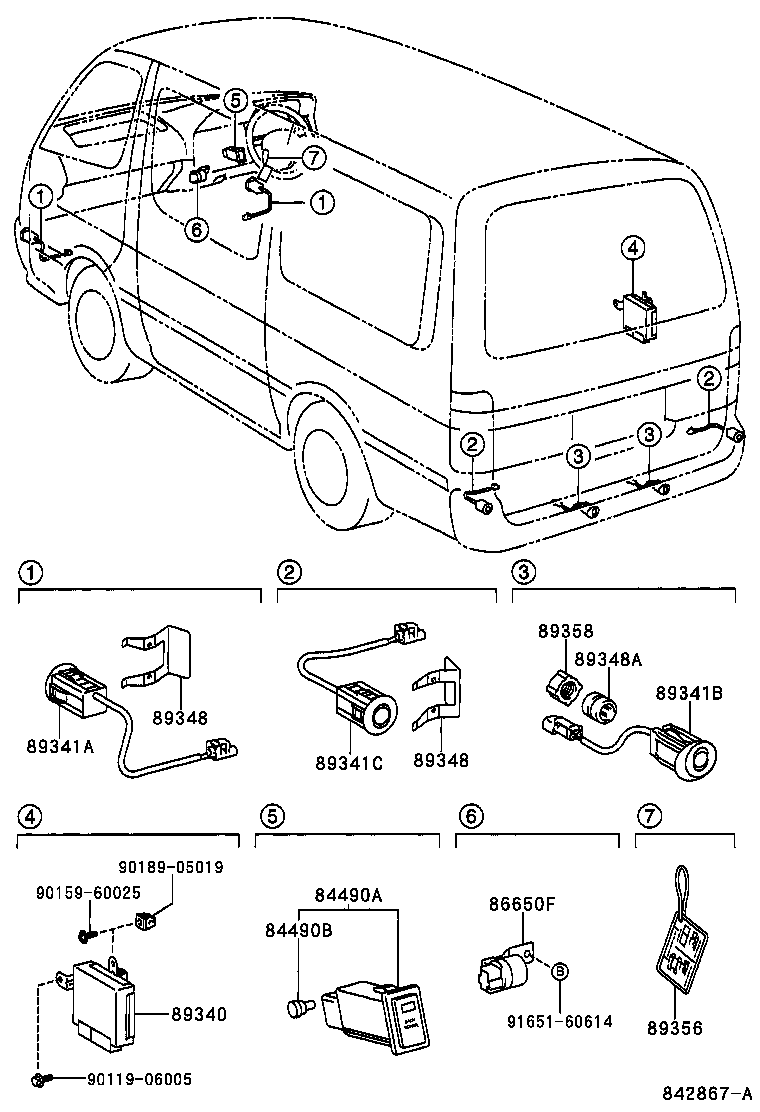

Click highlighted areas on diagram

ｸﾘｱﾗﾝｽｿﾅ-

diagram 83160 83160B 86650F 89340 89341A 89341B 89341C 89348 89348 89348A 89356 89358 9015960025 9018905019 9165540616 9338516012
Part # Description Qty Price
89340 - COMPUTER ASSY, REAR CLEARANCE WARNING
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89341B - SENSOR, ULTRASONIC, NO.2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89348A - RETAINER, ULTRASONIC SENSOR, NO.2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89358 - NUT, ULTRASONIC SENSOR
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
Common parts
90159-60025
90189-05019
91655-40616
93385-16012

(8908-9907)LH113..V1..SRF..4D..SG ; (8908-9907)LH113..V2..SRF..5D..4FC ; (8908-9907

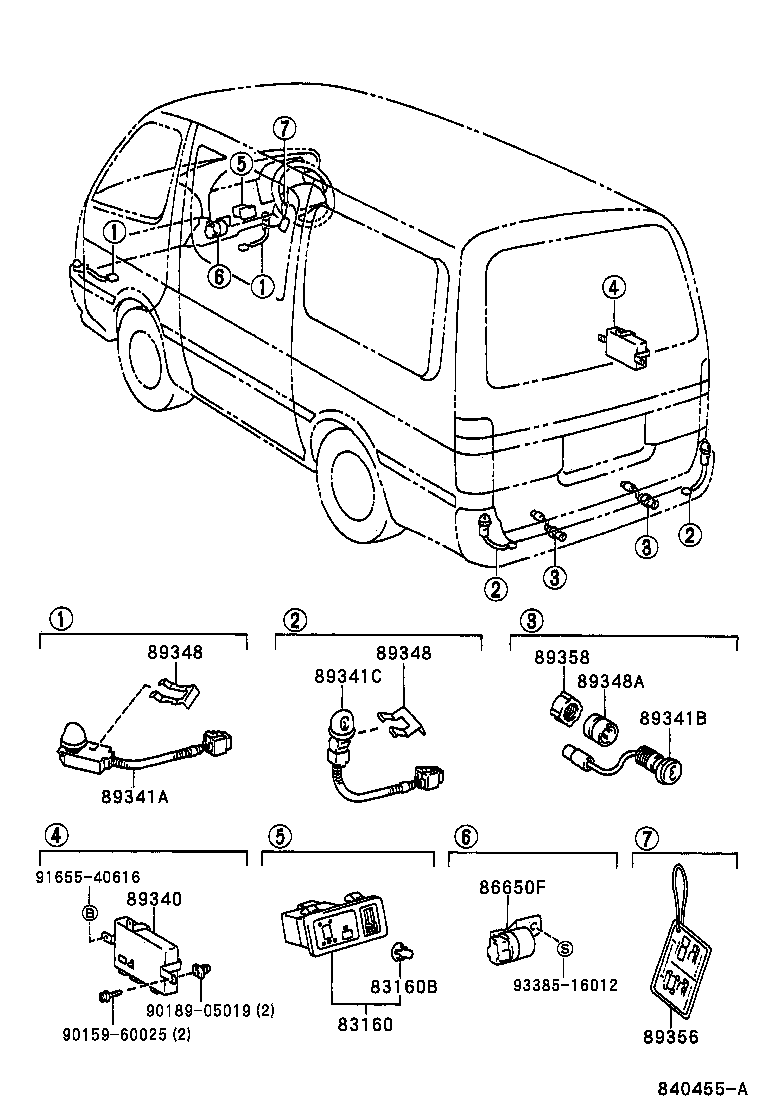

Click highlighted areas on diagram

ｸﾘｱﾗﾝｽｿﾅ-

diagram 83160 83160B 86650F 89340 89341A 89341B 89341C 89348 89348 89348A 89356 89358 9015960025 9018905019 9165540616 9338516012
Part # Description Qty Price
89340 - COMPUTER ASSY, REAR CLEARANCE WARNING
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89341B - SENSOR, ULTRASONIC, NO.2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89348A - RETAINER, ULTRASONIC SENSOR, NO.2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89358 - NUT, ULTRASONIC SENSOR
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
Common parts
90159-60025
90189-05019
91655-40616
93385-16012

(8908-9907)LH123..06S ; (8908-9907)LH113..SP..5F; (8908-9907)LH119..GL,SGL ; (8908

Click highlighted areas on diagram

ｸﾘｱﾗﾝｽｿﾅ-

diagram 83160 83160B 86650F 89340 89341A 89341B 89341C 89348 89348 89348A 89356 89358 9015960025 9018905019 9165540616 9338516012
Part # Description Qty Price
89340 - COMPUTER ASSY, REAR CLEARANCE WARNING
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89341B - SENSOR, ULTRASONIC, NO.2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89348A - RETAINER, ULTRASONIC SENSOR, NO.2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89358 - NUT, ULTRASONIC SENSOR
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
Common parts
90159-60025
90189-05019
91655-40616
93385-16012

(9907- )

Click highlighted areas on diagram

diagram 84490A 84490B 86650F 89340 89341A 89341B 89341C 89348 89348 89348A 89356 89358 9011906005 9015960025 9018905019 9165160614
Part # Description Qty Price
84490A - SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
84490-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 1
84490B - BULB(FOR BACK SONAR SWITCH)
84999-10320

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

14V 0.84W

 1
89340 - COMPUTER ASSY, REAR CLEARANCE WARNING
89340-26050

LH110,117,125..DX;LH102,109,113,119,RZH102,112..4D..(GL,SGL)

 1
89341B - SENSOR, ULTRASONIC, NO.2
89341-95J0308

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

WHITE

 2
89341-95J0301

LH110,117,125..DX

BLACK,045 ,541

 2
89348A - RETAINER, ULTRASONIC SENSOR, NO.2
89348-95J01

LH110,117,125..DX;LH102,109,113,119,RZH102,112..GL,SGL

 2
89358 - NUT, ULTRASONIC SENSOR
89358-95J00

LH110,120,125..DX;LH10#,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL

 2
Common parts
90119-06005
90159-60025
90189-05019
91651-60614
