RZH124B-ZRMDS (1989)
Toyota Hiace/Regiusace

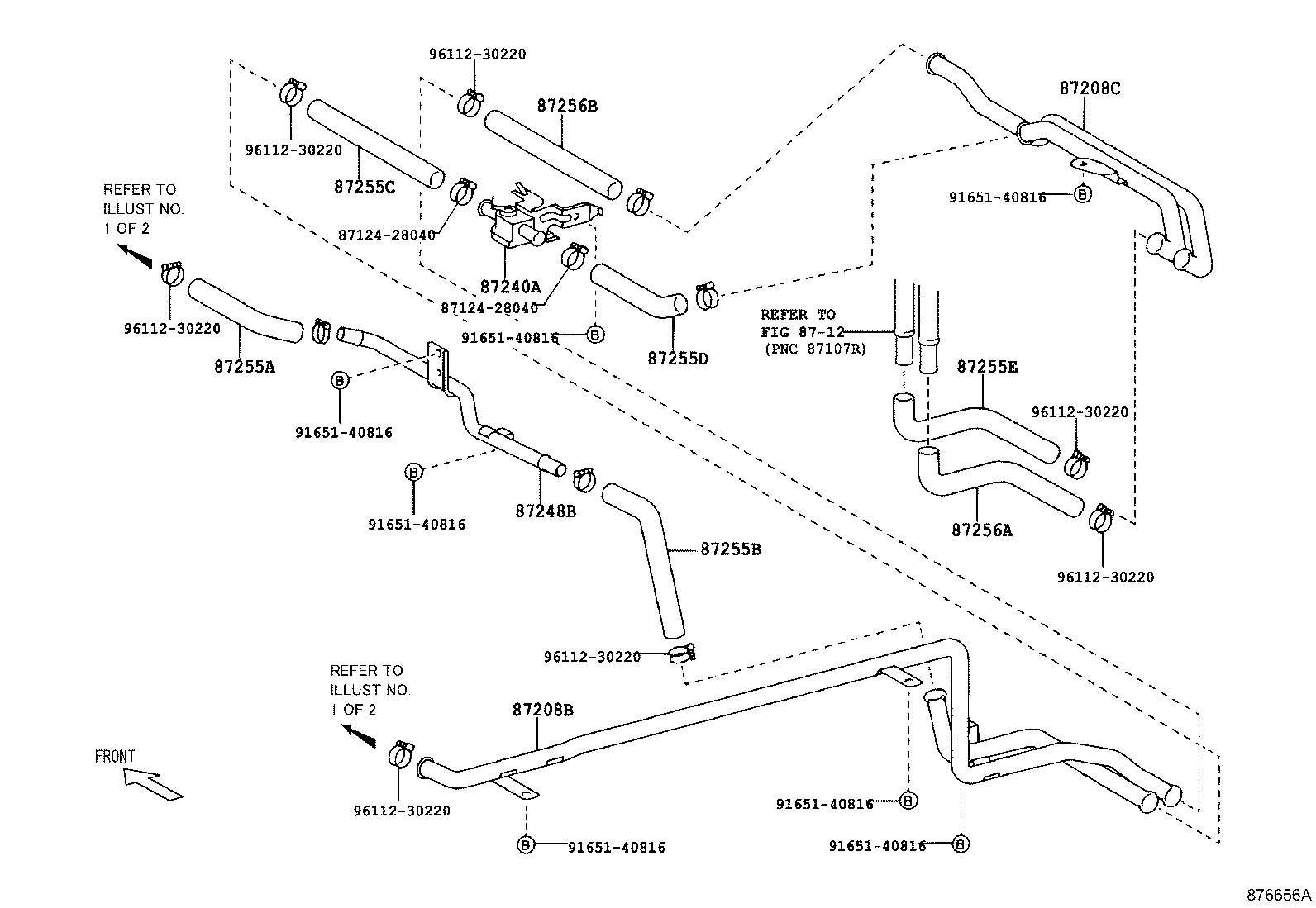

ILLUST NO. 2 OF 2(8911- )LH12#,RZH12#
ﾘﾔ-ﾌﾛｱ ﾊﾞﾂﾃﾘ ｺｳﾎｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-95J55 |
RZH102,112..850K;RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 87208-26010 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87208-95J55 |
RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-95J74 |
LH125,RZH124 |
1 | ||
| C8709-95B01 |
LH120,RZH12# ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8709-95B01 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87208-95J74 |
LH123..4FC;LH125,RZH124 |
1 | ||
| 87208-95J71 |
LH123,125,129,RZH12# ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J10 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 87240-94351 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-95J61 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM |
1 | ||
| 87208-95J60 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=180 |
1 | ||
| 99556-20200 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=180 |
1 | ||
| 99556-20200 |
LH10#,11#,12#,140..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=140 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20260 |
RZH12#..06S,15S *H,L=260,NO.1 |
1 | ||
| 99556-20300 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20165 |
RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX *H,L=165 |
1 | ||
| 99556-20165 |
RZH12#..06S,15S *H,L=165 |
1 | ||
| 99556-20300 |
RZH12#..06S,15S *H,L=240,NO.2 |
1 | ||
| 99556-20300 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20200 |
LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S *H,L=130 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20260 |
RZH12#..06S,15S *H,L=260,NO.1 |
1 | ||
| 99556-20300 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20165 |
RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX *H,L=165 |
1 | ||
| 99556-20165 |
RZH12#..06S,15S *H,L=165 |
1 | ||
| 99556-20300 |
RZH12#..06S,15S *H,L=240,NO.2 |
1 | ||
| 99556-20300 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20200 |
LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S *H,L=130 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| C8725-95B02 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8725-95B02 |
RZH12#..06S,15S |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) 長さ=200 |
1 | ||
| C8725-95B02 |
LH120,RZH12# |
1 | ||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) 長さ=200 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) *H,L=140 |
1 | ||
| 99556-20100 |
LH120,RZH12# *H,L=90 |
1 | ||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=140 |
1 | ||
| 99556-20100 |
RZH12#..06S,15S *H,L=90,ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-95J57 |
LH125,RZH124 ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J63 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J63 |
LH10#,110,113,117,119,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J57 |
LH125,RZH12#..06S,15S ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J57 |
LH123..4FC;LH125,RZH12# ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-95J64 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J64 |
LH10#,110,113,117,119,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=190 |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) *H,L=190 |
1 | ||
| 99556-20260 |
RZH12#..06S,15S *H,L=260 |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 90339-13004 | ||||
| 90339-13009 | ||||
| 90467-19022 | ||||
| 91651-40816 | ||||
| 96112-30220 | ||||
| Linked diagrams | ||||
| 8712 | ||||

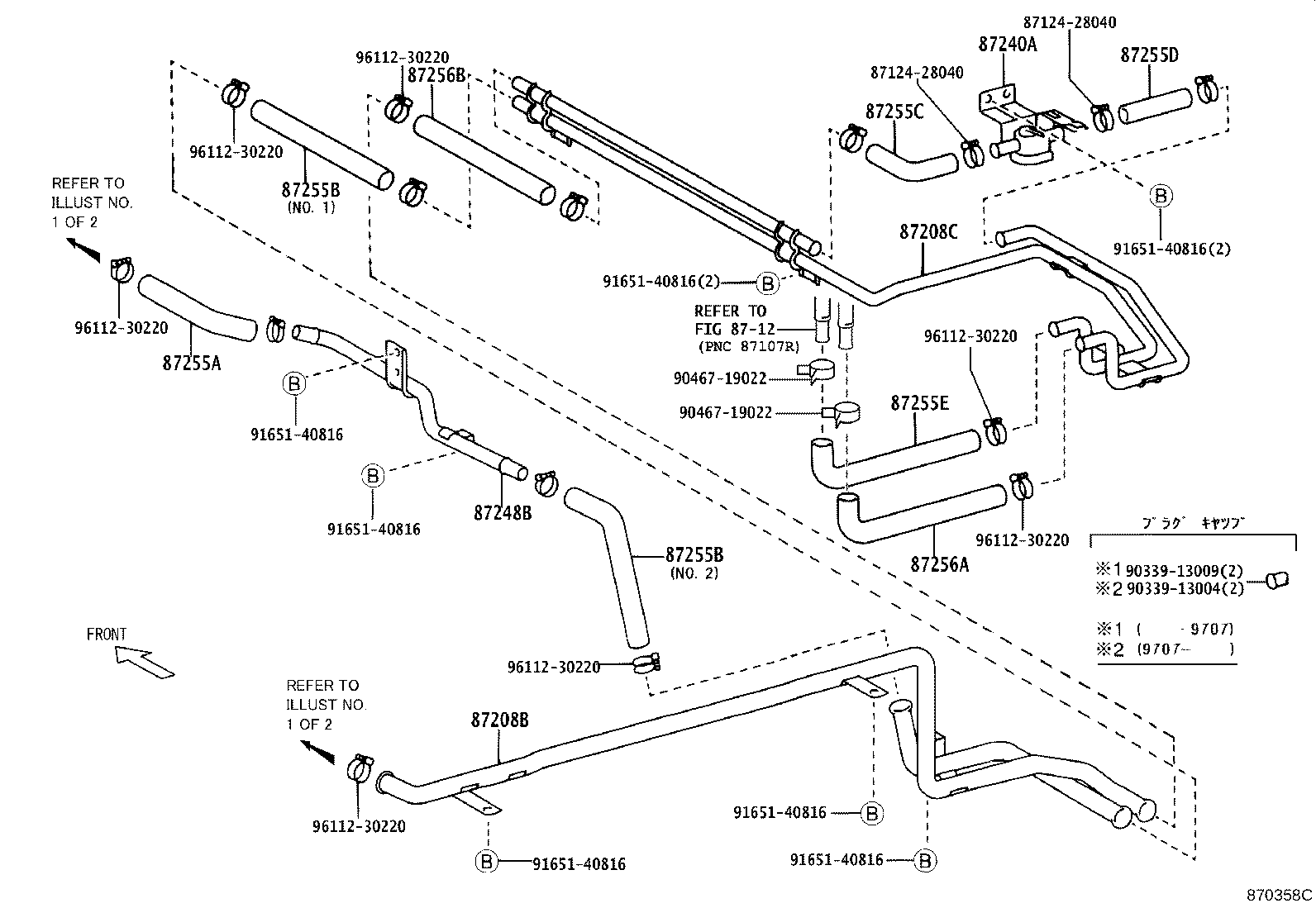

ILLUST NO. 2 OF 2(8908-9808)KZH11#,13#,RZH102,112,12#,133 ; (8908- )KZH10#,RZH100,101,110,111
ﾘﾔ-ﾄﾘﾑ(1)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-95J55 |
RZH102,112..850K;RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 87208-26010 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87208-95J55 |
RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-95J74 |
LH125,RZH124 |
1 | ||
| C8709-95B01 |
LH120,RZH12# ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8709-95B01 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87208-95J74 |
LH123..4FC;LH125,RZH124 |
1 | ||
| 87208-95J71 |
LH123,125,129,RZH12# ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J10 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 87240-94351 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-95J61 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM |
1 | ||
| 87208-95J60 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=180 |
1 | ||
| 99556-20200 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=180 |
1 | ||
| 99556-20200 |
LH10#,11#,12#,140..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=140 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20260 |
RZH12#..06S,15S *H,L=260,NO.1 |
1 | ||
| 99556-20300 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20165 |
RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX *H,L=165 |
1 | ||
| 99556-20165 |
RZH12#..06S,15S *H,L=165 |
1 | ||
| 99556-20300 |
RZH12#..06S,15S *H,L=240,NO.2 |
1 | ||
| 99556-20300 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20200 |
LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S *H,L=130 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| C8725-95B02 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8725-95B02 |
RZH12#..06S,15S |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) 長さ=200 |
1 | ||
| C8725-95B02 |
LH120,RZH12# |
1 | ||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) 長さ=200 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| C8725-95B02 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8725-95B02 |
RZH12#..06S,15S |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) 長さ=200 |
1 | ||
| C8725-95B02 |
LH120,RZH12# |
1 | ||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) 長さ=200 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) *H,L=140 |
1 | ||
| 99556-20100 |
LH120,RZH12# *H,L=90 |
1 | ||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=140 |
1 | ||
| 99556-20100 |
RZH12#..06S,15S *H,L=90,ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-95J57 |
LH125,RZH124 ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J63 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J63 |
LH10#,110,113,117,119,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J57 |
LH125,RZH12#..06S,15S ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J57 |
LH123..4FC;LH125,RZH12# ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-95J64 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J64 |
LH10#,110,113,117,119,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=190 |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) *H,L=190 |
1 | ||
| 99556-20260 |
RZH12#..06S,15S *H,L=260 |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 90339-13009 | ||||
| 90467-19022 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8712 | ||||
ILLUST NO. 1 OF 2(8908-9907)RZH10#,11#,12#,133
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95J08 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95J46 |
LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 87245-95J48 |
RZH10#,11#,12#,133 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30300 |
RZH10#,11#,12# *H,L=220 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-95J50 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95J49 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95J05 |
LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95J47 |
LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 99556-30300 |
RZH10#,11#,12# 長さ=300 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-95J52 |
RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 87208-95J51 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 87208-95J51 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-95J52 |
RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 87208-95J51 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 87208-95J51 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-95J44 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 87208-95J44 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 87208-95J45 |
RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-95J44 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 87208-95J44 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 87208-95J45 |
RZH100,102,11#,12#..HRF,SRF |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-20200 |
LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S *H,L=180 |
1 | ||
| 99556-20200 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=140 |
1 | ||
| 99556-20200 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=140 |
1 | ||
| Common parts | ||||
| 87124-28030 | ||||
| 87124-28040 | ||||
| 90460-24039 | ||||
| 90467-22008 | ||||
| 91651-40816 | ||||
| 96112-30250 | ||||
| 96134-42100 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8712 | ||||
ILLUST NO. 1 OF 2(8908- )LH10#,11#,12#,140,16#,17#,18#
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-95J49 |
LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-95J49 |
LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95J08 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95J46 |
LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 87245-95J48 |
RZH10#,11#,12#,133 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-95J50 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95J49 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95J05 |
LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95J47 |
LH10#,11#,12#,140,16#,17#,18# |
1 | ||
| 99556-30300 |
RZH10#,11#,12# 長さ=300 |
1 | ||
| Common parts | ||||
| 87124-28030 | ||||
| 90467-22008 | ||||
| 91651-40816 | ||||
| 96112-10250 | ||||
| 96134-42100 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8712 | ||||
ILLUST NO. 2 OF 2(8908-9808)LH10#,11#,12#,140
ﾘﾔ-ﾄﾘﾑ(1)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-95J55 |
RZH102,112..850K;RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 87208-26010 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87208-95J55 |
RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-95J74 |
LH125,RZH124 |
1 | ||
| C8709-95B01 |
LH120,RZH12# ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8709-95B01 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87208-95J74 |
LH123..4FC;LH125,RZH124 |
1 | ||
| 87208-95J71 |
LH123,125,129,RZH12# ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J10 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 87240-94351 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=180 |
1 | ||
| 99556-20200 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=180 |
1 | ||
| 99556-20200 |
LH10#,11#,12#,140..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=140 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20260 |
RZH12#..06S,15S *H,L=260,NO.1 |
1 | ||
| 99556-20300 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20165 |
RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX *H,L=165 |
1 | ||
| 99556-20165 |
RZH12#..06S,15S *H,L=165 |
1 | ||
| 99556-20300 |
RZH12#..06S,15S *H,L=240,NO.2 |
1 | ||
| 99556-20300 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20200 |
LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S *H,L=130 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| C8725-95B02 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8725-95B02 |
RZH12#..06S,15S |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) 長さ=200 |
1 | ||
| C8725-95B02 |
LH120,RZH12# |
1 | ||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) 長さ=200 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| C8725-95B02 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8725-95B02 |
RZH12#..06S,15S |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) 長さ=200 |
1 | ||
| C8725-95B02 |
LH120,RZH12# |
1 | ||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) 長さ=200 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) *H,L=140 |
1 | ||
| 99556-20100 |
LH120,RZH12# *H,L=90 |
1 | ||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=140 |
1 | ||
| 99556-20100 |
RZH12#..06S,15S *H,L=90,ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-95J57 |
LH125,RZH124 ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J63 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J63 |
LH10#,110,113,117,119,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J57 |
LH125,RZH12#..06S,15S ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J57 |
LH123..4FC;LH125,RZH12# ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-95J64 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J64 |
LH10#,110,113,117,119,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=190 |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) *H,L=190 |
1 | ||
| 99556-20260 |
RZH12#..06S,15S *H,L=260 |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=190 |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) *H,L=190 |
1 | ||
| 99556-20260 |
RZH12#..06S,15S *H,L=260 |
1 | ||
| 87256D - HOSE, REAR HEATER WATER OUTLET, D | ||||
| 99556-20170 |
LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S *H,L=170 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-20200 |
LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S *H,L=180 |
1 | ||
| 99556-20200 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=140 |
1 | ||
| 99556-20200 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=140 |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 90467-19022 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8712 | ||||
ILLUST NO. 2 OF 2(8908- )LH102,103,109,113,119,16#,17# ; (9808- )RZH102,112..5D ; (0012- )R
ﾘﾔ-ﾄﾘﾑ(2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-95J55 |
RZH102,112..850K;RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 87208-26010 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87208-95J55 |
RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-95J74 |
LH125,RZH124 |
1 | ||
| C8709-95B01 |
LH120,RZH12# ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8709-95B01 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87208-95J74 |
LH123..4FC;LH125,RZH124 |
1 | ||
| 87208-95J71 |
LH123,125,129,RZH12# ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-95J74 |
LH125,RZH124 |
1 | ||
| C8709-95B01 |
LH120,RZH12# ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8709-95B01 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87208-95J74 |
LH123..4FC;LH125,RZH124 |
1 | ||
| 87208-95J71 |
LH123,125,129,RZH12# ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J10 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 87240-94351 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-95J61 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM |
1 | ||
| 87208-95J60 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=180 |
1 | ||
| 99556-20200 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=180 |
1 | ||
| 99556-20200 |
LH10#,11#,12#,140..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=140 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20260 |
RZH12#..06S,15S *H,L=260,NO.1 |
1 | ||
| 99556-20300 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20165 |
RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX *H,L=165 |
1 | ||
| 99556-20165 |
RZH12#..06S,15S *H,L=165 |
1 | ||
| 99556-20300 |
RZH12#..06S,15S *H,L=240,NO.2 |
1 | ||
| 99556-20300 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20200 |
LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S *H,L=130 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20260 |
RZH12#..06S,15S *H,L=260,NO.1 |
1 | ||
| 99556-20300 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20165 |
RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX *H,L=165 |
1 | ||
| 99556-20165 |
RZH12#..06S,15S *H,L=165 |
1 | ||
| 99556-20300 |
RZH12#..06S,15S *H,L=240,NO.2 |
1 | ||
| 99556-20300 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20200 |
LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S *H,L=130 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| C8725-95B02 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8725-95B02 |
RZH12#..06S,15S |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) 長さ=200 |
1 | ||
| C8725-95B02 |
LH120,RZH12# |
1 | ||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) 長さ=200 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) *H,L=140 |
1 | ||
| 99556-20100 |
LH120,RZH12# *H,L=90 |
1 | ||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=140 |
1 | ||
| 99556-20100 |
RZH12#..06S,15S *H,L=90,ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-95J57 |
LH125,RZH124 ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J63 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J63 |
LH10#,110,113,117,119,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J57 |
LH125,RZH12#..06S,15S ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J57 |
LH123..4FC;LH125,RZH12# ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-95J64 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J64 |
LH10#,110,113,117,119,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=190 |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) *H,L=190 |
1 | ||
| 99556-20260 |
RZH12#..06S,15S *H,L=260 |
1 | ||
| Common parts | ||||
| 57362-95J01 | ||||
| 87128-95J01 | ||||
| 90159-60025 | ||||
| 90159-60191 | ||||
| 90179-08123 | ||||
| 90189-05163 | ||||
| 90467-19010 | ||||
| 90467-19022 | ||||
| 91651-40816 | ||||
| 93381-16012 | ||||
| Linked diagrams | ||||
| 8712 | ||||
ILLUST NO. 2 OF 2(8908-9808)RZH124,133
ﾘﾔ-ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-95J55 |
RZH102,112..850K;RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 87208-26010 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87208-95J55 |
RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87208-95J74 |
LH125,RZH124 |
1 | ||
| C8709-95B01 |
LH120,RZH12# ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8709-95B01 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87208-95J74 |
LH123..4FC;LH125,RZH124 |
1 | ||
| 87208-95J71 |
LH123,125,129,RZH12# ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J10 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 87240-94351 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-95J61 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM |
1 | ||
| 87208-95J60 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=180 |
1 | ||
| 99556-20200 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=180 |
1 | ||
| 99556-20200 |
LH10#,11#,12#,140..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=140 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20260 |
RZH12#..06S,15S *H,L=260,NO.1 |
1 | ||
| 99556-20300 |
RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20165 |
RZH122..06S;LH119,RZH124..05S,15S;LH113..V1..SRF..4D..06S..DX *H,L=165 |
1 | ||
| 99556-20165 |
RZH12#..06S,15S *H,L=165 |
1 | ||
| 99556-20300 |
RZH12#..06S,15S *H,L=240,NO.2 |
1 | ||
| 99556-20300 |
RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM *H,L=240 |
1 | ||
| 99556-20200 |
LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S *H,L=130 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| C8725-95B02 |
RZH12#..06S,15S ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| C8725-95B02 |
RZH12#..06S,15S |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) 長さ=200 |
1 | ||
| C8725-95B02 |
LH120,RZH12# |
1 | ||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) 長さ=200 |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) *H,L=140 |
1 | ||
| 99556-20100 |
LH120,RZH12# *H,L=90 |
1 | ||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=140 |
1 | ||
| 99556-20100 |
RZH12#..06S,15S *H,L=90,ｱﾘ(ﾊﾞﾂﾃﾘ=115F51) |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-95J57 |
LH125,RZH124 ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J63 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J63 |
LH10#,110,113,117,119,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J57 |
LH125,RZH12#..06S,15S ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J57 |
LH123..4FC;LH125,RZH12# ｱﾘ(ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-95J64 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87245-95J64 |
LH10#,110,113,117,119,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20200 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,10S,15S) *H,L=190 |
1 | ||
| 99556-20200 |
RZH102,112..850K;LH10#,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) *H,L=190 |
1 | ||
| 99556-20260 |
RZH12#..06S,15S *H,L=260 |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 91651-40816 | ||||
| 96112-30220 | ||||
| Linked diagrams | ||||
| 8712 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
