RZH112V-SRPNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

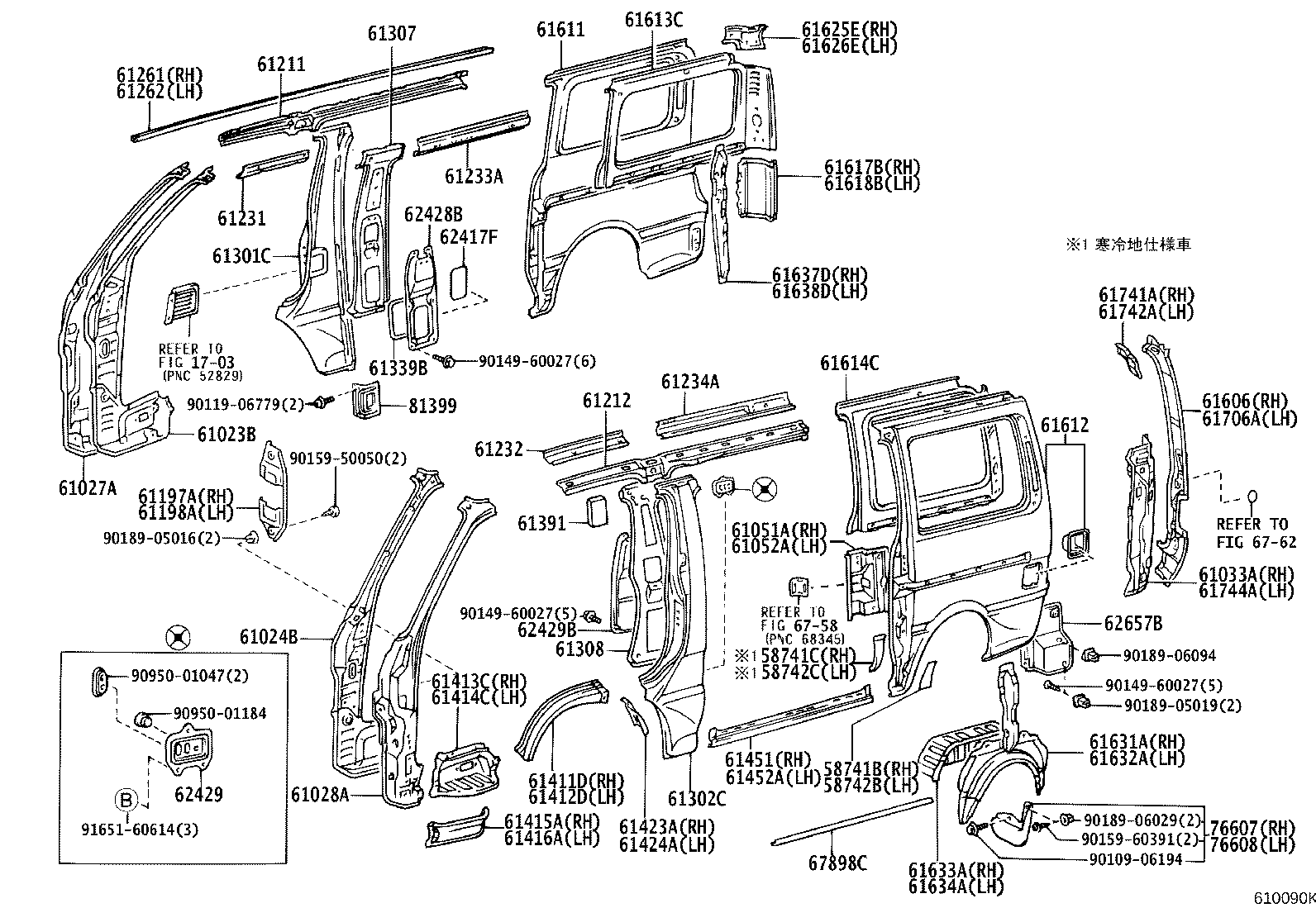

ILLUST NO. 1 OF 3(8908- )SRF..5D

Click highlighted areas on diagram

diagram 1703 58741B 58741C 58742B 58742C 61023B 61024B 61027A 61028A 61033A 61051A 61052A 61197A 61198A 61211 61212 61231 61232 61233A 61234A 61261 61262 61301C 61302C 61307 61308 61339B 61391 61411D 61412D 61413C 61414C 61415A 61416A 61423A 61424A 61451 61452A 61606 61611 61612 61613C 61614C 61617B 61618B 61625E 61626E 61631A 61632A 61633A 61634A 61637D 61638D 61706A 61741A 61742A 61744A 62417F 62428B 62429 62429B 62657B 6758 6762 67898C 76607 76608 81399 9010906194 9011906779 9014960027 9014960027 9014960027 9015950050 9015960391 9018905016 9018905019 9018906029 9018906094 9095001047 9095001184 9165160614
Part # Description Qty Price
58741B - PROTECTOR, QUARTER PANEL, RH
58741-95J02

LH120..TDE;LH11#,RZH11#..SRF

ｶﾝﾚｲﾁ ｼﾖｳ

 1
58741C - PROTECTOR, QUARTER PANEL, RH
58741-95J04

LH113,119,17#,RZH112..5D

 1
58742B - PROTECTOR, QUARTER PANEL, LH
58742-95J02

LH120..TDE;LH11#,RZH11#..SRF

ｶﾝﾚｲﾁ ｼﾖｳ

 1
58742C - PROTECTOR, QUARTER PANEL, LH
58742-95J04

LH110..SW;KZH11#,LH113,115,117,119,17#,RZH11#

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-95J15

KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#,133..HRF,SRF

 1
61023-95J13

LH102,103,109,113,119,RZH102,112..GL,SGL

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-95J11

KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#,133..HRF,SRF

 1
61024-95J09

LH102,103,109,113,119,RZH102,112..GL,SGL

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-95J08

RZH112..CD,GL;LH100,110,117,RZH100,110..DX;LH102,109,113,119,125,RZH102..GL,SGL

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-95J12

LH100,110,117,RZH100,110..DX;LH102,109,113,119,125,RZH102,112..GL

 1
61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61033-95J03

LH102,109,113,119,RZH102,112..SRF..SG;LH100,107,110,140,RZH100,101..CTM,SCL,SCM,SCMM,SW

 1
61051A - PANEL SUB-ASSY, QUARTER LOCK, INNER RH
61615-95J09

LH102,103,109,113,119,16#,17#,RZH102,112..5D

 1
61052A - PANEL SUB-ASSY, QUARTER LOCK, INNER LH
61616-95J03

LH113..V2..CD;LH102,109,113,119,RZH102,112..V1..(CD,GL,SGL);LH100,110,113,119,123,RZH100,101,11#,122..(09S,10S)..(CTM,DX)

 1
61197A - COVER, FRONT PILLAR, RH
61197-95J0008

LH102,109,113,119,RZH102,112..GL

IVORY,045 ,28M

 1
61197-95J0003

LH100,RZH100..DX;LH102,109,113,119,RZH102,112..GL

GRAY,8E2

 1
61197-95J00C0

LH102,109,113,119,RZH102,112..GL

BLACK,045 ,28M ,8E2

 1
61198A - COVER, FRONT PILLAR, LH
61198-95J0003

LH100,RZH100..DX;LH102,109,113,119,RZH102,112..GL

GRAY,8E2

 1
61198-95J0008

LH102,109,113,119,RZH102,112..GL

IVORY,045 ,28M

 1
61198-95J00C0

LH102,109,113,119,RZH102,112..GL

BLACK,045 ,28M ,8E2

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61201-95J00

LH102,103,109,113,119,RZH102,112..5D

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61202-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-95J06

LH110;LH10#,113,119,RZH10#,112..(SMRF,SRF)..(CTM,GL,SCM,SCMM,SGL)

ｱﾘ(ﾙ-ﾌ ﾂﾘﾃﾝｼﾞﾖｳ)

 1
61231-95J05

KZH100,11#,LH100,102,103,109,11#,123,129,140,16#,17#,182,188,RZH100,102,11#,122..CD,DX,GL,SW

 1
61231-95J06

LH113..5D..GL;LH113..09S..GL;LH110,113,117..(V1,WG)..SRF..4D..(05S,06S,10S);LH10#,119,RZH10#,112..(SMRF,SRF)..(CTM,GL,SCM,SCMM,SGL)

ｱﾘ(ﾙ-ﾌ ﾂﾘﾃﾝｼﾞﾖｳ)

 1
61231-95J06

LH10#,113,119,RZH10#,112..(SMRF,SRF)..(CTM,GL,SCM,SCMM,SGL)

ｱﾘ(ﾙ-ﾌ ﾂﾘﾃﾝｼﾞﾖｳ)

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-95J05

LH110;LH10#,113,119,RZH10#,112..(SMRF,SRF)..(CTM,GL,SCM,SCMM,SGL)

ｱﾘ(ﾙ-ﾌ ﾂﾘﾃﾝｼﾞﾖｳ)

 1
61232-95J05

LH10#,113,119,RZH10#,112..(SMRF,SRF)..(CTM,GL,SCM,SCMM,SGL)

ｱﾘ(ﾙ-ﾌ ﾂﾘﾃﾝｼﾞﾖｳ)

 1
61232-95J05

LH113..5D..GL;LH113..09S..GL;LH110,113,117..(V1,WG)..SRF..4D..(05S,06S,10S);LH10#,119,RZH10#,112..(SMRF,SRF)..(CTM,GL,SCM,SCMM,SGL)

ｱﾘ(ﾙ-ﾌ ﾂﾘﾃﾝｼﾞﾖｳ)

 1
61232-95J06

KZH100,11#,LH100,102,103,109,11#,123,129,140,16#,17#,182,188,RZH100,102,11#,122..CD,DX,GL,SW

 1
61233A - RAIL, ROOF SIDE, INNER NO.2 RH
61233-95J06

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
61234A - RAIL, ROOF SIDE, INNER NO.2 LH
61234-95J15

KZH11#,LH102,103,109,11#,123,129,16#,17#,182,188,RZH102,11#,122..06S,10S,15S

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-95J04

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-95J04

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61301C - PILLAR SUB-ASSY, CENTER BODY, OUTER RH
61301-95J19

LH102,109,113,119,RZH102,112..5D..GL

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
61301-95J21

LH102,109,113,119,RZH102,112..5D..GL

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480B))

 1
61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH
61302-95J27

LH100,102,109,113,119,125,RZH10#,112..CTM,GL

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
61302-95J29

LH110,117..DX;LH100,102,109,113,119,125,RZH100,102,112..CTM,GL

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ & ｽﾗｲﾄﾞﾄﾞｱ ﾌﾛﾝﾄﾌﾂｸ,(PNC=69480D))

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-95J42

LH102,103,109,113,119,RZH102,112..5D..GL

 1
61307-95J38

LH102,103,109,113,119,RZH102,112..5D..GL

ｱﾘ(ﾑ-ﾝﾙ-ﾌ)

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61308-95J54

LH102,103,109,113,119,RZH102,112..GL

ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙ ｼｰﾄﾍﾞﾙﾄ ｱﾝｶ & ﾑ-ﾝﾙ-ﾌ & ｾﾊﾟﾚ-ﾀ ﾊﾞ-)

 1
61308-95J67

LH125..GL;KZH11#,12#,LH120

ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙ ｼｰﾄﾍﾞﾙﾄ ｱﾝｶ & ﾙ-ﾌ ﾂﾘﾃﾝｼﾞﾖｳ)

 1
61308-95J58

LH102,103,109,113,119,RZH102,112..GL

ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙ ｼｰﾄﾍﾞﾙﾄ ｱﾝｶ & ｾﾊﾟﾚ-ﾀ ﾊﾞ-)

 1
61339B - SEAL, CENTER BODY PILLAR, INNER NO.1
61339-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61391 - SPACER, CENTER BODY PILLAR, INNER
61391-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61411D - PANEL, FENDER, OUTER RH
61411-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61412D - PANEL, FENDER, OUTER LH
61412-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH
61413-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH
61414-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61415A - PANEL, FRONT STEP, UNDER, RH
61415-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61416A - PANEL, FRONT STEP UNDER, LH
61416-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61423A - PANEL, FENDER, INNER LOWER RH
61423-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61424A - PANEL, FENDER, INNER LOWER LH
61424-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61451 - PANEL, ROCKER, OUTER RH
61451-95J00

LH102,103,109,113,119,16#,17#,RZH102,112..5D

 1
61452A - PANEL, ROCKER OUTER, LH
61451-95J00

LH102,103,109,113,119,16#,17#,RZH102,112..5D

 1
61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
61705-95J06

LH102,109,110,113,117,119,RZH102,112..SRF;LH100,107,140,RZH100,101..CTM,SCL,SCM,SCMM,SW

 1
61611 - PANEL, QUARTER, RH
61601-95N24

LH113,119,RZH112..V1..5D..06S

 1
61601-95N51

LH113,119,RZH112..V1..5D..06S

 1
61612 - PANEL, QUARTER, LH
61602-95P19

LH110..SW;LH113,119,RZH112..V1..SRF..(05S,06S)

 1
61602-26240

LH113,119,RZH112..V1..SRF..(05S,06S)

 1
61613C - PANEL SUB-ASSY, QUARTER, INNER REAR RH
61607-95J67

LH113,119,RZH112..SRF..5D..06S

 1
61607-95J66

LH113,119,RZH112..SRF..5D..06S

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ & ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
61614C - PANEL SUB-ASSY, QUARTER, INNER REAR LH
61608-95J65

LH113,119,RZH112..SRF..5D..06S

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ & ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ)

 1
61608-95J66

LH113,119,RZH112..SRF..06S

 1
61617B - PANEL, QUARTER INNER, LOWER RH
61617-95J00

LH125..DX;LH10#,11#,120,123,129,140,RZH10#,11#,12#..CD,DX,GL,SCM,SCMM,SW

 1
61617-95J00

LH125..DX;LH10#,11#,123,129,140,RZH10#,11#,12#..CD,DX,GL,SCM,SCMM,SW

 1
61618B - PANEL, QUARTER, INNER LOWER LH
61618-95J00

LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

 1
61625E - EXTENSION, QUARTER PANEL, INNER REAR RH
61625-95J04

LH100,102,109,11#,140,RZH100,102,11#..SRF..(CD,DX,GL,SW)

 1
61626E - EXTENSION, QUARTER PANEL, INNER REAR LH
61626-95J03

LH100,102,109,110,113,117,119,140,RZH100,102,11#..SRF..(CD,DX,GL,SW)

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61605-95J03

LH10#,113,115,119,12#,140,RZH10#,112,12#..(COM,V1,WG)..SG

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61606-95J03

KZH10#,11#,LH140;KZH12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..SG..(CD,CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL)

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61633-95J05

LH10#,129,140,RZH10#..(V1,WG)..(03S,05S,06S,07S,08S);LH110,113,119,123,RZH112,122..(V1,WG)..(03S,05S,06S,08S,09S)

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61633-95J05

LH10#,129,140,RZH10#..(V1,WG)..(03S,05S,06S,07S,08S);LH110,113,119,123,RZH112,122..(V1,WG)..(03S,05S,06S,08S,09S)

 1
61637D - REINFORCEMENT, QUARTER, INNER RH
61637-95J00

LH10#,11#,123,125,129,140,RZH10#,11#,12#

 1
61638D - REINFORCEMENT, QUARTER, INNER LH
61638-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61706-95J06

LH102,109,110,113,117,119,RZH102,112..SRF;LH100,107,140,RZH100,101..CTM,SCL,SCM,SCMM,SW

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH
61741-95J01

KZH10#,11#,LH10#,11#,140,16#,17#,RZH10#,11#..MRF,SMRF,SRF

 1
61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH
61742-95J01

KZH10#,11#,LH10#,11#,140,16#,17#,RZH10#,11#..MRF,SMRF,SRF

 1
61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH
61034-95J01

LH102,109,113,119,RZH102,112..SRF..SG;LH100,107,110,140,RZH100,101..CTM,SCL,SCM,SCMM,SW

ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
62428B - COVER, CENTER PILLAR, RH
62428-95J00

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GCGE,GCGN,GL,SGL,SW

 1
62429 - COVER, CENTER PILLAR SERVICE HOLE
62429-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
62429B - COVER, CENTER PILLAR SERVICE HOLE
62429-95J00

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GCGE,GCGN,GL,SGL,SW

 1
62657B - COVER, QUARTER PANEL INNER, LH
62657-95J01

LH125..DX;LH100,102,109,11#,123,129,140,RZH100,102,11#,12#..CD,DX,GL,SW

 1
67898C - SEAL, SLIDE DOOR, LOWER NO.2
67898-95J00

LH102,103,109,113,119,16#,17#,RZH102,112..5D

 2
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-29245

LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

塗装不要

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-29245

LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

塗装不要

 1
81399 - BRACKET, STEP LAMP
81399-95J01

LH102,103,109,113,119,16#,17#,RZH102,112..V1..5D

 1
Common parts
90109-06194
90119-06779
90149-60027
90159-50050
90159-60391
90189-05016
90189-05019
90189-06029
90189-06094
90950-01047
90950-01184
91651-60614
Linked diagrams
1703
6758
6762

ILLUST NO. 2 OF 3(8908- )

Click highlighted areas on diagram

diagram 5554 6155 67813A 8202 9003480031 9003480031 9003480031 9003480031 9003480031 9003480031 9003480031 9011908821 9018306020 9033301009 9033320001 9033320001 9033320001 9033320001 9095001027 9095001065 9095001065 9095001112 9095001181 9095001326 9095001326 9095001326 9095001421 9095001421 9095001660 9095001660 9095001759 9095001759 9095001759 9095001849 9095001849 9095001849 9095001901 9095006013 9095006017
Part # Description Qty Price
Common parts
90034-80031
90119-08821
90183-06020
90333-01009
90333-20001
90950-01027
90950-01065
90950-01112
90950-01181
90950-01326
90950-01421
90950-01660
90950-01759
90950-01849
90950-01901
90950-06013
90950-06017
Linked diagrams
5554
6155
8202

ILLUST NO. 3 OF 3(8908- )

Click highlighted areas on diagram

diagram 62429 8889895J21 8889895J24 9009932138 9095001047 9095001184
Part # Description Qty Price
62429 - COVER, CENTER PILLAR SERVICE HOLE
62429-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
Common parts
88898-95J21
88898-95J24
90099-32138
90950-01047
90950-01184
