RZH112V-SRPNS (1989)
Toyota Hiace/Regiusace
(9010- )KZH10#,11#,120,13#,LH100,120..4FC
A340E,A340F

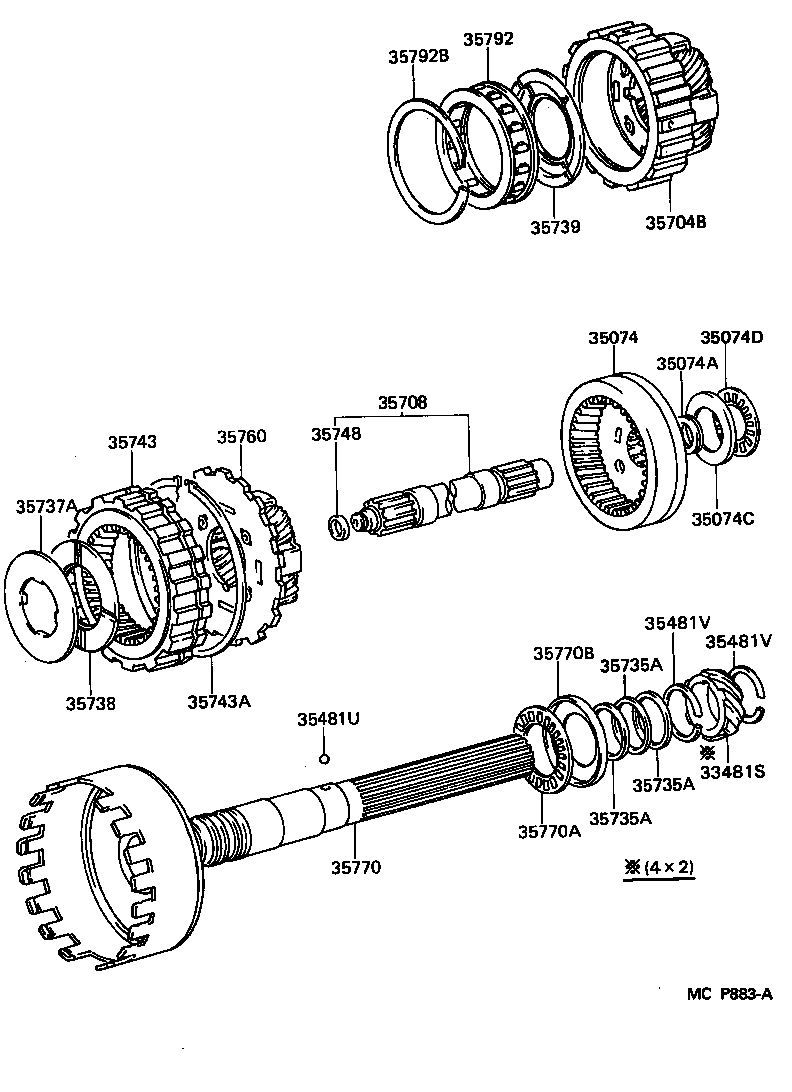

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-25021 |
RZH100..(07S,08S)..4FC;LH100,113,123,RZH101,102,112..4FC..(CBR,DSL,EFI,TD) 歯数=5,ﾏｰｸ 5X17−19,ｱﾘ(205/70R14 ﾀｲﾔ) |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-06004 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
LH102,103,113,123,162,172,182,184,RZH102,112,124..4FC 厚さ=1.50,外径=33.8 |
2 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
LH102,103,113,119,123,129,162,17#,18#,RZH102,112,124..4FC |
3 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-22010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-30030 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-30040 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-30030 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-79148 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
(8908- )LH102,103,107,113,119,123,129,162,17#,18#,RZH102,112,124,183..4FC
A45DL,A45DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-25021 |
RZH100..(07S,08S)..4FC;LH100,113,123,RZH101,102,112..4FC..(CBR,DSL,EFI,TD) 歯数=5,ﾏｰｸ 5X17−19,ｱﾘ(205/70R14 ﾀｲﾔ) |
1 | ||
| 35074 - GEAR SUB-ASSY, REAR PLANETARY RING | ||||
| 35074-30030 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35074A - RING, SET (FOR REAR PLANETARY RING GEAR) | ||||
| 90522-20037 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR | ||||
| 35789-22020 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-28014 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-06004 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,133..4FC |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
LH102,103,113,123,162,172,182,184,RZH102,112,124..4FC 厚さ=1.50,外径=33.8 |
2 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
LH102,103,113,123,162,172,182,184,RZH102,112,124..4FC 厚さ=1.50,外径=33.8 |
2 | ||
| 35704B - GEAR SUB-ASSY, FRONT PLANETARY | ||||
| 35704-30040 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35708 - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-30041 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
LH102,103,113,119,123,129,162,17#,18#,RZH102,112,124..4FC |
3 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
LH102,103,113,119,123,129,162,17#,18#,RZH102,112,124..4FC |
3 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
LH102,103,113,119,123,129,162,17#,18#,RZH102,112,124..4FC |
3 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-22010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-30030 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-30020 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-30010 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90520-99121 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL | ||||
| 35748-30010 |
LH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-30040 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35770 - SHAFT ASSY, OUTPUT | ||||
| 35770-30010 |
LH102,103,113,123,162,172,182,184,RZH102,112,124..4FC |
1 | ||
| 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) | ||||
| 90374-38013 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-22040 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-30030 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-79148 |
LH100,102,103,107,113,119,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
