RZH112V-SRPNS (1989)
Toyota Hiace/Regiusace
(8908-9308)1RZ..RZH102,112 ; (8908-9308)1RZ#..RZH100,110,12#..5F
12V 55A,70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75010 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC 12V 70A |
1 | ||
| 27060-75011 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10282 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 12V 70A |
1 | ||
| 27039-42010 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC 12V 70A |
1 | ||
| 27039-42010 |
3L..LH113..5D..GL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..(DX,GL,SGL);2L,3L..LH102,109,119,140..GL,SGL,SW;2L,2LT#,3L,2RZE..LH100,107,110,115,117,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 12V 70A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72210 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27310-75011 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10160 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-42010 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1RZ..RZH102,112;1RZE..RZH112..09S;1RZE..RZH102,112..4FC;1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,12#,133 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52106 |
1RZ..RZH102,112..GL;1RZ#,2RZE..RZH100,101,11#,122..(07S,08S,09S,10S)..(CTM,DX,SCL,SCM,SCMM) |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-74050 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27357-62040 |
3L..LH113..09S..DX;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L,3L..LH102,109,113,119..5F..(GL,SGL);2L,3L,2RZE..LH100,110,115,119,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 12V 70A |
1 | ||
| 27357-62040 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27357-62040 |
3L..LH113..5D..5F..GL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L,2RZE..LH100,110,115,119,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-75010 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-42010 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 27387-42020 |
3L..LH113..5D..5F..GL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L,2RZE..LH100,110,115,119,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 12V 70A |
1 | ||
| 27387-42020 |
3L..LH113..5D..GL;2L,3L..LH102,109,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..(DX,GL,SGL);2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 12V 70A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-74070 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27411-74070 |
1RZ..RZH12#..06S,15S;1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC ｵﾙﾀﾈｰﾀ 12V 100A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-70030 |
1RZ#,2RZE..RZH10#,11#,12# |
1 | ||
| 27700-66020 |
1RZ..RZH102,112..GL;1RZ..RZH112..09S..DX;1RZ#,2RZE..RZH100,101,110,12# 12V 70A |
1 | ||
| Common parts | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-08875 | ||||
| 90179-06158 | ||||
| 90179-10088 | ||||
| 93319-14025 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 1107 | ||||

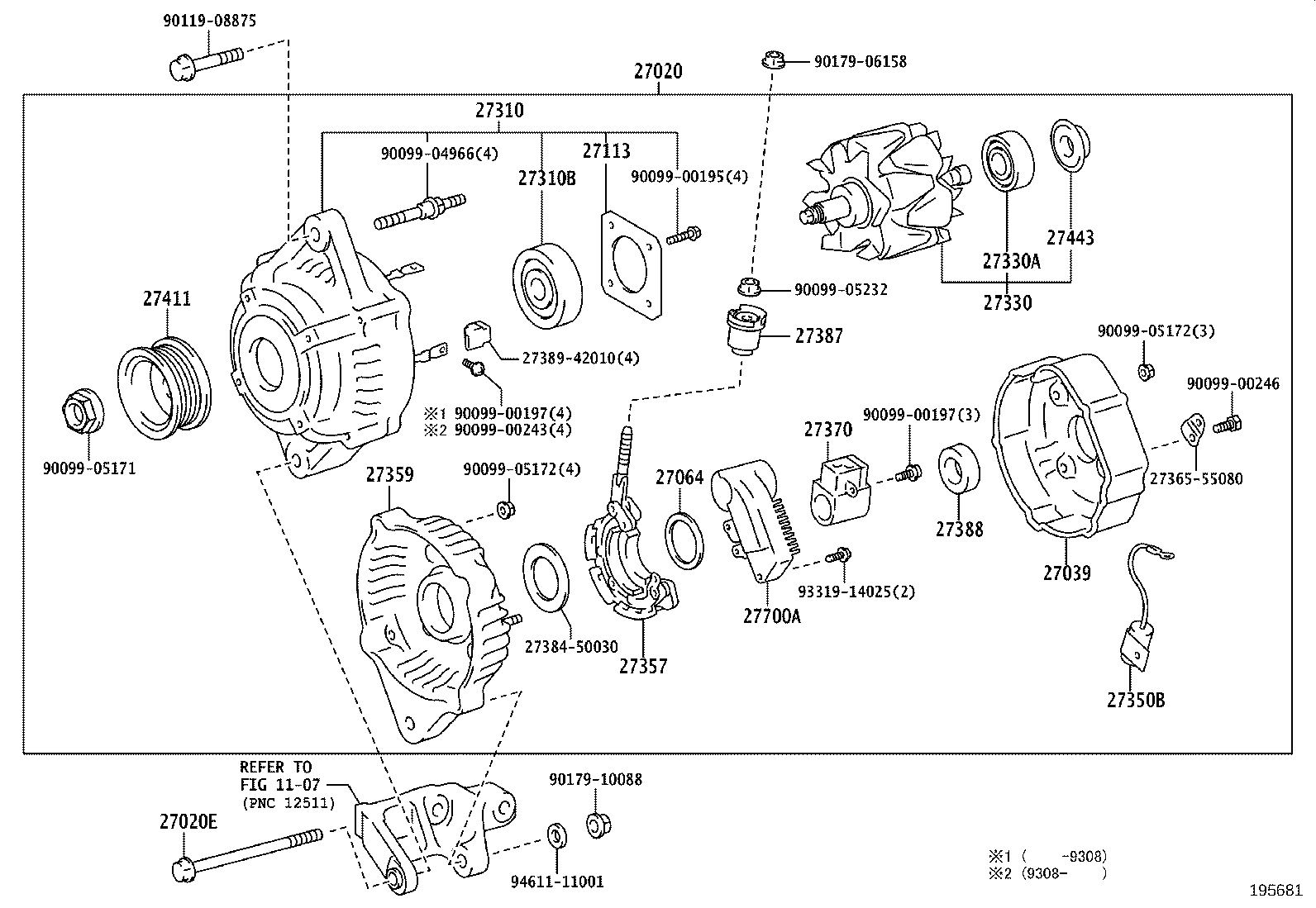

(8908-9308)1RZ#,2RZE..RZH10#,112..4FC ; (9308-9907)1RZE,2RZE..4FC
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-75010 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC 12V 70A |
1 | ||
| 27060-75011 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10282 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42010 |
3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 12V 70A |
1 | ||
| 27039-42010 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC 12V 70A |
1 | ||
| 27039-42010 |
3L..LH113..5D..GL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..(DX,GL,SGL);2L,3L..LH102,109,119,140..GL,SGL,SW;2L,2LT#,3L,2RZE..LH100,107,110,115,117,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 12V 70A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1RZ..RZH122..06S;3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,1RZ,2RZE..LH100,107,110,115,119,120,123,125,RZH101,124..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 27064-42010 |
3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 27064-42010 |
1RZ..RZH122..06S;3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);1RZ#..RZH100,102,112..(V1,WG)..4FC;2L,2LT#,3L,2RZE..LH10#,119,140,RZH101..CTM,GL,SCL,SCM,SCMM,SGL,SW;2L,2LT#,3L,1RZ..LH100,110,115,117,119,120,123,125,RZH124..09S,10S,15S |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72210 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27310-75011 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10160 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-42010 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1RZ..RZH102,112;1RZE..RZH112..09S;1RZE..RZH102,112..4FC;1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,12#,133 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52106 |
1RZ..RZH102,112..GL;1RZ#,2RZE..RZH100,101,11#,122..(07S,08S,09S,10S)..(CTM,DX,SCL,SCM,SCMM) |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-74050 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27357-62040 |
3L..LH113..09S..DX;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L,3L..LH102,109,113,119..5F..(GL,SGL);2L,3L,2RZE..LH100,110,115,119,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 12V 70A |
1 | ||
| 27357-62040 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27357-62040 |
3L..LH113..5D..5F..GL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L,2RZE..LH100,110,115,119,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 12V 70A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-75010 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-42010 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 27387-42020 |
3L..LH113..5D..5F..GL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..5F..(DX,GL);2L,3L..LH102,109,119,140..5F..(GL,SGL,SW);2L,3L,2RZE..LH100,110,115,119,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) 12V 70A |
1 | ||
| 27387-42020 |
3L..LH113..5D..GL;2L,3L..LH102,109,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;3L..LH113..V1..SRF..4D..(DX,GL,SGL);2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) 12V 70A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,2RZE..LH100,107,110,115,119,120,123,125,RZH101..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 27388-42010 |
1RZ..RZH122..06S;3L..LH113..09S..DX;2L,3L..LH102,109,113,119..GL,SGL;1RZ#..RZH100,102,112..(V1,WG)..4FC;2L#,3L,1RZ,2RZE..LH100,107,110,115,119,120,123,125,RZH101,124..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 27388-42010 |
1RZ..RZH122..06S;3L..LH113..5D..GL;3L..LH113..09S..5F;3L..LH113..V1..SRF..4D..(05S,06S);1RZ#..RZH100,102,112..(V1,WG)..4FC;2L,2LT#,3L,2RZE..LH10#,119,140,RZH101..CTM,GL,SCL,SCM,SCMM,SGL,SW;2L,2LT#,3L,1RZ..LH100,110,115,117,119,120,123,125,RZH124..09S,10S,15S |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-74070 |
1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC |
1 | ||
| 27411-74070 |
1RZ..RZH12#..06S,15S;1RZ#,2RZE..RZH10#,112..(V1,WG)..4FC ｵﾙﾀﾈｰﾀ 12V 100A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-70030 |
1RZ#,2RZE..RZH10#,11#,12# |
1 | ||
| 27700-66020 |
1RZ..RZH102,112..GL;1RZ..RZH112..09S..DX;1RZ#,2RZE..RZH100,101,110,12# 12V 70A |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90119-08875 | ||||
| 90179-06158 | ||||
| 90179-10088 | ||||
| 93319-14025 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 1107 | ||||
