RZH112V-SRPNE (1993)
Toyota Hiace/Regiusace

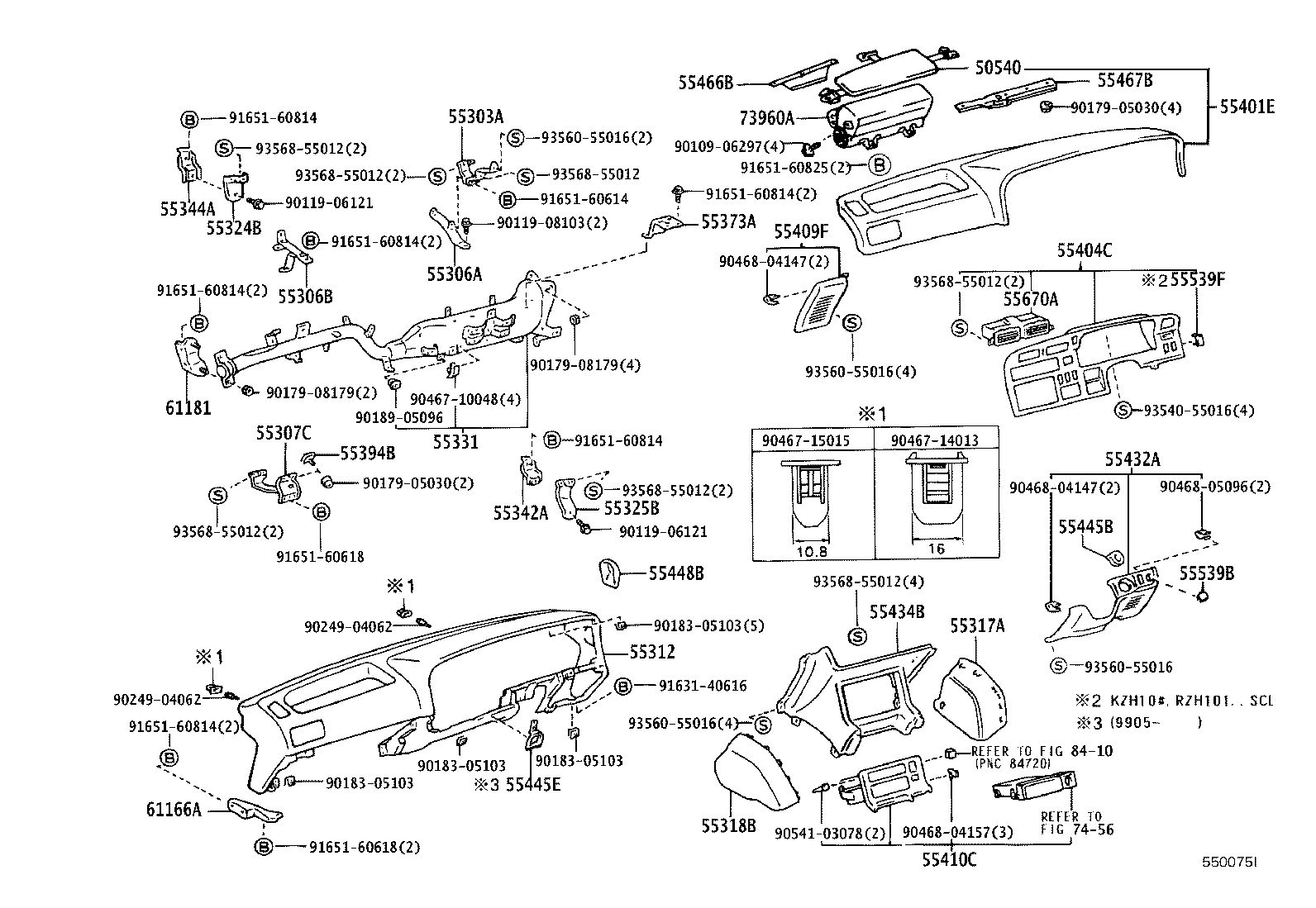

ILLUST NO. 1 OF 2(9308-9608)CD,CTM,DX,GL,SCL,SGL ; (9608- )RZH112..V2..5D ; (9608- )RZH102..SG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-95J05 |
KZH100,11#,13#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#,133..CD,DX,GL,SGL,SW |
1 | ||
| 55303-95J05 |
KZH100,11#,13#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#,133..CD,DX,GL,SGL,SW |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 55306-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55306-95J02 |
LH125..DX;LH102,109,110,113,115,119,123,129,RZH102,112,12#..CD,DX,GL,SGL |
1 | ||
| 55306-95J02 |
LH125..DX;LH102,109,110,113,115,119,123,129,RZH102,112,12#..CD,DX,GL,SGL |
1 | ||
| 55306-95J02 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 55306-95J02 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-95J05 |
KZH100,11#,13#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#,133..CD,DX,GL,SGL,SW |
1 | ||
| 55307-95J05 |
KZH100,11#,13#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#,133..CD,DX,GL,SGL,SW |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-95J0903 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) GRAY,TRIM1# |
1 | ||
| 55312-95J0903 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) GRAY,TRIM1# |
1 | ||
| 55312-95J09B0 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 BLUISH GRAY,TRIM1# |
1 | ||
| 55312-95J09B0 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 BLUISH GRAY,TRIM1# |
1 | ||
| 55312-95J09B0 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF BLUISH GRAY,TRIM1# |
1 | ||
| 55312-95J09B0 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF BLUISH GRAY,TRIM1# |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-95J03 |
KZH11#..4FC;KZH10#,12#,RZH101 |
1 | ||
| 55324-95J03 |
KZH11#..4FC;KZH10#,12#,RZH101 |
1 | ||
| 55325B - BRACKET, INSTRUMENT PANEL, NO.5 | ||||
| 55325-95J03 |
KZH11#..4FC;KZH10#,12#,RZH101 |
1 | ||
| 55325-95J03 |
KZH11#..4FC;KZH10#,12#,RZH101 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-95J01 |
LH100,107,110,120,RZH100,101,110;LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 55330-95J01 |
LH100,107,110,120,RZH100,101,110;LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 55330-26040 |
KZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GL,SGL |
1 | ||
| 55330-26040 |
KZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GL,SGL |
1 | ||
| 55330-26041 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL |
1 | ||
| 55330-26041 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-95J01 |
KZH11#..4FC;KZH10#,12#,RZH101 |
1 | ||
| 55342-95J01 |
KZH11#..4FC;KZH10#,12#,RZH101 |
1 | ||
| 55344A - BRACE, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55344-95J00 |
KZH11#..4FC;KZH10#,12#,RZH101 |
1 | ||
| 55344-95J00 |
KZH11#..4FC;KZH10#,12#,RZH101 |
1 | ||
| 55373A - BRACKET, OIL RESERVOIR TANK | ||||
| 55373-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 55373-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
2 | ||
| 55394-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-95J1302 |
LH109..5D;LH113..HRF..4D;LH113..09S..DX;LH113..V1..5D..DX;LH119..06S,08S,09S;LH113..V1..(CD,GL,SGL);LH109,RZH122..4D..06S..DX;LH100,102,107,110,115,12#,RZH10#,11#,124..(COM,V1,WG)..(CD,DX,GL,SCL,SCM,SCMM,SGL) NEW MAROON,TRIM3# |
1 | ||
| 55401-95J1302 |
LH109..5D;LH113..HRF..4D;LH113..09S..DX;LH113..V1..5D..DX;LH119..06S,08S,09S;LH113..V1..(CD,GL,SGL);LH109,RZH122..4D..06S..DX;LH100,102,107,110,115,12#,RZH10#,11#,124..(COM,V1,WG)..(CD,DX,GL,SCL,SCM,SCMM,SGL) NEW MAROON,TRIM3# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-95J00 |
LH125..DX;LH109,110,119,120,129;LH100,102,107,113,RZH10#,112..GL,SCL,SCM,SCMM,SGL ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 55404-95J00 |
LH125..DX;LH109,110,119,120,129;LH100,102,107,113,RZH10#,112..GL,SCL,SCM,SCMM,SGL ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 55404-26110 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 55404-26110 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 55404-95J01 |
LH100,102,110,113,115,123,125,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 55404-95J01 |
LH100,102,110,113,115,123,125,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 55404-26260 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 55404-26260 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 55473-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 55473-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 55473-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 55473-95J01B0 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY |
1 | ||
| 55473-95J01B0 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY |
1 | ||
| 55473-95J01E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 55473-95J01E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-95J02E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 55432-95J02E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 55432-26020B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 55432-26020B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 55432-26020B0 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY |
1 | ||
| 55432-26020B0 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY |
1 | ||
| 55432-95J0203 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 55432-95J0203 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 55432-26020E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 55432-26020E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 55432-95J02B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 55432-95J02B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 55434-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 55434-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH100,102,112..CD,CTM,DX,GL,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55434-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH100,102,112..CD,CTM,DX,GL,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55434-26030B0 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55434-26030B0 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55434-26030B0 |
KZH10#,LH10#,11#,123,129,RZH100,102,112..CD,CTM,DX,GL,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55434-26030B0 |
KZH10#,LH10#,11#,123,129,RZH100,102,112..CD,CTM,DX,GL,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-2014011 |
LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..(03S,05S,06S,08S,09S)..(CD,CTM,DX,GL,SGL,SW) BLACK,TRIM1# |
1 | ||
| 55441-2014011 |
LH100,102,109,110,113,119,123,129,140,RZH10#,112,122..(03S,05S,06S,08S,09S)..(CD,CTM,DX,GL,SGL,SW) BLACK,TRIM1# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 55445-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-95J0002 |
LH100..5F;LH109..5D;LH100..MRF..4FC;LH109,RZH122..4D..06S..DX;LH102,107,11#,12#,RZH10#,11#,124..COM,V1,WG NEW MAROON,TRIM3# |
1 | ||
| 55448-95J0002 |
LH100..5F;LH109..5D;LH100..MRF..4FC;LH109,RZH122..4D..06S..DX;LH102,107,11#,12#,RZH10#,11#,124..COM,V1,WG NEW MAROON,TRIM3# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-95J02C0 |
LH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S BLACK,TRIM1# |
1 | ||
| 55539-95J02C0 |
LH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S BLACK,TRIM1# |
1 | ||
| 55539-95J02C0 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 BLACK,TRIM1# |
1 | ||
| 55539-95J02C0 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 BLACK,TRIM1# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-95J03 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 55670-95J03 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 61166A - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61166-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61181-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 90119-06121 | ||||
| 90119-08103 | ||||
| 90159-50115 | ||||
| 90159-50338 | ||||
| 90179-05030 | ||||
| 90179-08179 | ||||
| 90183-05103 | ||||
| 90189-05096 | ||||
| 90249-04062 | ||||
| 90467-10048 | ||||
| 90467-14013 | ||||
| 90467-15015 | ||||
| 90468-04147 | ||||
| 90468-05096 | ||||
| 91631-40616 | ||||
| 91651-60614 | ||||
| 91651-60618 | ||||
| 91651-60825 | ||||
| 91651-B0618 | ||||
| 91651-B0814 | ||||
| 93313-15012 | ||||
| 93540-55016 | ||||
| 93560-55016 | ||||
| 93568-55012 | ||||

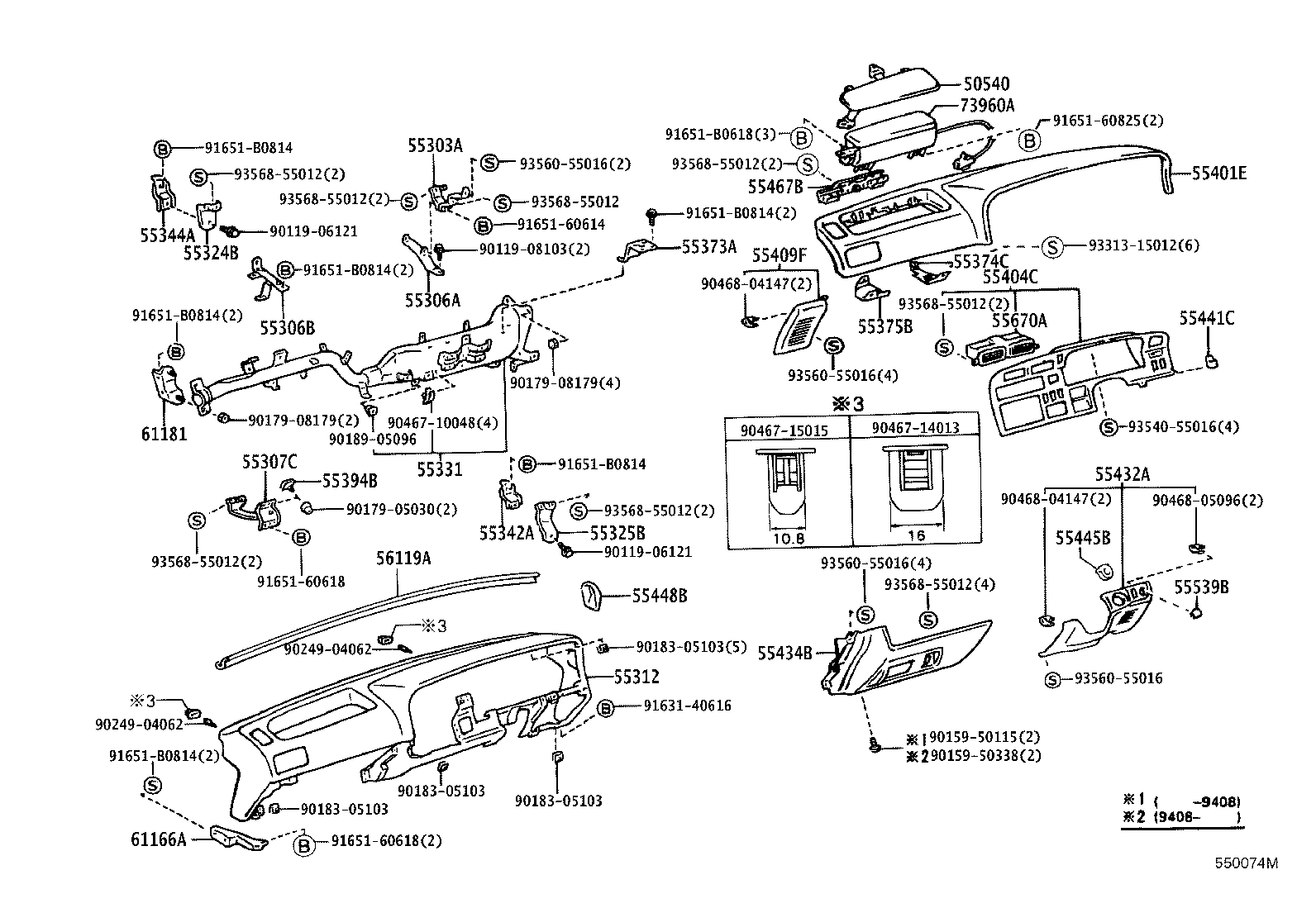

ILLUST NO. 1 OF 2(9308-9608)KZH10#,12#,RZH100,101..07S,08S,10S ;(9608-9907)KZH10#,11#,12#,13#,RZH10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-95J05 |
KZH100,11#,13#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#,133..CD,DX,GL,SGL,SW |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55306-95J02 |
LH125..DX;LH102,109,110,113,115,119,123,129,RZH102,112,12#..CD,DX,GL,SGL |
1 | ||
| 55306-95J02 |
LH10#,11#,12#,RZH102,112,124 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-95J05 |
KZH100,11#,13#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#,133..CD,DX,GL,SGL,SW |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-95J0903 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S) GRAY,TRIM1# |
1 | ||
| 55312-95J09B0 |
KZH11#,13#,LH10#,11#,12#,RZH102,11#,124,133 BLUISH GRAY,TRIM1# |
1 | ||
| 55312-95J09B0 |
KZH100,LH10#,11#,123,129,RZH100,102,112..HRF,SRF BLUISH GRAY,TRIM1# |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-95J03 |
KZH11#..4FC;KZH10#,12#,RZH101 |
1 | ||
| 55325B - BRACKET, INSTRUMENT PANEL, NO.5 | ||||
| 55325-95J03 |
KZH11#..4FC;KZH10#,12#,RZH101 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-95J01 |
LH100,107,110,120,RZH100,101,110;LH102,109,113,119,125,RZH102,112..GL,SGL |
1 | ||
| 55330-26040 |
KZH10#,11#,LH10#,11#,12#,RZH100,102,112,124..CD,CTM,DX,GL,SGL |
1 | ||
| 55330-26041 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL |
1 | ||
| 55342A - BRACE, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55342-95J01 |
KZH11#..4FC;KZH10#,12#,RZH101 |
1 | ||
| 55344A - BRACE, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55344-95J00 |
KZH11#..4FC;KZH10#,12#,RZH101 |
1 | ||
| 55373A - BRACKET, OIL RESERVOIR TANK | ||||
| 55373-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-95J1302 |
LH109..5D;LH113..HRF..4D;LH113..09S..DX;LH113..V1..5D..DX;LH119..06S,08S,09S;LH113..V1..(CD,GL,SGL);LH109,RZH122..4D..06S..DX;LH100,102,107,110,115,12#,RZH10#,11#,124..(COM,V1,WG)..(CD,DX,GL,SCL,SCM,SCMM,SGL) NEW MAROON,TRIM3# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-95J00 |
LH125..DX;LH109,110,119,120,129;LH100,102,107,113,RZH10#,112..GL,SCL,SCM,SCMM,SGL ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 55404-26110 |
KZH10#,11#,12#,LH10#,11#,12#,RZH10#,112,124 |
1 | ||
| 55404-95J01 |
LH100,102,110,113,115,123,125,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 55404-26260 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 55473-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 55473-95J01B0 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY |
1 | ||
| 55473-95J01E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,07S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-95J02E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 55432-26020B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 55432-26020B0 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SCM,SCMM,SGL BLUISH GRAY |
1 | ||
| 55432-95J0203 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 55432-26020E0 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH125,129,RZH100,101,124..06S,08S,10S,15S ANTELOPE,TRIM4# |
1 | ||
| 55432-95J02B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-95J0103 |
LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S GRAY,TRIM1# |
1 | ||
| 55434-95J01B0 |
KZH10#,LH10#,11#,123,129,RZH100,102,112..CD,CTM,DX,GL,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55434-26030B0 |
KZH10#,11#,13#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55434-26030B0 |
KZH10#,LH10#,11#,123,129,RZH100,102,112..CD,CTM,DX,GL,SGL BLUISH GRAY,TRIM1# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 55448B - COVER, OIL RESERVOIR TANK, RH | ||||
| 55448-95J0002 |
LH100..5F;LH109..5D;LH100..MRF..4FC;LH109,RZH122..4D..06S..DX;LH102,107,11#,12#,RZH10#,11#,124..COM,V1,WG NEW MAROON,TRIM3# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-95J02C0 |
LH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S BLACK,TRIM1# |
1 | ||
| 55539-95J02C0 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 BLACK,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010E2 |
LH113,123,RZH112..HRF;KZH10#,11#,12#,LH129,RZH100,101..06S,07S,08S,10S ANTELOPE,TRIM4# |
1 | ||
| 55539-3201011 |
LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,05S,06S,08S,09S)..(CD,CTM,DX,GL,SGL,SW) BLACK,TRIM1# |
1 | ||
| 55539-32010C0 |
KZH10#,LH10#,11#,RZH100,102,112..(SMRF,SRF)..(CD,CTM,DX,GL,SGL) BLACK,TRIM1#,ﾌﾞﾗｯｸ |
1 | ||
| 55539-32010B0 |
KZH10#,LH10#,11#,123,129,RZH10#,112..03S,05S,06S,08S,09S BLUISH GRAY,TRIM1# |
1 | ||
| 55539-32010B0 |
KZH10#,11#,13#,LH10#,11#,123,129,RZH10#,11#,133..03S,05S,06S,08S,09S,10S BLUISH GRAY,TRIM1# |
1 | ||
| 55539-32010C0 |
KZH10#,11#,13#,LH10#,11#,123,129,RZH10#,11#,133..CD,CTM,DX,GL,SGL BLACK,TRIM1#,ﾌﾞﾗｯｸ |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-95J03 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 61166A - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 90109-06297 | ||||
| 90119-06121 | ||||
| 90119-08103 | ||||
| 90179-05030 | ||||
| 90179-08179 | ||||
| 90183-05103 | ||||
| 90189-05096 | ||||
| 90249-04062 | ||||
| 90467-10048 | ||||
| 90467-14013 | ||||
| 90467-15015 | ||||
| 90468-04147 | ||||
| 90468-04157 | ||||
| 90468-05096 | ||||
| 90541-03078 | ||||
| 91631-40616 | ||||
| 91651-60614 | ||||
| 91651-60618 | ||||
| 91651-60814 | ||||
| 91651-60825 | ||||
| 93540-55016 | ||||
| 93560-55016 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
