RZH112V-SRPNE (2001)

Toyota Hiace/Regiusace

Production Aug 2001 - Aug 2003
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )05S..SGL

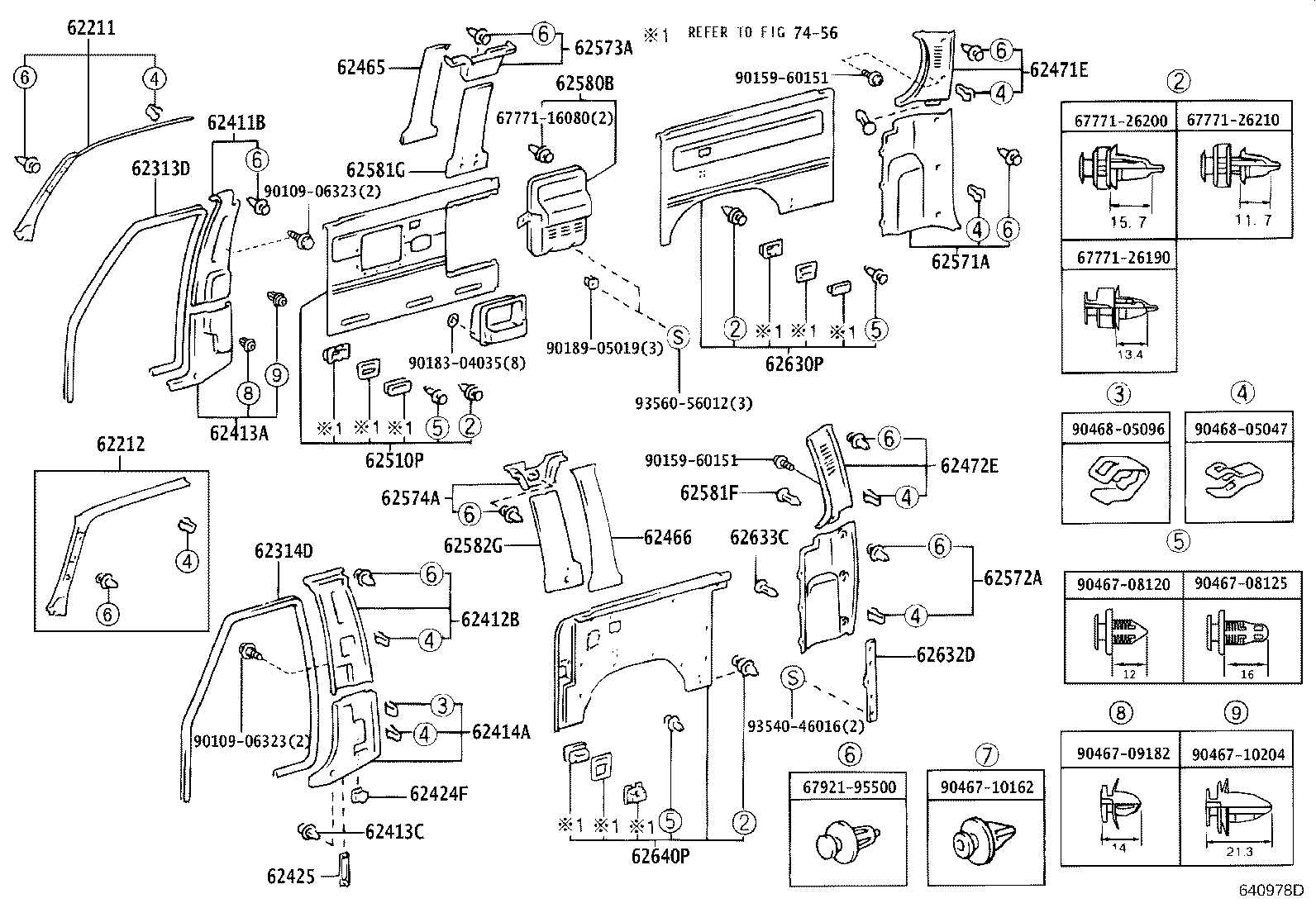

Click highlighted areas on diagram

diagram 62211 62212 62313D 62314D 62411B 62412B 62413A 62413C 62414A 62424F 62425 62465 62466 62471E 62472E 62510P 62571A 62572A 62573A 62574A 62580B 62581F 62581G 62582G 62630P 62632D 62633C 62640P 6777116080 6777126190 6777126200 6777126210 6792195500 7456 9010906323 9010906323 9015960151 9015960151 9018304035 9018905019 9046708120 9046708125 9046709182 9046710162 9046710204 9046805047 9046805096 9354046016 9356056012
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-95J0703

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95J0703

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(03S,05S,06S,08S,09S)

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-95J0103

LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-95J0103

LH10#,110,113,119,123,129,140,RZH10#,112,122..03S,05S,06S,08S,09S

GRAY,TRIM1#

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-95J3503

LH113,119,RZH112..V1..GL

GRAY,TRIM1#

 1
62630-95J3903

LH113,119,RZH112..V1..5D..GL

ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ),GRAY,TRIM1#

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-95J4903

LH113,119,RZH112..V1..GL

GRAY,TRIM1#

 1
Common parts
67771-16080
67771-26190
67771-26200
67771-26210
67921-95500
90109-06323
90159-60151
90183-04035
90189-05019
90467-08120
90467-08125
90467-09182
90467-10162
90467-10204
90468-05047
90468-05096
93540-46016
93560-56012
Linked diagrams
7456
