RZH112V-SRPDE (1996)

Toyota Hiace/Regiusace

Production Aug 1996 - Aug 2003
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

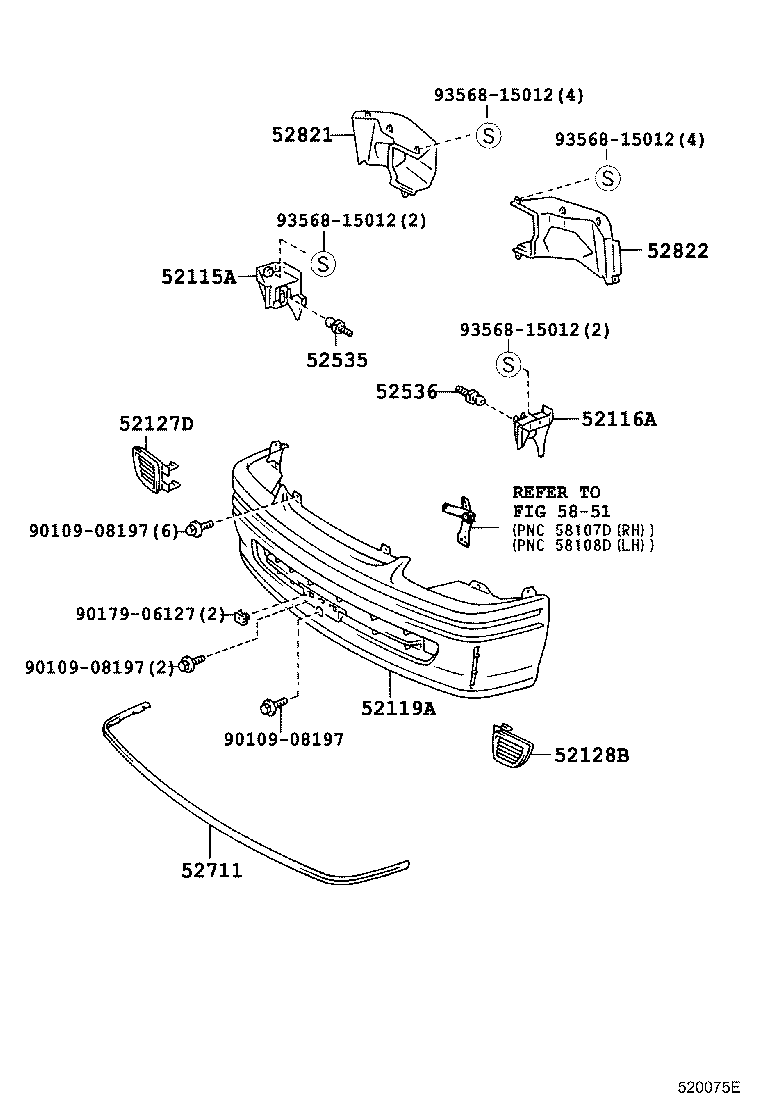

(9608-9907)KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

Click highlighted areas on diagram

diagram 52115A 52116A 52119A 52127D 52128B 52535 52536 52711 52821 52822 5851 9010908197 9010908197 9010908197 9017906127 9356815012 9356815012 9356815012 9356815012
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-26030

KZH10#,11#,12#,13#,RZH101,111,133

 1
52115-95J02

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF

 1
52115-26030

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-26030

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
52115-95J02

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF

 1
52116-26030

KZH10#,11#,12#,13#,RZH101,111,133

 1
52119A - COVER, FRONT BUMPER
52119-95J21

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,GL,SW

塗装不要

 1
52119-26300

LH16#,17#,18#,RZH102,112,12#..CD,DX,GL

塗装不要,ﾄｿｳ ﾅｼ

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-26020

KZH10#,11#,12#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GCGE,GCGN,GL,SCM

 1
52127-26020

KZH10#,11#,12#,RZH101,111,133..HRF,SMRF,SRF

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-26020

KZH10#,11#,12#,RZH101,111,133..HRF,SMRF,SRF

 1
52128-26020

KZH10#,11#,12#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GCGE,GCGN,GL,SCM

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

長さ=26.4

 1
52535-95J00

LH10#,11#,123,125,129,140,RZH10#,11#,12#

長さ=15

 1
52535-26010

KZH10#,11#,12#,13#,RZH101,111,133

長さ=26.4

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-95J00

LH10#,11#,123,125,129,140,RZH10#,11#,12#

長さ=15

 1
52535-26010

KZH10#,11#,12#,13#,RZH101,111,133

長さ=26.4

 1
52535-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

長さ=26.4

 1
52711 - MOULDING, FRONT BUMPER
52711-26030

KZH11#,12#,13#,RZH111,133

塗装不要,ﾌﾞﾗｯｸ

 1
52711-26040

KZH11#..4FC;KZH10#,12#,13#,RZH101

ﾒｯｷ,ﾒﾂｷ

 1
52821 - DUCT, AIR INTAKE, RH
52821-26020

KZH10#,11#,12#,13#,RZH101,111,133

 1
52822 - DUCT, AIR INTAKE, LH
52822-26020

KZH10#,11#,12#,13#,RZH101,111,133

 1
Common parts
90109-08197
90179-06127
93568-15012
Linked diagrams
5851

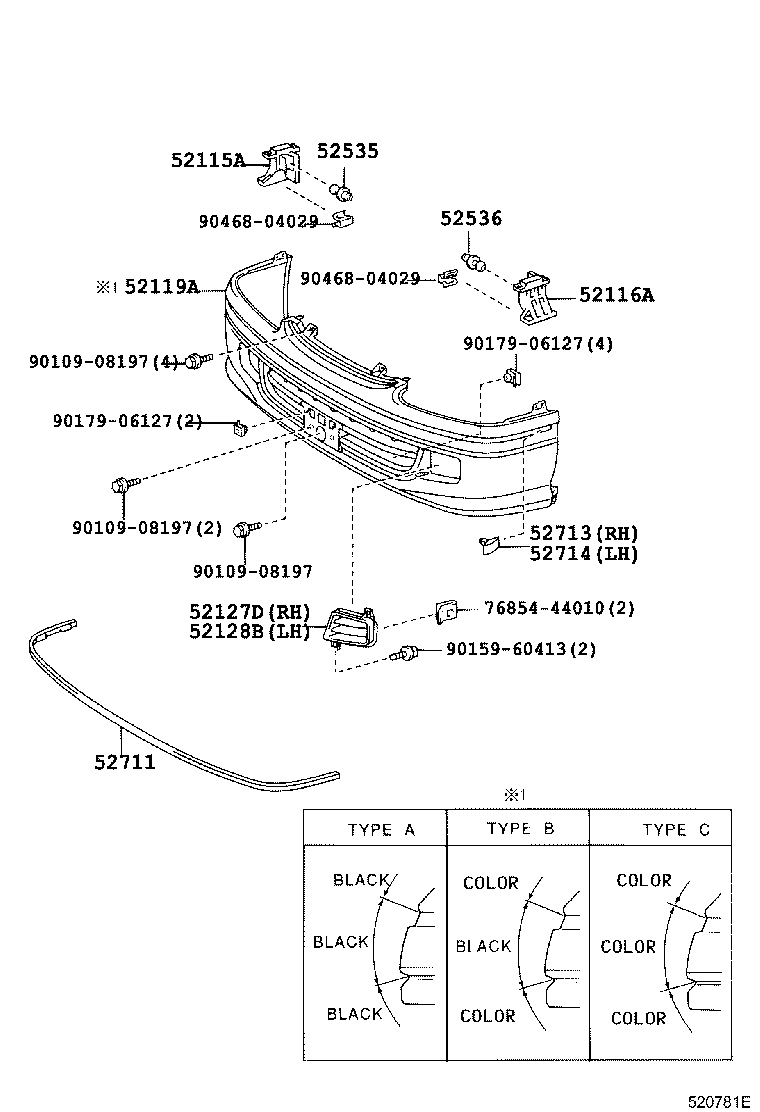

(9907- )KZH10#,11#,120,13#,RZH101,111

Click highlighted areas on diagram

diagram 52115A 52116A 52119A 52127D 52128B 52535 52536 52711 52713 52714 7685444010 9010908197 9010908197 9010908197 9015960413 9017906127 9017906127 9046804029 9046804029
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-26030

KZH10#,11#,12#,13#,RZH101,111,133

 1
52115-95J02

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF

 1
52115-26030

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-26030

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
52115-95J02

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF

 1
52116-26030

KZH10#,11#,12#,13#,RZH101,111,133

 1
52119A - COVER, FRONT BUMPER
52119-95J21

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,GL,SW

塗装不要

 1
52119-26300

LH16#,17#,18#,RZH102,112,12#..CD,DX,GL

塗装不要,ﾄｿｳ ﾅｼ

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-26020

KZH10#,11#,12#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GCGE,GCGN,GL,SCM

 1
52127-26020

KZH10#,11#,12#,RZH101,111,133..HRF,SMRF,SRF

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-26020

KZH10#,11#,12#,RZH101,111,133..HRF,SMRF,SRF

 1
52128-26020

KZH10#,11#,12#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GCGE,GCGN,GL,SCM

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

長さ=26.4

 1
52535-95J00

LH10#,11#,123,125,129,140,RZH10#,11#,12#

長さ=15

 1
52535-26010

KZH10#,11#,12#,13#,RZH101,111,133

長さ=26.4

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-95J00

LH10#,11#,123,125,129,140,RZH10#,11#,12#

長さ=15

 1
52535-26010

KZH10#,11#,12#,13#,RZH101,111,133

長さ=26.4

 1
52535-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

長さ=26.4

 1
52711 - MOULDING, FRONT BUMPER
52711-26030

KZH11#,12#,13#,RZH111,133

塗装不要,ﾌﾞﾗｯｸ

 1
52711-26040

KZH11#..4FC;KZH10#,12#,13#,RZH101

ﾒｯｷ,ﾒﾂｷ

 1
Common parts
76854-44010
90109-08197
90159-60413
90179-06127
90468-04029

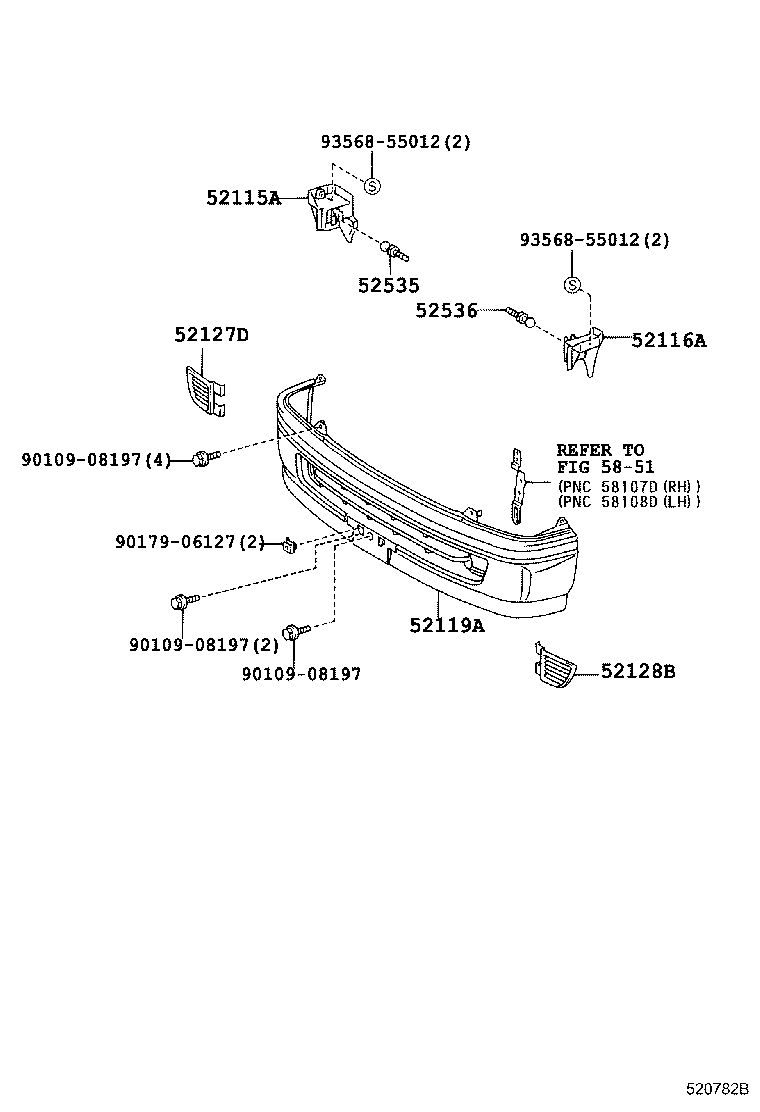

(9907- )LH16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12#

Click highlighted areas on diagram

diagram 52115A 52116A 52119A 52127D 52128B 52535 52536 5851 9010908197 9010908197 9010908197 9017906127 9356855012 9356855012
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-26030

KZH10#,11#,12#,13#,RZH101,111,133

 1
52115-95J02

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF

 1
52115-26030

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-26030

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
52115-95J02

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF

 1
52116-26030

KZH10#,11#,12#,13#,RZH101,111,133

 1
52119A - COVER, FRONT BUMPER
52119-95J21

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,GL,SW

塗装不要

 1
52119-26300

LH16#,17#,18#,RZH102,112,12#..CD,DX,GL

塗装不要,ﾄｿｳ ﾅｼ

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-26020

KZH10#,11#,12#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GCGE,GCGN,GL,SCM

 1
52127-26020

KZH10#,11#,12#,RZH101,111,133..HRF,SMRF,SRF

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-26020

KZH10#,11#,12#,RZH101,111,133..HRF,SMRF,SRF

 1
52128-26020

KZH10#,11#,12#,LH16#,17#,18#,RZH10#,11#,12#,133..CD,DX,GCGE,GCGN,GL,SCM

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

長さ=26.4

 1
52535-95J00

LH10#,11#,123,125,129,140,RZH10#,11#,12#

長さ=15

 1
52535-26010

KZH10#,11#,12#,13#,RZH101,111,133

長さ=26.4

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-95J00

LH10#,11#,123,125,129,140,RZH10#,11#,12#

長さ=15

 1
52535-26010

KZH10#,11#,12#,13#,RZH101,111,133

長さ=26.4

 1
52535-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

長さ=26.4

 1
Common parts
90109-08197
90179-06127
93568-55012
Linked diagrams
5851
