RZH112V-SRMNS (1989)
Toyota Hiace/Regiusace

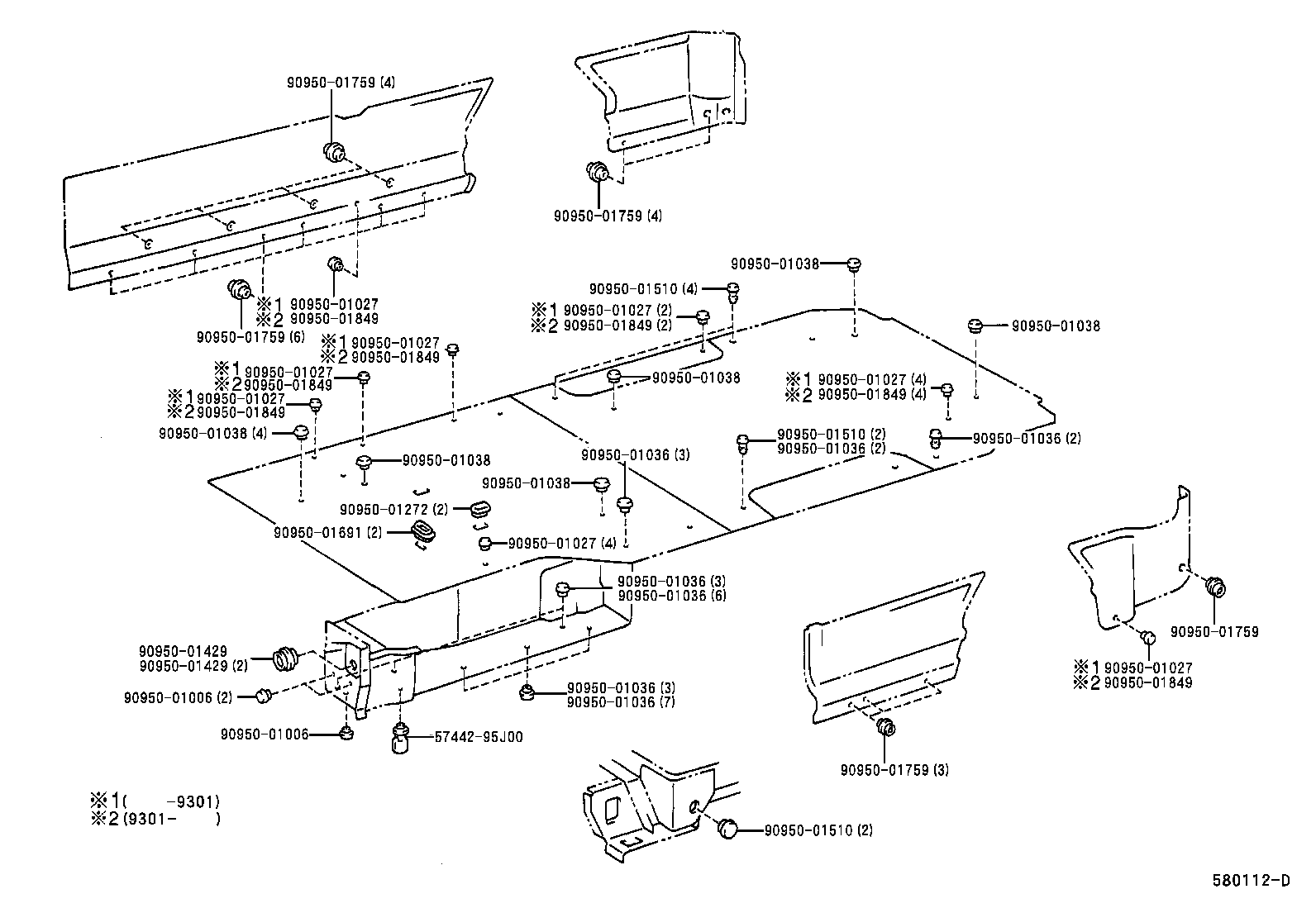

ILLUST NO. 1 OF 4(8908-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 57442-95J00 | ||||
| 90950-01006 | ||||
| 90950-01027 | ||||
| 90950-01036 | ||||
| 90950-01038 | ||||
| 90950-01272 | ||||
| 90950-01429 | ||||
| 90950-01510 | ||||
| 90950-01691 | ||||
| 90950-01759 | ||||
| 90950-01849 | ||||

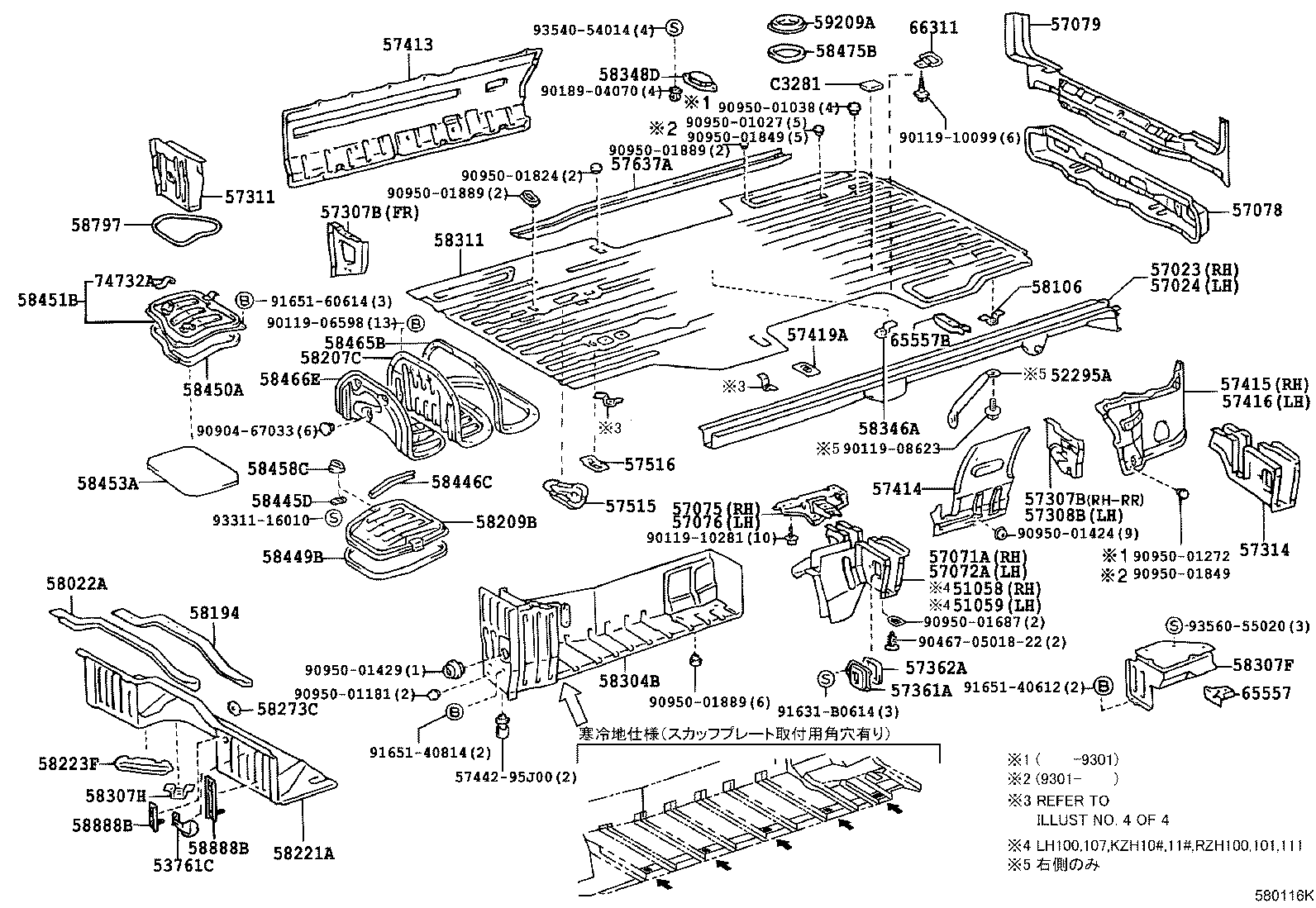

ILLUST NO. 2 OF 4(8908- )LH102,103,109,113,119,123,129,16#,17#,182,188,RZH102,112,122,18#,TRH102,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95N23 |
LH110,RZH112..(V1,WG)..(03S,06S,09S) |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95N09 |
LH110,RZH112..(V1,WG)..(03S,06S,09S) |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-95J55 |
LH113,RZH112..V1..5D |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-95J69 |
RZH112..V1..1000K;LH110,113..(V1,WG)..(03S,05S,06S,09S) |
1 | ||
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-95J05 |
LH125,RZH124..5F..DX..(DSL,EFI);LH102,103,109,110,113,117,119,123,129,140,RZH102,112,122,133..V1,WG |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-95J08 |
RZH124..5F..EFI;LH125,184,186..DX;LH102,103,109,110,113,117,119,123,129,140,16#,17#,182,188,RZH102,112,122,133..V1,WG |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH102..SP;LH119..05S;LH113..V1..SRF..4D..06S..DX;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..(DX,GCGE,GCGN) |
1 | ||
| 57317-95J06 |
LH102..SP;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..DX |
1 | ||
| 57317-95J06 |
LH102..SP;LH109,120..4D..DX;LH102,109,113,119,RZH102,112..V1..5D |
1 | ||
| 57317-95J06 |
LH102..SP;LH113..V1..SRF..4D..06S..DX;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..DX |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH102..SP;LH119..05S;LH113..V1..SRF..4D..06S..DX;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..(DX,GCGE,GCGN) |
1 | ||
| 57317-95J06 |
LH102..SP;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..DX |
1 | ||
| 57317-95J06 |
LH102..SP;LH109,120..4D..DX;LH102,109,113,119,RZH102,112..V1..5D |
1 | ||
| 57317-95J06 |
LH102..SP;LH113..V1..SRF..4D..06S..DX;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..DX |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J11 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57314 - OUTRIGGER, NO.2 LH | ||||
| 57304-95J47 |
RZH112..850K;LH115,117,119,12#,RZH12# |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57094-95J00 |
LH102,113,RZH102,112..4D..CD;LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
2 | ||
| 57094-95J00 |
LH113..4FC..GL;LH113,119..5D..5F;LH113..V2..SRF..5D..4FC;LH102,109,RZH102,112..5D..(CBR,DSL) 左側 |
1 | ||
| 57361-95J01 |
LH102,103,109,113,119,RZH102,112..5D 右側 |
1 | ||
| 57362A - PACKING, NO.2 OUTRIGGER HOLE COVER | ||||
| 57362-95J01 |
LH102,109,113,119,RZH102,112..5D 右側 |
3 | ||
| 57362-95J01 |
LH102,113,RZH102,112..4D..CD;LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
2 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57413-95N08 |
LH113,119,RZH112..V1..5D..06S ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ) |
1 | ||
| 57413-95N04 |
LH113,119,17#,RZH112..V1..5D..06S ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-95J72 |
LH110..SW;LH113,119,RZH112..V1..(05S,06S) ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57415-95J32 |
LH125..DX;LH102,109,113,119,RZH102,112..V1..GL ｱﾘ(ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 57415-95J33 |
LH125..DX;LH102,103,109,110,113,115,119,123,129,140,RZH102,112,12#,133..(COM,V1,WG)..(03S,06S,09S,15S) |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-95J24 |
LH102,103,109,110,113,115,119,123,125,129,140,RZH102,112,12#,133..(COM,V1,WG)..(03S,05S,06S,08S,09S,15S) |
1 | ||
| 57419A - PLATE, REAR SEAT LOCK | ||||
| 57419-95J01 |
LH113,RZH112..06S..GL;LH102,103,109,110,119,RZH102..GL,SW |
1 | ||
| 57515 - BRACKET, PARKING BRAKE, RH | ||||
| 57515-95J00 |
KZH11#,LH102,103,109,11#,140,16#,17#,RZH102,11#..COM,V1,WG |
1 | ||
| 57516 - BRACKET SUB-ASSY, PARKING BRAKE, LH | ||||
| 57506-95J01 |
LH140;LH113,119,RZH112..V1..(03S,08S,09S);LH102,109,110,115,117,123,125,129,RZH102,110,12#..(COM,V1,WG)..(CD,DX,GL,SGL) |
1 | ||
| 58022A - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-95J06 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
3 | ||
| 58106-95A00 |
LH119..06S,08S,09S;LH102,109,110,113,115,123,125,129,RZH102,11#,12#..(COM,V1,WG)..(CD,DX,GL,SGL) |
3 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
3 | ||
| 58106-95A00 |
LH119..06S,08S,09S;LH102,109,110,113,115,123,125,129,RZH102,11#,12#..(COM,V1,WG)..(CD,DX,GL,SGL) |
3 | ||
| 58194 - RETAINER, ENGINE COVER HINGE | ||||
| 58194-95J03 |
KZH10#,11#,LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J10 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GCGE,GCGN,GL,SGL,SW) |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58221A - PANEL, HEADER | ||||
| 58221-95P33 |
LH102,103,109,113,119,RZH102,112..V1..5D..06S..(CBR,DSL) |
1 | ||
| 58223F - REINFORCEMENT, HEADER PANEL, NO.2 | ||||
| 58223-95J01 |
LH102,103,109,113,119,16#,17#,RZH102,112..5D |
2 | ||
| 58223F - REINFORCEMENT, HEADER PANEL, NO.2 | ||||
| 58223-95J01 |
LH102,103,109,113,119,16#,17#,RZH102,112..5D |
2 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58303B - STEP SUB-ASSY, REAR FLOOR, RH | ||||
| 58303-95J34 |
LH102,103,109,113,119,16#,17#,RZH102,112..V1..5D ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ) |
1 | ||
| 58303-95J28 |
LH102,103,109,113,119,16#,17#,RZH102,112..V1..5D..06S ｱﾘ(ｽﾃﾂﾌﾟ ﾏﾂﾄ & ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ) |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J73 |
LH102,103,109,113,119,RZH102,112..V1..06S..GL |
1 | ||
| 58307H - BRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1 | ||||
| 58307-95701 |
RZH102,112..850K;LH102,113..V1..SP;LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-95P49 |
LH113,119,RZH112..V1..5D..GL ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ) |
1 | ||
| 58311-95P48 |
LH113,119,RZH112..V1..5D..GL |
1 | ||
| 58445D - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58446C - PROTECTOR, BATTERY | ||||
| 58446-95J02 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58449B - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 58449-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58405-95J01 |
LH10#,11#,RZH10#,11#..CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 58405-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 58405-95J01 |
LH10#,11#,140,RZH10#,11#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 58458C - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J05 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J08 |
LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 58475B - PACKING, INSPECTION HOLE COVER | ||||
| 58475-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 59209A - COVER SUB-ASSY, INSPECTION HOLE | ||||
| 59209-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 65557 - RETAINER, ROPE HOOK | ||||
| 65557-95J03 |
RZH124..5F;LH102,103,109,110,113,119,123,125,129,140,RZH102,112,122..03S,05S,06S,08S,09S,15S |
2 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-95J00 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..05S,06S,08S,09S ﾌﾞﾗｯｸ |
4 | ||
| Common parts | ||||
| 57442-95J00 | ||||
| 90119-06598 | ||||
| 90119-10099 | ||||
| 90333-20001 | ||||
| 90467-0501801 | ||||
| 90480-01520 | ||||
| 90904-67033 | ||||
| 90950-01006 | ||||
| 90950-01027 | ||||
| 90950-01036 | ||||
| 90950-01038 | ||||
| 90950-01424 | ||||
| 90950-01429 | ||||
| 90950-01687 | ||||
| 90950-01691 | ||||
| 90950-01849 | ||||
| 91631-B0614 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 93311-16010 | ||||
| 94171-20800 | ||||
ILLUST NO. 2 OF 4(8908- )KZH10#,11#,LH100,107,110,117,120,140,RZH100,101,110,111
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95N23 |
LH110,RZH112..(V1,WG)..(03S,06S,09S) |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95N09 |
LH110,RZH112..(V1,WG)..(03S,06S,09S) |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-95J55 |
LH113,RZH112..V1..5D |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-95J69 |
RZH112..V1..1000K;LH110,113..(V1,WG)..(03S,05S,06S,09S) |
1 | ||
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-95J05 |
LH125,RZH124..5F..DX..(DSL,EFI);LH102,103,109,110,113,117,119,123,129,140,RZH102,112,122,133..V1,WG |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-95J08 |
RZH124..5F..EFI;LH125,184,186..DX;LH102,103,109,110,113,117,119,123,129,140,16#,17#,182,188,RZH102,112,122,133..V1,WG |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH102..SP;LH119..05S;LH113..V1..SRF..4D..06S..DX;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..(DX,GCGE,GCGN) |
1 | ||
| 57317-95J06 |
LH102..SP;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..DX |
1 | ||
| 57317-95J06 |
LH102..SP;LH109,120..4D..DX;LH102,109,113,119,RZH102,112..V1..5D |
1 | ||
| 57317-95J06 |
LH102..SP;LH113..V1..SRF..4D..06S..DX;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..DX |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH102..SP;LH119..05S;LH113..V1..SRF..4D..06S..DX;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..(DX,GCGE,GCGN) |
1 | ||
| 57317-95J06 |
LH102..SP;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..DX |
1 | ||
| 57317-95J06 |
LH102..SP;LH109,120..4D..DX;LH102,109,113,119,RZH102,112..V1..5D |
1 | ||
| 57317-95J06 |
LH102..SP;LH113..V1..SRF..4D..06S..DX;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..DX |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J11 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57314 - OUTRIGGER, NO.2 LH | ||||
| 57304-95J47 |
RZH112..850K;LH115,117,119,12#,RZH12# |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57094-95J00 |
LH102,113,RZH102,112..4D..CD;LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
2 | ||
| 57094-95J00 |
LH113..4FC..GL;LH113,119..5D..5F;LH113..V2..SRF..5D..4FC;LH102,109,RZH102,112..5D..(CBR,DSL) 左側 |
1 | ||
| 57361-95J01 |
LH102,103,109,113,119,RZH102,112..5D 右側 |
1 | ||
| 57362A - PACKING, NO.2 OUTRIGGER HOLE COVER | ||||
| 57362-95J01 |
LH102,109,113,119,RZH102,112..5D 右側 |
3 | ||
| 57362-95J01 |
LH102,113,RZH102,112..4D..CD;LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
2 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57413-95N08 |
LH113,119,RZH112..V1..5D..06S ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ) |
1 | ||
| 57413-95N04 |
LH113,119,17#,RZH112..V1..5D..06S ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-95J72 |
LH110..SW;LH113,119,RZH112..V1..(05S,06S) ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57415-95J32 |
LH125..DX;LH102,109,113,119,RZH102,112..V1..GL ｱﾘ(ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 57415-95J33 |
LH125..DX;LH102,103,109,110,113,115,119,123,129,140,RZH102,112,12#,133..(COM,V1,WG)..(03S,06S,09S,15S) |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-95J24 |
LH102,103,109,110,113,115,119,123,125,129,140,RZH102,112,12#,133..(COM,V1,WG)..(03S,05S,06S,08S,09S,15S) |
1 | ||
| 57419A - PLATE, REAR SEAT LOCK | ||||
| 57419-95J01 |
LH113,RZH112..06S..GL;LH102,103,109,110,119,RZH102..GL,SW |
1 | ||
| 57515 - BRACKET, PARKING BRAKE, RH | ||||
| 57515-95J00 |
KZH11#,LH102,103,109,11#,140,16#,17#,RZH102,11#..COM,V1,WG |
1 | ||
| 57516 - BRACKET SUB-ASSY, PARKING BRAKE, LH | ||||
| 57506-95J01 |
LH140;LH113,119,RZH112..V1..(03S,08S,09S);LH102,109,110,115,117,123,125,129,RZH102,110,12#..(COM,V1,WG)..(CD,DX,GL,SGL) |
1 | ||
| 58022A - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-95J06 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
3 | ||
| 58106-95A00 |
LH119..06S,08S,09S;LH102,109,110,113,115,123,125,129,RZH102,11#,12#..(COM,V1,WG)..(CD,DX,GL,SGL) |
3 | ||
| 58194 - RETAINER, ENGINE COVER HINGE | ||||
| 58194-95J03 |
KZH10#,11#,LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J10 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GCGE,GCGN,GL,SGL,SW) |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58221A - PANEL, HEADER | ||||
| 58221-95P33 |
LH102,103,109,113,119,RZH102,112..V1..5D..06S..(CBR,DSL) |
1 | ||
| 58223F - REINFORCEMENT, HEADER PANEL, NO.2 | ||||
| 58223-95J01 |
LH102,103,109,113,119,16#,17#,RZH102,112..5D |
2 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J73 |
LH102,103,109,113,119,RZH102,112..V1..06S..GL |
1 | ||
| 58307H - BRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1 | ||||
| 58307-95701 |
RZH102,112..850K;LH102,113..V1..SP;LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-95P49 |
LH113,119,RZH112..V1..5D..GL ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ) |
1 | ||
| 58311-95P48 |
LH113,119,RZH112..V1..5D..GL |
1 | ||
| 58445D - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58446C - PROTECTOR, BATTERY | ||||
| 58446-95J02 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58449B - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 58449-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58405-95J01 |
LH10#,11#,RZH10#,11#..CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 58405-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 58405-95J01 |
LH10#,11#,140,RZH10#,11#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 58453A - SHIELD, AIR CLEANER SERVICE HOLE | ||||
| 58453-95J04 |
LH107..SCL;KZH10#,11#,12#,RZH101 |
1 | ||
| 58458C - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J05 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J08 |
LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 58475B - PACKING, INSPECTION HOLE COVER | ||||
| 58475-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 59209A - COVER SUB-ASSY, INSPECTION HOLE | ||||
| 59209-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 65557 - RETAINER, ROPE HOOK | ||||
| 65557-95J03 |
RZH124..5F;LH102,103,109,110,113,119,123,125,129,140,RZH102,112,122..03S,05S,06S,08S,09S,15S |
2 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-95J00 |
LH102,109,110,113,119,123,129,140,RZH102,112,122..05S,06S,08S,09S ﾌﾞﾗｯｸ |
4 | ||
| Common parts | ||||
| 57442-95J00 | ||||
| 90119-06598 | ||||
| 90119-08623 | ||||
| 90119-10099 | ||||
| 90119-10281 | ||||
| 90189-04070 | ||||
| 90467-0501822 | ||||
| 90904-67033 | ||||
| 90950-01027 | ||||
| 90950-01038 | ||||
| 90950-01181 | ||||
| 90950-01272 | ||||
| 90950-01424 | ||||
| 90950-01429 | ||||
| 90950-01687 | ||||
| 90950-01824 | ||||
| 90950-01849 | ||||
| 90950-01889 | ||||
| 91631-B0614 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 93311-16010 | ||||
| 93540-54014 | ||||
| 93560-55020 | ||||
ILLUST NO. 2 OF 4(8908- )LH115,12#,18#,RZH12#,18#,TRH12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-95N23 |
LH110,RZH112..(V1,WG)..(03S,06S,09S) |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-95N09 |
LH110,RZH112..(V1,WG)..(03S,06S,09S) |
1 | ||
| 57071A - HANGER SUB-ASSY, REAR SPRING, FRONT, RH | ||||
| 57071-95J55 |
LH113,RZH112..V1..5D |
1 | ||
| 57072A - HANGER SUB-ASSY, REAR SPRING, FRONT, LH | ||||
| 57072-95J69 |
RZH112..V1..1000K;LH110,113..(V1,WG)..(03S,05S,06S,09S) |
1 | ||
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-95J05 |
LH125,RZH124..5F..DX..(DSL,EFI);LH102,103,109,110,113,117,119,123,129,140,RZH102,112,122,133..V1,WG |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-95J08 |
RZH124..5F..EFI;LH125,184,186..DX;LH102,103,109,110,113,117,119,123,129,140,16#,17#,182,188,RZH102,112,122,133..V1,WG |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH102..SP;LH119..05S;LH113..V1..SRF..4D..06S..DX;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..(DX,GCGE,GCGN) |
1 | ||
| 57317-95J06 |
LH102..SP;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..DX |
1 | ||
| 57317-95J06 |
LH102..SP;LH109,120..4D..DX;LH102,109,113,119,RZH102,112..V1..5D |
1 | ||
| 57317-95J06 |
LH102..SP;LH113..V1..SRF..4D..06S..DX;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..DX |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57317-95J06 |
LH102..SP;LH119..05S;LH113..V1..SRF..4D..06S..DX;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..(DX,GCGE,GCGN) |
1 | ||
| 57317-95J06 |
LH102..SP;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..DX |
1 | ||
| 57317-95J06 |
LH102..SP;LH109,120..4D..DX;LH102,109,113,119,RZH102,112..V1..5D |
1 | ||
| 57317-95J06 |
LH102..SP;LH113..V1..SRF..4D..06S..DX;LH102,109,113,119,RZH102,112..V1..5D;LH109,120,RZH12#..4D..(06S,10S,15S)..DX |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J11 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57314 - OUTRIGGER, NO.2 LH | ||||
| 57304-95J47 |
RZH112..850K;LH115,117,119,12#,RZH12# |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57094-95J00 |
LH102,113,RZH102,112..4D..CD;LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
2 | ||
| 57094-95J00 |
LH113..4FC..GL;LH113,119..5D..5F;LH113..V2..SRF..5D..4FC;LH102,109,RZH102,112..5D..(CBR,DSL) 左側 |
1 | ||
| 57361-95J01 |
LH102,103,109,113,119,RZH102,112..5D 右側 |
1 | ||
| 57362A - PACKING, NO.2 OUTRIGGER HOLE COVER | ||||
| 57362-95J01 |
LH102,109,113,119,RZH102,112..5D 右側 |
3 | ||
| 57362-95J01 |
LH102,113,RZH102,112..4D..CD;LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
2 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57413-95N08 |
LH113,119,RZH112..V1..5D..06S ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ) |
1 | ||
| 57413-95N04 |
LH113,119,17#,RZH112..V1..5D..06S ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-95J72 |
LH110..SW;LH113,119,RZH112..V1..(05S,06S) ｱﾘ(ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ ｱﾝｶ) |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57415-95J32 |
LH125..DX;LH102,109,113,119,RZH102,112..V1..GL ｱﾘ(ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 57415-95J33 |
LH125..DX;LH102,103,109,110,113,115,119,123,129,140,RZH102,112,12#,133..(COM,V1,WG)..(03S,06S,09S,15S) |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-95J24 |
LH102,103,109,110,113,115,119,123,125,129,140,RZH102,112,12#,133..(COM,V1,WG)..(03S,05S,06S,08S,09S,15S) |
1 | ||
| 57419A - PLATE, REAR SEAT LOCK | ||||
| 57419-95J01 |
LH113,RZH112..06S..GL;LH102,103,109,110,119,RZH102..GL,SW |
1 | ||
| 57515 - BRACKET, PARKING BRAKE, RH | ||||
| 57515-95J00 |
KZH11#,LH102,103,109,11#,140,16#,17#,RZH102,11#..COM,V1,WG |
1 | ||
| 57516 - BRACKET SUB-ASSY, PARKING BRAKE, LH | ||||
| 57506-95J01 |
LH140;LH113,119,RZH112..V1..(03S,08S,09S);LH102,109,110,115,117,123,125,129,RZH102,110,12#..(COM,V1,WG)..(CD,DX,GL,SGL) |
1 | ||
| 57767 - RETAINER, FUEL TANK BAND | ||||
| 57767-95J02 |
LH102,109,11#,12#,RZH102,11#,12#..COM,V1,WG ｻｲﾄﾞ |
1 | ||
| 57767-95J03 |
LH102,109,11#,12#,RZH102,11#,12#..COM,V1,WG ｾﾝﾀ |
1 | ||
| 57767-95J02 |
LH125..DX;LH102,109,110,113,117,119,123,129,140,RZH102,112,122..V1,WG |
1 | ||
| 58022A - REINFORCEMENT SUB-ASSY, HEADER PANEL | ||||
| 58022-95J06 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
3 | ||
| 58106-95A00 |
LH119..06S,08S,09S;LH102,109,110,113,115,123,125,129,RZH102,11#,12#..(COM,V1,WG)..(CD,DX,GL,SGL) |
3 | ||
| 58194 - RETAINER, ENGINE COVER HINGE | ||||
| 58194-95J03 |
KZH10#,11#,LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J10 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GCGE,GCGN,GL,SGL,SW) |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58221A - PANEL, HEADER | ||||
| 58221-95P33 |
LH102,103,109,113,119,RZH102,112..V1..5D..06S..(CBR,DSL) |
1 | ||
| 58223F - REINFORCEMENT, HEADER PANEL, NO.2 | ||||
| 58223-95J01 |
LH102,103,109,113,119,16#,17#,RZH102,112..5D |
2 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J01 |
LH100,102,110,113,115,123,125,140,RZH10#,11#,12#..COM,V1,WG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58266-95J01 |
LH10#,11#,120,123,125,140,RZH10#,11#,12#..COM,V1,WG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J73 |
LH102,103,109,113,119,RZH102,112..V1..06S..GL |
1 | ||
| 58307H - BRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1 | ||||
| 58307-95701 |
RZH102,112..850K;LH102,113..V1..SP;LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-95P49 |
LH113,119,RZH112..V1..5D..GL ｱﾘ(ﾘﾔ ﾋ-ﾀ ﾄﾘﾑ ﾀｲﾌﾟ) |
1 | ||
| 58311-95P48 |
LH113,119,RZH112..V1..5D..GL |
1 | ||
| 58445D - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58446C - PROTECTOR, BATTERY | ||||
| 58446-95J02 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58449B - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95J00 |
LH10#,11#,123,125,129,RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM,SGL |
1 | ||
| 58449-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58405-95J01 |
LH10#,11#,RZH10#,11#..CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 58405-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 58405-95J01 |
LH10#,11#,140,RZH10#,11#..05S,06S,07S,08S,09S,10S,15S |
1 | ||
| 58458C - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J05 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J08 |
LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 58475B - PACKING, INSPECTION HOLE COVER | ||||
| 58475-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 59209A - COVER SUB-ASSY, INSPECTION HOLE | ||||
| 59209-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 65557 - RETAINER, ROPE HOOK | ||||
| 65557-95J03 |
RZH124..5F;LH102,103,109,110,113,119,123,125,129,140,RZH102,112,122..03S,05S,06S,08S,09S,15S |
2 | ||
| Common parts | ||||
| 57442-95J00 | ||||
| 90119-06598 | ||||
| 90467-0501801 | ||||
| 90904-67033 | ||||
| 90950-01027 | ||||
| 90950-01038 | ||||
| 90950-01181 | ||||
| 90950-01429 | ||||
| 90950-01687 | ||||
| 90950-01691 | ||||
| 90950-01849 | ||||
| 90950-01889 | ||||
| 91631-B0614 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 91661-40820 | ||||
| 93311-16010 | ||||
| 93560-55020 | ||||
ILLUST NO. 3 OF 4(8908- )LH102,103,109,113,119,123,129,16#,17#,182,188,RZH102,112,122,18#,TRH102,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57515 - BRACKET, PARKING BRAKE, RH | ||||
| 57515-95J00 |
KZH11#,LH102,103,109,11#,140,16#,17#,RZH102,11#..COM,V1,WG |
1 | ||
| 57617A - RETAINER, EXHAUST PIPE BRACKET | ||||
| 57617-95J09 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57617-95J10 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-95J05 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J06 |
LH102,103,109,11#,140,16#,17#,RZH102,110,112 |
1 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-95J06 |
LH102,103,109,11#,140,16#,17#,RZH102,110,112 |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-95J04 |
LH102,109,11#,12#,RZH102,11#,12# |
1 | ||
| 57656-95J03 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 57657B - MEMBER, REAR FLOOR CROSS, NO.6 | ||||
| 57657-95J04 |
LH113,119,123,129,RZH112,122;LH102,110,115,117,125,RZH110,124..COM,V2,WG |
1 | ||
| 57657C - CROSSMEMBER, REAR FLOOR, NO.6 | ||||
| 57657-95J05 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57657-95J05 |
LH102,107,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57658-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57688A - REINFORCEMENT, REAR FLOOR CROSSMEMBER | ||||
| 57688-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57691 - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH | ||||
| 57691-95J01 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57692A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH | ||||
| 57692-95J01 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133..COM,V1,WG |
1 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH102,107,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL) |
2 | ||
| 57693-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
2 | ||
| 57693B - BRACE, REAR FLOOR NO.6 CROSSMEMBER | ||||
| 57693-95J01 |
LH102,107,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..(CD,CTM,DX,GL,SCL,SCM,SCMM,SGL) |
2 | ||
| 57693-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12#..COM,V1,WG |
2 | ||
| 57695A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH | ||||
| 57695-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57696A - EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH | ||||
| 57696-95J00 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57699A - RETAINER, FUEL TANK SET BAND | ||||
| 57699-95J01 |
LH10#,11#,12#,RZH10#,11#,12#..COM,V1,WG |
1 | ||
| 57767 - RETAINER, FUEL TANK BAND | ||||
| 57767-95J02 |
LH125..DX;LH102,109,110,113,117,119,123,129,140,RZH102,112,122..V1,WG |
1 | ||
| 57767-95J03 |
LH102,109,11#,12#,RZH102,11#,12#..COM,V1,WG ｾﾝﾀ |
1 | ||
| 57767-95J02 |
LH102,109,11#,12#,RZH102,11#,12#..COM,V1,WG ｻｲﾄﾞ |
1 | ||
| 57767 - RETAINER, FUEL TANK BAND | ||||
| 57767-95J02 |
LH125..DX;LH102,109,110,113,117,119,123,129,140,RZH102,112,122..V1,WG |
1 | ||
| 57767-95J03 |
LH102,109,11#,12#,RZH102,11#,12#..COM,V1,WG ｾﾝﾀ |
1 | ||
| 57767-95J02 |
LH102,109,11#,12#,RZH102,11#,12#..COM,V1,WG ｻｲﾄﾞ |
1 | ||
| 57815 - REINFORCEMENT, BELT ANCHOR, NO.1 | ||||
| 57815-95J04 |
LH102,103,109,113,119,RZH102,112..V1..06S |
2 | ||
ILLUST NO. 4 OF 4(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J01 |
LH100,102,110,113,115,123,125,140,RZH10#,11#,12#..COM,V1,WG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 58266-95J01 |
LH10#,11#,120,123,125,140,RZH10#,11#,12#..COM,V1,WG TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
