RZH112V-SRMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

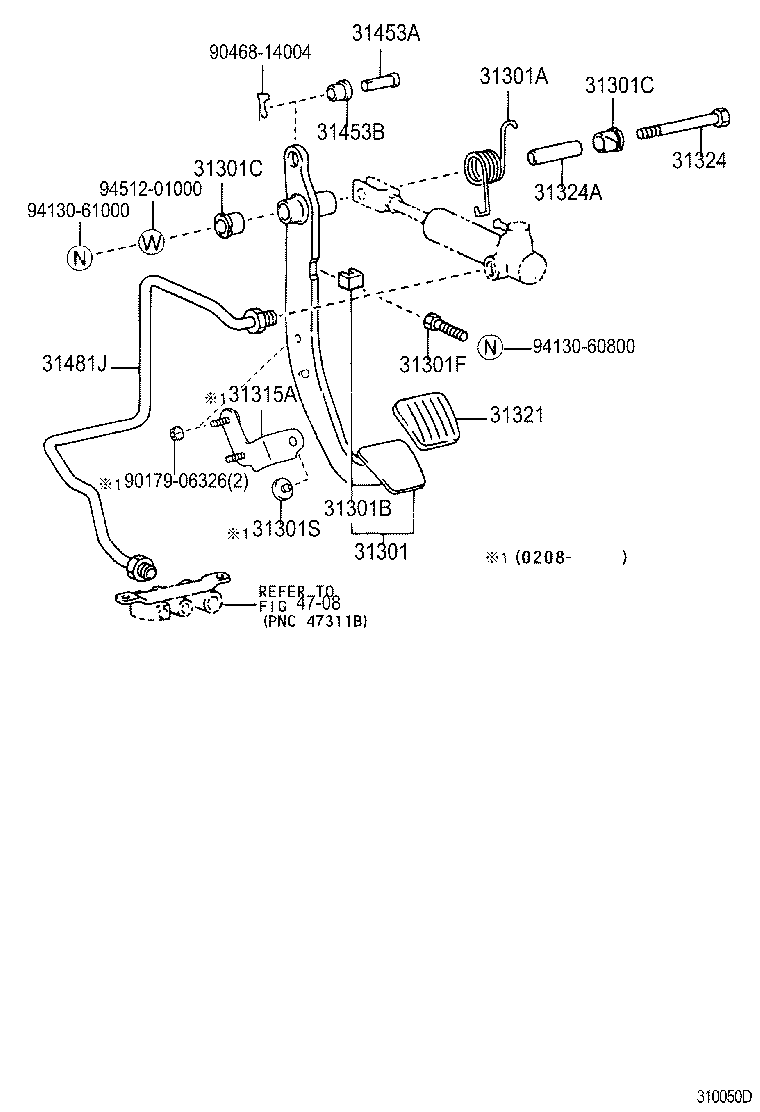

ILLUST NO. 1 OF 2(8908- )LH10#,11#,12#,140,RZH100,102,110,112,122,124,182,TRH102,112,12#..5F..CBR

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301S 31315A 31321 31324 31324A 31453A 31453B 31481J 4708 9017906326 9046814004 9413060800 9413061000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-26100

LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI,TD)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-32034

LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI,TD)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10010

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

LH10#,11#,12#,140,RZH100,102,11#,12#..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F

 1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-26200

LH10#,11#,12#,140,RZH100,102,11#,12#..5F

 1
Common parts
90179-06326
90468-14004
94130-60800
94130-61000
94512-01000
Linked diagrams
4708

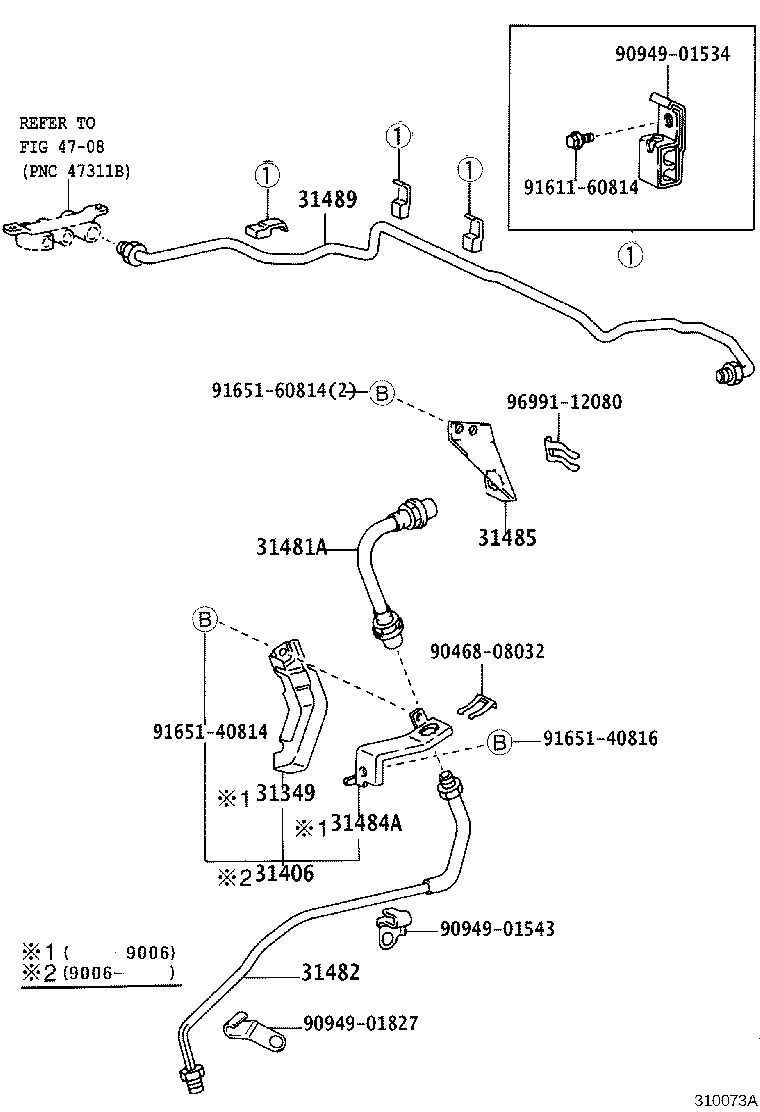

ILLUST NO. 2 OF 2(8908-9308)RZH100,102,11#,12#..5F

Click highlighted areas on diagram

diagram 31349 31406 31481A 31482 31484A 31485 31489 9046808032 9094901534 9094901543 9094901827 9161160814 9165140814 9165140816 9165160814 9699112080
Part # Description Qty Price
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-26030

RZH100,102,11#,12#..5F

 1
31481A - HOSE, CLUTCH, NO.1
90931-01075

LH10#,11#,12#,140..5F

 1
90931-01036

RZH100,102,11#,12#..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-26160

RZH100,102,11#,12#..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-26120

RZH100,102,11#,12#..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-26080

LH10#,11#,123,125,129,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-26190

LH10#,11#,12#,140,RZH100,102,11#,12#..5F

 1
Common parts
90468-08032
90949-01534
90949-01543
90949-01827
91611-60814
91651-40814
91651-40816
91651-60814
96991-12080
