RZH112V-SMPDS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8908-9808)KZH11#,13#,RZH102,112,12#,133 ; (8908- )KZH10#,RZH100,101,110,111

Click highlighted areas on diagram

ﾘﾔ-ﾄﾘﾑ(1)

diagram 8712 8712428040 8712428040 8712428040 8712428040 87208B 87208C 87240A 87248B 87248Y 87248Y 87255A 87255B 87255C 87255C 87255D 87255E 87256A 87256B 87256C 9033913009 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95J54

RZH112..V2

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-95J66

LH102,103,109,113,119,RZH102,112..5D..06S

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-26040

LH113..V2..4D..DX;LH172,RZH112..V2..DX;LH172,RZH112..V1..5D..06S;LH102,103,109,113,119,16#,178,RZH102..5D..06S

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95J61

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

 1
87208-95J60

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20300

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20260

RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95J55

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95J55

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-95J61

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH102,112..V1..5D..06S;LH102,103,109,113,119..5D..06S

*H,L=140,ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,103,109,113,119,RZH102..5D..06S

長さ=200

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95J51

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87245-95J54

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
Common parts
87124-28040
90339-13009
90467-19022
91651-40816
Linked diagrams
8712

ILLUST NO. 1 OF 2(8908-9907)RZH10#,11#,12#,133

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1603 1603 8712 8712428030 8712428030 8712428030 8712428040 87240 87245A 87245B 87245C 87245E 87246A 87246E 87248A 87248A 87249A 87249A 87256E 9046024039 9046722008 9046722008 9046722008 9165140816 9165140816 9165140816 9611230250 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95J08

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J46

LH10#,11#,12#,140,16#,17#,18#

 1
87245-95J48

RZH10#,11#,12#,133

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30300

RZH10#,11#,12#

*H,L=220

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-95J50

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J49

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J05

LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J47

LH10#,11#,12#,140,16#,17#,18#

 1
99556-30300

RZH10#,11#,12#

長さ=300

 1
87248A - PIPE, HEATER WATER INLET, A
87208-95J52

RZH100,102,11#,12#..HRF,SRF

 1
87208-95J51

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-95J51

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87248A - PIPE, HEATER WATER INLET, A
87208-95J52

RZH100,102,11#,12#..HRF,SRF

 1
87208-95J51

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-95J51

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95J44

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-95J44

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-95J45

RZH100,102,11#,12#..HRF,SRF

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95J44

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-95J44

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-95J45

RZH100,102,11#,12#..HRF,SRF

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
Common parts
87124-28030
87124-28040
90460-24039
90467-22008
91651-40816
96112-30250
96134-42100
Linked diagrams
1603
8712

ILLUST NO. 1 OF 2(8908- )LH10#,11#,12#,140,16#,17#,18#

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1603 1603 1603 8712 8712428030 8712428030 87208 87208 87240 87245A 87245C 87245E 87246A 87246E 9046722008 9046722008 9165140816 9165140816 9165140816 9611210250 9611210250 9611210250 9613442100 9613442100 9613442100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J50

LH125..DX;LH100,102,109,11#,123,129,140..HRF,SRF

 1
87208-95J49

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J50

LH125..DX;LH100,102,109,11#,123,129,140..HRF,SRF

 1
87208-95J49

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J08

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J46

LH10#,11#,12#,140,16#,17#,18#

 1
87245-95J48

RZH10#,11#,12#,133

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-95J50

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J49

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J05

LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J47

LH10#,11#,12#,140,16#,17#,18#

 1
99556-30300

RZH10#,11#,12#

長さ=300

 1
Common parts
87124-28030
90467-22008
91651-40816
96112-10250
96134-42100
Linked diagrams
1603
8712

ILLUST NO. 2 OF 2(8908-9508)LH102,103,109,113,119 ; (9508-9808)LH10#,11#

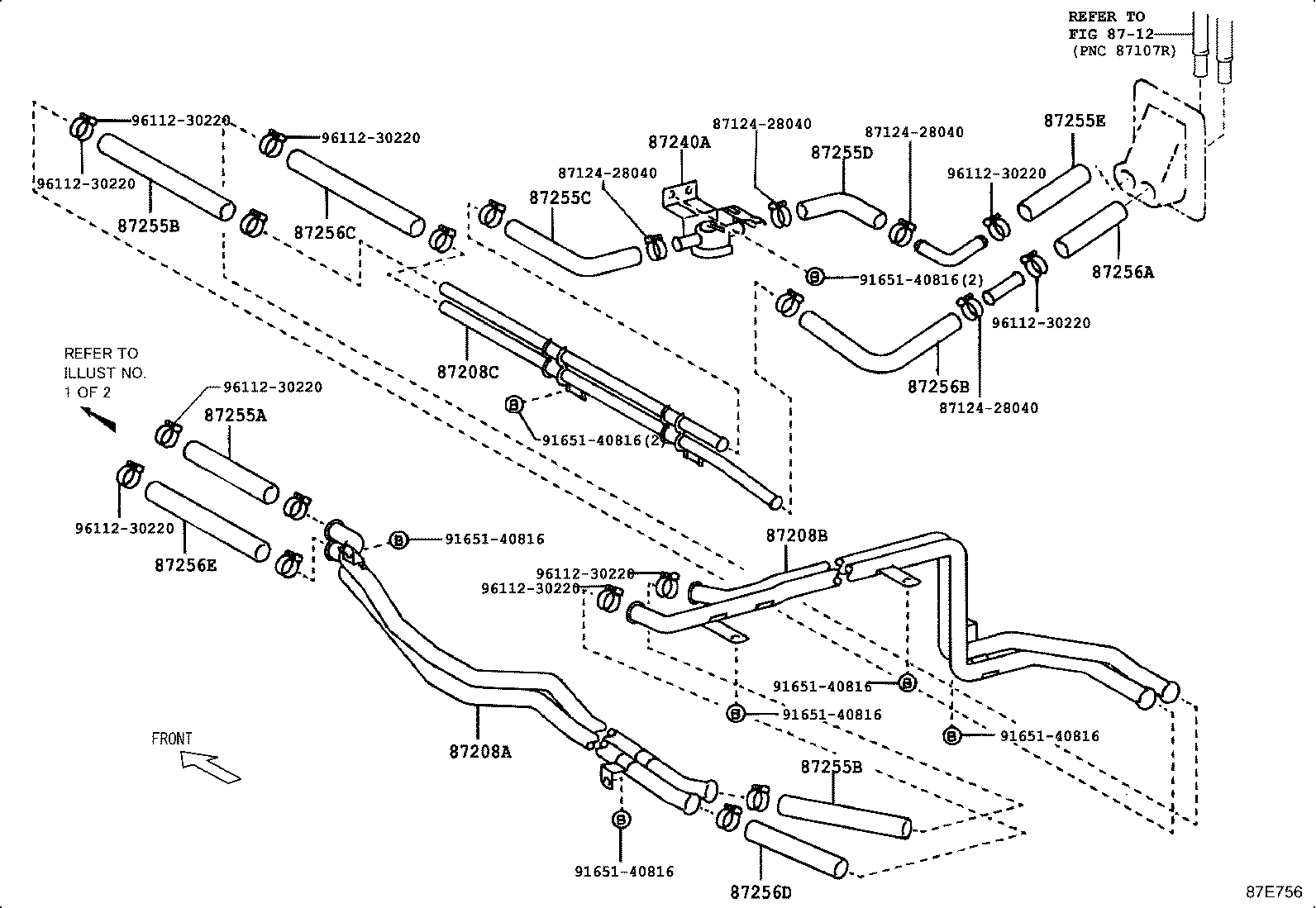

Click highlighted areas on diagram

ﾘﾔ-ﾄﾘﾑ(2)

diagram 5736295J01 87029 8712 8712895J01 87208A 87208B 87208C 87208D 87208E 87237 87240A 87255A 87255B 87255B 87255C 87255D 87255E 87256A 87256B 87256C 87256C 87256D 87256E 9015960025 9015960025 9015960191 9017908123 9018905163 9018905163 9046719010 9046719010 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9338116012 9611230220
Part # Description Qty Price
87029 - COVER SUB-ASSY, HEATER INLET HOLE
87029-95J00

LH102,103,113,162,172,RZH102,112..V2..5D

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J59

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95J54

RZH112..V2

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-95J66

LH102,103,109,113,119,RZH102,112..5D..06S

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-95J62

LH102,103,109,113,119,RZH102,112..5D..06S

 1
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-95J64

LH102,103,113,RZH112..V2..06S

 1
87237 - COVER, HEATER PIPING
87237-95J01

LH102,103,113,162,172,RZH102,112..V2..5D

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-26040

LH113..V2..4D..DX;LH172,RZH112..V2..DX;LH172,RZH112..V1..5D..06S;LH102,103,109,113,119,16#,178,RZH102..5D..06S

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20300

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20260

RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20300

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20260

RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95J55

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-95J61

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH102,112..V1..5D..06S;LH102,103,109,113,119..5D..06S

*H,L=140,ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,103,109,113,119,RZH102..5D..06S

長さ=200

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95J51

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87245-95J54

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87245-95J54

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
99556-20180

LH10#,11#,123,125,129..CTM,DX,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
99556-20170

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=170

 1
99556-20170

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=170

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
Common parts
57362-95J01
87128-95J01
90159-60025
90159-60191
90179-08123
90189-05163
90467-19010
90467-19022
91651-40816
93381-16012
96112-30220
Linked diagrams
8712

ILLUST NO. 2 OF 2(8908-9808)RZH102,112

Click highlighted areas on diagram

ﾘﾔ-ﾄﾘﾑ(2)

diagram 5736295J01 87029 8712 8712895J01 87208B 87208C 87208D 87208E 87237 87240A 87248B 87255A 87255B 87255B 87255C 87255D 87255E 87256A 87256B 87256C 87256C 9015960025 9015960025 9015960191 9017908123 9018905163 9018905163 9046719010 9046719010 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9338116012
Part # Description Qty Price
87029 - COVER SUB-ASSY, HEATER INLET HOLE
87029-95J00

LH102,103,113,162,172,RZH102,112..V2..5D

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95J54

RZH112..V2

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-95J66

LH102,103,109,113,119,RZH102,112..5D..06S

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-95J62

LH102,103,109,113,119,RZH102,112..5D..06S

 1
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-95J64

LH102,103,113,RZH112..V2..06S

 1
87237 - COVER, HEATER PIPING
87237-95J01

LH102,103,113,162,172,RZH102,112..V2..5D

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-26040

LH113..V2..4D..DX;LH172,RZH112..V2..DX;LH172,RZH112..V1..5D..06S;LH102,103,109,113,119,16#,178,RZH102..5D..06S

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95J61

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

 1
87208-95J60

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20300

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20260

RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20300

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20260

RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95J55

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-95J61

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH102,112..V1..5D..06S;LH102,103,109,113,119..5D..06S

*H,L=140,ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,103,109,113,119,RZH102..5D..06S

長さ=200

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95J51

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87245-95J54

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87245-95J54

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
Common parts
57362-95J01
87128-95J01
90159-60025
90159-60191
90179-08123
90189-05163
90467-19010
90467-19022
91651-40816
93381-16012
Linked diagrams
8712

ILLUST NO. 2 OF 2(8908-9808)LH10#,11#,12#,140

Click highlighted areas on diagram

ﾘﾔ-ﾄﾘﾑ(1)

diagram 8712 8712428040 8712428040 8712428040 8712428040 8712428040 8712428040 87208A 87208B 87208C 87240A 87248Y 87248Y 87255A 87255B 87255C 87255C 87255D 87255E 87256A 87256B 87256B 87256D 87256E 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J59

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95J54

RZH112..V2

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-95J66

LH102,103,109,113,119,RZH102,112..5D..06S

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-26040

LH113..V2..4D..DX;LH172,RZH112..V2..DX;LH172,RZH112..V1..5D..06S;LH102,103,109,113,119,16#,178,RZH102..5D..06S

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20300

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20260

RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95J55

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95J55

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-95J61

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH102,112..V1..5D..06S;LH102,103,109,113,119..5D..06S

*H,L=140,ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,103,109,113,119,RZH102..5D..06S

長さ=200

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95J51

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95J51

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
99556-20180

LH10#,11#,123,125,129..CTM,DX,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
99556-20170

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=170

 1
99556-20170

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=170

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
Common parts
87124-28040
90467-19022
91651-40816
Linked diagrams
8712

ILLUST NO. 2 OF 2(8908- )LH102,103,109,113,119,16#,17# ; (9808- )RZH102,112..5D ; (0012- )R

Click highlighted areas on diagram

ﾘﾔ-ﾄﾘﾑ(2)

diagram 5736295J01 87029 8712 8712895J01 87208B 87208C 87208C 87208D 87208E 87237 87240A 87248B 87255A 87255B 87255B 87255C 87255D 87255E 87256A 87256B 87256C 87256C 9015960025 9015960025 9015960191 9017908123 9018905163 9018905163 9046719010 9046719010 9046719010 9046719010 9046719010 9046719010 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9338116012
Part # Description Qty Price
87029 - COVER SUB-ASSY, HEATER INLET HOLE
87029-95J00

LH102,103,113,162,172,RZH102,112..V2..5D

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95J54

RZH112..V2

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-95J66

LH102,103,109,113,119,RZH102,112..5D..06S

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-95J66

LH102,103,109,113,119,RZH102,112..5D..06S

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-95J62

LH102,103,109,113,119,RZH102,112..5D..06S

 1
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-95J64

LH102,103,113,RZH112..V2..06S

 1
87237 - COVER, HEATER PIPING
87237-95J01

LH102,103,113,162,172,RZH102,112..V2..5D

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-26040

LH113..V2..4D..DX;LH172,RZH112..V2..DX;LH172,RZH112..V1..5D..06S;LH102,103,109,113,119,16#,178,RZH102..5D..06S

 1
87248B - PIPE, HEATER WATER INLET, B
87208-95J61

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

 1
87208-95J60

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20300

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20260

RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20300

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20260

RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95J55

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-95J61

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH102,112..V1..5D..06S;LH102,103,109,113,119..5D..06S

*H,L=140,ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,103,109,113,119,RZH102..5D..06S

長さ=200

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95J51

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87245-95J54

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87245-95J54

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
Common parts
57362-95J01
87128-95J01
90159-60025
90159-60191
90179-08123
90189-05163
90467-19010
90467-19022
91651-40816
93381-16012
Linked diagrams
8712

ILLUST NO. 2 OF 2(9005- )LH113 ; (9808- )RZH102,112..5D ; (9808- )LH16#,17#,18#..SG

Click highlighted areas on diagram

ｷﾔﾝﾋﾟﾝｸﾞ ｶ-,ﾘﾔ-ﾄﾘﾑ(1)

diagram 8712 8712428040 8712428040 8712428040 8712428040 87208A 87208B 87208C 87240A 87255A 87255B 87255B 87255C 87255D 87255E 87256A 87256B 87256C 87256D 87256E 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220 9611230220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J59

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95J54

RZH112..V2

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-95J66

LH102,103,109,113,119,RZH102,112..5D..06S

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-26040

LH113..V2..4D..DX;LH172,RZH112..V2..DX;LH172,RZH112..V1..5D..06S;LH102,103,109,113,119,16#,178,RZH102..5D..06S

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=180

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20300

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20260

RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20300

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
99556-20260

RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95J55

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-95J61

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH102,112..V1..5D..06S;LH102,103,109,113,119..5D..06S

*H,L=140,ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,103,109,113,119,RZH102..5D..06S

長さ=200

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95J51

LH102,103,113,162,172,RZH102,112..V2..06S

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

LH119..05S;RZH112..V2;LH113..5D..GL;LH113..HRF..5D;LH113..SRF..06S..DX;RZH112..V1..5D..06S;LH102,109,119,RZH102..5D..06S

*H,L=260

 1
99556-20260

RZH112..V2;LH113..V2..4D..DX;RZH112..V1..5D..06S;LH102,109,113,119,RZH102..5D..06S

*H,L=260

 1
87245-95J54

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
99556-20180

LH10#,11#,123,125,129..CTM,DX,GL,SCL,SCM,SCMM,SGL

*H,L=180

 1
99556-20170

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=170

 1
99556-20170

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=170

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
Common parts
87124-28040
91651-40816
96112-30220
Linked diagrams
8712
