RZH112V-SMMDE (1993)
Toyota Hiace/Regiusace

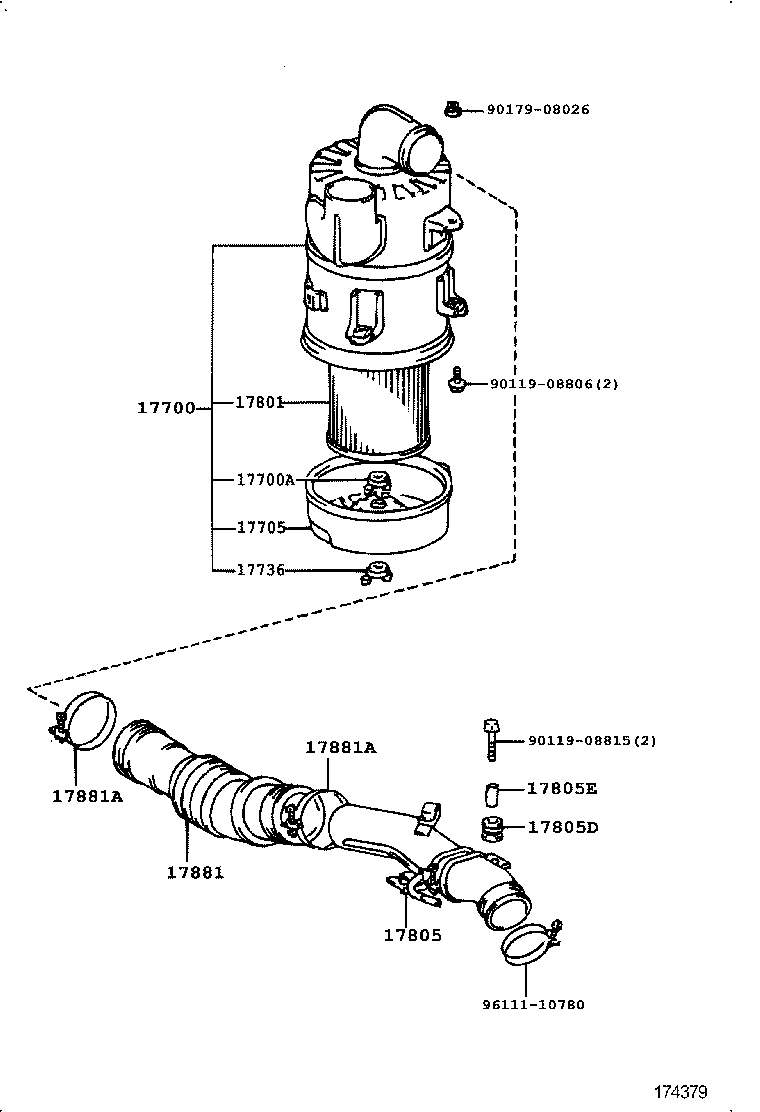

ILLUST NO. 1 OF 2(9508- )1RZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-75031 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 17700-75010 |
1RZ..RZH102,112,12# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 90175-08008 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-75010 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 17705-75010 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 90175-06003 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54100 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 17801-54100 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-75010 |
1RZ..RZH102,112,12# |
1 | ||
| 17860-75020 |
1RZE..RZH102,112,124 |
1 | ||
| 17860-75020 |
1RZE..RZH102,112,124,182 |
1 | ||
| 17805D - GROMMET(FOR INTAKE AIR CONNECTOR) | ||||
| 90540-12009 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
2 | ||
| 90540-12009 |
1RZE,2RZE..RZH10#,11#,12#,18# |
2 | ||
| 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) | ||||
| 90389-09016 |
1RZE,2RZE..RZH10#,11#,12#,18# |
2 | ||
| 90389-09016 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
2 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-75010 |
1RZ#,2RZE..RZH10#,11#,12# |
1 | ||
| 17881-75020 |
1RZE,2RZE..RZH10#,112,124 |
1 | ||
| 17881-75070 |
1RZE..RZH102,112,124 |
1 | ||
| 17881-75070 |
1RZE..RZH102,112,124,182 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
1RZ#,2RZE..RZH10#,11#,12# ｴｱｸﾘｰﾅ側 |
1 | ||
| 90460-80001 |
1RZE..RZH100,102,112,124 ｴｱ ﾊﾟｲﾌﾟ側 |
1 | ||
| 96111-10880 |
1RZ#,2RZE..RZH10#,11#,12# ｺﾈｸﾀ側 |
1 | ||
| 96111-10880 |
1RZE..RZH102,112,124,182 ｺﾈｸﾀ側 |
1 | ||
| 96111-10850 |
1RZE,2RZE..RZH10#,11#,12#,133 ｴｱｸﾘｰﾅ側 |
1 | ||
| 96111-10850 |
1RZE..RZH102,112,124,182 ｴｱｸﾘｰﾅ側 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
1RZ#,2RZE..RZH10#,11#,12# ｴｱｸﾘｰﾅ側 |
1 | ||
| 90460-80001 |
1RZE..RZH100,102,112,124 ｴｱ ﾊﾟｲﾌﾟ側 |
1 | ||
| 96111-10880 |
1RZ#,2RZE..RZH10#,11#,12# ｺﾈｸﾀ側 |
1 | ||
| 96111-10880 |
1RZE..RZH102,112,124,182 ｺﾈｸﾀ側 |
1 | ||
| 96111-10850 |
1RZE,2RZE..RZH10#,11#,12#,133 ｴｱｸﾘｰﾅ側 |
1 | ||
| 96111-10850 |
1RZE..RZH102,112,124,182 ｴｱｸﾘｰﾅ側 |
1 | ||
| Common parts | ||||
| 90119-08806 | ||||
| 90119-08815 | ||||
| 90179-08026 | ||||
| 96111-10780 | ||||
