RZH112V-RRPDE (1996)

Toyota Hiace/Regiusace

Production Aug 1996 - Aug 2003
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

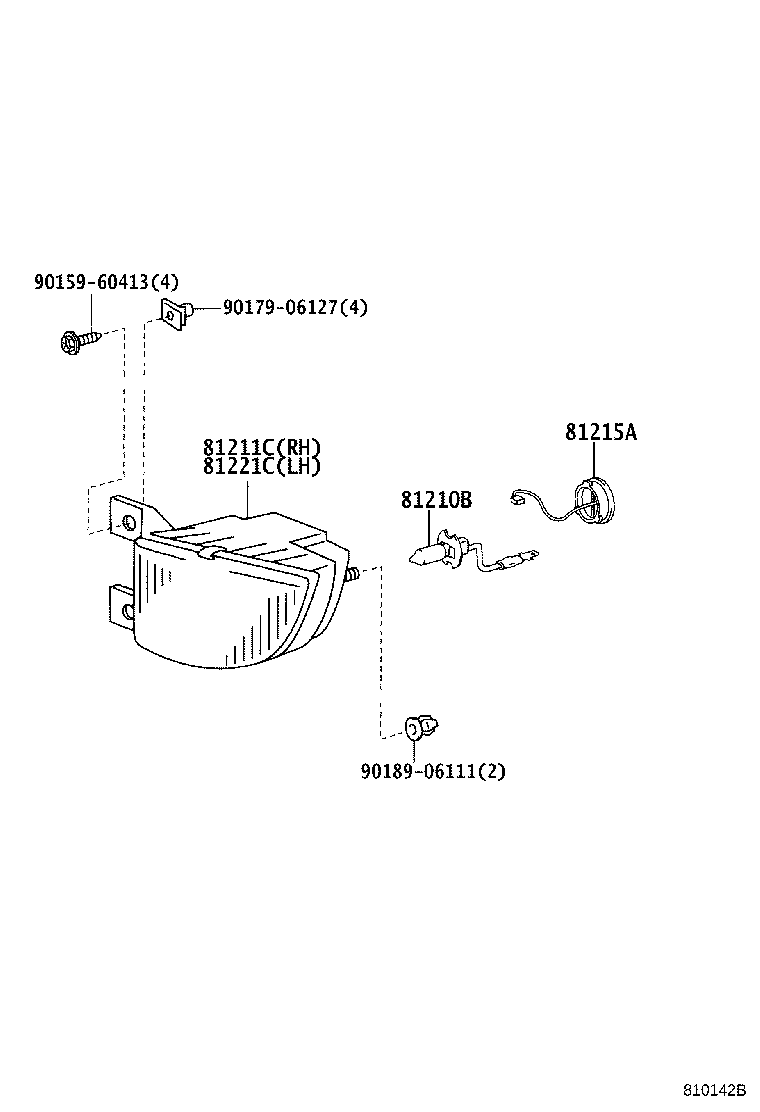

(9608-9907)KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 ; (9907- )LH16#,1

Click highlighted areas on diagram

diagram 81210B 81211C 81215A 81221C 9015960413 9017906127 9018906111
Part # Description Qty Price
81210B - BULB, FOG LAMP
90981-13071

KZH10#,11#,12#,13#,RZH101,111,133

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13071

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-26010

KZH10#,11#,12#,13#,RZH101,111,133

 1
81211-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-26010

KZH10#,11#,12#,13#,RZH101,111,133

 2
81215-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
81221-26010

KZH10#,11#,12#,13#,RZH101,111,133

 1
Common parts
90159-60413
90179-06127
90189-06111

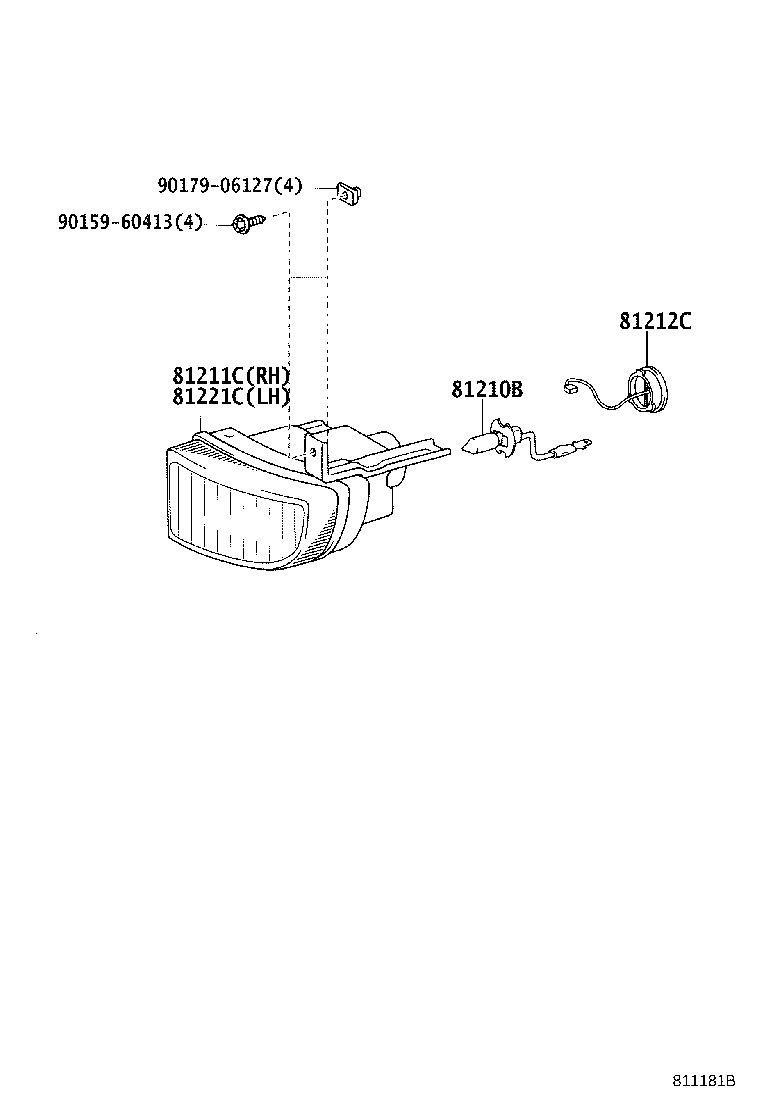

(9907- )KZH10#,11#,120,13#,RZH101,111

Click highlighted areas on diagram

diagram 81210B 81211C 81212C 81221C 9015960413 9017906127
Part # Description Qty Price
81210B - BULB, FOG LAMP
90981-13071

KZH10#,11#,12#,13#,RZH101,111,133

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13071

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-26010

KZH10#,11#,12#,13#,RZH101,111,133

 1
81211-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-26010

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

 1
81221-26010

KZH10#,11#,12#,13#,RZH101,111,133

 1
Common parts
90159-60413
90179-06127
