Toyota Hiace/regiusace RZH112 REAR BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
HIACE/REGIUSACE
RZH112V-RRMDE (1993)
5253 - REAR BUMPER & BUMPER STAY

RZH112V-RRMDE (1993)

Toyota Hiace/Regiusace

Production Aug 1993 - Aug 2003

Engine 1RZE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9308- )LH123..06S ; (9308- )KZH10#,11#,12#,13#,LH103,11#,125,129,18#,RZH100,

Click highlighted areas on diagram

Part #	Description	Period	Qty
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-95J01	KZH10#,11#,12#,LH125,RZH100,101,124	08/1993 - 08/1994	1
52023-95J01	LH123..06S;KZH10#,11#,12#,13#,LH125,129,RZH100,101,111,124	08/1994 - 08/1996	1
52023-95J01	KZH10#,11#,12#,13#,LH125,184,186,RZH101,111,12#	08/1996 - 07/1999	1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00	LH10#,11#,123,125,129,140,RZH10#,11#,12# ｱﾘ(ｽﾃﾂﾌﾟﾀｲﾌﾟﾘﾔﾊﾞﾝﾊﾟ)	08/1989 - 05/1992	1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00	LH10#,11#,123,125,129,140,RZH10#,11#,12#	08/1989 - 05/1992	1
52159 - COVER, REAR BUMPER
52159-95J23	LH102,109,110,113,119,123,129,140,RZH102,112,122..(V1,WG)..(03S,06S,09S) 塗装不要,ｱﾘ(ｽﾃﾂﾌﾟﾀｲﾌﾟﾘﾔﾊﾞﾝﾊﾟ),ﾌﾞﾗｯｸ	08/1989 - 08/1993	1
52159-95J26	KZH10#,11#,12#,LH125,RZH100,101,124 塗装不要,ﾌﾞﾗｯｸ	08/1993 - 08/1994	1
52159-95J26	LH123..06S;KZH10#,11#,12#,LH125,129,RZH100,101,124 塗装不要,ﾌﾞﾗｯｸ	08/1994 - 08/1995	1
52159-95J23	LH125..DX;LH10#,11#,123,129,RZH102,112,124,133..(COM,V1)..(CD,DX,GL) 塗装不要,ｱﾘ(ｽﾃﾂﾌﾟﾀｲﾌﾟﾘﾔﾊﾞﾝﾊﾟ),ﾌﾞﾗｯｸ	08/1993 - 08/1996	1
52159-95J28E0	KZH10#,11#,12#,LH123,129,RZH100,101..06S,08S,10S BEIGE M,4K1	11/1994 - 08/1995	1
52159-95J26	KZH11#,12#,13#,LH12#,RZH111,124..03S,06S,10S,15S 塗装不要,ﾌﾞﾗｯｸ	08/1995 - 08/1996	1
52159-95J2845	KZH10#,12#,13#,LH123,129,RZH101..03S,06S,07S,08S,10S RE.BROWN ME,21T	08/1995 - 08/1996	1
52159-26040K0	KZH10#,12#,13#,RZH101 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),GRAYISH PURPLE ME.,2BY	08/1996 - 06/1997	1
52159-95J28E0	KZH11#..4FC;KZH10#,12#,13#,LH123,129,RZH101..03S,06S,08S,10S BEIGE M,4K1	08/1995 - 08/1996	1
52159-95J28K0	KZH10#,12#,13#,RZH101 GRAYISH PURPLE ME.,2BY	08/1996 - 06/1997	1
52159-95J23	LH184..5F..DX;LH10#,11#,12#,16#,17#,182,188,RZH102,112,133..(COM,V1)..(CD,DX,SGL) 塗装不要,ｱﾘ(ｽﾃﾂﾌﾟﾀｲﾌﾟﾘﾔﾊﾞﾝﾊﾟ),ﾌﾞﾗｯｸ	08/1996 - 07/1999	1
52159-95J22	LH10#,11#,123,129,16#,17#,182,188,RZH102,112..V1..(CD,DX) 塗装不要,ｽﾃﾂﾌﾟﾀｲﾌﾟﾘﾔﾊﾞﾝﾊﾟ & ｱﾘ(ﾊﾞﾂｸｿﾅ-)	08/1996 - 07/1999	1
52159-95J26	KZH10#,11#,12#,13#,LH125,184,186,RZH101,111,12# 塗装不要,ﾌﾞﾗｯｸ	08/1996 - 07/1999	1
52159-95J28K0	KZH11#..4FC;KZH10#,12#,13#,RZH101 GRAYISH PURPLE ME.,2BY	06/1997 - 07/1999	1
52159-26040K0	KZH11#..4FC;KZH10#,12#,13#,RZH101 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),GRAYISH PURPLE ME.,2BY	06/1997 - 07/1999	1
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-26020	KZH10#,11#,12#,LH125,RZH100,101,124 左側	08/1993 - 08/1994	1
52354-26020	KZH10#,11#,12#,13#,LH125,184,186,RZH101,111,12# 左側	08/1996 - 07/1999	1
52353-26020	KZH10#,11#,12#,LH125,RZH100,101,124 右側	08/1993 - 08/1994	1
52354-26020	LH123..06S;KZH10#,11#,12#,13#,LH125,129,RZH100,101,111,124 左側	08/1994 - 08/1996	1
52353-26020	KZH10#,11#,120,13#,LH184,186,RZH101,111,12# 右側	07/1999 - 01/2002	1
52353-26020	LH123..06S;KZH10#,11#,12#,13#,LH125,129,RZH100,101,111,124 右側	08/1994 - 08/1996	1
52353-26020	KZH10#,11#,12#,13#,LH125,184,186,RZH101,111,12# 右側	08/1996 - 07/1999	1
52354-95J02	LH102,109,113,119,123,129,RZH102,112,122	08/1989 - 10/1990	2
52354-26020	KZH10#,11#,120,13#,LH184,186,RZH101,111,12# 左側	07/1999 - 01/2002	1
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-26020	KZH10#,11#,12#,LH125,RZH100,101,124 左側	08/1993 - 08/1994	1
52354-26020	KZH10#,11#,12#,13#,LH125,184,186,RZH101,111,12# 左側	08/1996 - 07/1999	1
52353-26020	KZH10#,11#,12#,LH125,RZH100,101,124 右側	08/1993 - 08/1994	1
52354-26020	LH123..06S;KZH10#,11#,12#,13#,LH125,129,RZH100,101,111,124 左側	08/1994 - 08/1996	1
52353-26020	KZH10#,11#,120,13#,LH184,186,RZH101,111,12# 右側	07/1999 - 01/2002	1
52353-26020	LH123..06S;KZH10#,11#,12#,13#,LH125,129,RZH100,101,111,124 右側	08/1994 - 08/1996	1
52353-26020	KZH10#,11#,12#,13#,LH125,184,186,RZH101,111,12# 右側	08/1996 - 07/1999	1
52354-95J02	LH102,109,113,119,123,129,RZH102,112,122	08/1989 - 10/1990	2
52354-26020	KZH10#,11#,120,13#,LH184,186,RZH101,111,12# 左側	07/1999 - 01/2002	1
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-26020	KZH10#,11#,12#,LH125,RZH100,101,124 左側	08/1993 - 08/1994	1
52354-26020	KZH10#,11#,12#,13#,LH125,184,186,RZH101,111,12# 左側	08/1996 - 07/1999	1
52353-26020	KZH10#,11#,12#,LH125,RZH100,101,124 右側	08/1993 - 08/1994	1
52354-26020	LH123..06S;KZH10#,11#,12#,13#,LH125,129,RZH100,101,111,124 左側	08/1994 - 08/1996	1
52353-26020	KZH10#,11#,120,13#,LH184,186,RZH101,111,12# 右側	07/1999 - 01/2002	1
52353-26020	LH123..06S;KZH10#,11#,12#,13#,LH125,129,RZH100,101,111,124 右側	08/1994 - 08/1996	1
52353-26020	KZH10#,11#,12#,13#,LH125,184,186,RZH101,111,12# 右側	08/1996 - 07/1999	1
52354-95J02	LH102,109,113,119,123,129,RZH102,112,122	08/1989 - 10/1990	2
52354-26020	KZH10#,11#,120,13#,LH184,186,RZH101,111,12# 左側	07/1999 - 01/2002	1
52354 - SHUTTER, REAR CROSS TO BUMPER
52354-26020	KZH10#,11#,12#,LH125,RZH100,101,124 左側	08/1993 - 08/1994	1
52354-26020	KZH10#,11#,12#,13#,LH125,184,186,RZH101,111,12# 左側	08/1996 - 07/1999	1
52353-26020	KZH10#,11#,12#,LH125,RZH100,101,124 右側	08/1993 - 08/1994	1
52354-26020	LH123..06S;KZH10#,11#,12#,13#,LH125,129,RZH100,101,111,124 左側	08/1994 - 08/1996	1
52353-26020	KZH10#,11#,120,13#,LH184,186,RZH101,111,12# 右側	07/1999 - 01/2002	1
52353-26020	LH123..06S;KZH10#,11#,12#,13#,LH125,129,RZH100,101,111,124 右側	08/1994 - 08/1996	1
52353-26020	KZH10#,11#,12#,13#,LH125,184,186,RZH101,111,12# 右側	08/1996 - 07/1999	1
52354-95J02	LH102,109,113,119,123,129,RZH102,112,122	08/1989 - 10/1990	2
52354-26020	KZH10#,11#,120,13#,LH184,186,RZH101,111,12# 左側	07/1999 - 01/2002	1
Common parts
90109-08163
90159-50110
90159-50376
90179-08219
90189-05073
90189-05164
91651-60816
91655-40820
93568-55012

(9308- )LH125..DX ; (9308- )LH10#,11#,123,129,16#,17#,18#,RZH102,112,12#,133,

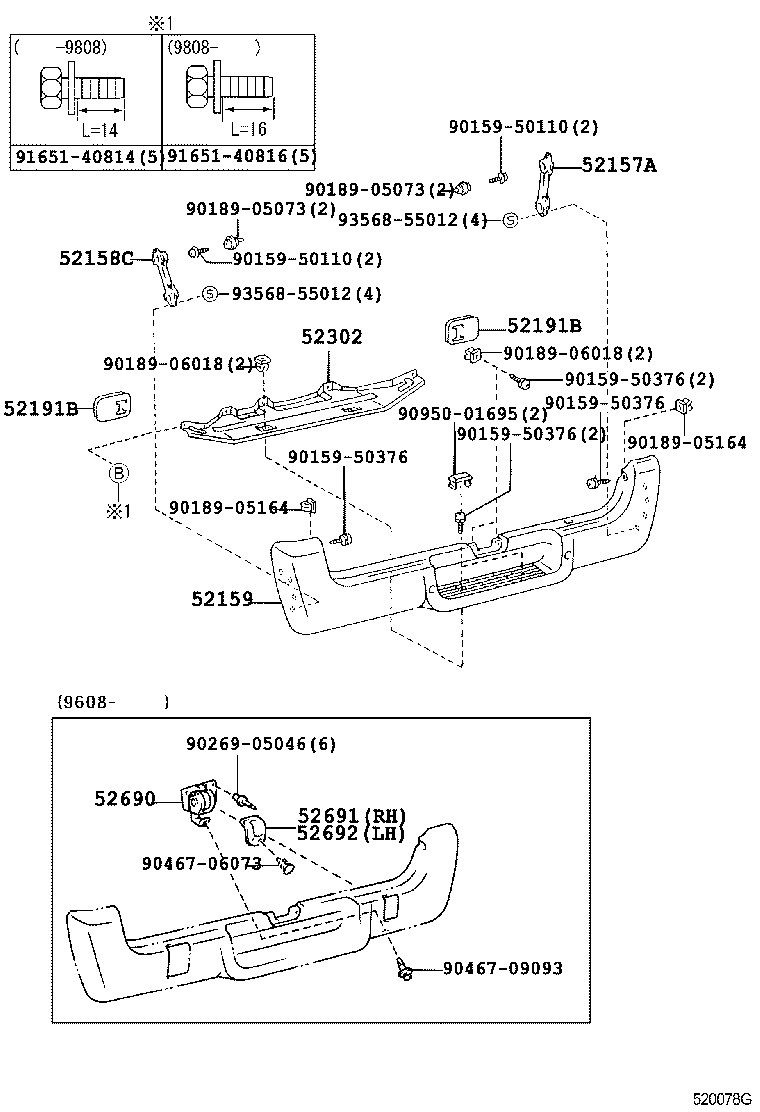

Click highlighted areas on diagram

LH125(ﾖｳｼﾞﾊﾞｽ),RZH124(ﾊﾝﾃﾞｲｷﾔﾌﾞ)

Part #	Description	Period	Qty
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-95J00	LH10#,11#,123,125,129,140,RZH10#,11#,12# ｱﾘ(ｽﾃﾂﾌﾟﾀｲﾌﾟﾘﾔﾊﾞﾝﾊﾟ)	08/1989 - 05/1992	1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-95J00	LH10#,11#,123,125,129,140,RZH10#,11#,12#	08/1989 - 05/1992	1
52159 - COVER, REAR BUMPER
52159-95J23	LH102,109,110,113,119,123,129,140,RZH102,112,122..(V1,WG)..(03S,06S,09S) 塗装不要,ｱﾘ(ｽﾃﾂﾌﾟﾀｲﾌﾟﾘﾔﾊﾞﾝﾊﾟ),ﾌﾞﾗｯｸ	08/1989 - 08/1993	1
52159-95J26	KZH10#,11#,12#,LH125,RZH100,101,124 塗装不要,ﾌﾞﾗｯｸ	08/1993 - 08/1994	1
52159-95J26	LH123..06S;KZH10#,11#,12#,LH125,129,RZH100,101,124 塗装不要,ﾌﾞﾗｯｸ	08/1994 - 08/1995	1
52159-95J23	LH125..DX;LH10#,11#,123,129,RZH102,112,124,133..(COM,V1)..(CD,DX,GL) 塗装不要,ｱﾘ(ｽﾃﾂﾌﾟﾀｲﾌﾟﾘﾔﾊﾞﾝﾊﾟ),ﾌﾞﾗｯｸ	08/1993 - 08/1996	1
52159-95J28E0	KZH10#,11#,12#,LH123,129,RZH100,101..06S,08S,10S BEIGE M,4K1	11/1994 - 08/1995	1
52159-95J26	KZH11#,12#,13#,LH12#,RZH111,124..03S,06S,10S,15S 塗装不要,ﾌﾞﾗｯｸ	08/1995 - 08/1996	1
52159-95J2845	KZH10#,12#,13#,LH123,129,RZH101..03S,06S,07S,08S,10S RE.BROWN ME,21T	08/1995 - 08/1996	1
52159-26040K0	KZH10#,12#,13#,RZH101 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),GRAYISH PURPLE ME.,2BY	08/1996 - 06/1997	1
52159-95J28E0	KZH11#..4FC;KZH10#,12#,13#,LH123,129,RZH101..03S,06S,08S,10S BEIGE M,4K1	08/1995 - 08/1996	1
52159-95J28K0	KZH10#,12#,13#,RZH101 GRAYISH PURPLE ME.,2BY	08/1996 - 06/1997	1
52159-95J23	LH184..5F..DX;LH10#,11#,12#,16#,17#,182,188,RZH102,112,133..(COM,V1)..(CD,DX,SGL) 塗装不要,ｱﾘ(ｽﾃﾂﾌﾟﾀｲﾌﾟﾘﾔﾊﾞﾝﾊﾟ),ﾌﾞﾗｯｸ	08/1996 - 07/1999	1
52159-95J22	LH10#,11#,123,129,16#,17#,182,188,RZH102,112..V1..(CD,DX) 塗装不要,ｽﾃﾂﾌﾟﾀｲﾌﾟﾘﾔﾊﾞﾝﾊﾟ & ｱﾘ(ﾊﾞﾂｸｿﾅ-)	08/1996 - 07/1999	1
52159-95J26	KZH10#,11#,12#,13#,LH125,184,186,RZH101,111,12# 塗装不要,ﾌﾞﾗｯｸ	08/1996 - 07/1999	1
52159-95J28K0	KZH11#..4FC;KZH10#,12#,13#,RZH101 GRAYISH PURPLE ME.,2BY	06/1997 - 07/1999	1
52159-26040K0	KZH11#..4FC;KZH10#,12#,13#,RZH101 ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),GRAYISH PURPLE ME.,2BY	06/1997 - 07/1999	1
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	LH125..DX;LH10#,11#,123,129,RZH102,112,124,133	08/1993 - 08/1996	2
52191-95J00	RZH102,112,12#,18#..CD,DX,SGL,SGLE	07/1999 - 08/2003	2
52191-95J00	LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF	08/1989 - 08/1993	2
52191-95J00	LH184..5F..DX;LH10#,11#,12#,16#,17#,182,188,RZH102,112,133..CD,DX,SGL	08/1996 - 07/1999	2
52191B - GROMMET, REAR BUMPER STAY
52191-95J00	LH125..DX;LH10#,11#,123,129,RZH102,112,124,133	08/1993 - 08/1996	2
52191-95J00	RZH102,112,12#,18#..CD,DX,SGL,SGLE	07/1999 - 08/2003	2
52191-95J00	LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF	08/1989 - 08/1993	2
52191-95J00	LH184..5F..DX;LH10#,11#,12#,16#,17#,182,188,RZH102,112,133..CD,DX,SGL	08/1996 - 07/1999	2
52302 - STEP SUB-ASSY, BACK
52302-95J00	RZH124..5F..EFI;LH125,184,186..DX;LH102,103,109,110,113,117,119,123,129,140,16#,17#,182,188,RZH102,112,122,133	08/1989 - 07/1999	1
52302-95J00	RZH102,112,12#,18#..CD,DX,SGL,SGLE	07/1999 - 08/2003	1
Common parts
90159-50110
90159-50376
90189-05073
90189-05164
90189-06018
90269-05046
90467-06073
90467-09093
90950-01695
91651-40814
91651-40816
93568-55012
