RZH112V-RRMDE (1993)
Toyota Hiace/Regiusace

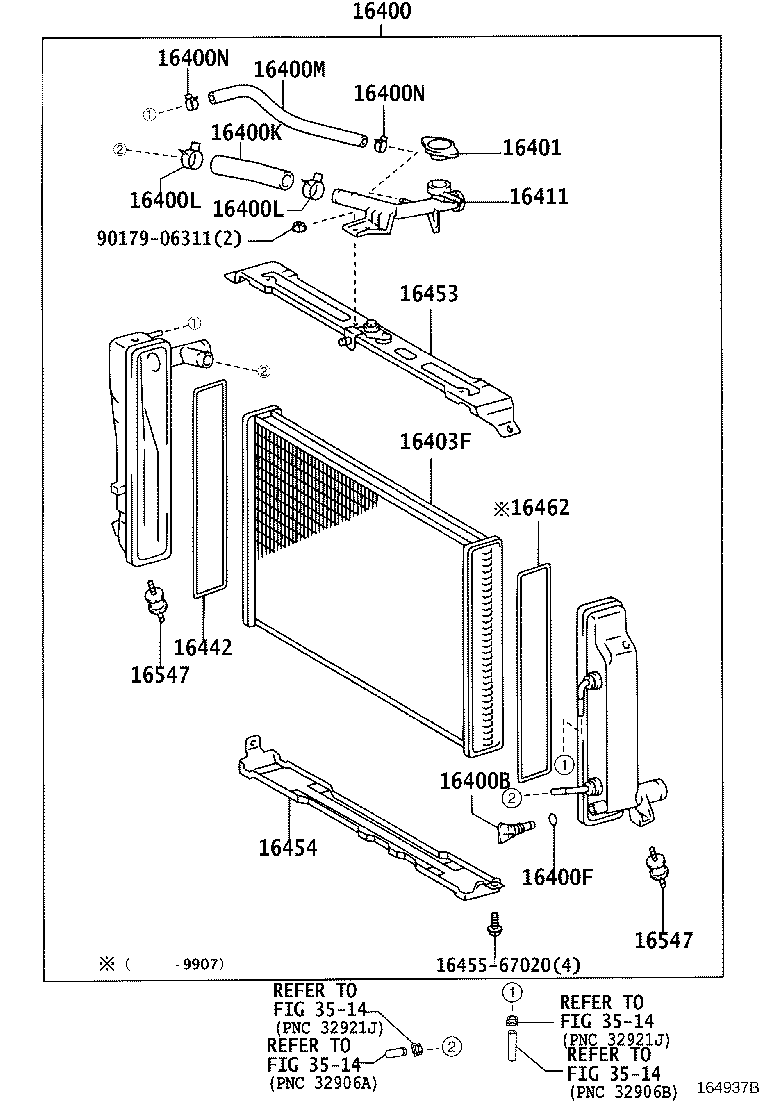

ILLUST NO. 2 OF 2(9808- )1RZE,2RZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-75020 |
1RZ..RZH102,112,12#..5F |
1 | ||
| 16400-75061 |
1RZE..RZH100,102,112,124..5F |
1 | ||
| 16400-75330 |
1RZE..RZH102,112,124..5F |
1 | ||
| 16400-75062 |
1RZE..RZH100,102,112,124..5F |
1 | ||
| 16400-75330 |
1RZE..RZH102,112,124..5F |
1 | ||
| 16400-75370 |
1RZE..RZH102,112,124,182..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-75010 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 16417-15210 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 16417-15210 |
1RZE,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 16418-15520 |
1RZE,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 16418-50121 |
1RZE,2RZE..RZH10#,11#,124,133 |
1 | ||
| 16418-15520 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 16400K - HOSE, WATER, NO.1 | ||||
| 99555-40150 |
1RZE,2RZE..RZH10#,11#,12#,18# 長さ=165 |
1 | ||
| 99555-40140 |
1RZ#,2RZE..RZH10#,11#,12#,133 長さ=140 |
1 | ||
| 99555-40150 |
1RZE,2RZE..RZH10#,11#,12#,133 長さ=165 |
1 | ||
| 16400L - CLAMP, NO.1 | ||||
| 90467-28003 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
2 | ||
| 90467-28007 |
1RZE,2RZE..RZH10#,11#,12#,18# |
2 | ||
| 90467-28003 |
1RZE,2RZE..RZH10#,11#,12#,133 |
2 | ||
| 16400L - CLAMP, NO.1 | ||||
| 90467-28003 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
2 | ||
| 90467-28007 |
1RZE,2RZE..RZH10#,11#,12#,18# |
2 | ||
| 90467-28003 |
1RZE,2RZE..RZH10#,11#,12#,133 |
2 | ||
| 16400M - HOSE, WATER, NO.2 | ||||
| 99555-10300 |
1RZ#,2RZE..RZH10#,11#,12#,133 *H,L=250 |
1 | ||
| 99555-10330 |
1RZE,2RZE..RZH10#,11#,12#,18# 長さ=330 |
1 | ||
| 99555-10330 |
1RZE,2RZE..RZH10#,11#,12#,133 長さ=330 |
1 | ||
| 16400N - CLAMP, NO.2 | ||||
| 90467-13001 |
1RZE,2RZE..RZH10#,11#,12#,133 |
2 | ||
| 90467-13001 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
2 | ||
| 96135-51300 |
1RZE..RZH102,112,124,182..5F |
2 | ||
| 16400N - CLAMP, NO.2 | ||||
| 90467-13001 |
1RZE,2RZE..RZH10#,11#,12#,133 |
2 | ||
| 90467-13001 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
2 | ||
| 96135-51300 |
1RZE..RZH102,112,124,182..5F |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 16401-54750 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-75330 |
1RZE,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 16403-75370 |
1RZE..RZH102,112,124,182..5F |
1 | ||
| 16403-75330 |
1RZE..RZH102,112,124..5F |
1 | ||
| 16411 - PIPE, RADIATOR FILLER | ||||
| 16411-75350 |
1RZE,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 16411-75010 |
1RZE,2RZE..RZH10#,11#,124,133 |
1 | ||
| 16411-75350 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-5B750 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 16442-5B750 |
1RZE,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-75350 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 16453-5B750 |
1RZE,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-75350 |
1RZE,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 16454-5B750 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-5B750 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 16442-5B750 |
1RZE,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-67040 |
1RZE,2RZE..RZH10#,11#,12#,18# |
2 | ||
| 16547-67040 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-67040 |
1RZE,2RZE..RZH10#,11#,12#,18# |
2 | ||
| 16547-67040 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
2 | ||
| Common parts | ||||
| 16455-67020 | ||||
| 90179-06311 | ||||
| Linked diagrams | ||||
| 3514 | ||||
