RZH112V-RMPDE (2000)

Toyota Hiace/Regiusace

Production Dec 2000 - Aug 2003
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

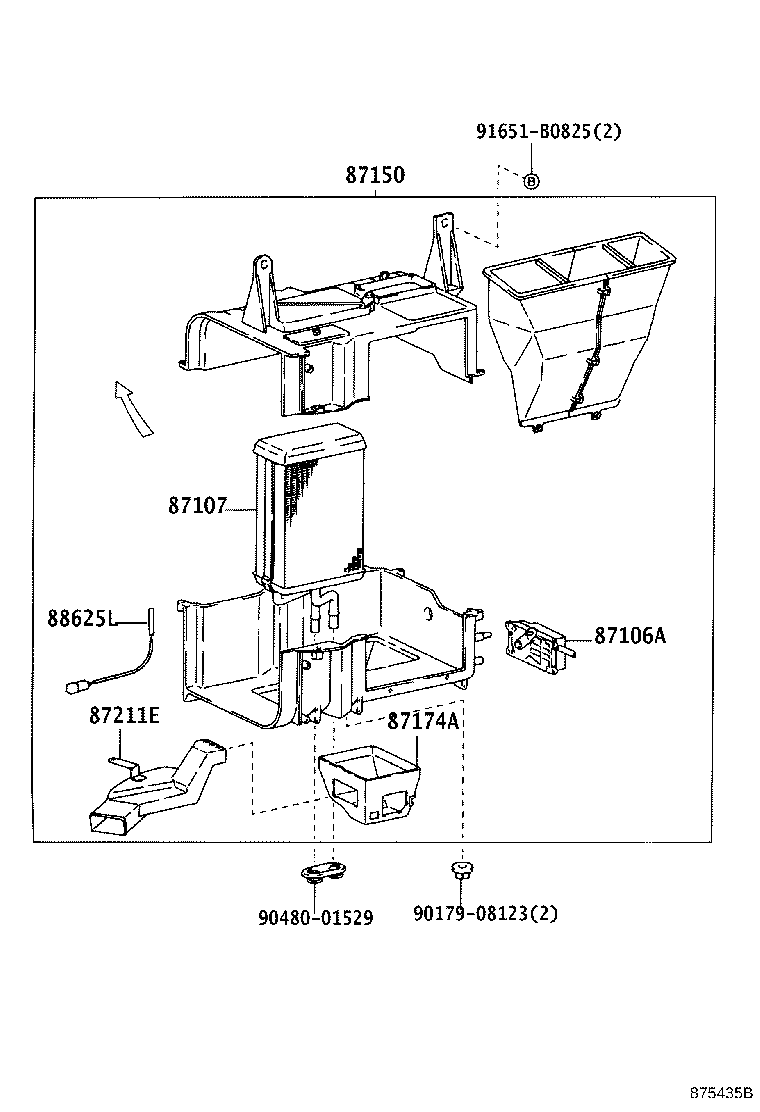

ILLUST NO. 1 OF 4(0108- )LH162,17#,RZH102,112..SGL ; (0308-)TRH102,112,12#

Click highlighted areas on diagram

ﾌﾛﾝﾄﾋ-ﾀ ﾕﾆﾂﾄ

diagram 87106A 87107 87150 87174A 87211E 88625L 9017908123 9048001529 91651B0825
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95J12

LH100,107,RZH100;KZH100..SMRF,SRF;KZH100..5F..SCMM;KZH106,11#,12#,13#,LH102,103,109,11#,12#,140,RZH101,102,11#,12#,133..03S,05S,06S,08S,09S,10S,15S

ｱﾘ(PNC 53180C)

 1
87107-95J11

RZH101..SMRF;KZH10#..(08S,09S)..4FC;KZH10#..(SMRF,SRF)..5F;KZH11#,12#,13#,LH10#,11#,12#,140,RZH100,102,11#,12#,133..03S,05S,06S,08S,09S,10S,15S

 1
87150 - RADIATOR ASSY, HEATER
87150-95J12

LH100,102,109,11#,12#,RZH100,102,11#,12#..CD,DX,GL

 1
87150-95J13

LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,GL,SW

ｱﾘ(PNC 53180C)

 1
87174A - GUIDE, AIR HEATER
87174-95J07

RZH112..CD,DX,GL;RZH102..V1..(03S,06S);KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,122,124,133

ｱﾘ(ﾋ-ﾀ ｴｱﾀﾞｸﾄ)

 1
87174-95J06

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 1
87211E - DUCT, AIR
87211-95J13

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
Common parts
90179-08123
90480-01529
91651-B0825
