RZH112V-RMPDE (2000)

Toyota Hiace/Regiusace

Production Dec 2000 - Aug 2003
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0307- )TRH102,112..V2

Click highlighted areas on diagram

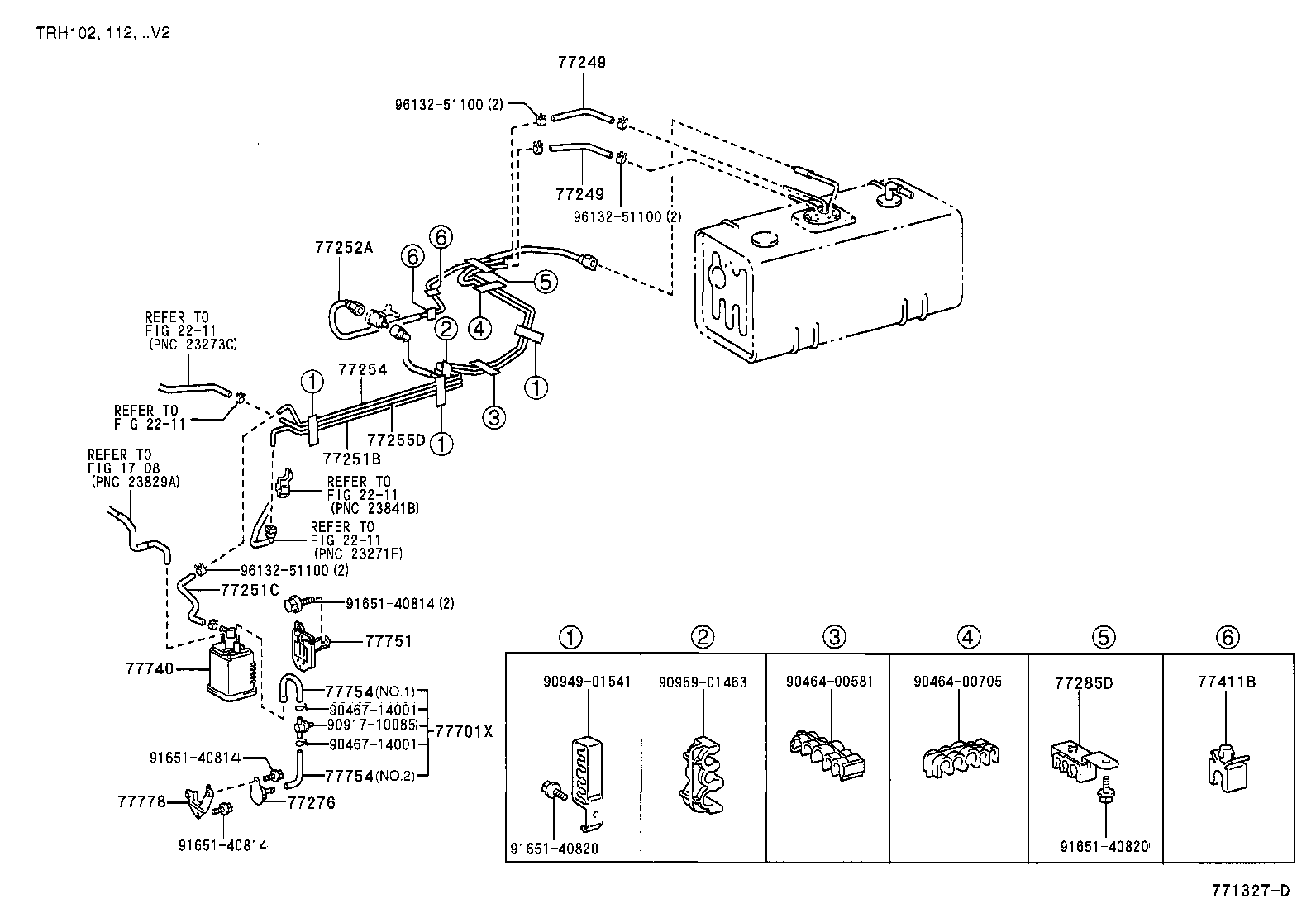

FUEL TUBE

diagram 1708 2211 2211 2211 2211 77249 77249 77251B 77251C 77252A 77254 77255D 77276 77285D 77411B 77701X 77740 77751 77754 77754 77778 9046400581 9046400705 9046714001 9046714001 9091710085 9094901541 9095901463 9165140814 9165140814 9165140814 9165140820 9165140820 9613251100 9613251100 9613251100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-26550

RZH112..V2

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-08030

LH10#,11#,12#,140

*H,L=240,内径=7.6

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-26090

RZH112..V2

 1
77255D - TUBE, FUEL RETURN
77255-26280

RZH112..V2

 1
77276 - PROTECTOR, FUEL HOSE
77276-26080

RZH102,112,12#

 2
77276-26080

RZH10#,11#,124,133..EFI

 1
77740 - CANISTER ASSY, CHARCOAL
77704-26030

RZH100,102,11#,12#

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-26040

RZH102,112,12#

 2
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
90445-12236

RZH102,112,12#

長さ=110

 2
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
90445-12236

RZH102,112,12#

長さ=110

 2
77778 - BRACKET, FUEL HOSE PROTECTOR
77778-26010

RZH10#,11#,12#,133

 1
Common parts
90464-00581
90464-00705
90467-14001
90917-10085
90949-01541
90959-01463
91651-40814
91651-40820
96132-51100
