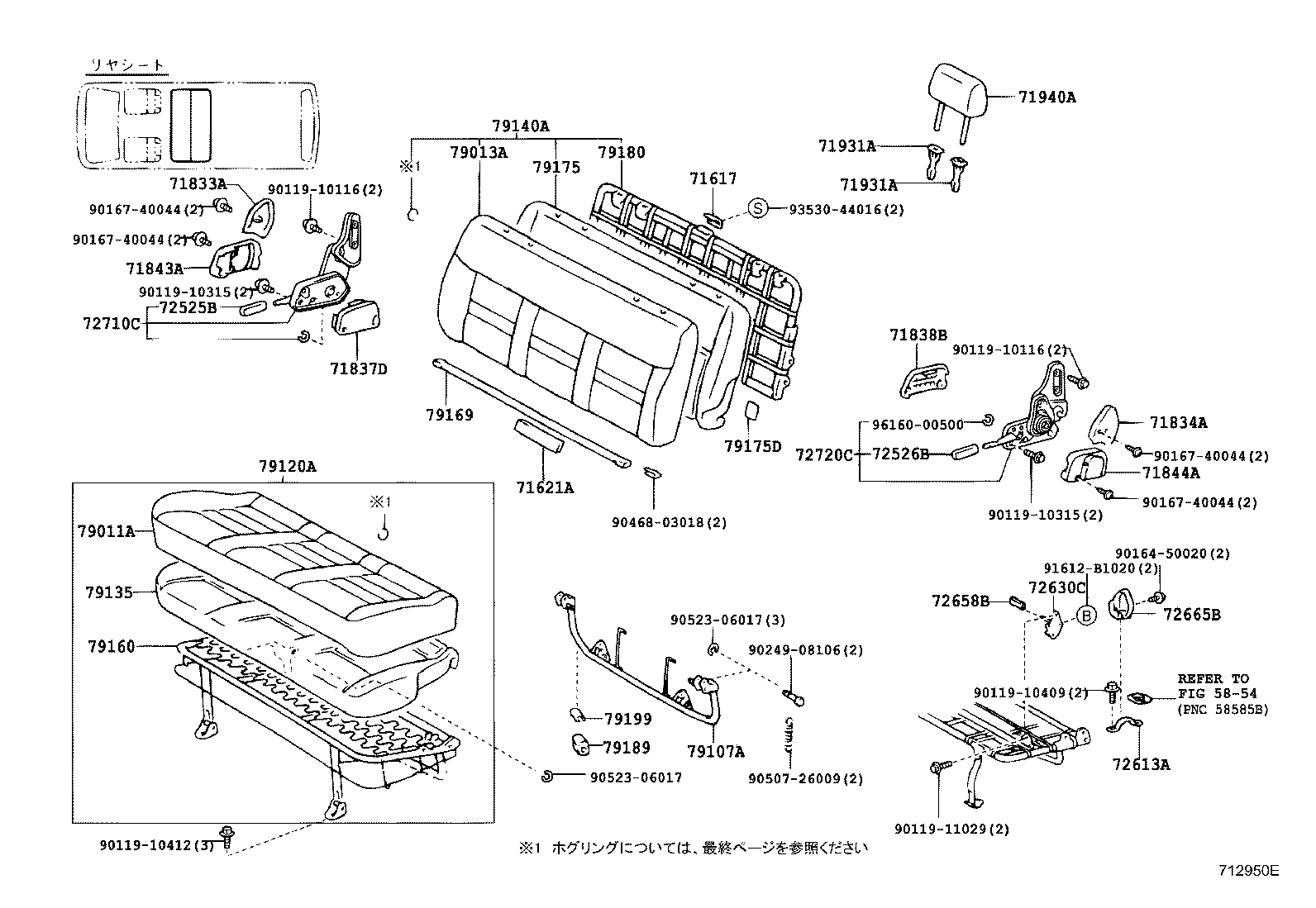

Toyota Hiace/regiusace RZH112 SEAT & SEAT TRACK

Part #	Description	Period	Qty
71617 - PROTECTOR, REAR SEAT BACK
71695-95J0203	LH102,109,113,119,123,129,140,RZH102,112,122..DX,GL,SGL,SW GRAY,TRIM1#	08/1989 - 08/1993	1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-95701	LH102,103,109,113,119,123,129,16#,17#,182,188,RZH102,112,122..06S..DX	08/1989 - 07/1999	6
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-95N2003	LH102,109,113,119,123,129,RZH102,112,122..06S..DX GRAY,TRIM1#	08/1989 - 12/1989	1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-95N0903	LH102,109,113,119,123,129,RZH102,112,122..06S..DX GRAY,TRIM1#	08/1989 - 05/1990	1
79120A - CUSHION ASSY, NO.1 SEAT
79120-95N3103	LH102,109,113,119,123,129,RZH102,112,122..06S..DX GRAY,TRIM1#	08/1989 - 08/1993	1
79135 - PAD, NO.1 SEAT CUSHION
79135-95J03	LH102,109,113,119,123,129,RZH102,112,122..06S	08/1989 - 12/1989	1
79140A - BACK ASSY, NO.1 SEAT
79140-95N2503	LH102,109,113,119,123,129,RZH102,112,122..06S..DX GRAY,TRIM1#	08/1989 - 08/1993	1
79160 - SPRING ASSY, NO.1 SEAT CUSHION
79160-95J44	LH102,103,109,113,119,123,129,RZH102,112,122..06S..DX	08/1989 - 08/1998	1
79175 - PAD, NO.1 SEAT BACK
79175-95J02	LH102,109,113,119,123,129,RZH102,112,122..06S..DX	08/1989 - 05/1990	1
79180 - SPRING ASSY, NO.1 SEAT BACK
79180-95J21	LH102,103,109,113,119,123,129,RZH102,112,122..06S..DX	08/1989 - 08/1998	1
79189 - STOPPER, NO.1 SEAT LEG
71334-95J01	LH102,109,113,119,123,129,RZH102,112,122..06S..DX	08/1989 - 02/1990	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J01	LH102,109,113,119,123,129,RZH102,112,122..06S..DX	08/1989 - 02/1990	2
Common parts
90119-10116
90119-10315
90119-10409
90119-10412
90119-11029
90164-50020
90167-40044
90249-08106
90468-03018
90507-26009
90523-06017
91612-B1020
93530-44016
96160-00500
Linked diagrams
5854

RZH112V-RMPDE (2000)

ILLUST NO. 2 OF 4(0108- )LH16#,17#,182,188,RZH102,112,18#,TRH102,112,12#..05S,06S,15S
