RZH112V-RMPDE (2000)

Toyota Hiace/Regiusace

Production Dec 2000 - Aug 2003
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0307- )TRH102,112,12#

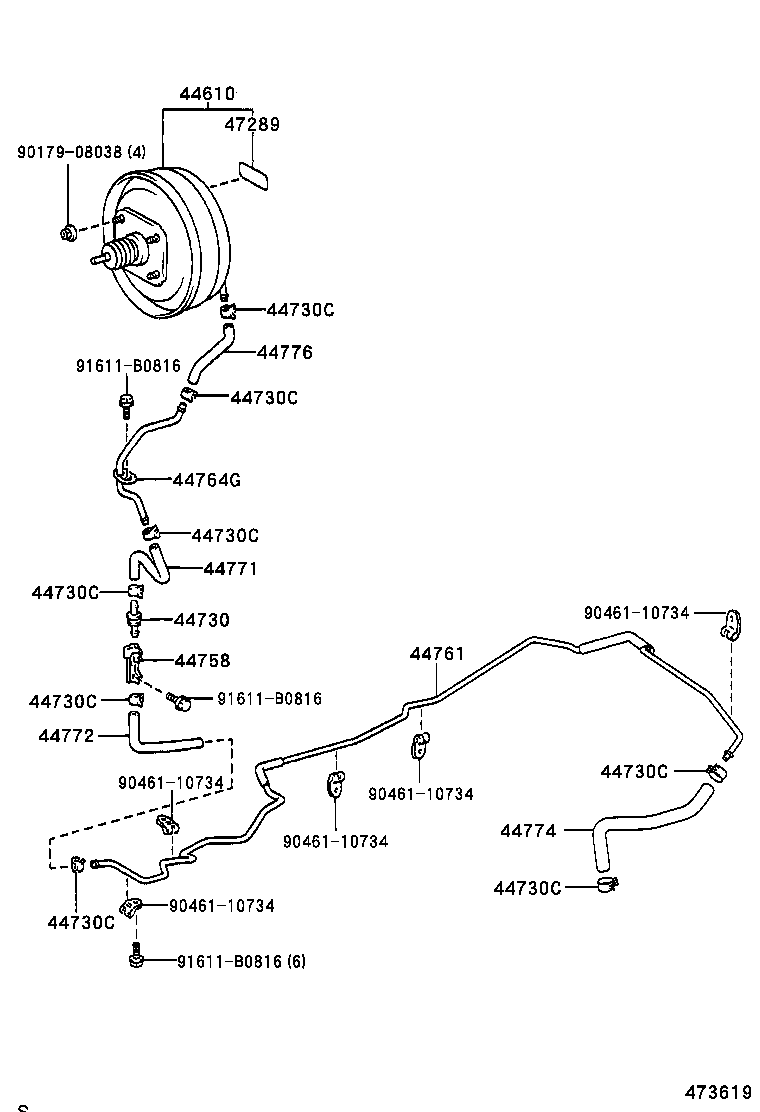

Click highlighted areas on diagram

diagram 44610 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44758 44761 44764G 44771 44772 44774 44776 47289 9017908038 9046110734 9046110734 9046110734 9046110734 9046110734 91611B0816 91611B0816 91611B0816
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-26430

RZH102,112,12#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#

 1
44730-24020

RZH10#,11#,12#,133

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 8
44758 - BRACKET, VACUUM CHECK VALVE
44758-26060

RZH10#,11#,12#,133

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26150

LH10#,11#,12#,140

 1
44761-26170

RZH10#,11#,12#

 1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-26070

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-26110

KZH10#,11#,12#,13#,LH10#,11#,12#,140

 1
44771-26090

RZH10#,11#,12#,133

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-26130

RZH10#,11#,12#,133

 1
44772-26110

KZH10#,11#,12#,13#,LH10#,11#,12#,140

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26180

RZH102,112,12#

 1
44774-26190

RZH10#,11#,124,125,133..EFI

 1
44776 - HOSE, BRAKE BOOSTER
44776-26020

KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133

ｱﾘ(ABS)

 1
44776-26030

LH162,17#..CD,DX;LH10#,11#,12#,140,168,18#

ﾅｼ(ABS)

 1
Common parts
90179-08038
90461-10734
91611-B0816
