RZH112V-RKMBE (2000)

Toyota Hiace/Regiusace

Production Dec 2000 - Aug 2003
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-0103)RZH101,111 ; (8908- )RZH100,102,110,112,12#,133,18#

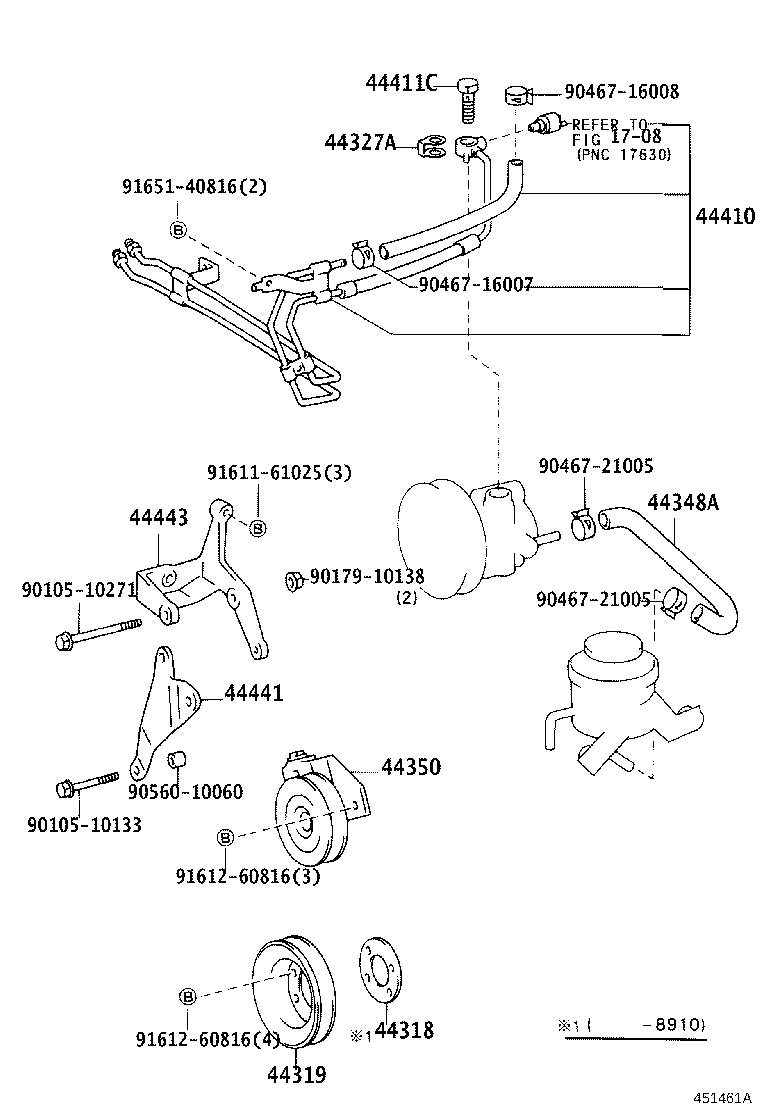

Click highlighted areas on diagram

diagram 1708 44318 44319 44327A 44348A 44350 44410 44411C 44441 44443 9010510133 9010510271 9017910138 9046716007 9046716008 9046721005 9046721005 9056010060 9161161025 9161260816 9161260816 9165140816
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26020

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-26020

RZH10#,11#,12#,133

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-26020

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

 1
44327-12010

RZH100,101..SCL;LH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26070

RZH10#,11#,12#,133

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-26010

RZH10#,11#,12#,133

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-26310

RZH102,112,12#

 1
44410-26170

RZH10#,11#,124..(CD,CTM,DX,GL,SCM,SCMM)..EFI

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

LH10#,11#,12#;RZH100,101..SCL

*16−1.5PX26−12,ｷﾞﾔ側

 1
90401-16008

LH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

*16−1.5PX26−12

 1
90401-16014

RZH10#,11#,12#

 1
44441 - BRACKET, PUMP, FRONT
44441-26010

RZH10#,11#,12#,133

 1
44443 - BRACKET, PUMP
44443-26030

RZH10#,11#,12#

 1
Common parts
90105-10133
90105-10271
90179-10138
90467-16007
90467-16008
90467-21005
90560-10060
91611-61025
91612-60816
91651-40816
Linked diagrams
1708
