RZH112V-RHMNS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8908- )

Click highlighted areas on diagram

diagram 58743D 58744E 67003H 67004H 67525 67528A 67852A 67857C 67857C 67857C 67871 67872 67887A 67888A 67897G 9014960027 9018906062 9018906221 9095001133 9095006001 9095006098
Part # Description Qty Price
58744E - PROTECTOR, SLIDE DOOR PANEL, LH
58744-95J00

LH10#,11#,RZH10#,11#

 1
58744-95J00

LH10#,11#,123,125,129,140,RZH10#,11#,12#

 1
67004H - DOOR SUB-ASSY, SLIDE, LH
67004-95J46

LH102,109,113,119,RZH102,112..GL

 1
67004-26100

LH102,109,113,119,RZH102,112..GL

 1
67525 - COVER, SLIDE DOOR PANEL, LOWER
67525-95J00

KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..4D

 2
67525-95J00

LH10#,11#,12#,140,RZH10#,11#,12#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
67528A - PACKING, SLIDE DOOR LOWER COVER
67528-95J00

LH10#,11#,12#,140,RZH10#,11#,12#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
67528-95J00

KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..4D

 2
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-95J03

LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..4D..(CD,CTM,DX,GL,SGL,SW)

 1
67852-95J03

LH100,102,109,11#,12#,140,RZH100,102,11#,12#..4D..(CD,CTM,DX,GL,SGL,SW)

 1
67857C - SEAL, SLIDE DOOR PANEL HOLE
67857-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..4D

 2
67857C - SEAL, SLIDE DOOR PANEL HOLE
67857-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..4D

 2
67857C - SEAL, SLIDE DOOR PANEL HOLE
67857-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..4D

 2
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-95J0103

LH10#,113,119,RZH10#,112..CTM,GL,SCM,SCMM,SGL

GRAY,TRIM1#

 1
67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH
67887-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
67897G - SEAL, SLIDE DOOR, LOWER
67897-95J00

LH10#,11#,123,125,129,140,RZH10#,11#,12#..4D

寒冷地仕様

 1
67897-95J00

LH10#,11#,RZH10#,11#..4D

寒冷地仕様

 1
Common parts
90149-60027
90189-06062
90189-06221
90950-01133
90950-06001
90950-06098

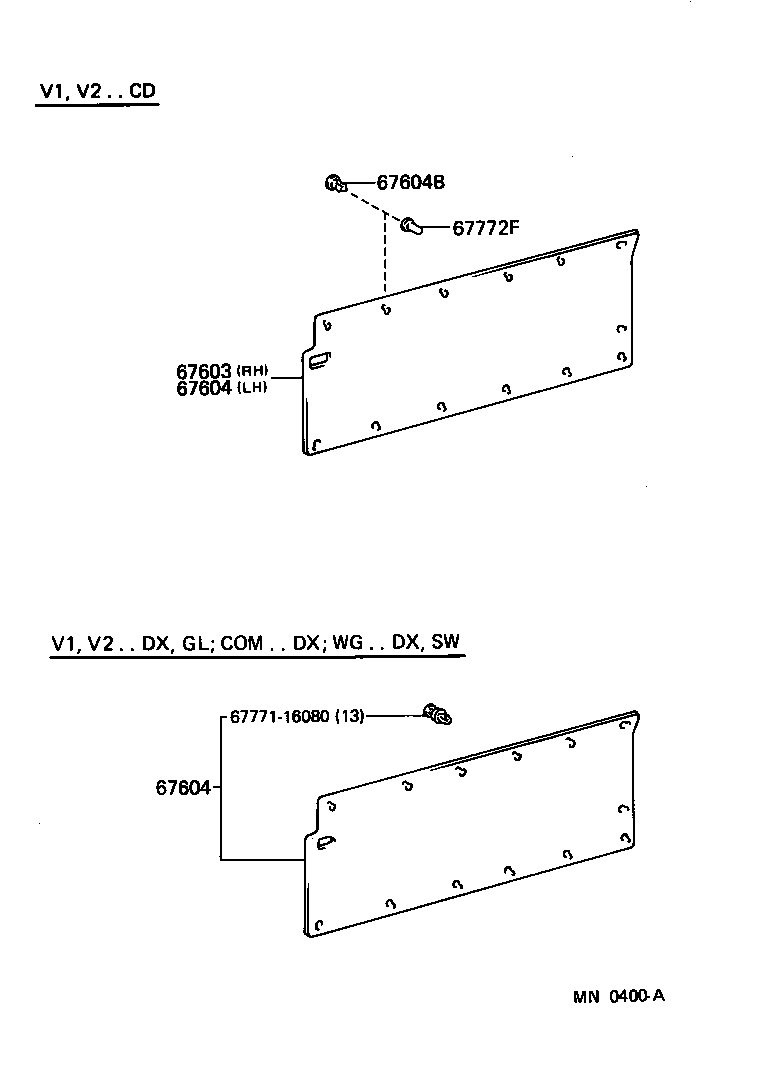

ILLUST NO. 1 OF 2(8908-9308)CD,DX,GL,SW

Click highlighted areas on diagram

diagram 67603 67604 67604 67604B 6777116080 67772F
Part # Description Qty Price
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-95J1903

RZH102,112..850K;LH100,102,109,113,119,123,129,RZH100,102,112,122..DX,GL

GRAY,TRIM1#

 1
67640-95J1903

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(06S,09S)

GRAY,TRIM1#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-95J1903

RZH102,112..850K;LH100,102,109,113,119,123,129,RZH100,102,112,122..DX,GL

GRAY,TRIM1#

 1
67640-95J1903

LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(HRF,SRF)..(06S,09S)

GRAY,TRIM1#

 1
Common parts
67771-16080
