RZH112V-RHMDS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)1RZ

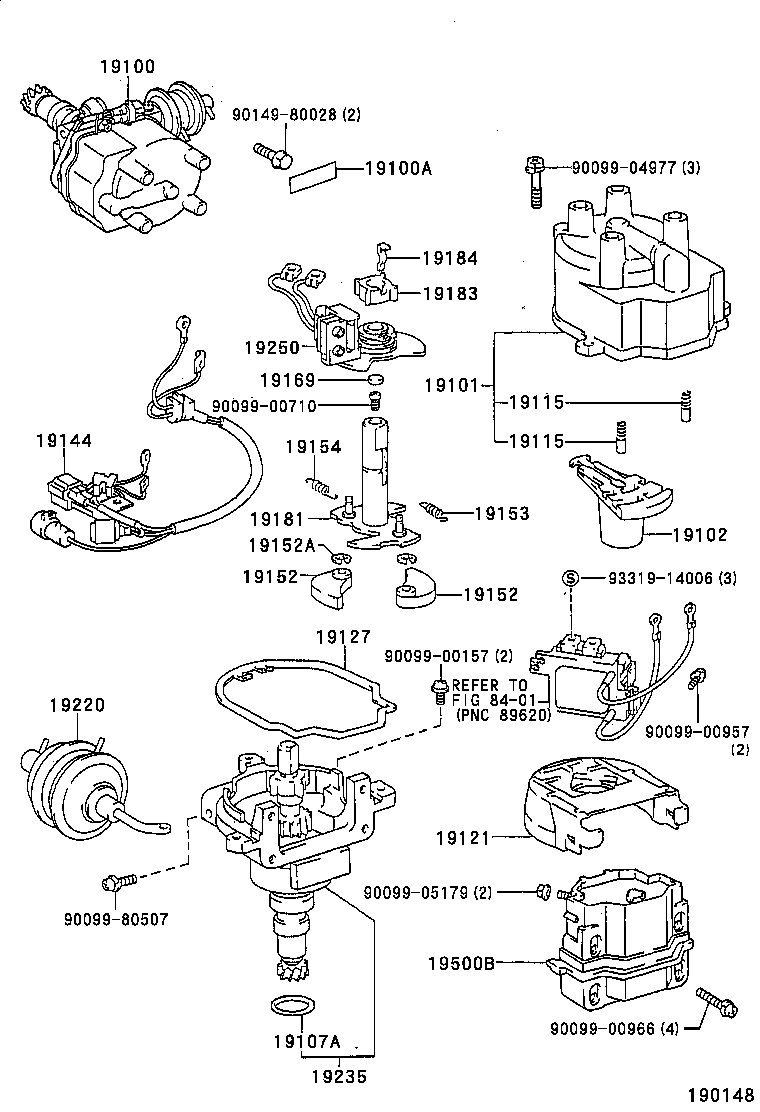

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19115 19121 19127 19144 19152 19152 19152A 19153 19154 19169 19181 19183 19184 19220 19235 19250 19500B 8401 9009900157 9009900710 9009900957 9009900966 9009904977 9009905179 9009980507 9014980028 9331914006
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19020-75010

1RZ..RZH102,112,12#

 1
19020-75011

1RZ..RZH102,112,12#

 1
19100A - TAPE, SEALING
90919-24004

1RZ#,2RZE..RZH10#,11#,12#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-75040

1RZ#,2RZE..RZH10#,11#,12#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031

1RZ#,2RZE..RZH10#,11#,12#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091

1RZ#,2RZE..RZH10#,11#,12#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

1RZ#,2RZE..RZH10#,11#,12#,133

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

1RZ#,2RZE..RZH10#,11#,12#,133

 2
19121 - COVER, DUST PROOF
19121-11080

1RZ#,2RZE..RZH10#,11#,12#,133

 1
19127 - PACKING, DUST PROOF
19127-15120

1RZ#,2RZE..RZH10#,11#,12#,133

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-75011

1RZ..RZH102,112,12#

 1
19152 - WEIGHT, GOVERNOR
19152-15160

1RZ..RZH102,112,12#

 2
19152 - WEIGHT, GOVERNOR
19152-15160

1RZ..RZH102,112,12#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

1RZ..RZH102,112,12#

 2
19153 - SPRING, GOVERNOR, A
19153-75020

1RZ..RZH102,112,12#

 1
19154 - SPRING, GOVERNOR, B
19154-75020

1RZ..RZH102,112,12#

 1
19169 - STOPPER, CAM GREASE
19169-63011

1RZ..RZH102,112,12#

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-75010

1RZ..RZH102,112,12#

 1
19183 - ROTOR, SIGNAL
19183-15010

1RZ..RZH102,112,12#

 1
19184 - SPRING, ROTOR SET
19184-63010

1RZ..RZH102,112,12#

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-75010

1RZ..RZH102,112,12#

 1
19235 - HOUSING, DISTRIBUTOR
19235-75040

1RZ..RZH102,112,12#

 1
19250 - GENERATOR ASSY, SIGNAL
19251-16100

1RZ..RZH102,112,12#

 1
19500B - COIL ASSY, IGNITION
90919-02164

1RZ#..RZH100,102,11#,12#

 1
Common parts
90099-00157
90099-00710
90099-00957
90099-00966
90099-04977
90099-05179
90099-80507
90149-80028
93319-14006
Linked diagrams
8401
