RZH112K-FMMDS (1989)
Toyota Hiace/Regiusace
Production
Aug 1989
-
Aug 1993
Engine
1RZ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8908-9907)

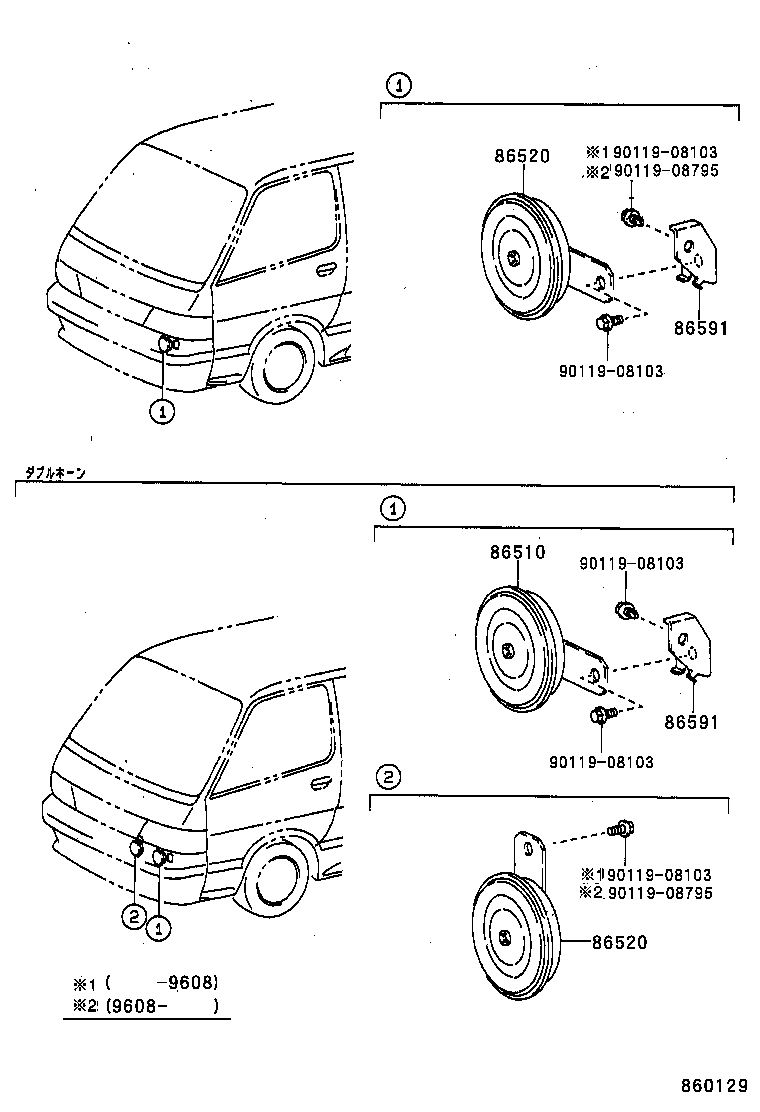

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-95J14 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF MARUKO |
1 | ||
| 86520-95J12 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF DENSO |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-95J14 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF MARUKO |
1 | ||
| 86520-95J12 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF DENSO |
1 | ||
| 86591 - BRACKET, HORN | ||||
| 86591-95J06 |
LH120..GCGE,GCGN;LH10#,11#,123,125,129,140,RZH10#,11#,12#..CD,DX,GL,SCL,SCM,SCMM,SGL,SW |
1 | ||
| 86591 - BRACKET, HORN | ||||
| 86591-95J06 |
LH120..GCGE,GCGN;LH10#,11#,123,125,129,140,RZH10#,11#,12#..CD,DX,GL,SCL,SCM,SCMM,SGL,SW |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 90119-08795 | ||||
