Toyota Hiace/regiusace RZH112 STEERING COLUMN & SHAFT

RZH112K-FMMDS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993

Engine 1RZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

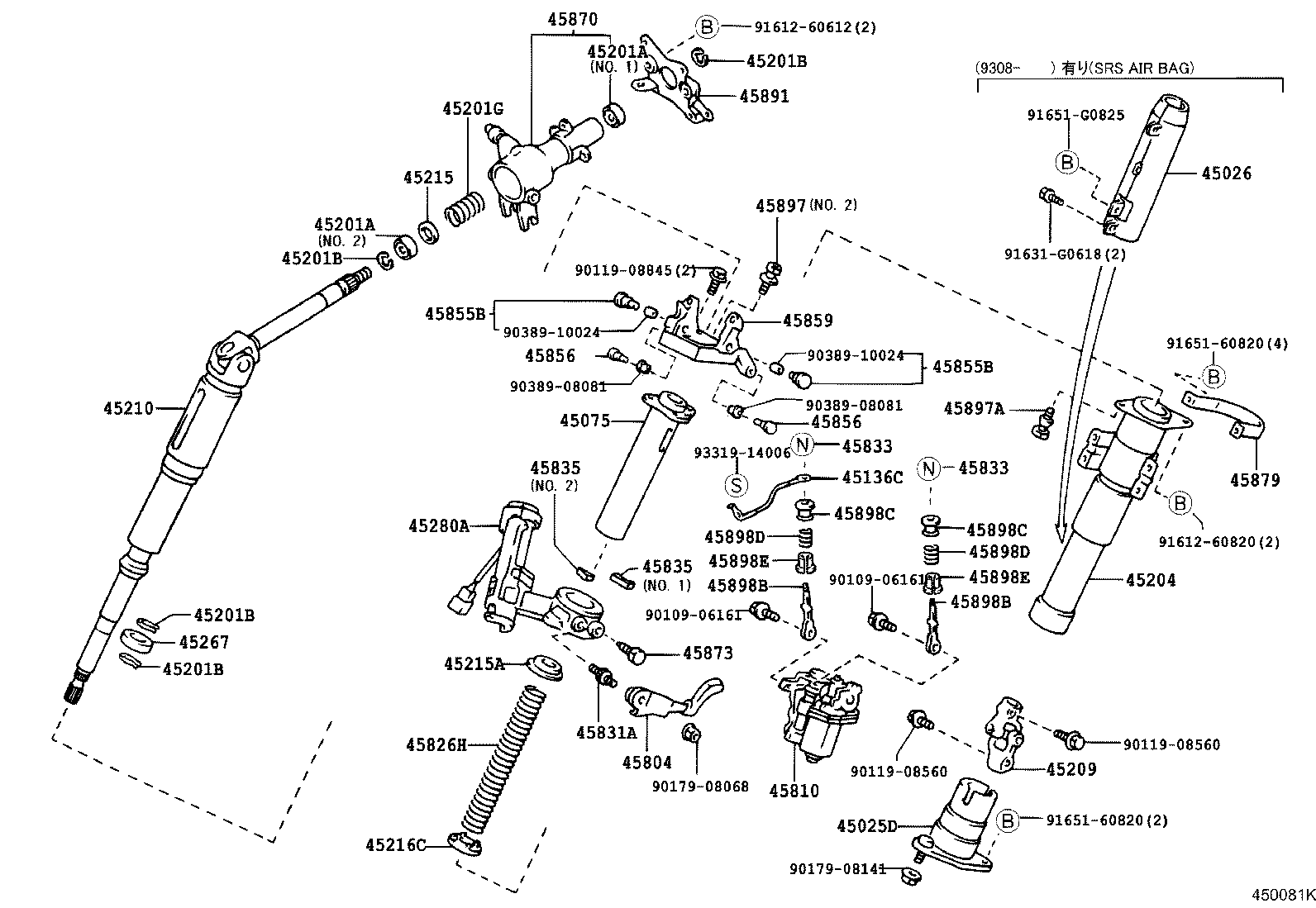

ILLUST NO. 1 OF 4(8908- )

Click highlighted areas on diagram

ｼﾕﾄﾞｳﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸｽﾃｱﾘﾝｸﾞ

Part #	Description	Period	Qty
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ),NO.1 & NO.2	08/1989 - 08/1996	2
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 08/1996	2
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ),NO.1 & NO.2	08/1989 - 08/1996	2
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 08/1996	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.20,上側	08/1989 - 07/1999	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.20,上側	08/1989 - 07/1999	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.20,上側	08/1989 - 07/1999	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.20,上側	08/1989 - 07/1999	2
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-40017	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-26081	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	05/1992 - 08/1993	1
45204-26080	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 05/1992	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-26120	LH100,102,109,11#,12#,RZH100,102,11#,12#..CD,DX ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 05/1990	1
45205-26121	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	05/1990 - 08/1993	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-26020	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 07/1999	1
45210 - SHAFT ASSY, STEERING MAIN
45210-26050	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 07/1999	1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-12010	LH107,119..5F;LH100..5F..SCMM;RZH100..08S..5F;LH100..CTM,DX,SCL,SCM;LH102,109,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCL	08/1989 - 08/1990	1
45215-12010	LH107,119..5F;RZH100..08S..5F;LH10#,110,113,115,117,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SCL,SW	08/1990 - 06/1991	1
45272 - CLAMP, STEERING COLUMN, LOWER
45272-26010	LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S	08/1989 - 08/1993	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-26191	LH10#,11#,12#,140,RZH100,102,11#,12#..5F	08/1989 - 08/1993	1
45879 - BRACKET, STEERING COLUMN UPPER SUPPORT, NO.2
45879-26020	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 08/1996	1
45897 - BOLT, STEERING LOCK SET
45897-12030	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW NO.2	08/1989 - 08/1993	2
45897-12020	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ),NO.1	08/1989 - 08/1993	2
Common parts
90109-06162
90119-08560
90179-06156
90179-08044
90179-08068
90179-10065
90504-25002
91611-60820
91611-G0820
91621-B0625
91651-60818
91651-60820
93383-15014
94110-40600
94512-00600
96160-00800

ILLUST NO. 1 OF 4(8908-9502)

Click highlighted areas on diagram

ﾃﾞﾝﾄﾞｳﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸｽﾃｱﾘﾝｸﾞ

Part #	Description	Period	Qty
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ),NO.1 & NO.2	08/1989 - 08/1996	2
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 08/1996	2
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ),NO.1 & NO.2	08/1989 - 08/1996	2
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 08/1996	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.20,上側	08/1989 - 07/1999	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.20,上側	08/1989 - 07/1999	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.20,上側	08/1989 - 07/1999	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.20,上側	08/1989 - 07/1999	2
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-40017	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-26081	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	05/1992 - 08/1993	1
45204-26080	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 05/1992	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-26020	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 07/1999	1
45210 - SHAFT ASSY, STEERING MAIN
45210-26050	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 07/1999	1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-12010	LH107,119..5F;LH100..5F..SCMM;RZH100..08S..5F;LH100..CTM,DX,SCL,SCM;LH102,109,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCL	08/1989 - 08/1990	1
45215-12010	LH107,119..5F;RZH100..08S..5F;LH10#,110,113,115,117,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SCL,SW	08/1990 - 06/1991	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-26191	LH10#,11#,12#,140,RZH100,102,11#,12#..5F	08/1989 - 08/1993	1
45879 - BRACKET, STEERING COLUMN UPPER SUPPORT, NO.2
45879-26020	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 08/1996	1
45897 - BOLT, STEERING LOCK SET
45897-12030	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW NO.2	08/1989 - 08/1993	2
45897-12020	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ),NO.1	08/1989 - 08/1993	2
Common parts
90109-06161
90119-08560
90119-08845
90179-08068
90179-08141
90389-08081
90389-10024
91612-60612
91612-60820
91631-G0618
91651-60820
91651-G0825
93319-14006

ILLUST NO. 1 OF 4(8908- )

Click highlighted areas on diagram

ﾁﾙﾄｽﾃｱﾘﾝｸﾞ (ﾅｼﾃﾚｽｺﾋﾟﾂｸ)

Part #	Description	Period	Qty
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ),NO.1 & NO.2	08/1989 - 08/1996	2
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 08/1996	2
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ),NO.1 & NO.2	08/1989 - 08/1996	2
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 08/1996	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.20,上側	08/1989 - 07/1999	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.20,上側	08/1989 - 07/1999	2
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-40017	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-26081	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	05/1992 - 08/1993	1
45204-26080	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 05/1992	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-26120	LH100,102,109,11#,12#,RZH100,102,11#,12#..CD,DX ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 05/1990	1
45205-26121	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	05/1990 - 08/1993	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-26020	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 07/1999	1
45210 - SHAFT ASSY, STEERING MAIN
45210-26050	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 07/1999	1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-12010	LH107,119..5F;LH100..5F..SCMM;RZH100..08S..5F;LH100..CTM,DX,SCL,SCM;LH102,109,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCL	08/1989 - 08/1990	1
45215-12010	LH107,119..5F;RZH100..08S..5F;LH10#,110,113,115,117,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SCL,SW	08/1990 - 06/1991	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 07/1999	1
45272 - CLAMP, STEERING COLUMN, LOWER
45272-26010	LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S	08/1989 - 08/1993	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-26191	LH10#,11#,12#,140,RZH100,102,11#,12#..5F	08/1989 - 08/1993	1
45879 - BRACKET, STEERING COLUMN UPPER SUPPORT, NO.2
45879-26020	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 08/1996	1
45897 - BOLT, STEERING LOCK SET
45897-12030	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW NO.2	08/1989 - 08/1993	2
45897-12020	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ),NO.1	08/1989 - 08/1993	2
Common parts
90109-06162
90119-06576
90119-08560
90179-06156
90179-08141
90179-10065
90504-25002
91611-G0820
91631-G0618
91641-H0822
91651-60818
91651-60820
91651-G0825
93383-15014
94110-40600
94512-00600
96160-00800

ILLUST NO. 1 OF 4(8908- )

Click highlighted areas on diagram

ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ

Part #	Description	Period	Qty
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ),NO.1 & NO.2	08/1989 - 08/1996	2
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 08/1996	2
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ),NO.1 & NO.2	08/1989 - 08/1996	2
90363-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 08/1996	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.20,上側	08/1989 - 07/1999	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.20,上側	08/1989 - 07/1999	2
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-40017	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-26081	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	05/1992 - 08/1993	1
45204-26080	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 05/1992	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-26120	LH100,102,109,11#,12#,RZH100,102,11#,12#..CD,DX ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	08/1989 - 05/1990	1
45205-26121	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ)	05/1990 - 08/1993	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-26020	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 07/1999	1
45210 - SHAFT ASSY, STEERING MAIN
45210-26050	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 07/1999	1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-12010	LH107,119..5F;LH100..5F..SCMM;RZH100..08S..5F;LH100..CTM,DX,SCL,SCM;LH102,109,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCL	08/1989 - 08/1990	1
45215-12010	LH107,119..5F;RZH100..08S..5F;LH10#,110,113,115,117,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SCL,SW	08/1990 - 06/1991	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 07/1999	1
45272 - CLAMP, STEERING COLUMN, LOWER
45272-26010	LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S	08/1989 - 08/1993	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-26191	LH10#,11#,12#,140,RZH100,102,11#,12#..5F	08/1989 - 08/1993	1
45879 - BRACKET, STEERING COLUMN UPPER SUPPORT, NO.2
45879-26020	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S	08/1989 - 08/1996	1
45897 - BOLT, STEERING LOCK SET
45897-12030	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW NO.2	08/1989 - 08/1993	2
45897-12020	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ),NO.1	08/1989 - 08/1993	2
45897 - BOLT, STEERING LOCK SET
45897-12030	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW NO.2	08/1989 - 08/1993	2
45897-12020	LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ),NO.1	08/1989 - 08/1993	2
Common parts
90119-08560
90201-19010
91611-G0612
91611-G0820
91641-80820
91651-60820

ILLUST NO. 2 OF 4(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45286 - COVER, STEERING COLUMN
45287-2613003	LH100,102,109,113,119,123,129,RZH100,102,112,122..CD,DX ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1#,下側	08/1989 - 05/1990	1
45286-2623003	LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..(CD,DX,SW) ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1#,上側	08/1989 - 08/1993	1
45287-2613103	LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..(CD,DX,SW) ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1#,下側	05/1990 - 08/1993	1
45286 - COVER, STEERING COLUMN
45287-2613003	LH100,102,109,113,119,123,129,RZH100,102,112,122..CD,DX ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1#,下側	08/1989 - 05/1990	1
45286-2623003	LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..(CD,DX,SW) ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1#,上側	08/1989 - 08/1993	1
45287-2613103	LH100,102,109,110,113,119,123,129,140,RZH100,102,112,122..(03S,06S,09S)..(CD,DX,SW) ｱﾘ(ﾘｼﾞﾂﾄﾞｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1#,下側	05/1990 - 08/1993	1
Common parts
90164-50048
93315-14010
93568-55014

ILLUST NO. 3 OF 4(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
45266 - COVER, STEERING INTERMEDIATE SHAFT DUST
45266-26020	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45390 - SHAFT ASSY, STEERING TORQUE
45390-26030	KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S	08/1989 - 08/1994	1
45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR
45635-26040	KZH100,110,120,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S	08/1989 - 08/1994	1
45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER
45636-26020	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1
45637-26020	LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL	08/1989 - 04/1990	1
45637-26021	LH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S	04/1990 - 02/1991	1
45637-26050	LH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S	02/1991 - 08/1993	1
45638A - PROTECTOR, INTER LINK JOINT, LOWER NO.2
45638-26011	LH107;LH100,102,109,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S	04/1990 - 08/1993	1
45638-26010	LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL	08/1989 - 04/1990	1
Common parts
90119-08560
90468-12016
91651-40616
91651-40820

ILLUST NO. 4 OF 4(8908- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
45222E - COVER, DUST(FOR STEERING BEVEL GEAR)
45222-27030	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45222F - COVER, DUST
45222-27030	LH10#,11#,12#,140,RZH10#,11#,12#	08/1989 - 06/1991	1
45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)
90311-15002	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	2
45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)
90311-15002	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	2
45312A - BRACKET, STEERING BEVEL GEAR HOUSING
45312-26140	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45380 - GEAR ASSY, STEERING BEVEL
45380-27011	LH119..4D;RZH112..CBR;LH119..5D..5F;LH123..09S..5F;RZH112..5F..EFI;LH113..CD,GL,SGL;RZH102..V1..5F..EFI;RZH102,112..GL..EFI;LH113..V1..5D..5F..DX;LH113..V2..4D..5F..DX;LH113,RZH124..HRF..5F;LH113..V2..SRF..5D..DX;LH113..V1..SRF..4D..DX;RZH112..V2..SRF..4FC..EFI;LH123,RZH102..(03S,06S)..(CBR,DSL);KZH10#,11#,12#,13#,LH10#,110,115,117,120,125,129,140,RZH100,101,110,111,122,133 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ)	08/1989 - 07/1999	1
45380A - WASHER(FOR STEERING BEVEL GEAR)
90209-18002	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.90,ﾏｰｸ 2	08/1989 - 07/1999	1
90209-18005	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=2.05,ﾏｰｸ 5	08/1989 - 07/1999	1
90209-18004	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=2.00,ﾏｰｸ 4	08/1989 - 07/1999	1
90209-18006	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=2.10,ﾏｰｸ 6	08/1989 - 07/1999	1
90209-18008	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=2.20,ﾏｰｸ 8	08/1989 - 07/1999	1
90209-18003	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=1.95,ﾏｰｸ 3	08/1989 - 07/1999	1
90209-18007	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 厚さ=2.15,ﾏｰｸ 7	08/1989 - 07/1999	1
45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)
90501-18063	RZH112..CD,DX,GL;RZH102..V1..(03S,06S);KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,122,124,133 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ),ﾘﾔ	08/1989 - 07/1999	1
90501-20080	LH119..4D;RZH112..CBR;LH119..5D..5F;LH123..09S..5F;RZH112..5F..EFI;LH113..CD,GL,SGL;RZH102..V1..5F..EFI;LH113,RZH124..HRF..5F;LH113..V1..5D..5F..DX;LH113..V2..4D..5F..DX;LH113..V1..SRF..4D..DX;RZH102,112..(GL,SGL)..EFI;RZH112..V2..SRF..4FC..EFI;LH113,RZH102..V2..SRF..5D..DX;LH123,RZH102..(03S,06S)..(CBR,DSL);KZH10#,11#,12#,13#,LH10#,110,115,117,120,125,129,140,16#,17#,18#,RZH100,101,110,111,122,125,133 ﾌﾛﾝﾄ	08/1989 - 07/1999	1
45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)
90501-18063	RZH112..CD,DX,GL;RZH102..V1..(03S,06S);KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,122,124,133 ｱﾘ(ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ),ﾘﾔ	08/1989 - 07/1999	1
90501-20080	LH119..4D;RZH112..CBR;LH119..5D..5F;LH123..09S..5F;RZH112..5F..EFI;LH113..CD,GL,SGL;RZH102..V1..5F..EFI;LH113,RZH124..HRF..5F;LH113..V1..5D..5F..DX;LH113..V2..4D..5F..DX;LH113..V1..SRF..4D..DX;RZH102,112..(GL,SGL)..EFI;RZH112..V2..SRF..4FC..EFI;LH113,RZH102..V2..SRF..5D..DX;LH123,RZH102..(03S,06S)..(CBR,DSL);KZH10#,11#,12#,13#,LH10#,110,115,117,120,125,129,140,16#,17#,18#,RZH100,101,110,111,122,125,133 ﾌﾛﾝﾄ	08/1989 - 07/1999	1
45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR)
90363-15010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45384A - COVER, STEERING BEVEL GEAR
45384-27010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR)
45385-27010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45385B - BOLT, SET(FOR LOCK BOLT SEAT)
90113-08006	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45388 - PLATE, STEERING BEVEL GEAR
45388-27010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45389 - HOLDER, STEERING BEVEL GEAR SPRING
45389-27010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 ﾌﾛﾝﾄ	08/1989 - 07/1999	1
45389-27021	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 ﾘﾔ	08/1989 - 07/1999	1
45389 - HOLDER, STEERING BEVEL GEAR SPRING
45389-27010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 ﾌﾛﾝﾄ	08/1989 - 07/1999	1
45389-27021	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 ﾘﾔ	08/1989 - 07/1999	1
45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR
45545-10010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW
90179-38001	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133	08/1989 - 07/1999	1
Common parts
90105-10093
90119-06255
90119-06447
90170-08021
90179-08141
90364-18006
90364-18007
91612-61040
91651-61025
94130-01002

RZH112K-FMMDS (1989)

ILLUST NO. 1 OF 4(8908- )

ILLUST NO. 1 OF 4(8908-9502)

ILLUST NO. 1 OF 4(8908- )

ILLUST NO. 1 OF 4(8908- )

ILLUST NO. 2 OF 4(8908- )

ILLUST NO. 3 OF 4(8908- )

ILLUST NO. 4 OF 4(8908- )

Part Price Details
