RZH111G-GHPDE (1995)
Toyota Hiace/Regiusace
ILLUST NO. 2 OF 5(8908-9808)

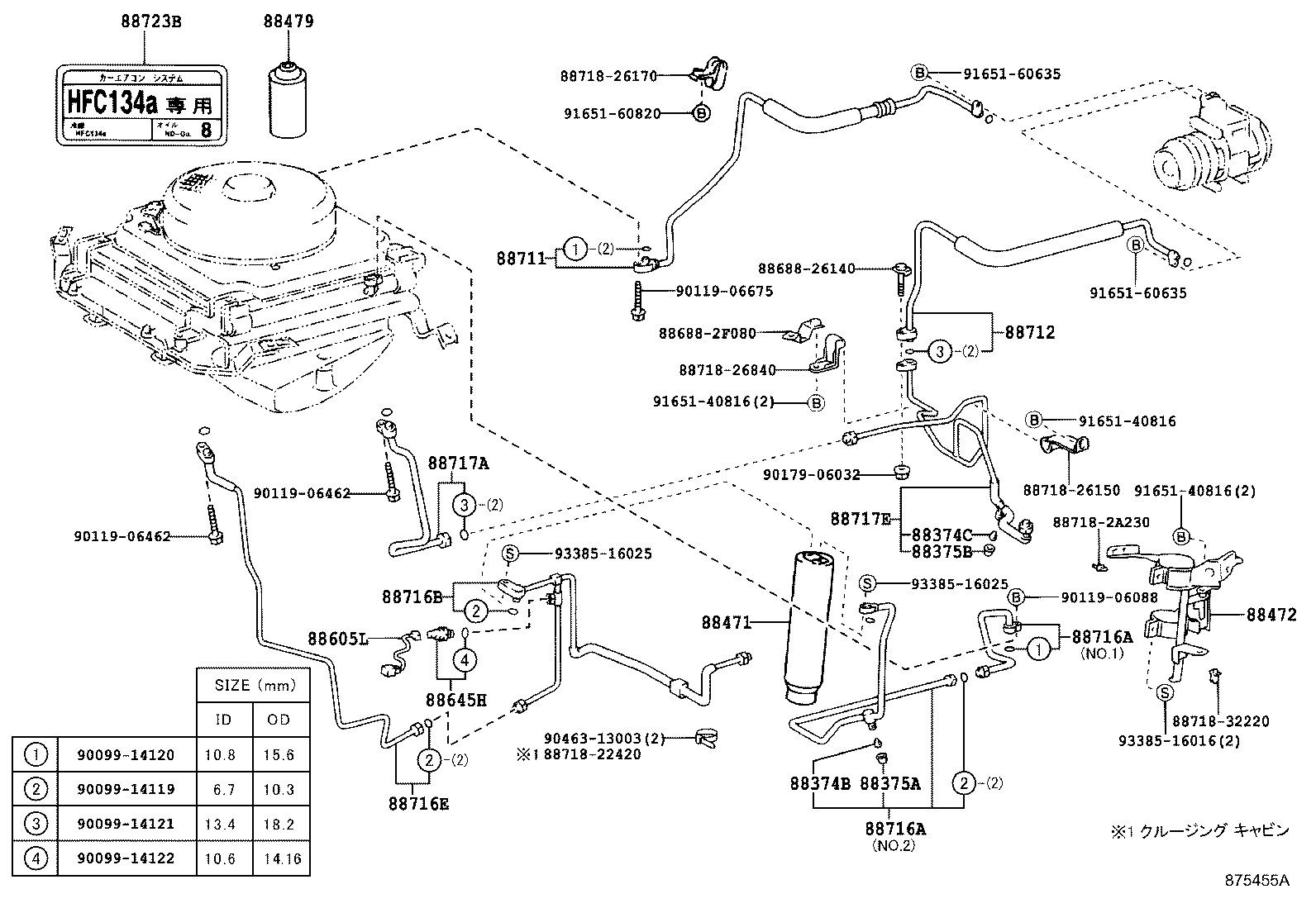

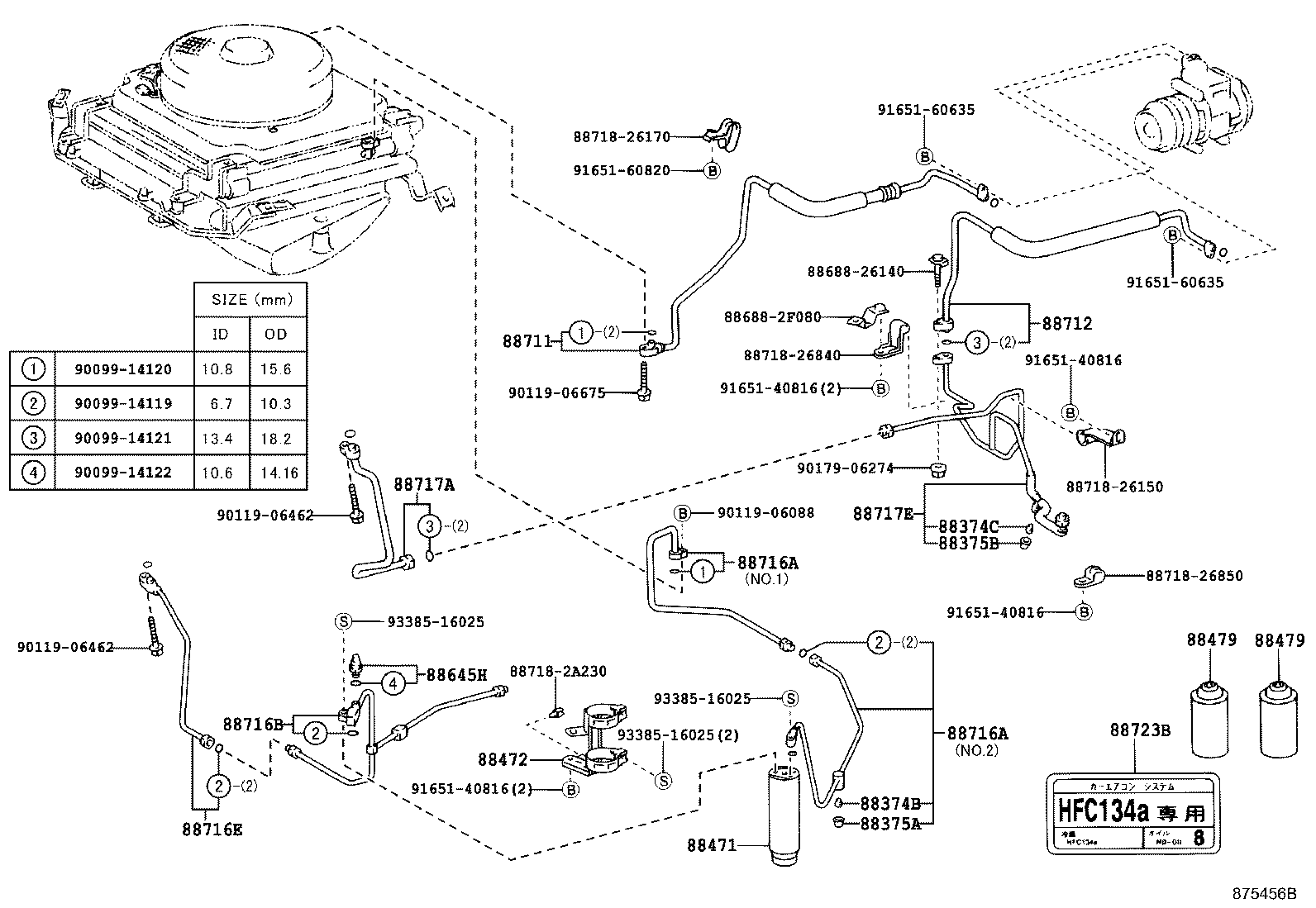

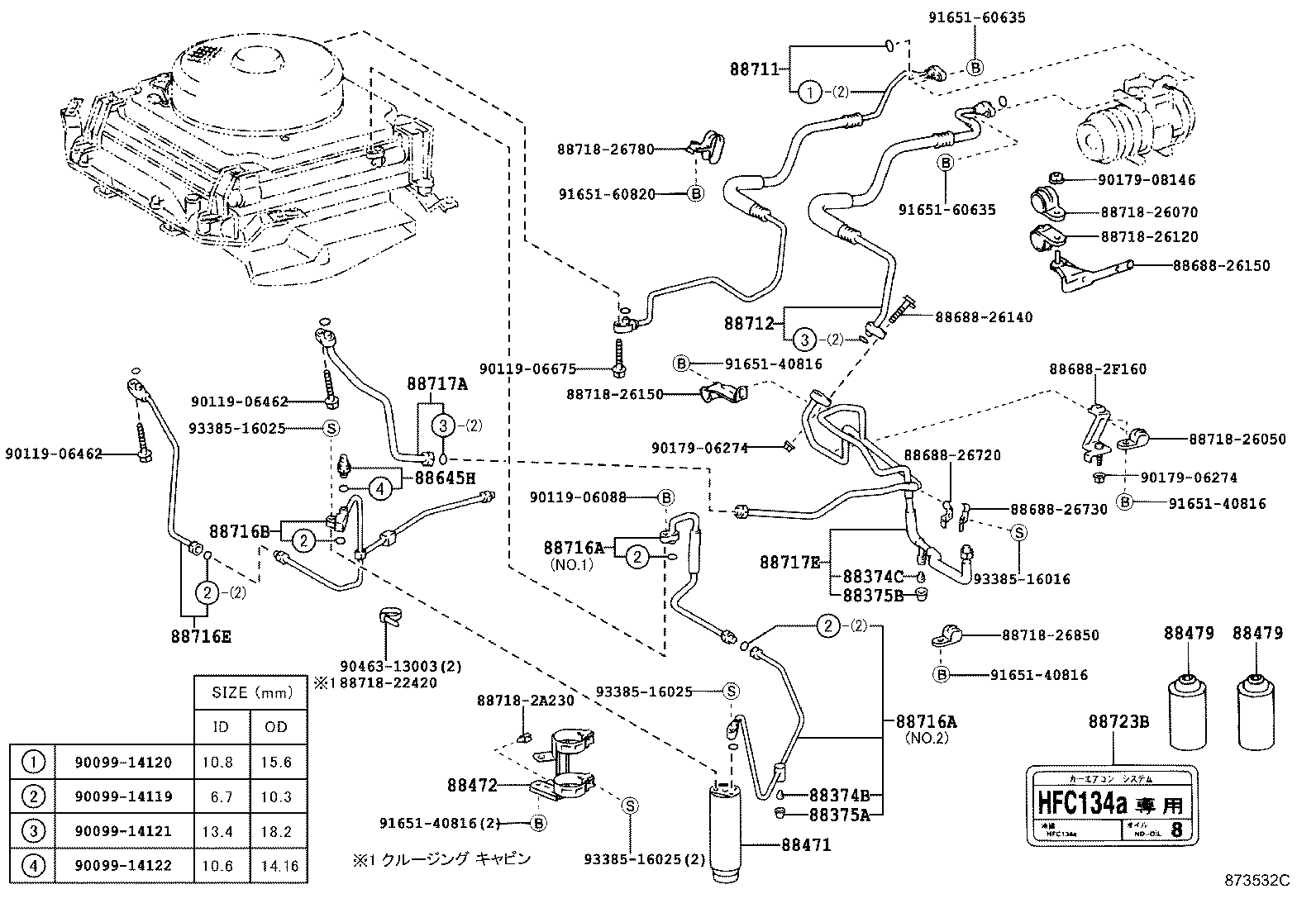

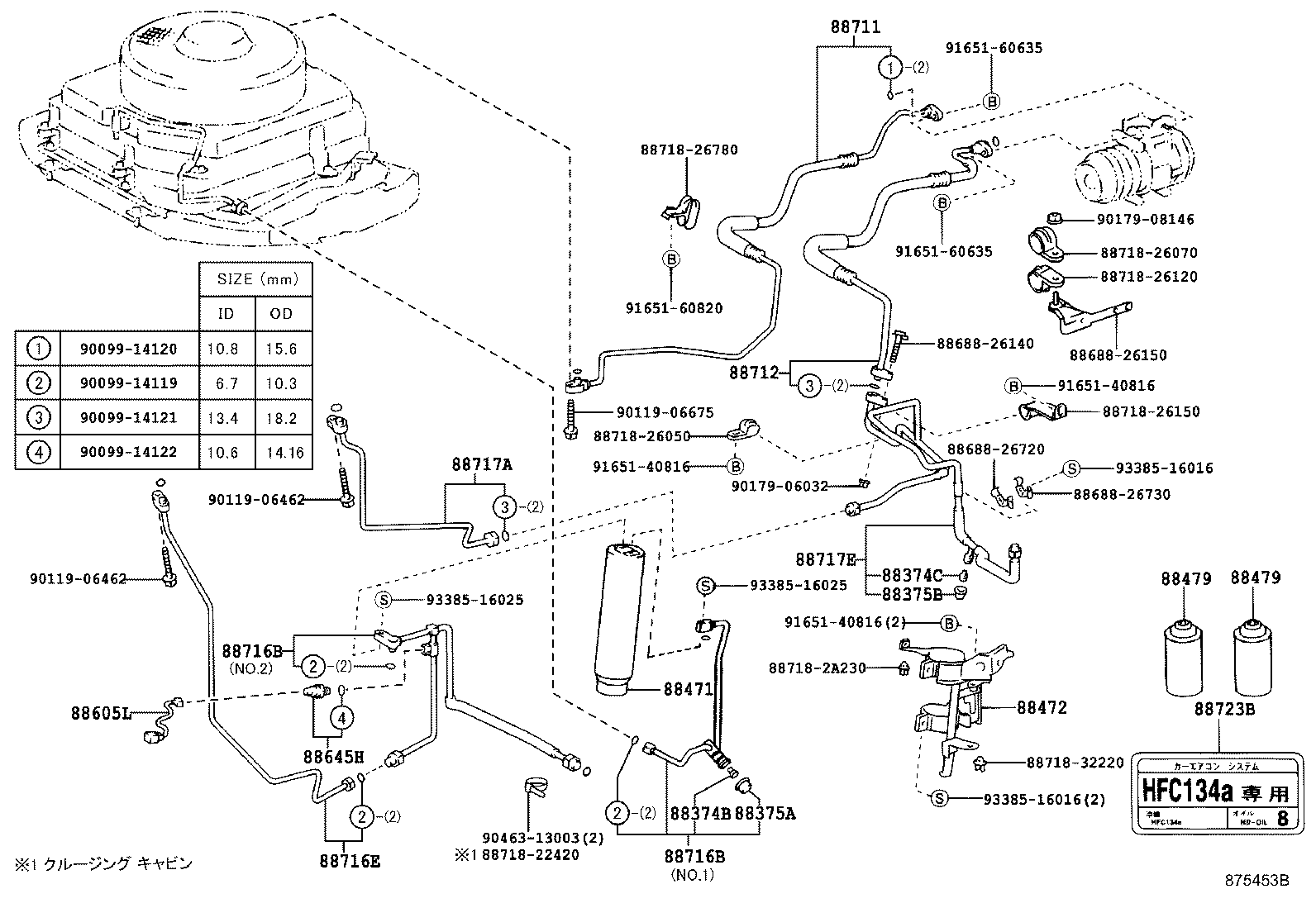

FRONT PIPING--DUAL(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL 吸入側 |
1 | ||
| 88375-20010 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾘｷｯﾄﾞ側 |
1 | ||
| 88375-30290 |
KZH10#,11#,12#,13#,RZH124,133 吸入側 |
1 | ||
| 88375-30290 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) 吸入側 |
1 | ||
| 88375-30280 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,16#,17#,18#,RZH10#,11#,12#,133 ﾘｷｯﾄﾞ側 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28100 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472-26110 |
LH16#,17#,18#,RZH102,112,124;KZH10#,11#,120,13#,RZH125,133..4FC |
1 | ||
| 88472-26110 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124 |
1 | ||
| 88472-26110 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88472-26150 |
RZH101,111;KZH10#,11#,126..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
KZH11#,120,RZH133..4FC;KZH126,LH10#,11#,12#,RZH102,112,124..(COM,V1,WG)..(DX,GCGN,GL,SGL) 200G |
4 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
KZH11#,120,RZH133..4FC;KZH126,LH10#,11#,12#,RZH102,112,124..(COM,V1,WG)..(DX,GCGN,GL,SGL) 200G |
4 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26790 |
LH11#,RZH112..09S..DX;LH119..(06S,08S)..(GL,SGL);LH10#,113,RZH102,112..GL,SGL;KZH10#,11#,12#,13#,LH12#,RZH101,111,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88648-26040 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88605-26790 |
LH119,123..09S..4FC;LH113..V1..5D..5F..DX;LH113..V1..4FC..(DX,SGL);LH113,123..HRF..4D..06S..5F;KZH10#,11#,12#,RZH112..(V1,WG)..(06S,07S,08S,09S,10S);KZH13#,LH10#,119,125,129,RZH10#,111,124,133..(COM,V1,WG)..(03S,05S,06S,07S,08S,10S,15S)..(DX,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL NO.2 |
1 | ||
| 88645-26010 |
LH113..5D..GL;LH119,RZH112..09S;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH101,111,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-26750 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88711-2F030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88711-26250 |
RZH10#,11#,12#,133 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH10#,11#,12# |
1 | ||
| 88712-26150 |
RZH10#,11#,12#,133 |
1 | ||
| 88712-26870 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88712-26870 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88712-26870 |
KZH10#,11#,12#,13# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26730 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-26740 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F230 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F620 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#..05S,07S,08S,10S NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F140 |
RZH101,111;KZH10#,11#,126..5F NO.1 |
1 | ||
| 88716-2F670 |
RZH101,111 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
KZH10#,11#,12#,13# NO.2 |
1 | ||
| 88716-2F230 |
KZH10#,11#,120,13#,RZH133..4FC NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
KZH10#,11#,12#,13# NO.2 |
1 | ||
| 88716-2F230 |
KZH10#,11#,120,13#,RZH133..4FC NO.1 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88716-26850 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88716-26760 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26890 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88717-26890 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88717-95J40 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88717-26510 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124 |
1 | ||
| 88717-2F150 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-26530 |
LH113..5D..GL;LH12#,RZH111,124;LH119,RZH112..09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-26520 |
KZH10#,11#,12#,13# |
1 | ||
| 88717-26680 |
LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F030 |
KZH10#,11#,120,13#..4FC ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F030 |
KZH10#,11#,12#,13# |
1 | ||
| 88717-2F170 |
LH178..DX;LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH100,110,LH168,RZH124..5F;LH162,18#,RZH10#,111,125,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
LH178..05S,08S,09S;KZH10#,11#,120,13#,LH162,172,182,188,RZH10#,11#,183..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88723-20030 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 88688-26120 | ||||
| 88688-26140 | ||||
| 88688-26150 | ||||
| 88718-12280 | ||||
| 88718-26050 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-26150 | ||||
| 88718-26170 | ||||
| 88718-95J05 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06068 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06032 | ||||
| 90179-08126 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-60820 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
ILLUST NO. 4 OF 5(9508-9907)
COOL BOX PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
2 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 88714-95J00 | ||||
| 88718-26180 | ||||
| 88718-26210 | ||||
| 88718-26240 | ||||
| 88718-26280 | ||||
| 88718-26310 | ||||
| 88718-26470 | ||||
| 88718-95J61 | ||||
| 88718-95J69 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90480-26003 | ||||
| 90480-26014 | ||||
| 91651-40816 | ||||
ILLUST NO. 3 OF 5(9808-9907)

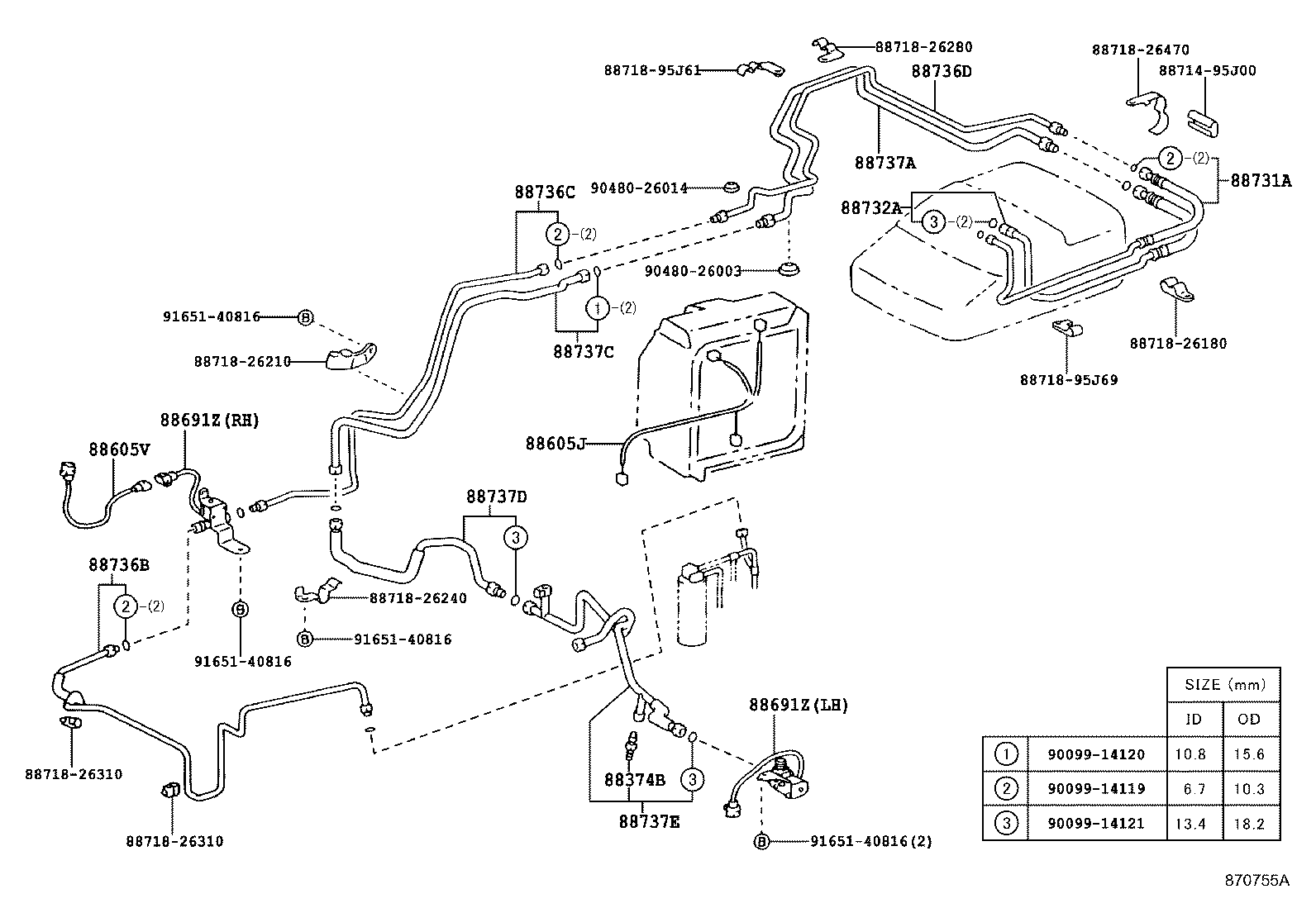

REAR PIPING--DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
KZH11#,120,RZH133..4FC;KZH126,LH10#,11#,12#,RZH102,112,124..(COM,V1,WG)..(DX,GCGN,GL,SGL) 200G |
4 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26270 |
LH113..5D..GL;LH119,RZH112..09S;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH101,111,124 |
1 | ||
| 88716-26270 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 88716-26270 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-26780 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88716-2F560 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88726F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88710-2F290 |
LH178..08S;KZH11#,120,13#,RZH111..4FC ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-26570 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88717-2F270 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) |
1 | ||
| Common parts | ||||
| 88688-2F120 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26230 | ||||
| 88718-26730 | ||||
| 88718-95J39 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90480-30015 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 6151 | ||||

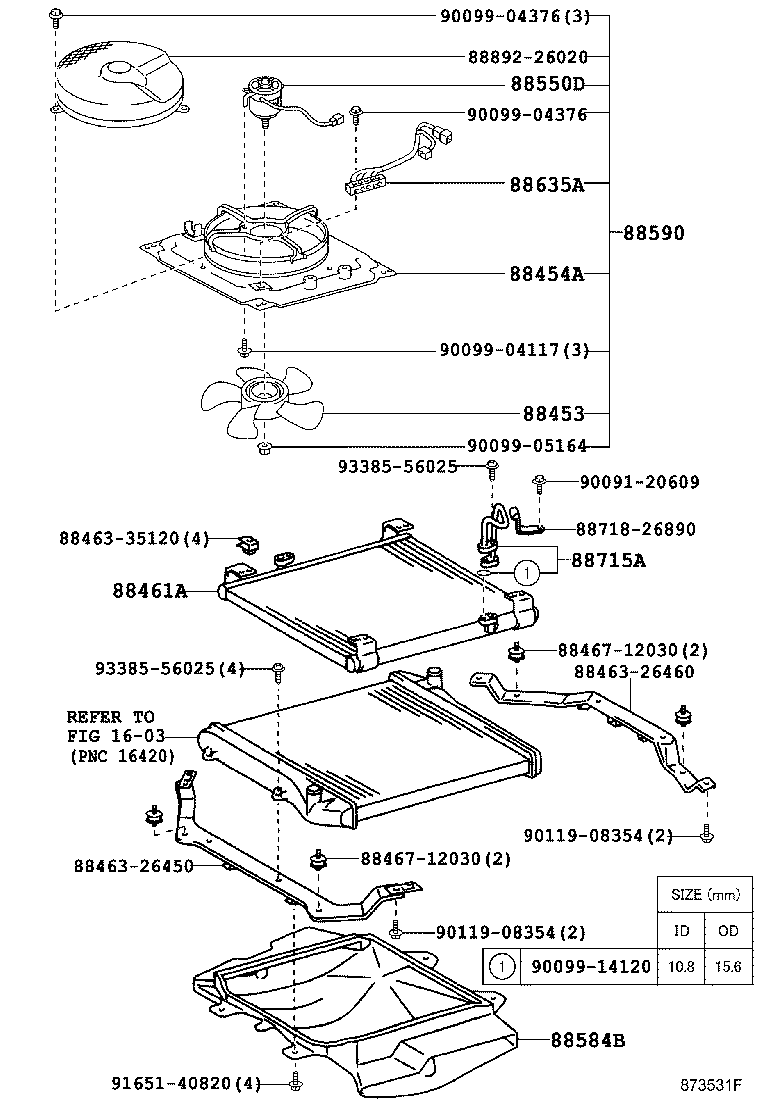

ILLUST NO. 1 OF 5(9808-9907)KZH10#,11#,126..5F ; (9808- )LH16#,17#,18#,RZH10#,11#,12#,133,18# ; (

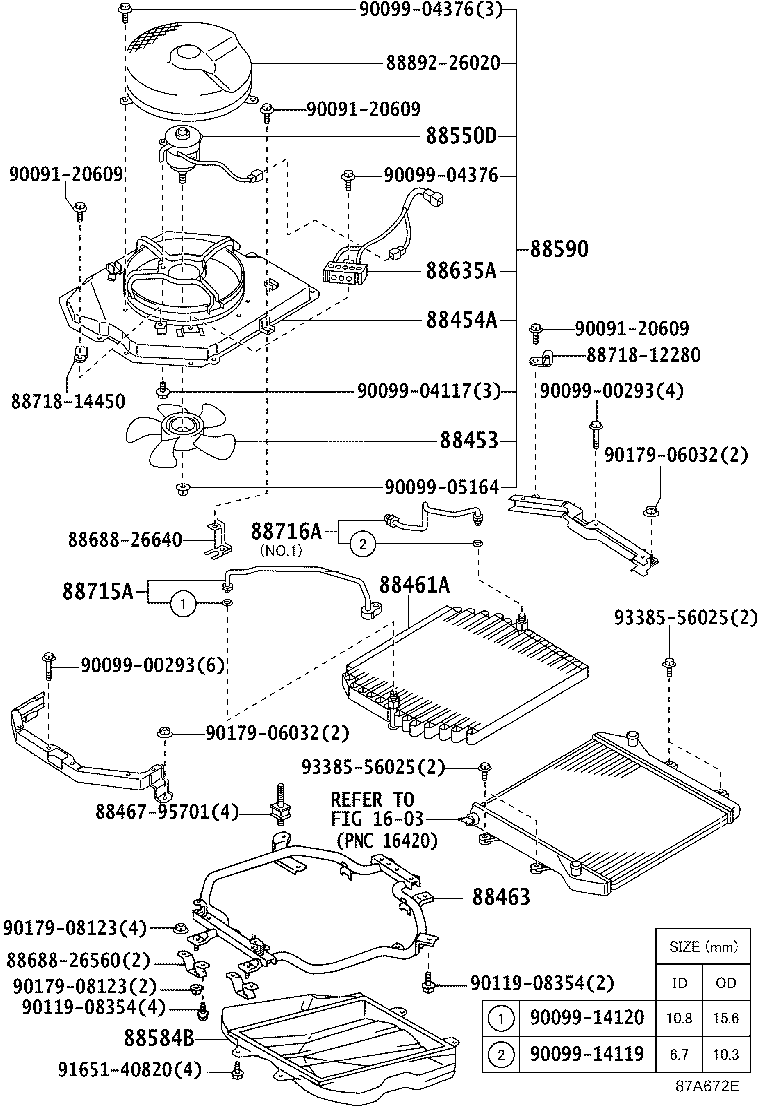

CONDENSER(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88453-26020 |
LH178..03S,05S,06S,08S;KZH10#,11#,12#,13#,LH16#,172,182,188,RZH10#,11#,12# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-26050 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88454-26090 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88454-26100 |
LH178..03S,05S,06S,08S;LH162,172,182,RZH10#,11#,125;KZH10#,11#,126,LH168,RZH124..5F |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-26270 |
RZH101,111;KZH10#,11#,126..5F |
1 | ||
| 88460-26350 |
RZH101,111;KZH10#,11#,126..5F |
1 | ||
| 88460-26510 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,126,LH109,125..5F;LH103,123,129,RZH10#,11#,124,133 |
1 | ||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88461-26040 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88461-26140 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-26050 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-26030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88584-26020 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88584-26050 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-26080 |
KZH10#,11#,126..5F;RZH10#,11#,124..(COM,V1,WG)..(DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26080 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26130 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88590-26140 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 88635-26030 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,SCL,SCM,SCMM) ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26210 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88715-26240 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26200 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26210 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88715-26330 |
RZH112..SRF;KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,111,125,133 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 88463-26310 | ||||
| 88463-26320 | ||||
| 88463-26350 | ||||
| 88463-26360 | ||||
| 88463-26370 | ||||
| 88463-26380 | ||||
| 88463-35120 | ||||
| 88467-30270 | ||||
| 88578-26080 | ||||
| 88718-26810 | ||||
| 88892-26020 | ||||
| 90091-20609 | ||||
| 90091-20803 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
| 90099-14120 | ||||
| 90119-08354 | ||||
| 90179-06274 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 5(9907- )KZH10#,11#,120,13#
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88453-26020 |
LH178..03S,05S,06S,08S;KZH10#,11#,12#,13#,LH16#,172,182,188,RZH10#,11#,12# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-26050 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88454-26090 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88454-26100 |
LH178..03S,05S,06S,08S;LH162,172,182,RZH10#,11#,125;KZH10#,11#,126,LH168,RZH124..5F |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,126,LH109,125..5F;LH103,123,129,RZH10#,11#,124,133 |
1 | ||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88461-26040 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88461-26140 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-26050 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-26030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88584-26020 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88584-26050 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-26080 |
KZH10#,11#,126..5F;RZH10#,11#,124..(COM,V1,WG)..(DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26080 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26130 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88590-26140 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 88635-26030 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,SCL,SCM,SCMM) ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26210 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88715-26240 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26200 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26210 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88715-26330 |
RZH112..SRF;KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,111,125,133 |
1 | ||
| Common parts | ||||
| 88463-26450 | ||||
| 88463-26460 | ||||
| 88463-35120 | ||||
| 88467-12030 | ||||
| 88718-26890 | ||||
| 88892-26020 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
| 90099-14120 | ||||
| 90119-08354 | ||||
| 91651-40820 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 1603 | ||||

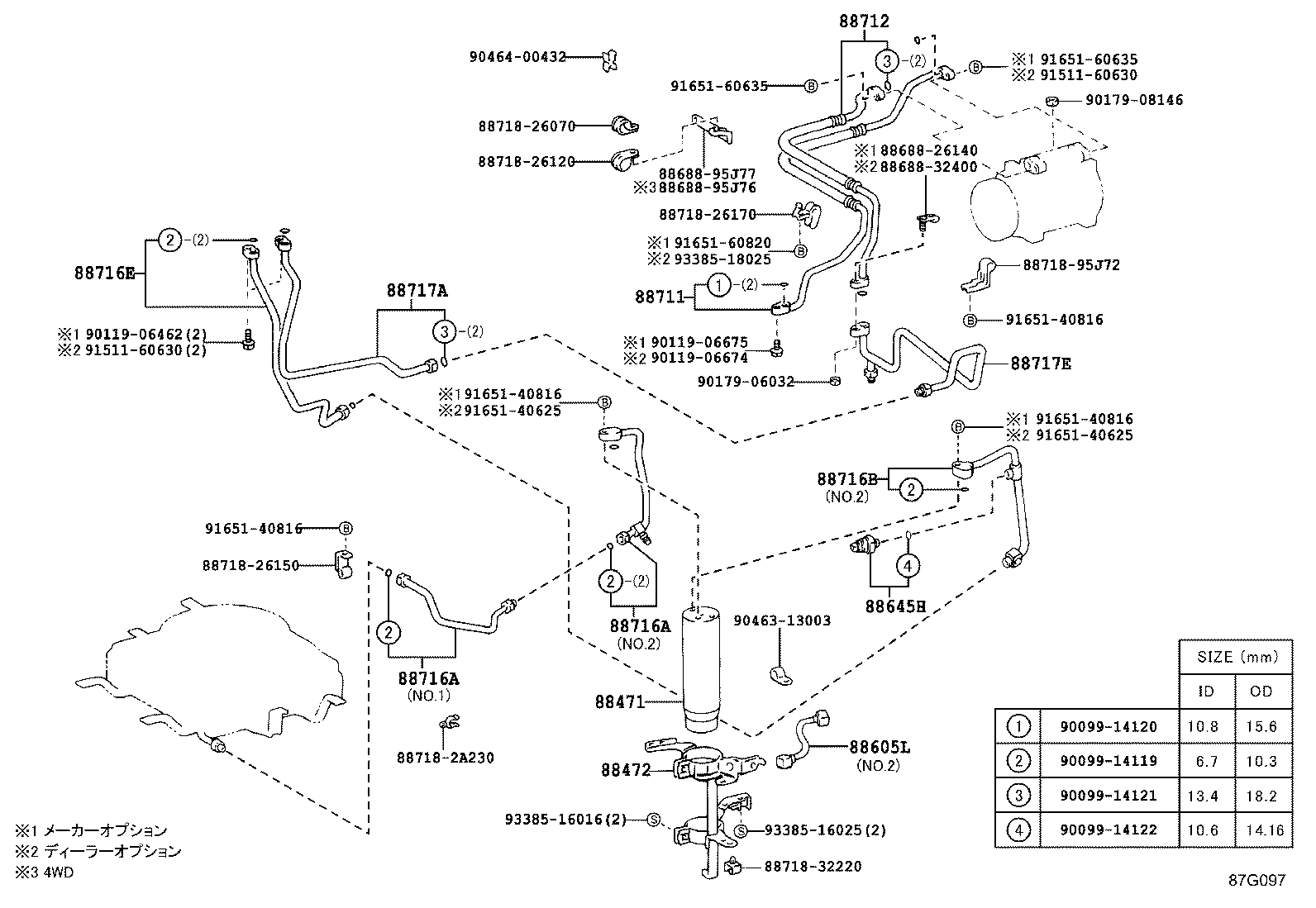

ILLUST NO. 2 OF 5(9907- )KZH10#,11#,120,13#
FRONT PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
2 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL 吸入側 |
1 | ||
| 88375-20010 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾘｷｯﾄﾞ側 |
1 | ||
| 88375-30290 |
KZH10#,11#,12#,13#,RZH124,133 吸入側 |
1 | ||
| 88375-30290 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) 吸入側 |
1 | ||
| 88375-30280 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,16#,17#,18#,RZH10#,11#,12#,133 ﾘｷｯﾄﾞ側 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28100 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472-26110 |
LH16#,17#,18#,RZH102,112,124;KZH10#,11#,120,13#,RZH125,133..4FC |
1 | ||
| 88472-26110 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124 |
1 | ||
| 88472-26110 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88472-26150 |
RZH101,111;KZH10#,11#,126..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
KZH11#,120,RZH133..4FC;KZH126,LH10#,11#,12#,RZH102,112,124..(COM,V1,WG)..(DX,GCGN,GL,SGL) 200G |
4 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
KZH11#,120,RZH133..4FC;KZH126,LH10#,11#,12#,RZH102,112,124..(COM,V1,WG)..(DX,GCGN,GL,SGL) 200G |
4 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL NO.2 |
1 | ||
| 88645-26010 |
LH113..5D..GL;LH119,RZH112..09S;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH101,111,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-26750 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88711-2F030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88711-26250 |
RZH10#,11#,12#,133 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH10#,11#,12# |
1 | ||
| 88712-26150 |
RZH10#,11#,12#,133 |
1 | ||
| 88712-26870 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88712-26870 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88712-26870 |
KZH10#,11#,12#,13# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26730 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-26740 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F230 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F620 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#..05S,07S,08S,10S NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F140 |
RZH101,111;KZH10#,11#,126..5F NO.1 |
1 | ||
| 88716-2F670 |
RZH101,111 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26730 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-26740 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F230 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F620 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#..05S,07S,08S,10S NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F140 |
RZH101,111;KZH10#,11#,126..5F NO.1 |
1 | ||
| 88716-2F670 |
RZH101,111 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
KZH10#,11#,12#,13# NO.2 |
1 | ||
| 88716-2F230 |
KZH10#,11#,120,13#,RZH133..4FC NO.1 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88716-26850 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88716-26760 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26890 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88717-26890 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88717-95J40 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88717-26510 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124 |
1 | ||
| 88717-2F150 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-26530 |
LH113..5D..GL;LH12#,RZH111,124;LH119,RZH112..09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-26520 |
KZH10#,11#,12#,13# |
1 | ||
| 88717-26680 |
LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F030 |
KZH10#,11#,120,13#..4FC ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F030 |
KZH10#,11#,12#,13# |
1 | ||
| 88717-2F170 |
LH178..DX;LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH100,110,LH168,RZH124..5F;LH162,18#,RZH10#,111,125,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
LH178..05S,08S,09S;KZH10#,11#,120,13#,LH162,172,182,188,RZH10#,11#,183..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88723-20030 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88688-26150 | ||||
| 88688-26720 | ||||
| 88688-26730 | ||||
| 88688-2F160 | ||||
| 88718-22420 | ||||
| 88718-26050 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-26150 | ||||
| 88718-26780 | ||||
| 88718-26850 | ||||
| 88718-2A230 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06088 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06274 | ||||
| 90179-08146 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-60820 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
ILLUST NO. 3 OF 5(9808-9907)
REAR PIPING--SINGLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
KZH11#,120,RZH133..4FC;KZH126,LH10#,11#,12#,RZH102,112,124..(COM,V1,WG)..(DX,GCGN,GL,SGL) 200G |
4 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26270 |
LH113..5D..GL;LH119,RZH112..09S;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH101,111,124 |
1 | ||
| 88716-26270 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 88716-26270 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) ｸﾙ-ｼﾞﾝｸﾞ ｷﾔﾋﾞﾝ |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-26780 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88716-2F560 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88726F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88710-2F290 |
LH178..08S;KZH11#,120,13#,RZH111..4FC ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-26570 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88717-2F270 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) |
1 | ||
| Common parts | ||||
| 88688-2F120 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26730 | ||||
| 88718-26860 | ||||
| 88718-26870 | ||||
| 88718-26880 | ||||
| 88718-2F010 | ||||
| 88718-2F020 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90099-05192 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90480-30015 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 93315-14012 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 6151 | ||||
ILLUST NO. 2 OF 5(9808-9907)KZH10#,11#,120,13#..4FC
FRONT PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
2 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL 吸入側 |
1 | ||
| 88375-20010 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾘｷｯﾄﾞ側 |
1 | ||
| 88375-30290 |
KZH10#,11#,12#,13#,RZH124,133 吸入側 |
1 | ||
| 88375-30290 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) 吸入側 |
1 | ||
| 88375-30280 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,16#,17#,18#,RZH10#,11#,12#,133 ﾘｷｯﾄﾞ側 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28100 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472-26110 |
LH16#,17#,18#,RZH102,112,124;KZH10#,11#,120,13#,RZH125,133..4FC |
1 | ||
| 88472-26110 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124 |
1 | ||
| 88472-26110 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88472-26150 |
RZH101,111;KZH10#,11#,126..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
KZH11#,120,RZH133..4FC;KZH126,LH10#,11#,12#,RZH102,112,124..(COM,V1,WG)..(DX,GCGN,GL,SGL) 200G |
4 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
KZH11#,120,RZH133..4FC;KZH126,LH10#,11#,12#,RZH102,112,124..(COM,V1,WG)..(DX,GCGN,GL,SGL) 200G |
4 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26790 |
LH11#,RZH112..09S..DX;LH119..(06S,08S)..(GL,SGL);LH10#,113,RZH102,112..GL,SGL;KZH10#,11#,12#,13#,LH12#,RZH101,111,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88648-26040 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88605-26790 |
LH119,123..09S..4FC;LH113..V1..5D..5F..DX;LH113..V1..4FC..(DX,SGL);LH113,123..HRF..4D..06S..5F;KZH10#,11#,12#,RZH112..(V1,WG)..(06S,07S,08S,09S,10S);KZH13#,LH10#,119,125,129,RZH10#,111,124,133..(COM,V1,WG)..(03S,05S,06S,07S,08S,10S,15S)..(DX,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL NO.2 |
1 | ||
| 88645-26010 |
LH113..5D..GL;LH119,RZH112..09S;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH101,111,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-26750 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88711-2F030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88711-26250 |
RZH10#,11#,12#,133 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH10#,11#,12# |
1 | ||
| 88712-26150 |
RZH10#,11#,12#,133 |
1 | ||
| 88712-26870 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88712-26870 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88712-26870 |
KZH10#,11#,12#,13# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
KZH10#,11#,12#,13# NO.2 |
1 | ||
| 88716-2F230 |
KZH10#,11#,120,13#,RZH133..4FC NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
KZH10#,11#,12#,13# NO.2 |
1 | ||
| 88716-2F230 |
KZH10#,11#,120,13#,RZH133..4FC NO.1 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88716-26850 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88716-26760 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26890 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88717-26890 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88717-95J40 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88717-26510 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124 |
1 | ||
| 88717-2F150 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-26530 |
LH113..5D..GL;LH12#,RZH111,124;LH119,RZH112..09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-26520 |
KZH10#,11#,12#,13# |
1 | ||
| 88717-26680 |
LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F030 |
KZH10#,11#,120,13#..4FC ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F030 |
KZH10#,11#,12#,13# |
1 | ||
| 88717-2F170 |
LH178..DX;LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH100,110,LH168,RZH124..5F;LH162,18#,RZH10#,111,125,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
LH178..05S,08S,09S;KZH10#,11#,120,13#,LH162,172,182,188,RZH10#,11#,183..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88723-20030 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88688-26150 | ||||
| 88688-26720 | ||||
| 88688-26730 | ||||
| 88718-22420 | ||||
| 88718-26050 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-26150 | ||||
| 88718-26780 | ||||
| 88718-2A230 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06032 | ||||
| 90179-08146 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-60820 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
ILLUST NO. 2 OF 5(9808-9907)RZH101,111 ; (9808- )RZH102,112,12#,133,18#
FRONT PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
2 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL 吸入側 |
1 | ||
| 88375-20010 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾘｷｯﾄﾞ側 |
1 | ||
| 88375-30290 |
KZH10#,11#,12#,13#,RZH124,133 吸入側 |
1 | ||
| 88375-30290 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) 吸入側 |
1 | ||
| 88375-30280 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,16#,17#,18#,RZH10#,11#,12#,133 ﾘｷｯﾄﾞ側 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28100 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472-26110 |
LH16#,17#,18#,RZH102,112,124;KZH10#,11#,120,13#,RZH125,133..4FC |
1 | ||
| 88472-26110 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124 |
1 | ||
| 88472-26110 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88472-26150 |
RZH101,111;KZH10#,11#,126..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
KZH11#,120,RZH133..4FC;KZH126,LH10#,11#,12#,RZH102,112,124..(COM,V1,WG)..(DX,GCGN,GL,SGL) 200G |
4 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26790 |
LH11#,RZH112..09S..DX;LH119..(06S,08S)..(GL,SGL);LH10#,113,RZH102,112..GL,SGL;KZH10#,11#,12#,13#,LH12#,RZH101,111,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88648-26040 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88605-26790 |
LH119,123..09S..4FC;LH113..V1..5D..5F..DX;LH113..V1..4FC..(DX,SGL);LH113,123..HRF..4D..06S..5F;KZH10#,11#,12#,RZH112..(V1,WG)..(06S,07S,08S,09S,10S);KZH13#,LH10#,119,125,129,RZH10#,111,124,133..(COM,V1,WG)..(03S,05S,06S,07S,08S,10S,15S)..(DX,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL NO.2 |
1 | ||
| 88645-26010 |
LH113..5D..GL;LH119,RZH112..09S;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH101,111,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-26750 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88711-2F030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88711-26250 |
RZH10#,11#,12#,133 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH10#,11#,12# |
1 | ||
| 88712-26150 |
RZH10#,11#,12#,133 |
1 | ||
| 88712-26870 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88712-26870 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88712-26870 |
KZH10#,11#,12#,13# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26730 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-26740 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F230 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F620 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#..05S,07S,08S,10S NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F140 |
RZH101,111;KZH10#,11#,126..5F NO.1 |
1 | ||
| 88716-2F670 |
RZH101,111 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26730 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-26740 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F230 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F620 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#..05S,07S,08S,10S NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F140 |
RZH101,111;KZH10#,11#,126..5F NO.1 |
1 | ||
| 88716-2F670 |
RZH101,111 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
KZH10#,11#,12#,13# NO.2 |
1 | ||
| 88716-2F230 |
KZH10#,11#,120,13#,RZH133..4FC NO.1 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88716-26850 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88716-26760 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26890 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88717-26890 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88717-95J40 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88717-26510 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124 |
1 | ||
| 88717-2F150 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-26530 |
LH113..5D..GL;LH12#,RZH111,124;LH119,RZH112..09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-26520 |
KZH10#,11#,12#,13# |
1 | ||
| 88717-26680 |
LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F030 |
KZH10#,11#,120,13#..4FC ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F030 |
KZH10#,11#,12#,13# |
1 | ||
| 88717-2F170 |
LH178..DX;LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH100,110,LH168,RZH124..5F;LH162,18#,RZH10#,111,125,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
LH178..05S,08S,09S;KZH10#,11#,120,13#,LH162,172,182,188,RZH10#,11#,183..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88723-20030 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88688-2F080 | ||||
| 88718-22420 | ||||
| 88718-26150 | ||||
| 88718-26170 | ||||
| 88718-26840 | ||||
| 88718-2A230 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06088 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06032 | ||||
| 90463-13003 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-60820 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
ILLUST NO. 2 OF 5(9907- )RZH101,111
FRONT PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
2 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL 吸入側 |
1 | ||
| 88375-20010 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾘｷｯﾄﾞ側 |
1 | ||
| 88375-30290 |
KZH10#,11#,12#,13#,RZH124,133 吸入側 |
1 | ||
| 88375-30290 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) 吸入側 |
1 | ||
| 88375-30280 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,16#,17#,18#,RZH10#,11#,12#,133 ﾘｷｯﾄﾞ側 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28100 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472-26110 |
LH16#,17#,18#,RZH102,112,124;KZH10#,11#,120,13#,RZH125,133..4FC |
1 | ||
| 88472-26110 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124 |
1 | ||
| 88472-26110 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88472-26150 |
RZH101,111;KZH10#,11#,126..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
KZH11#,120,RZH133..4FC;KZH126,LH10#,11#,12#,RZH102,112,124..(COM,V1,WG)..(DX,GCGN,GL,SGL) 200G |
4 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
KZH11#,120,RZH133..4FC;KZH126,LH10#,11#,12#,RZH102,112,124..(COM,V1,WG)..(DX,GCGN,GL,SGL) 200G |
4 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL NO.2 |
1 | ||
| 88645-26010 |
LH113..5D..GL;LH119,RZH112..09S;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH101,111,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-26750 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88711-2F030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88711-26250 |
RZH10#,11#,12#,133 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH10#,11#,12# |
1 | ||
| 88712-26150 |
RZH10#,11#,12#,133 |
1 | ||
| 88712-26870 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88712-26870 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88712-26870 |
KZH10#,11#,12#,13# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26730 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-26740 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F230 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F620 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#..05S,07S,08S,10S NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F140 |
RZH101,111;KZH10#,11#,126..5F NO.1 |
1 | ||
| 88716-2F670 |
RZH101,111 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26730 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-26740 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F230 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F620 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#..05S,07S,08S,10S NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F140 |
RZH101,111;KZH10#,11#,126..5F NO.1 |
1 | ||
| 88716-2F670 |
RZH101,111 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
KZH10#,11#,12#,13# NO.2 |
1 | ||
| 88716-2F230 |
KZH10#,11#,120,13#,RZH133..4FC NO.1 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88716-26850 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88716-26760 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26890 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88717-26890 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88717-95J40 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88717-26510 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124 |
1 | ||
| 88717-2F150 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-26530 |
LH113..5D..GL;LH12#,RZH111,124;LH119,RZH112..09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-26520 |
KZH10#,11#,12#,13# |
1 | ||
| 88717-26680 |
LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F030 |
KZH10#,11#,120,13#..4FC ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F030 |
KZH10#,11#,12#,13# |
1 | ||
| 88717-2F170 |
LH178..DX;LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH100,110,LH168,RZH124..5F;LH162,18#,RZH10#,111,125,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
LH178..05S,08S,09S;KZH10#,11#,120,13#,LH162,172,182,188,RZH10#,11#,183..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88723-20030 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88688-2F080 | ||||
| 88718-26150 | ||||
| 88718-26170 | ||||
| 88718-26840 | ||||
| 88718-26850 | ||||
| 88718-2A230 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06088 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06274 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-60820 | ||||
| 93385-16025 | ||||
ILLUST NO. 3 OF 5(9907- )LH16#,178,18#,RZH102,111,12#..DX,GL,SGLE
REAR PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-26780 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88716-26780 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88716-2F560 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88716-2F560 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88726F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88710-2F290 |
LH178..08S;KZH11#,120,13#,RZH111..4FC ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88710-2F290 |
LH178..08S;KZH11#,120,13#,RZH111..4FC ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-26570 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88717-26570 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88717-2F270 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88717-2F270 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) |
1 | ||
| Common parts | ||||
| 88688-2F170 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26230 | ||||
| 88718-26730 | ||||
| 88718-95J39 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90099-05192 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90480-30015 | ||||
| 91651-60614 | ||||
| 91651-B0822 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 6151 | ||||
ILLUST NO. 3 OF 5(9907- )LH178..08S ; (9907- )RZH183..SGLE; (9907- )LH172..HRF..4D ; (9907
REAR PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-26780 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88716-26780 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88716-2F560 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88716-2F560 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88726F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88710-2F290 |
LH178..08S;KZH11#,120,13#,RZH111..4FC ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88710-2F290 |
LH178..08S;KZH11#,120,13#,RZH111..4FC ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-26570 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88717-26570 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88717-2F270 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88717-2F270 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#..SG..(03S,05S,07S,08S,10S) |
1 | ||
| Common parts | ||||
| 88688-2F170 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26230 | ||||
| 88718-26730 | ||||
| 88718-95J39 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90099-05192 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90480-30015 | ||||
| 91651-60614 | ||||
| 91651-B0822 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 6151 | ||||
ILLUST NO. 1 OF 5(9508-9608)KZH10#,11#,120,13#..4FC
CONDENSER--SINLGE(MOP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88453-26020 |
LH178..03S,05S,06S,08S;KZH10#,11#,12#,13#,LH16#,172,182,188,RZH10#,11#,12# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-26050 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88454-26090 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88454-26100 |
LH178..03S,05S,06S,08S;LH162,172,182,RZH10#,11#,125;KZH10#,11#,126,LH168,RZH124..5F |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-26270 |
RZH101,111;KZH10#,11#,126..5F |
1 | ||
| 88460-26350 |
RZH101,111;KZH10#,11#,126..5F |
1 | ||
| 88460-26510 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,126,LH109,125..5F;LH103,123,129,RZH10#,11#,124,133 |
1 | ||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88461-26040 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88461-26140 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-26190 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88463F - BRACKET, COOLER CONDENSER, NO.7 | ||||
| 88463-26030 |
KZH10#,11#,120,13#..4FC |
2 | ||
| 88463F - BRACKET, COOLER CONDENSER, NO.7 | ||||
| 88463-26030 |
KZH10#,11#,120,13#..4FC |
2 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-26050 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-26080 |
KZH10#,11#,126..5F;RZH10#,11#,124..(COM,V1,WG)..(DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26080 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26130 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88590-26140 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26210 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88715-26240 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26200 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26210 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88715-26330 |
RZH112..SRF;KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,111,125,133 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26730 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-26740 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F230 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F620 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#..05S,07S,08S,10S NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F140 |
RZH101,111;KZH10#,11#,126..5F NO.1 |
1 | ||
| 88716-2F670 |
RZH101,111 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| Common parts | ||||
| 88467-95701 | ||||
| 88688-26280 | ||||
| 88718-12280 | ||||
| 88892-26020 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90119-08354 | ||||
| 90179-06032 | ||||
| Linked diagrams | ||||
| 1603 | ||||
ILLUST NO. 1 OF 5(9608-9908)KZH10#,11#,120,13#..4FC
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88453-26020 |
LH178..03S,05S,06S,08S;KZH10#,11#,12#,13#,LH16#,172,182,188,RZH10#,11#,12# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-26050 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88454-26090 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88454-26100 |
LH178..03S,05S,06S,08S;LH162,172,182,RZH10#,11#,125;KZH10#,11#,126,LH168,RZH124..5F |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,126,LH109,125..5F;LH103,123,129,RZH10#,11#,124,133 |
1 | ||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88461-26040 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88461-26140 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-26190 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-26050 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-26030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88584-26020 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88584-26050 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-26080 |
KZH10#,11#,126..5F;RZH10#,11#,124..(COM,V1,WG)..(DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26080 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26130 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88590-26140 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 88635-26030 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,SCL,SCM,SCMM) ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26210 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88715-26240 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26200 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26210 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88715-26330 |
RZH112..SRF;KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,111,125,133 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26730 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-26740 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F230 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F620 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#..05S,07S,08S,10S NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F140 |
RZH101,111;KZH10#,11#,126..5F NO.1 |
1 | ||
| 88716-2F670 |
RZH101,111 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| Common parts | ||||
| 88467-95701 | ||||
| 88688-26560 | ||||
| 88688-26640 | ||||
| 88718-12280 | ||||
| 88718-14450 | ||||
| 88892-26020 | ||||
| 90091-20609 | ||||
| 90099-00293 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90119-08354 | ||||
| 90179-06032 | ||||
| 90179-08123 | ||||
| 91651-40820 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
ILLUST NO. 1 OF 5(9808- )LH162,17#,182,188,RZH101,111..05S,07S,08S,10S ; (0308- )TRH102,112,12
CONDENSER(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88453-26020 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88453-26020 |
LH178..03S,05S,06S,08S;KZH10#,11#,12#,13#,LH16#,172,182,188,RZH10#,11#,12# |
1 | ||
| 88453-26020 |
LH178..03S,05S,06S,08S;KZH10#,11#,12#,13#,LH16#,172,182,188,RZH10#,11#,12# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-26050 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88454-26050 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88454-26090 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88454-26090 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88454-26100 |
LH178..03S,05S,06S,08S;LH162,172,182,RZH10#,11#,125;KZH10#,11#,126,LH168,RZH124..5F |
1 | ||
| 88454-26100 |
LH178..03S,05S,06S,08S;LH162,172,182,RZH10#,11#,125;KZH10#,11#,126,LH168,RZH124..5F |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-26270 |
RZH101,111;KZH10#,11#,126..5F |
1 | ||
| 88460-26270 |
RZH101,111;KZH10#,11#,126..5F |
1 | ||
| 88460-26350 |
RZH101,111;KZH10#,11#,126..5F |
1 | ||
| 88460-26350 |
RZH101,111;KZH10#,11#,126..5F |
1 | ||
| 88460-26510 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88460-26510 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,126,LH109,125..5F;LH103,123,129,RZH10#,11#,124,133 |
1 | ||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,126,LH109,125..5F;LH103,123,129,RZH10#,11#,124,133 |
1 | ||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88461-26040 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88461-26040 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88461-26140 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88461-26140 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-26050 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550-26050 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88550-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-26030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88584-26030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88584-26020 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88584-26020 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88584-26050 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88584-26050 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-26080 |
KZH10#,11#,126..5F;RZH10#,11#,124..(COM,V1,WG)..(DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26080 |
KZH10#,11#,126..5F;RZH10#,11#,124..(COM,V1,WG)..(DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26080 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26080 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26130 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88590-26130 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88590-26140 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26140 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 88635-26030 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,SCL,SCM,SCMM) ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,SCL,SCM,SCMM) ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26210 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88715-26210 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88715-26240 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26240 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26200 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26200 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26210 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88715-26210 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88715-26330 |
RZH112..SRF;KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,111,125,133 |
1 | ||
| 88715-26330 |
RZH112..SRF;KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,111,125,133 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 88463-26310 | ||||
| 88463-26320 | ||||
| 88463-26350 | ||||
| 88463-26360 | ||||
| 88463-26370 | ||||
| 88463-26380 | ||||
| 88463-35120 | ||||
| 88467-30270 | ||||
| 88578-26080 | ||||
| 88718-26810 | ||||
| 88892-26020 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
| 90099-14120 | ||||
| 90119-08354 | ||||
| 90179-06274 | ||||
| 91651-40820 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 5(9808-9907)KZH10#,11#,126..5F ; (9808- )RZH112..V2..4D..DX ; (9808- )RZH112,1
CONDENSER(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-26020 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88453-26020 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88453-26020 |
LH178..03S,05S,06S,08S;KZH10#,11#,12#,13#,LH16#,172,182,188,RZH10#,11#,12# |
1 | ||
| 88453-26020 |
LH178..03S,05S,06S,08S;KZH10#,11#,12#,13#,LH16#,172,182,188,RZH10#,11#,12# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-26050 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88454-26050 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88454-26090 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88454-26090 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88454-26100 |
LH178..03S,05S,06S,08S;LH162,172,182,RZH10#,11#,125;KZH10#,11#,126,LH168,RZH124..5F |
1 | ||
| 88454-26100 |
LH178..03S,05S,06S,08S;LH162,172,182,RZH10#,11#,125;KZH10#,11#,126,LH168,RZH124..5F |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-26270 |
RZH101,111;KZH10#,11#,126..5F |
1 | ||
| 88460-26270 |
RZH101,111;KZH10#,11#,126..5F |
1 | ||
| 88460-26350 |
RZH101,111;KZH10#,11#,126..5F |
1 | ||
| 88460-26350 |
RZH101,111;KZH10#,11#,126..5F |
1 | ||
| 88460-26510 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88460-26510 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,126,LH109,125..5F;LH103,123,129,RZH10#,11#,124,133 |
1 | ||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,126,LH109,125..5F;LH103,123,129,RZH10#,11#,124,133 |
1 | ||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88461-26050 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88461-26040 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88461-26040 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88461-26140 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88461-26140 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-26050 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550-26050 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88550-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88550-26050 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88584B - GUIDE, COOLER AIR | ||||
| 88584-26030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88584-26030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88584-26020 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88584-26020 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88584-26050 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88584-26050 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-26080 |
KZH10#,11#,126..5F;RZH10#,11#,124..(COM,V1,WG)..(DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26080 |
KZH10#,11#,126..5F;RZH10#,11#,124..(COM,V1,WG)..(DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26080 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26080 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26130 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88590-26130 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88590-26140 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88590-26140 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR) | ||||
| 88635-26030 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,SCL,SCM,SCMM) ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
KZH10#,11#,12#,13#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,SCL,SCM,SCMM) ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88635-26030 |
LH119..09S;LH113..5D..GL;LH123,129,RZH111;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL;KZH10#,11#,126,LH125,RZH112,124..(08S,09S,10S,15S)..5F ｱﾘ(ﾃﾞﾕｱﾙｴｱｺﾝ) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26210 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88715-26210 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F |
1 | ||
| 88715-26240 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26240 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26200 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26200 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88715-26210 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88715-26210 |
KZH10#,11#,126..5F;RZH10#,11#,124,133 |
1 | ||
| 88715-26330 |
RZH112..SRF;KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,111,125,133 |
1 | ||
| 88715-26330 |
RZH112..SRF;KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,111,125,133 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 88463-26310 | ||||
| 88463-26320 | ||||
| 88463-26350 | ||||
| 88463-26360 | ||||
| 88463-26370 | ||||
| 88463-26380 | ||||
| 88463-35120 | ||||
| 88467-30270 | ||||
| 88578-26080 | ||||
| 88718-26810 | ||||
| 88892-26020 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
| 90099-14120 | ||||
| 90119-08354 | ||||
| 90179-06274 | ||||
| 91651-40820 | ||||
| 93385-56025 | ||||
ILLUST NO. 2 OF 5(9508-9808)
FRONT PIPING--SINGLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28100 |
KZH10#,11#,12#,13#,LH162,17#,RZH10#,11#,133..SG..(03S,05S,07S,08S,10S) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88472-26110 |
LH16#,17#,18#,RZH102,112,124;KZH10#,11#,120,13#,RZH125,133..4FC |
1 | ||
| 88472-26110 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124 |
1 | ||
| 88472-26110 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88472-26150 |
RZH101,111;KZH10#,11#,126..5F ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-26790 |
LH11#,RZH112..09S..DX;LH119..(06S,08S)..(GL,SGL);LH10#,113,RZH102,112..GL,SGL;KZH10#,11#,12#,13#,LH12#,RZH101,111,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88648-26040 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88605-26790 |
LH119,123..09S..4FC;LH113..V1..5D..5F..DX;LH113..V1..4FC..(DX,SGL);LH113,123..HRF..4D..06S..5F;KZH10#,11#,12#,RZH112..(V1,WG)..(06S,07S,08S,09S,10S);KZH13#,LH10#,119,125,129,RZH10#,111,124,133..(COM,V1,WG)..(03S,05S,06S,07S,08S,10S,15S)..(DX,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL NO.2 |
1 | ||
| 88645-26010 |
LH113..5D..GL;LH119,RZH112..09S;LH10#,119,RZH102,112..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH101,111,124 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH10#,11#,12#,13#,LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88645-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-26750 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88711-2F030 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88711-26250 |
RZH10#,11#,12#,133 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH10#,11#,12# |
1 | ||
| 88712-26150 |
RZH10#,11#,12#,133 |
1 | ||
| 88712-26870 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88712-26870 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88712-26870 |
KZH10#,11#,12#,13# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26730 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-26740 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F230 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F620 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#..05S,07S,08S,10S NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F140 |
RZH101,111;KZH10#,11#,126..5F NO.1 |
1 | ||
| 88716-2F670 |
RZH101,111 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26730 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-26740 |
LH11#..SG;LH113..SP..5F;LH103,123,129,RZH10#,11#;KZH10#,11#,126,LH109,125,RZH124..5F NO.1 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F230 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F130 |
KZH10#,11#,120,13#..4FC NO.1 |
1 | ||
| 88716-2F620 |
KZH10#,11#,126..5F;LH162,17#,RZH10#,11#..05S,07S,08S,10S NO.2 |
1 | ||
| 88716-2F480 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.1 |
1 | ||
| 88716-2F140 |
RZH101,111;KZH10#,11#,126..5F NO.1 |
1 | ||
| 88716-2F670 |
RZH101,111 NO.1 |
1 | ||
| 88716-2F500 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 NO.2 |
1 | ||
| 88716-2F040 |
KZH10#,11#,12#,13#,RZH101,111 ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
LH172..HRF..4D;LH172,RZH112..SRF..SG;LH16#,178,18#,RZH10#,111,12#,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88716-2F590 |
KZH10#,11#,12#,13# NO.2 |
1 | ||
| 88716-2F230 |
KZH10#,11#,120,13#,RZH133..4FC NO.1 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26760 |
KZH10#,11#,12#,13#,RZH101,111 |
1 | ||
| 88716-26850 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88716-26760 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26890 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124,133 |
1 | ||
| 88717-26890 |
KZH10#,11#,120,13#..4FC |
1 | ||
| 88717-95J40 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88717-26510 |
LH11#..SG;LH113..SP..5F;KZH10#,11#,12#,13#,LH10#,12#,RZH10#,11#,124 |
1 | ||
| 88717-2F150 |
KZH10#,11#,126,LH168,RZH124..5F;LH162,17#,18#,RZH10#,11#,125,133 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-26530 |
LH113..5D..GL;LH12#,RZH111,124;LH119,RZH112..09S;LH113..V1..SRF..4D..(DX,GL,SGL);LH10#,119,RZH10#,112..CTM,GL,SCL,SCM,SCMM,SGL ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-26520 |
KZH10#,11#,12#,13# |
1 | ||
| 88717-26680 |
LH10#,11#,12#,RZH10#,11#,124,133..(COM,V1,WG)..(DX,GL,SCL,SCM,SCMM,SGL) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F030 |
KZH10#,11#,120,13#..4FC ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717-2F030 |
KZH10#,11#,12#,13# |
1 | ||
| 88717-2F170 |
LH178..DX;LH172..HRF..4D;LH172,RZH112..SRF..SG;KZH100,110,LH168,RZH124..5F;LH162,18#,RZH10#,111,125,133..SG ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88688-32400 | ||||
| 88688-95J76 | ||||
| 88688-95J77 | ||||
| 88718-26070 | ||||
| 88718-26120 | ||||
| 88718-26150 | ||||
| 88718-26170 | ||||
| 88718-2A230 | ||||
| 88718-32220 | ||||
| 88718-95J72 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06462 | ||||
| 90119-06674 | ||||
| 90119-06675 | ||||
| 90179-06032 | ||||
| 90179-08146 | ||||
| 90463-13003 | ||||
| 90464-00432 | ||||
| 91511-60630 | ||||
| 91651-40625 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-60820 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
| 93385-18025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
