RZH111G-GHPDE (1995)

Toyota Hiace/Regiusace

Production Aug 1995 - Aug 2002
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-0103)RZH101,111 ; (8908- )RZH100,102,110,112,12#,133,18#

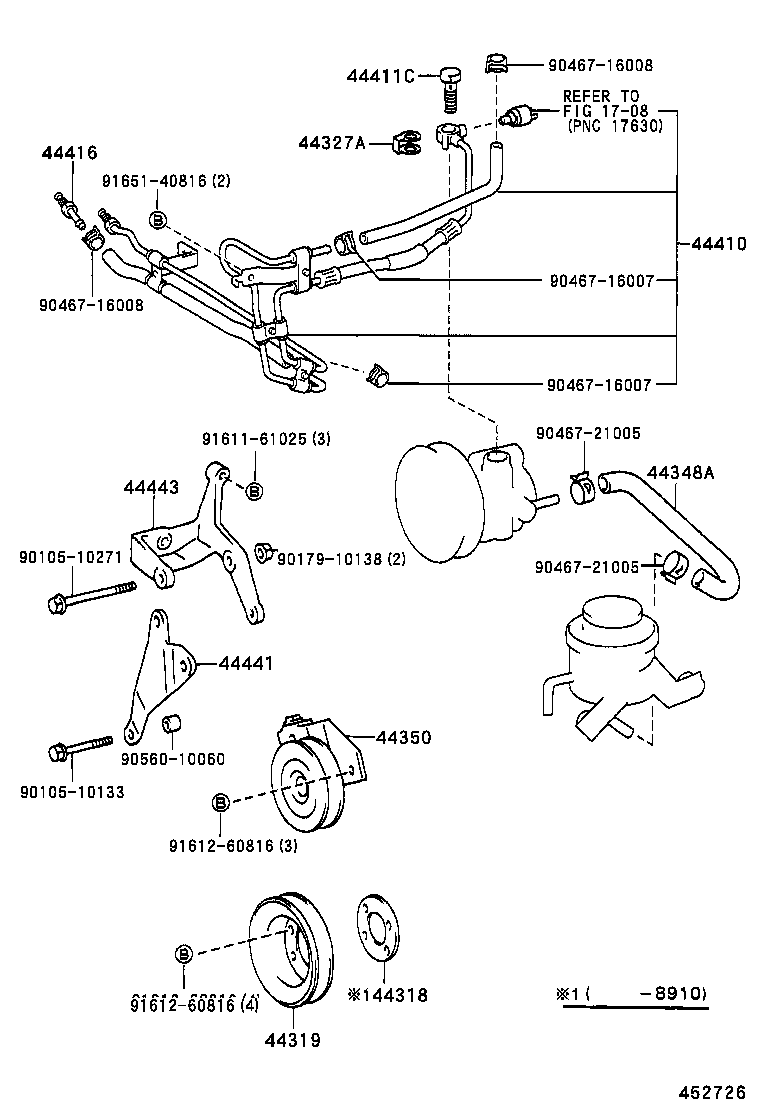

Click highlighted areas on diagram

diagram 1708 44318 44319 44327A 44348A 44350 44410 44411C 44441 44443 9010510133 9010510271 9017910138 9046716007 9046716008 9046721005 9046721005 9056010060 9161161025 9161260816 9161260816 9165140816
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26020

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-26020

RZH10#,11#,12#,133

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-26020

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

 1
44327-12010

RZH100,101..SCL;LH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26070

RZH10#,11#,12#,133

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-26010

RZH10#,11#,12#,133

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-26170

RZH10#,11#,124..(CD,CTM,DX,GL,SCM,SCMM)..EFI

 1
44410-26170

RZH101,111

 1
44410-26860

RZH101,111

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

LH10#,11#,12#;RZH100,101..SCL

*16−1.5PX26−12,ｷﾞﾔ側

 1
90401-16008

LH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

*16−1.5PX26−12

 1
90401-16014

RZH10#,11#,12#

 1
44441 - BRACKET, PUMP, FRONT
44441-26010

RZH10#,11#,12#,133

 1
44443 - BRACKET, PUMP
44443-26030

RZH10#,11#,12#

 1
Common parts
90105-10133
90105-10271
90179-10138
90467-16007
90467-16008
90467-21005
90560-10060
91611-61025
91612-60816
91651-40816
Linked diagrams
1708

(0103- )RZH101,111

Click highlighted areas on diagram

diagram 1708 44318 44319 44327A 44348A 44350 44410 44411C 44416 44441 44443 9010510133 9010510271 9017910138 9046716007 9046716007 9046716008 9046716008 9046721005 9046721005 9056010060 9161161025 9161260816 9161260816 9165140816
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26020

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-26020

RZH10#,11#,12#,133

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-26020

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

 1
44327-12010

RZH100,101..SCL;LH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-26070

RZH10#,11#,12#,133

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-26010

RZH10#,11#,12#,133

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-26170

RZH10#,11#,124..(CD,CTM,DX,GL,SCM,SCMM)..EFI

 1
44410-26170

RZH101,111

 1
44410-26860

RZH101,111

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

LH10#,11#,12#;RZH100,101..SCL

*16−1.5PX26−12,ｷﾞﾔ側

 1
90401-16008

LH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

*16−1.5PX26−12

 1
90401-16014

RZH10#,11#,12#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-26080

RZH101,111

 1
44441 - BRACKET, PUMP, FRONT
44441-26010

RZH10#,11#,12#,133

 1
44443 - BRACKET, PUMP
44443-26030

RZH10#,11#,12#

 1
Common parts
90105-10133
90105-10271
90179-10138
90467-16007
90467-16008
90467-21005
90560-10060
91611-61025
91612-60816
91651-40816
Linked diagrams
1708
