Toyota Hiace/regiusace RZH111 ALTERNATOR

RZH111G-GHPDE (1995)

Toyota Hiace/Regiusace

Production Aug 1995 - Aug 2002

Engine 2RZE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0012- )1RZE..RZH112..V2..4D..4FC ; (0012-)1RZE..RZH112..V1..4FC..CD ; (0012

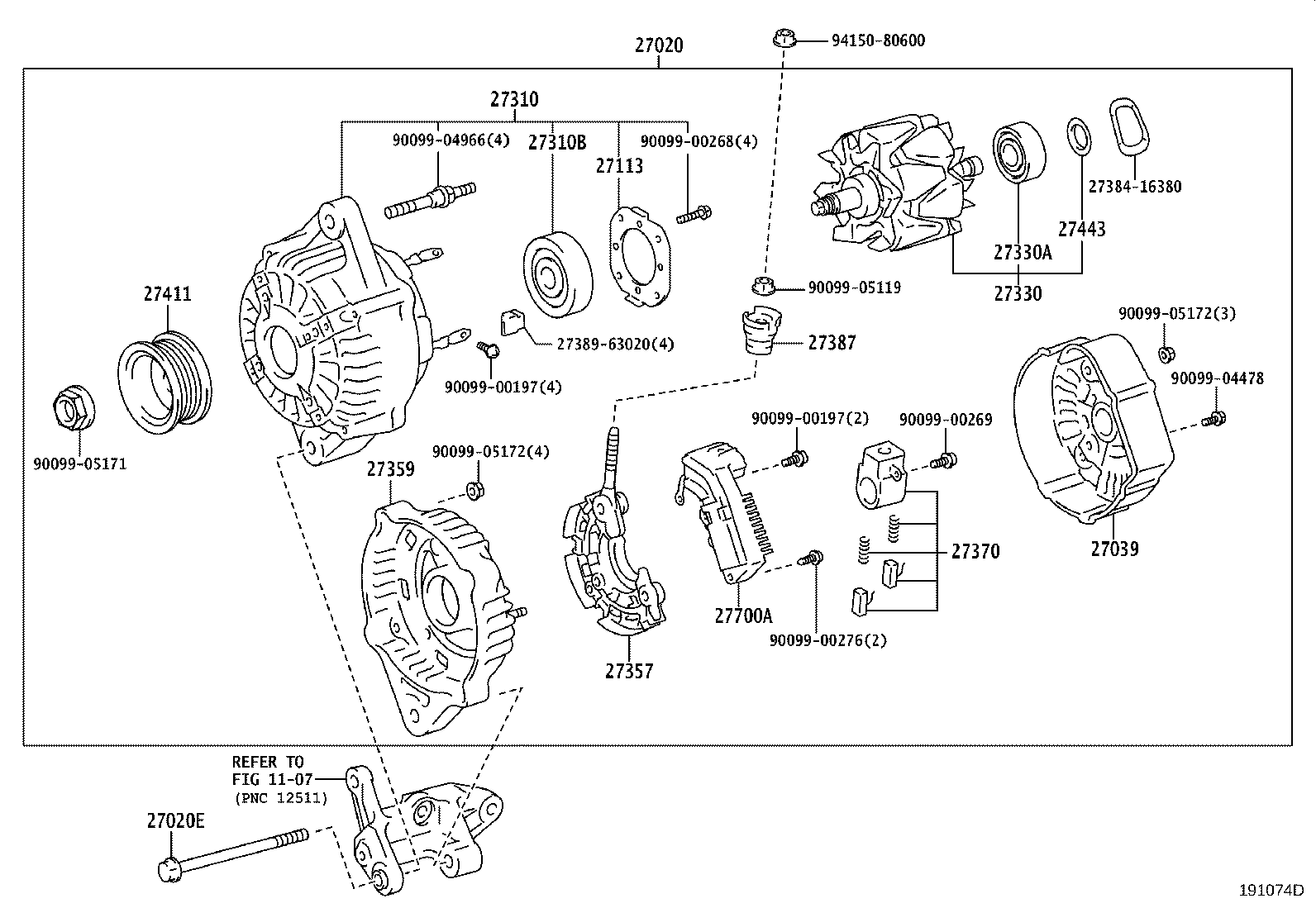

Click highlighted areas on diagram

12V 70A,90A,120A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-75160	1RZE,2RZE..RZH10#,11#,12#,133..4FC 12V 80A	04/1996 - 07/1999	1
27060-75160	1RZE,2RZE..RZH10#,11#,12#,133..4FC 12V 80A	04/1996 - 07/1999	1
27060-75210	2RZE..RZH101,111..08S,10S 12V 80A,ｱﾘ(ｱｸｾｻﾘｺﾝｾﾝﾄ (ﾌﾛﾝﾄ & ﾘﾔ))	07/1999 - 08/2002	1
27060-75210	2RZE..RZH101,111..08S,10S 12V 80A,ｱﾘ(ｱｸｾｻﾘｺﾝｾﾝﾄ (ﾌﾛﾝﾄ & ﾘﾔ))	07/1999 - 08/2002	1
27020E - BOLT(FOR ALTERNATOR)
90105-10282	1RZ#,2RZE..RZH10#,11#,12#,133	08/1989 - 04/1997	1
90105-10282	1RZ#,2RZE..RZH10#,11#,12#,133	08/1989 - 04/1997	1
90105-10221	1RZE,2RZE..RZH10#,11#,12#,133	04/1997 - 07/1999	1
90105-10221	1RZE,2RZE..RZH10#,11#,12#,133	04/1997 - 07/1999	1
27039 - COVER, ALTERNATOR REAR END
27039-55080	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27039-55080	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27039-55080	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,126,LH109,12#,16#,17#,18#,RZH101,111,125,133 12V 80A	08/1996 - 07/1999	1
27039-55080	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,126,LH109,12#,16#,17#,18#,RZH101,111,125,133 12V 80A	08/1996 - 07/1999	1
27039-55080	1RZE,2RZE..RZH10#,11#,125,183..4FC 12V 80A	07/1999 - 04/2001	1
27039-55080	1RZE,2RZE..RZH10#,11#,125,183..4FC 12V 80A	07/1999 - 04/2001	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,12#,13#,LH109,12#,16#,17#,18#,RZH101,111,125,133	08/1996 - 07/1999	1
27064-42010	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,12#,13#,LH109,12#,16#,17#,18#,RZH101,111,125,133	08/1996 - 07/1999	1
27064-42010	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133	08/1995 - 08/1996	1
27064-42010	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133	08/1995 - 08/1996	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72280	2RZE..RZH101,111	07/1999 - 08/2002	1
27310-72280	2RZE..RZH101,111	07/1999 - 08/2002	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72280	2RZE..RZH101;1KZTE,2RZE..KZH10#,11#,120,RZH111..08S,10S	07/1999 - 07/2000	1
27330-72280	2RZE..RZH101;1KZTE,2RZE..KZH10#,11#,120,RZH111..08S,10S	07/1999 - 07/2000	1
27330-76030	1RZE,2RZE..RZH10#,11#,125..4FC..(DX,GL,SCM,SCMM,SGL) 12V 80A	07/1999 - 07/2000	1
27330-76030	1RZE,2RZE..RZH10#,11#,125..4FC..(DX,GL,SCM,SCMM,SGL) 12V 80A	07/1999 - 07/2000	1
27330-76030	2RZE..RZH101,111,133;1RZE..RZH112..V2..SRF..4FC 12V 80A	01/1997 - 07/1999	1
27330-76030	2RZE..RZH101,111,133;1RZE..RZH112..V2..SRF..4FC 12V 80A	01/1997 - 07/1999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1RZ..RZH102,112;1RZE..RZH112..09S;1RZE..RZH102,112..4FC;1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,12#,133	08/1989 - 08/1996	1
90099-10140	1RZ..RZH102,112;1RZE..RZH112..09S;1RZE..RZH102,112..4FC;1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,12#,133	08/1989 - 08/1996	1
90099-10140	1RZE..RZH112..V2..4FC;1RZE..RZH102,112..V1..DX;1KZTE,3L,1RZE,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,RZH101,111,124,133 12V 70A	08/1996 - 08/1998	1
90099-10140	1RZE..RZH112..V2..4FC;1RZE..RZH102,112..V1..DX;1KZTE,3L,1RZE,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,RZH101,111,124,133 12V 70A	08/1996 - 08/1998	1
90099-10140	1RZE..RZH112..4FC..DX;1RZE..RZH102..V1..4FC..DX;1KZTE,2RZE..KZH10#,11#,12#,13#,RZH111,133 12V 70A	08/1998 - 07/1999	1
90099-10140	1RZE..RZH112..4FC..DX;1RZE..RZH102..V1..4FC..DX;1KZTE,2RZE..KZH10#,11#,12#,13#,RZH111,133 12V 70A	08/1998 - 07/1999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080	1RZE..RZH102,112,124..4FC;1KZTE,5L,2RZE..KZH10#,11#,126,LH16#,17#,18#,RZH101,111,125,133 12V 80A	01/1997 - 07/1999	1
27357-55080	1RZE..RZH102,112,124..4FC;1KZTE,5L,2RZE..KZH10#,11#,126,LH16#,17#,18#,RZH101,111,125,133 12V 80A	01/1997 - 07/1999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27370-75060	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27370-75060	3L..LH103..4FC;3L..LH119..4D..4FC;3L..LH113..V1..SRF..4D..06S;3L..LH113..(03S,05S,09S)..4FC;3L..LH11#,123..(05S,08S,09S)..5F;3L,1RZE..LH113,RZH112..V2..SRF..5D..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133..03S,06S,07S,08S,10S,15S 12V 80A	08/1996 - 07/1999	1
27370-75060	3L..LH103..4FC;3L..LH119..4D..4FC;3L..LH113..V1..SRF..4D..06S;3L..LH113..(03S,05S,09S)..4FC;3L..LH11#,123..(05S,08S,09S)..5F;3L,1RZE..LH113,RZH112..V2..SRF..5D..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133..03S,06S,07S,08S,10S,15S 12V 80A	08/1996 - 07/1999	1
27387 - INSULATOR, TERMINAL
27387-42020	3L..LH103..4FC;3L..LH119..4D..4FC;3L..LH113..V1..SRF..4D..06S;3L..LH113..(03S,05S,09S)..4FC;3L..LH11#,123..(05S,08S,09S)..5F;3L,1RZE..LH113,RZH112..V2..SRF..5D..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133..03S,06S,07S,08S,10S,15S 12V 80A	08/1996 - 05/1997	1
27387-42020	3L..LH103..4FC;3L..LH119..4D..4FC;3L..LH113..V1..SRF..4D..06S;3L..LH113..(03S,05S,09S)..4FC;3L..LH11#,123..(05S,08S,09S)..5F;3L,1RZE..LH113,RZH112..V2..SRF..5D..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133..03S,06S,07S,08S,10S,15S 12V 80A	08/1996 - 05/1997	1
27387-42020	1RZE..RZH102,112,124..4FC;1KZTE,2RZE..KZH10#,11#,126,RZH101,111,133 12V 80A	05/1997 - 08/1997	1
27387-42020	1RZE..RZH102,112,124..4FC;1KZTE,2RZE..KZH10#,11#,126,RZH101,111,133 12V 80A	05/1997 - 08/1997	1
27387-42020	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27387-42020	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27387-42021	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,126,LH109,12#,16#,17#,18#,RZH101,111,125,133 12V 80A	08/1997 - 07/1999	1
27387-42021	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,126,LH109,12#,16#,17#,18#,RZH101,111,125,133 12V 80A	08/1997 - 07/1999	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133	08/1995 - 08/1996	1
27388-42010	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133	08/1995 - 08/1996	1
27388-42010	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,12#,13#,LH109,12#,16#,17#,18#,RZH101,111,125,133	08/1996 - 07/1999	1
27388-42010	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,12#,13#,LH109,12#,16#,17#,18#,RZH101,111,125,133	08/1996 - 07/1999	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A	08/1989 - 07/1999	1
27443-63020	1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A	08/1989 - 07/1999	1
27700A - REGULATOR ASSY, GENERATOR
27700-70030	1RZ#,2RZE..RZH10#,11#,12#	08/1989 - 09/1991	1
27700-70030	1RZ#,2RZE..RZH10#,11#,12#	08/1989 - 09/1991	1
27700-50030	1RZE,2RZE..RZH10#,11#,124,133..4FC 12V 70A	04/1996 - 01/1997	1
27700-50030	1RZE,2RZE..RZH10#,11#,124,133..4FC 12V 70A	04/1996 - 01/1997	1
27700-50030	1RZE..RZH102,112,124..4FC;1KZTE,2RZE..KZH10#,11#,126,RZH101,111,125,133 12V 80A	01/1997 - 07/1999	1
27700-50030	1RZE..RZH102,112,124..4FC;1KZTE,2RZE..KZH10#,11#,126,RZH101,111,125,133 12V 80A	01/1997 - 07/1999	1
Common parts
27365-55080
27384-50030
27389-42010
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
93319-14025
94150-80600
Linked diagrams
1107

(9907- )2RZE..RZH101..08S ; (9907- )1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH

Click highlighted areas on diagram

12V 70A,90A,120A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-75160	1RZE,2RZE..RZH10#,11#,12#,133..4FC 12V 80A	04/1996 - 07/1999	1
27060-75160	1RZE,2RZE..RZH10#,11#,12#,133..4FC 12V 80A	04/1996 - 07/1999	1
27060-75210	2RZE..RZH101,111..08S,10S 12V 80A,ｱﾘ(ｱｸｾｻﾘｺﾝｾﾝﾄ (ﾌﾛﾝﾄ & ﾘﾔ))	07/1999 - 08/2002	1
27060-75210	2RZE..RZH101,111..08S,10S 12V 80A,ｱﾘ(ｱｸｾｻﾘｺﾝｾﾝﾄ (ﾌﾛﾝﾄ & ﾘﾔ))	07/1999 - 08/2002	1
27020E - BOLT(FOR ALTERNATOR)
90105-10282	1RZ#,2RZE..RZH10#,11#,12#,133	08/1989 - 04/1997	1
90105-10282	1RZ#,2RZE..RZH10#,11#,12#,133	08/1989 - 04/1997	1
90105-10221	1RZE,2RZE..RZH10#,11#,12#,133	04/1997 - 07/1999	1
90105-10221	1RZE,2RZE..RZH10#,11#,12#,133	04/1997 - 07/1999	1
27039 - COVER, ALTERNATOR REAR END
27039-55080	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27039-55080	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27039-55080	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,126,LH109,12#,16#,17#,18#,RZH101,111,125,133 12V 80A	08/1996 - 07/1999	1
27039-55080	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,126,LH109,12#,16#,17#,18#,RZH101,111,125,133 12V 80A	08/1996 - 07/1999	1
27039-55080	1RZE,2RZE..RZH10#,11#,125,183..4FC 12V 80A	07/1999 - 04/2001	1
27039-55080	1RZE,2RZE..RZH10#,11#,125,183..4FC 12V 80A	07/1999 - 04/2001	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,12#,13#,LH109,12#,16#,17#,18#,RZH101,111,125,133	08/1996 - 07/1999	1
27064-42010	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,12#,13#,LH109,12#,16#,17#,18#,RZH101,111,125,133	08/1996 - 07/1999	1
27064-42010	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133	08/1995 - 08/1996	1
27064-42010	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133	08/1995 - 08/1996	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72280	2RZE..RZH101,111	07/1999 - 08/2002	1
27310-72280	2RZE..RZH101,111	07/1999 - 08/2002	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72280	2RZE..RZH101;1KZTE,2RZE..KZH10#,11#,120,RZH111..08S,10S	07/1999 - 07/2000	1
27330-72280	2RZE..RZH101;1KZTE,2RZE..KZH10#,11#,120,RZH111..08S,10S	07/1999 - 07/2000	1
27330-76030	1RZE,2RZE..RZH10#,11#,125..4FC..(DX,GL,SCM,SCMM,SGL) 12V 80A	07/1999 - 07/2000	1
27330-76030	1RZE,2RZE..RZH10#,11#,125..4FC..(DX,GL,SCM,SCMM,SGL) 12V 80A	07/1999 - 07/2000	1
27330-76030	2RZE..RZH101,111,133;1RZE..RZH112..V2..SRF..4FC 12V 80A	01/1997 - 07/1999	1
27330-76030	2RZE..RZH101,111,133;1RZE..RZH112..V2..SRF..4FC 12V 80A	01/1997 - 07/1999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1RZ..RZH102,112;1RZE..RZH112..09S;1RZE..RZH102,112..4FC;1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,12#,133	08/1989 - 08/1996	1
90099-10140	1RZ..RZH102,112;1RZE..RZH112..09S;1RZE..RZH102,112..4FC;1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,12#,133	08/1989 - 08/1996	1
90099-10140	1RZE..RZH112..V2..4FC;1RZE..RZH102,112..V1..DX;1KZTE,3L,1RZE,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,RZH101,111,124,133 12V 70A	08/1996 - 08/1998	1
90099-10140	1RZE..RZH112..V2..4FC;1RZE..RZH102,112..V1..DX;1KZTE,3L,1RZE,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,RZH101,111,124,133 12V 70A	08/1996 - 08/1998	1
90099-10140	1RZE..RZH112..4FC..DX;1RZE..RZH102..V1..4FC..DX;1KZTE,2RZE..KZH10#,11#,12#,13#,RZH111,133 12V 70A	08/1998 - 07/1999	1
90099-10140	1RZE..RZH112..4FC..DX;1RZE..RZH102..V1..4FC..DX;1KZTE,2RZE..KZH10#,11#,12#,13#,RZH111,133 12V 70A	08/1998 - 07/1999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080	1RZE..RZH102,112,124..4FC;1KZTE,5L,2RZE..KZH10#,11#,126,LH16#,17#,18#,RZH101,111,125,133 12V 80A	01/1997 - 07/1999	1
27357-55080	1RZE..RZH102,112,124..4FC;1KZTE,5L,2RZE..KZH10#,11#,126,LH16#,17#,18#,RZH101,111,125,133 12V 80A	01/1997 - 07/1999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27370-75060	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27370-75060	3L..LH103..4FC;3L..LH119..4D..4FC;3L..LH113..V1..SRF..4D..06S;3L..LH113..(03S,05S,09S)..4FC;3L..LH11#,123..(05S,08S,09S)..5F;3L,1RZE..LH113,RZH112..V2..SRF..5D..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133..03S,06S,07S,08S,10S,15S 12V 80A	08/1996 - 07/1999	1
27370-75060	3L..LH103..4FC;3L..LH119..4D..4FC;3L..LH113..V1..SRF..4D..06S;3L..LH113..(03S,05S,09S)..4FC;3L..LH11#,123..(05S,08S,09S)..5F;3L,1RZE..LH113,RZH112..V2..SRF..5D..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133..03S,06S,07S,08S,10S,15S 12V 80A	08/1996 - 07/1999	1
27387 - INSULATOR, TERMINAL
27387-42020	3L..LH103..4FC;3L..LH119..4D..4FC;3L..LH113..V1..SRF..4D..06S;3L..LH113..(03S,05S,09S)..4FC;3L..LH11#,123..(05S,08S,09S)..5F;3L,1RZE..LH113,RZH112..V2..SRF..5D..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133..03S,06S,07S,08S,10S,15S 12V 80A	08/1996 - 05/1997	1
27387-42020	3L..LH103..4FC;3L..LH119..4D..4FC;3L..LH113..V1..SRF..4D..06S;3L..LH113..(03S,05S,09S)..4FC;3L..LH11#,123..(05S,08S,09S)..5F;3L,1RZE..LH113,RZH112..V2..SRF..5D..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133..03S,06S,07S,08S,10S,15S 12V 80A	08/1996 - 05/1997	1
27387-42020	1RZE..RZH102,112,124..4FC;1KZTE,2RZE..KZH10#,11#,126,RZH101,111,133 12V 80A	05/1997 - 08/1997	1
27387-42020	1RZE..RZH102,112,124..4FC;1KZTE,2RZE..KZH10#,11#,126,RZH101,111,133 12V 80A	05/1997 - 08/1997	1
27387-42020	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27387-42020	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27387-42021	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,126,LH109,12#,16#,17#,18#,RZH101,111,125,133 12V 80A	08/1997 - 07/1999	1
27387-42021	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,126,LH109,12#,16#,17#,18#,RZH101,111,125,133 12V 80A	08/1997 - 07/1999	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133	08/1995 - 08/1996	1
27388-42010	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133	08/1995 - 08/1996	1
27388-42010	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,12#,13#,LH109,12#,16#,17#,18#,RZH101,111,125,133	08/1996 - 07/1999	1
27388-42010	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,12#,13#,LH109,12#,16#,17#,18#,RZH101,111,125,133	08/1996 - 07/1999	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A	08/1989 - 07/1999	1
27443-63020	1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A	08/1989 - 07/1999	1
27700A - REGULATOR ASSY, GENERATOR
27700-70030	1RZ#,2RZE..RZH10#,11#,12#	08/1989 - 09/1991	1
27700-70030	1RZ#,2RZE..RZH10#,11#,12#	08/1989 - 09/1991	1
27700-50030	1RZE,2RZE..RZH10#,11#,124,133..4FC 12V 70A	04/1996 - 01/1997	1
27700-50030	1RZE,2RZE..RZH10#,11#,124,133..4FC 12V 70A	04/1996 - 01/1997	1
27700-50030	1RZE..RZH102,112,124..4FC;1KZTE,2RZE..KZH10#,11#,126,RZH101,111,125,133 12V 80A	01/1997 - 07/1999	1
27700-50030	1RZE..RZH102,112,124..4FC;1KZTE,2RZE..KZH10#,11#,126,RZH101,111,125,133 12V 80A	01/1997 - 07/1999	1
Common parts
27365-55080
27384-50030
27389-42010
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
93319-14025
94150-80600
Linked diagrams
1107

(9907- )1RZE,2RZE..RZH10#,11#,125,183..4FC

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-75160	1RZE,2RZE..RZH10#,11#,12#,133..4FC 12V 80A	04/1996 - 07/1999	1
27060-75210	2RZE..RZH101,111..08S,10S 12V 80A,ｱﾘ(ｱｸｾｻﾘｺﾝｾﾝﾄ (ﾌﾛﾝﾄ & ﾘﾔ))	07/1999 - 08/2002	1
27020E - BOLT(FOR ALTERNATOR)
90105-10282	1RZ#,2RZE..RZH10#,11#,12#,133	08/1989 - 04/1997	1
90105-10221	1RZE,2RZE..RZH10#,11#,12#,133	04/1997 - 07/1999	1
27039 - COVER, ALTERNATOR REAR END
27039-55080	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27039-55080	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,126,LH109,12#,16#,17#,18#,RZH101,111,125,133 12V 80A	08/1996 - 07/1999	1
27039-55080	1RZE,2RZE..RZH10#,11#,125,183..4FC 12V 80A	07/1999 - 04/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72280	2RZE..RZH101,111	07/1999 - 08/2002	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72280	2RZE..RZH101;1KZTE,2RZE..KZH10#,11#,120,RZH111..08S,10S	07/1999 - 07/2000	1
27330-76030	1RZE,2RZE..RZH10#,11#,125..4FC..(DX,GL,SCM,SCMM,SGL) 12V 80A	07/1999 - 07/2000	1
27330-76030	2RZE..RZH101,111,133;1RZE..RZH112..V2..SRF..4FC 12V 80A	01/1997 - 07/1999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1RZ..RZH102,112;1RZE..RZH112..09S;1RZE..RZH102,112..4FC;1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,12#,133	08/1989 - 08/1996	1
90099-10140	1RZE..RZH112..V2..4FC;1RZE..RZH102,112..V1..DX;1KZTE,3L,1RZE,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,RZH101,111,124,133 12V 70A	08/1996 - 08/1998	1
90099-10140	1RZE..RZH112..4FC..DX;1RZE..RZH102..V1..4FC..DX;1KZTE,2RZE..KZH10#,11#,12#,13#,RZH111,133 12V 70A	08/1998 - 07/1999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080	1RZE..RZH102,112,124..4FC;1KZTE,5L,2RZE..KZH10#,11#,126,LH16#,17#,18#,RZH101,111,125,133 12V 80A	01/1997 - 07/1999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27370-75060	3L..LH103..4FC;3L..LH119..4D..4FC;3L..LH113..V1..SRF..4D..06S;3L..LH113..(03S,05S,09S)..4FC;3L..LH11#,123..(05S,08S,09S)..5F;3L,1RZE..LH113,RZH112..V2..SRF..5D..4FC;1KZTE,3L,2RZE..KZH10#,11#,12#,13#,LH12#,RZH101,111,133..03S,06S,07S,08S,10S,15S 12V 80A	08/1996 - 07/1999	1
27387 - INSULATOR, TERMINAL
27387-42020	3L..LH103..4FC;3L..LH119..4D..4FC;3L..LH113..V1..SRF..4D..06S;3L..LH113..(03S,05S,09S)..4FC;3L..LH11#,123..(05S,08S,09S)..5F;3L,1RZE..LH113,RZH112..V2..SRF..5D..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133..03S,06S,07S,08S,10S,15S 12V 80A	08/1996 - 05/1997	1
27387-42020	1RZE..RZH102,112,124..4FC;1KZTE,2RZE..KZH10#,11#,126,RZH101,111,133 12V 80A	05/1997 - 08/1997	1
27387-42020	3L..LH11#..09S..5F..DX;3L,1RZE..LH109,RZH102..GL;3L..LH103,11#..5F..(GL,SGL);3L,1RZE..LH103,11#,RZH112..4FC;1KZTE,3L,2RZE..KZH10#,11#,126,LH12#,RZH101,111,133 12V 80A	08/1995 - 08/1996	1
27387-42021	3L..LH119..4FC..CD;3L..LH113..V1..5F..DX;3L..LH103,119..V1..(DX,SGL);3L,1RZE..LH113,RZH102,112,124..4FC;1KZTE,3L,5L,2RZE..KZH10#,11#,126,LH109,12#,16#,17#,18#,RZH101,111,125,133 12V 80A	08/1997 - 07/1999	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A	08/1989 - 07/1999	1
27700A - REGULATOR ASSY, GENERATOR
27700-70030	1RZ#,2RZE..RZH10#,11#,12#	08/1989 - 09/1991	1
27700-50030	1RZE,2RZE..RZH10#,11#,124,133..4FC 12V 70A	04/1996 - 01/1997	1
27700-50030	1RZE..RZH102,112,124..4FC;1KZTE,2RZE..KZH10#,11#,126,RZH101,111,125,133 12V 80A	01/1997 - 07/1999	1
Common parts
27384-16380
27389-63020
90099-00197
90099-00268
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
94150-80600
Linked diagrams
1107

RZH111G-GHPDE (1995)

(0012- )1RZE..RZH112..V2..4D..4FC ; (0012-)1RZE..RZH112..V1..4FC..CD ; (0012

(9907- )2RZE..RZH101..08S ; (9907- )1KZTE,5L,1RZE,2RZE..KZH10#,11#,120,13#,LH

(9907- )1RZE,2RZE..RZH10#,11#,125,183..4FC

Part Price Details
