RZH110G-GHMDE (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308) ; (9308- )LH10#,11#,12#,16#,17#,18#,RZH102,112,12#,18#,TRH102,112,12

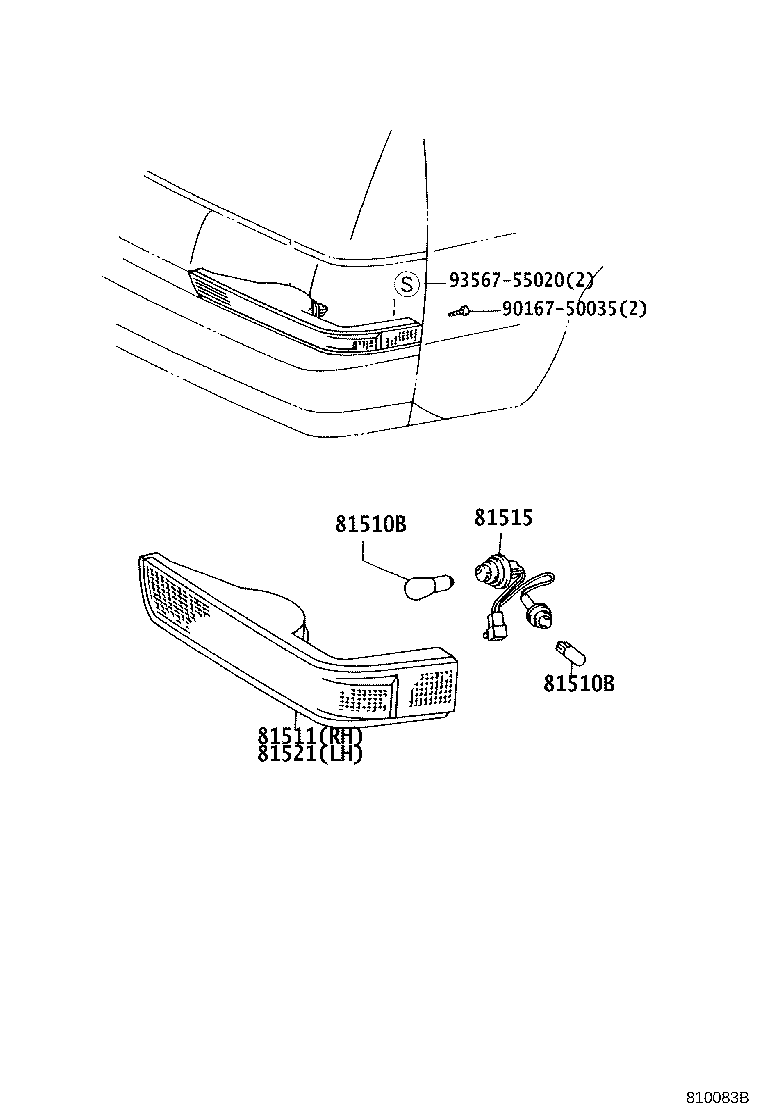

Click highlighted areas on diagram

diagram 81510B 81510B 81511 81515 81521 9016750035 9356755020
Part # Description Qty Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

LH10#,11#,12#,140,RZH10#,11#,12#

12V 21W,ｷﾔﾝﾋﾟﾝｸﾞ ｶ-

 2
99132-12050

LH10#,11#,12#,140,RZH10#,11#,12#

12V 5W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

LH10#,11#,12#,140,RZH10#,11#,12#

12V 21W,ｷﾔﾝﾋﾟﾝｸﾞ ｶ-

 2
99132-12050

LH10#,11#,12#,140,RZH10#,11#,12#

12V 5W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95J20

LH100,110,117,RZH100,110..DX

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-95J14

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..HRF,SRF

 2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95J15

LH102,110,113,117,119..05S,08S,10S

ｸﾞﾗﾝﾄﾞｷﾔﾋﾞﾝ(ﾛﾝｸﾞ=ｶｽﾀﾑ OR ｽ-ﾊﾟ-ﾛﾝｸﾞ=ｽ-ﾊﾟ-ｶｽﾀﾑ)

 1
81521-95J20

LH100,110,117,RZH100,110..DX

 1
Common parts
90167-50035
93567-55020
