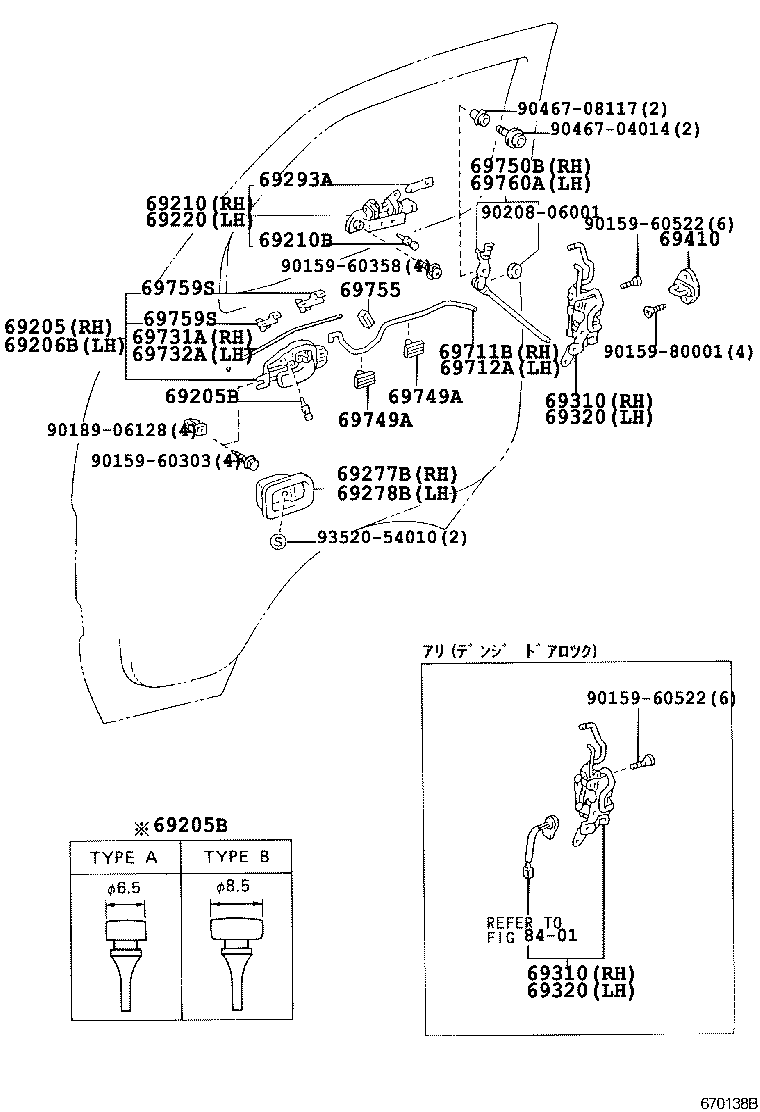

RZH110G-GHMDE (1989)
Toyota Hiace/Regiusace
(8908-9308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69205-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04018 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90541-04014 |
LH113..5F;LH100..CTM..TDE;LH113..06S..4FC..DX;LH102,109,110,115,117,119,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SW TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04018 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 90541-04014 |
LH113..5F;LH100..CTM..TDE;LH113..06S..4FC..DX;LH102,109,110,115,117,119,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SW TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69206-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 塗装不要 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 塗装不要 |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69277-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-95J0002 |
LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69278-95J0002 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 左側 |
1 | ||
| 69293-12040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 右側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-26010 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 69310-95J07 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-26010 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 69310-95J07 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-95J06 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 69320-26010 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-95J06 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 69320-26010 |
LH100,102,109,11#,12#,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-14050 |
LH10#,11#,12#,140,RZH10#,11#,12# |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 69731A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH | ||||
| 69731-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 69732A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH | ||||
| 69732-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-50010 |
LH10#,11#,12#,RZH10#,11#,12# |
6 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-50010 |
LH10#,11#,12#,RZH10#,11#,12# |
6 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 69755 - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-95500 |
LH120..GCGE,GCGN;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,110,117,119,RZH100,101..05S,07S,08S,10S |
2 | ||
| 69759-95500 |
LH10#,11#,12#,RZH10#,11#,12# |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 右側,ｲｴﾛｰ |
2 | ||
| 69759-14050 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 左側,ﾋﾟﾝｸ |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 右側,ｲｴﾛｰ |
2 | ||
| 69759-14050 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 左側,ﾋﾟﾝｸ |
2 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-60358 | ||||
| 90159-60522 | ||||
| 90159-80001 | ||||
| 90189-06128 | ||||
| 90208-06001 | ||||
| 90467-04014 | ||||
| 90467-08117 | ||||
| 93520-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
