RZH110G-GHMDE (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )CD,DX,SW

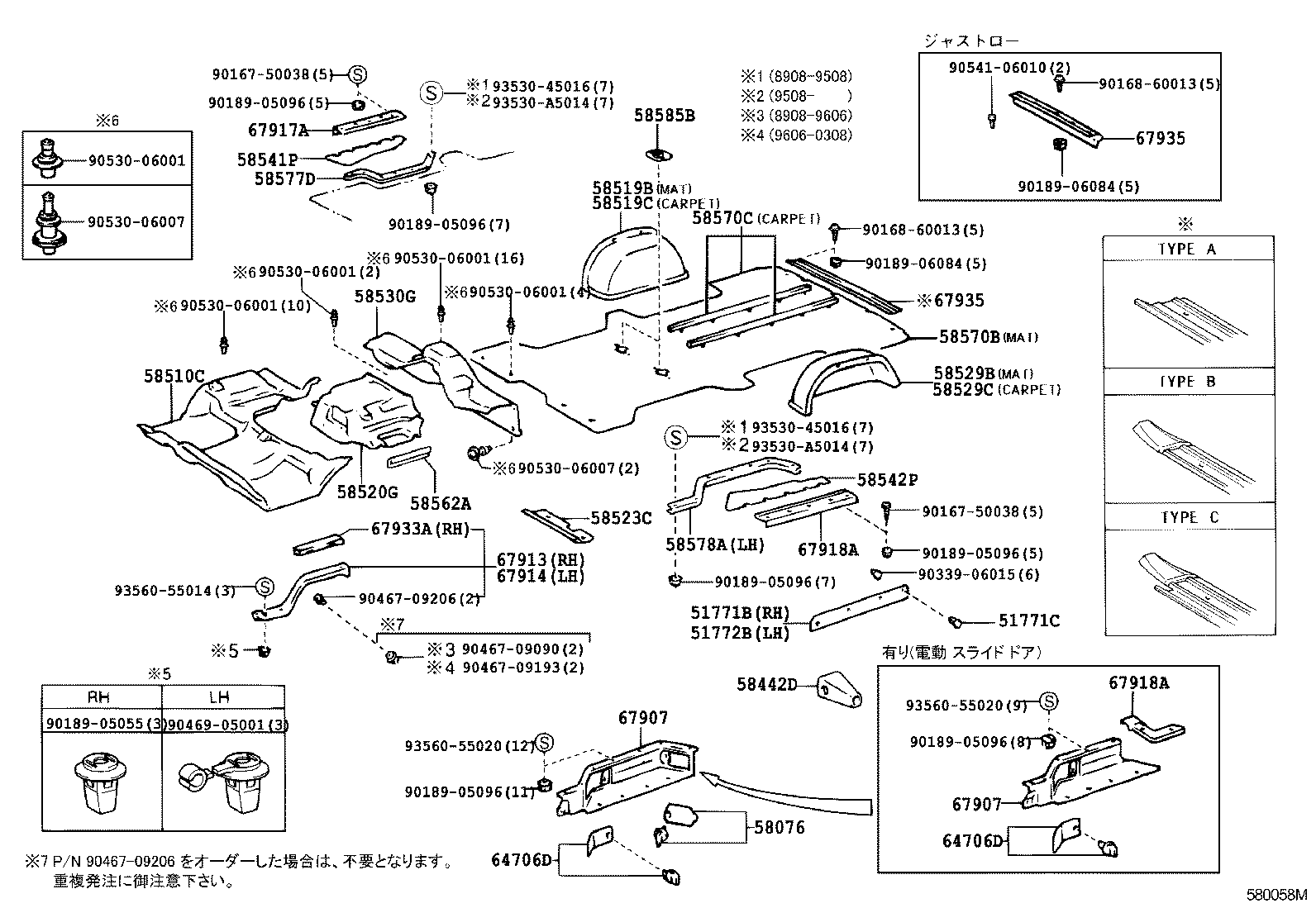

Click highlighted areas on diagram

ﾌﾛﾝﾄ ﾌﾛｱ = ﾏｯﾄ

diagram 51771B 51771C 51772B 58076 58442D 58510B 58515C 58519B 58519C 58520F 58520G 58521B 58523C 58529B 58529C 58530F 58530G 58541P 58542P 58562A 58570B 58577D 58578A 64706D 64706D 67907 67907 67913 67914 67917A 67918A 67918A 67933A 67935 67935 9016750038 9016750038 9016860013 9016860013 9018905055 9018905096 9018905096 9018905096 9018905096 9018905096 9018905096 9018906084 9018906084 9033906015 9046709090 9046709193 9046709206 9046905001 9053006001 9053006001 9053006001 9053006001 9054106010 9353045016 9353045016 93530A5014 93530A5014 9356055014 9356055018 9356055020 9356055020
Part # Description Qty Price
58076 - COVER SUB-ASSY, JACK BOX HOLE
58076-95J0002

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
58076-95J0002

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
58510B - MAT, FRONT FLOOR, FRONT
58510-95J8402

LH110,RZH110..DX

NEW MAROON,TRIM3#

 1
58510-95J1202

LH110,RZH110..DX

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ,NEW MAROON,TRIM3#

 1
58510-95J8402

LH110,120,RZH110..DX

NEW MAROON,TRIM3#

 1
58515C - MAT, FRONT FLOOR, REAR NO.1
58515-95J0002

LH110,115,117,125,RZH110,124..DX

NEW MAROON,TRIM3#

 1
58515-95J0002

LH110,115,117,120,125,RZH110,124..DX

NEW MAROON,TRIM3#

 1
58515-95J0002

LH123..4FC;LH110,115,117,120,125,RZH110,124..DX

NEW MAROON,TRIM3#

 1
58519B - MAT, REAR WHEEL HOUSE, RH
58519-95J2602

LH110,117,RZH110..DX

NEW MAROON,TRIM3#

 1
58520F - MAT ASSY, ENGINE COVER
58520-95J5302

LH110,117,RZH110..DX

NEW MAROON,TRIM3#

 1
58529B - MAT, REAR WHEEL HOUSE, LH
58529-95J1702

LH110,117,RZH110..DX

NEW MAROON,TRIM3#

 1
58530F - MAT ASSY, HEADER
58530-95J7102

LH110,117,RZH110..DX

NEW MAROON,TRIM3#

 1
58570B - MAT ASSY, REAR FLOOR
58050-95J6902

LH110,117,RZH110..DX

NEW MAROON,TRIM3#

 1
58050-95J6802

LH110,117,RZH110..DX

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
64706D - COVER SUB-ASSY, SIDE TRIM TOOL BAG
64706-95J0002

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
64706-95J0002

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
64706D - COVER SUB-ASSY, SIDE TRIM TOOL BAG
64706-95J0002

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
64706-95J0002

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67907 - PLATE SUB-ASSY, CENTER DOOR SCUFF
67907-95J0402

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67907-95J0302

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
67907-95J0302

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
67907-95J0402

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67907 - PLATE SUB-ASSY, CENTER DOOR SCUFF
67907-95J0402

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67907-95J0302

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
67907-95J0302

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
67907-95J0402

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67910-95J0003

LH10#,11#,12#,140,RZH10#,11#,124

GRAY,TRIM1#

 1
67910-95J0002

LH10#,11#,12#,140,RZH10#,11#,124..COM,V1,WG

NEW MAROON,TRIM3#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95J0103

LH107;LH100,102,109,11#,12#,140,RZH10#,112,122..03S,05S,06S,08S,09S,10S,15S

GRAY,TRIM1#

 1
67914-95J0102

LH10#,11#,12#,140,RZH10#,11#,124..COM,V1,WG

NEW MAROON,TRIM3#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67914-95J0202

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67914-95J0202

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67914-95J0202

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67914-95J0202

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67933A - PLATE, FRONT DOOR SCUFF, REAR RH
67933-95J0002

LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67933-95J0002

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67935 - PLATE, BACK DOOR SCUFF
67935-95J02

KZH100,11#,13#,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#,133..(COM,V1,WG)..(CD,DX,SW)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
67935 - PLATE, BACK DOOR SCUFF
67935-95J02

KZH100,11#,13#,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#,133..(COM,V1,WG)..(CD,DX,SW)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
90167-50038
90168-60013
90189-05055
90189-05096
90189-06084
90339-06015
90467-09090
90467-09193
90467-09206
90469-05001
90530-06001
90541-06010
93530-45016
93530-A5014
93560-55014
93560-55018
93560-55020

(8908- )GL,SGL,SGLE ; (9308- )DX

Click highlighted areas on diagram

ﾌﾛﾝﾄ ﾌﾛｱ = ｶｰﾍﾟｯﾄ

diagram 51771B 51771C 51772B 58076 58442D 58510C 58519B 58519C 58520G 58523C 58529B 58529C 58530G 58541P 58542P 58562A 58570B 58570C 58577D 58578A 58585B 64706D 64706D 67907 67907 67913 67914 67917A 67918A 67918A 67933A 67935 67935 9016750038 9016750038 9016860013 9016860013 9018905055 9018905096 9018905096 9018905096 9018905096 9018905096 9018905096 9018906084 9018906084 9033906015 9046709090 9046709193 9046709206 9046905001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006007 9053006007 9054106010 9353045016 9353045016 93530A5014 93530A5014 9356055014 9356055020 9356055020
Part # Description Qty Price
58076 - COVER SUB-ASSY, JACK BOX HOLE
58076-95J0002

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
58076-95J0002

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
58519B - MAT, REAR WHEEL HOUSE, RH
58519-95J2602

LH110,117,RZH110..DX

NEW MAROON,TRIM3#

 1
58529B - MAT, REAR WHEEL HOUSE, LH
58529-95J1702

LH110,117,RZH110..DX

NEW MAROON,TRIM3#

 1
58570B - MAT ASSY, REAR FLOOR
58050-95J6902

LH110,117,RZH110..DX

NEW MAROON,TRIM3#

 1
58050-95J6802

LH110,117,RZH110..DX

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
64706D - COVER SUB-ASSY, SIDE TRIM TOOL BAG
64706-95J0002

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
64706-95J0002

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
64706D - COVER SUB-ASSY, SIDE TRIM TOOL BAG
64706-95J0002

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
64706-95J0002

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67907 - PLATE SUB-ASSY, CENTER DOOR SCUFF
67907-95J0402

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67907-95J0302

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
67907-95J0302

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
67907-95J0402

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67907 - PLATE SUB-ASSY, CENTER DOOR SCUFF
67907-95J0402

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67907-95J0302

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
67907-95J0302

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
67907-95J0402

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67910-95J0003

LH10#,11#,12#,140,RZH10#,11#,124

GRAY,TRIM1#

 1
67910-95J0002

LH10#,11#,12#,140,RZH10#,11#,124..COM,V1,WG

NEW MAROON,TRIM3#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95J0103

LH107;LH100,102,109,11#,12#,140,RZH10#,112,122..03S,05S,06S,08S,09S,10S,15S

GRAY,TRIM1#

 1
67914-95J0102

LH10#,11#,12#,140,RZH10#,11#,124..COM,V1,WG

NEW MAROON,TRIM3#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67914-95J0202

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67914-95J0202

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67914-95J0202

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67914-95J0202

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67933A - PLATE, FRONT DOOR SCUFF, REAR RH
67933-95J0002

LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67933-95J0002

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67935 - PLATE, BACK DOOR SCUFF
67935-95J02

KZH100,11#,13#,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#,133..(COM,V1,WG)..(CD,DX,SW)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
67935 - PLATE, BACK DOOR SCUFF
67935-95J02

KZH100,11#,13#,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#,133..(COM,V1,WG)..(CD,DX,SW)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
90167-50038
90168-60013
90189-05055
90189-05096
90189-06084
90339-06015
90467-09090
90467-09193
90467-09206
90469-05001
90530-06001
90530-06007
90541-06010
93530-45016
93530-A5014
93560-55014
93560-55020

(9005- )LH113..V1..DX ; (9103- )LH119..05S; (9508- )KZH11#..4FC ; (0108-

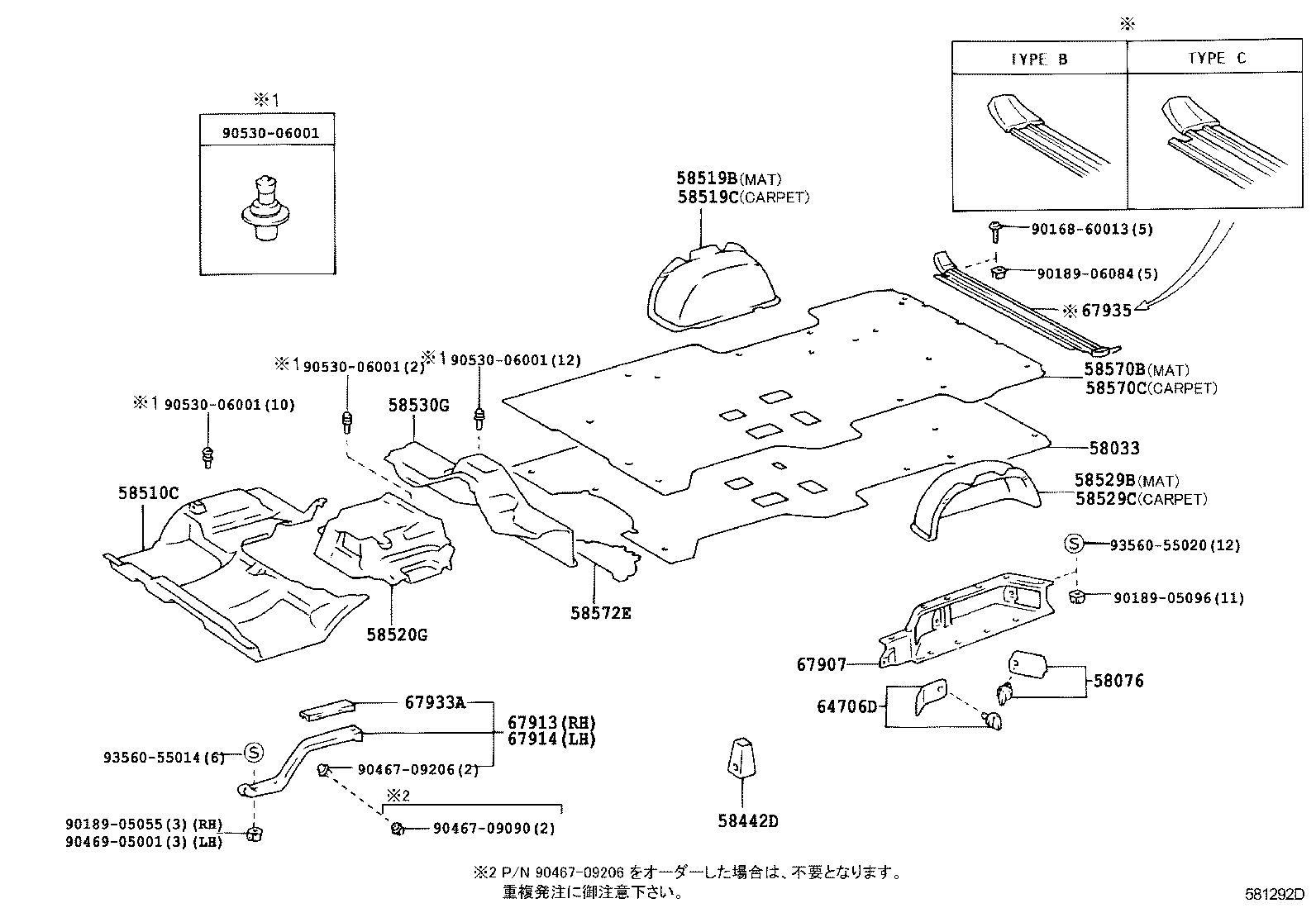

Click highlighted areas on diagram

ｷｬﾝﾋﾟﾝｸﾞ ｶ- OR ｸﾙ-ｼﾞﾝｸﾞ ｷｬﾋﾞﾝ

diagram 58033 58076 58442D 58510C 58519B 58519C 58520G 58529B 58529C 58530G 58570B 58570C 58572E 64706D 67907 67913 67914 67933A 67935 9016860013 9018905055 9018905096 9018906084 9046709090 9046709206 9046905001 9053006001 9053006001 9053006001 9053006001 9356055014 9356055020
Part # Description Qty Price
58076 - COVER SUB-ASSY, JACK BOX HOLE
58076-95J0002

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
58076-95J0002

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
58519B - MAT, REAR WHEEL HOUSE, RH
58519-95J2602

LH110,117,RZH110..DX

NEW MAROON,TRIM3#

 1
58529B - MAT, REAR WHEEL HOUSE, LH
58529-95J1702

LH110,117,RZH110..DX

NEW MAROON,TRIM3#

 1
58570B - MAT ASSY, REAR FLOOR
58050-95J6902

LH110,117,RZH110..DX

NEW MAROON,TRIM3#

 1
58050-95J6802

LH110,117,RZH110..DX

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
64706D - COVER SUB-ASSY, SIDE TRIM TOOL BAG
64706-95J0002

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
64706-95J0002

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67907 - PLATE SUB-ASSY, CENTER DOOR SCUFF
67907-95J0402

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67907-95J0302

LH100,107,110,115,117,125,RZH100,101,110,124..07S,08S,10S,15S

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
67907-95J0302

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ),NEW MAROON,TRIM3#

 1
67907-95J0402

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67910-95J0003

LH10#,11#,12#,140,RZH10#,11#,124

GRAY,TRIM1#

 1
67910-95J0002

LH10#,11#,12#,140,RZH10#,11#,124..COM,V1,WG

NEW MAROON,TRIM3#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95J0103

LH107;LH100,102,109,11#,12#,140,RZH10#,112,122..03S,05S,06S,08S,09S,10S,15S

GRAY,TRIM1#

 1
67914-95J0102

LH10#,11#,12#,140,RZH10#,11#,124..COM,V1,WG

NEW MAROON,TRIM3#

 1
67933A - PLATE, FRONT DOOR SCUFF, REAR RH
67933-95J0002

LH123..4FC;LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67933-95J0002

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
67935 - PLATE, BACK DOOR SCUFF
67935-95J02

KZH100,11#,13#,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#,133..(COM,V1,WG)..(CD,DX,SW)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
90168-60013
90189-05055
90189-05096
90189-06084
90467-09090
90467-09206
90469-05001
90530-06001
93560-55014
93560-55020
