RZH110G-GHMDE (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182

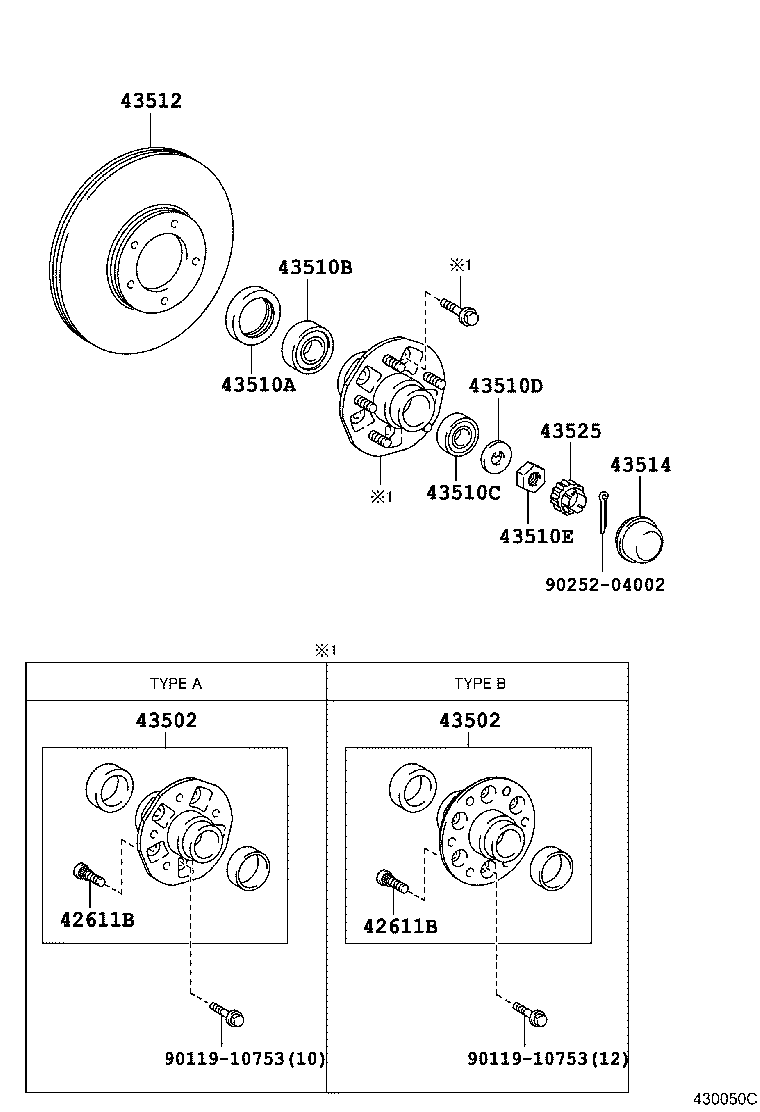

Click highlighted areas on diagram

diagram 42611B 42611B 43502 43502 43510A 43510B 43510C 43510D 43510E 43512 43514 43525 9011910753 9011910753 9025204002
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02047

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133

 12
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02047

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133

 12
43502 - HUB SUB-ASSY, FRONT AXLE
43502-26050

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133

TYPE A:ｲﾗｽﾄ参照

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43502-26050

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133

TYPE A:ｲﾗｽﾄ参照

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-50005

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-34001

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-21001

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-20007

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19185

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133

 2
43512 - DISC, FRONT
43512-26090

LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12#

 2
43514 - CAP, FRONT HUB GREASE
43514-35010

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-22010

KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133

 2
Common parts
90119-10753
90252-04002
