RZH110G-GHMDE (1989)
Toyota Hiace/Regiusace
ILLUST NO. 1 OF 2(8908- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13007 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13007 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33502D - BOLT, HEXAGON (FOR SHIFT LEVER PLATE) | ||||
| 90101-08140 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33502G - COLLAR (FOR SHIFT LEVER PLATE) | ||||
| 90387-08064 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08063 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33503C - COLLAR(FOR SHIFT LEVER SUB-ASSY) | ||||
| 90387-09039 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-26010 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-26010 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13007 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90386-13007 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401058 |
LH100,107,110,115,117,120,125,RZH100,110,124..(08S,10S,15S)..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NEW MAROON,TRIM3# |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401058 |
LH100,107,110,115,117,120,125,RZH100,110,124..(08S,10S,15S)..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NEW MAROON,TRIM3# |
1 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90480-13014 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
4 | ||
| 33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33523-26050 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-26020 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33532 - PLATE, DUST BOOT | ||||
| 33532-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-26090 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH100,102,110,112,12#..5F |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90508-32033 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-26090 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-26190 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26020 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90189-08001 | ||||
| 91121-40855 | ||||
| 91612-60816 | ||||
| 91661-40820 | ||||
| 94130-00802 | ||||
| 94130-60800 | ||||
| 94511-00800 | ||||
| 94531-00800 | ||||

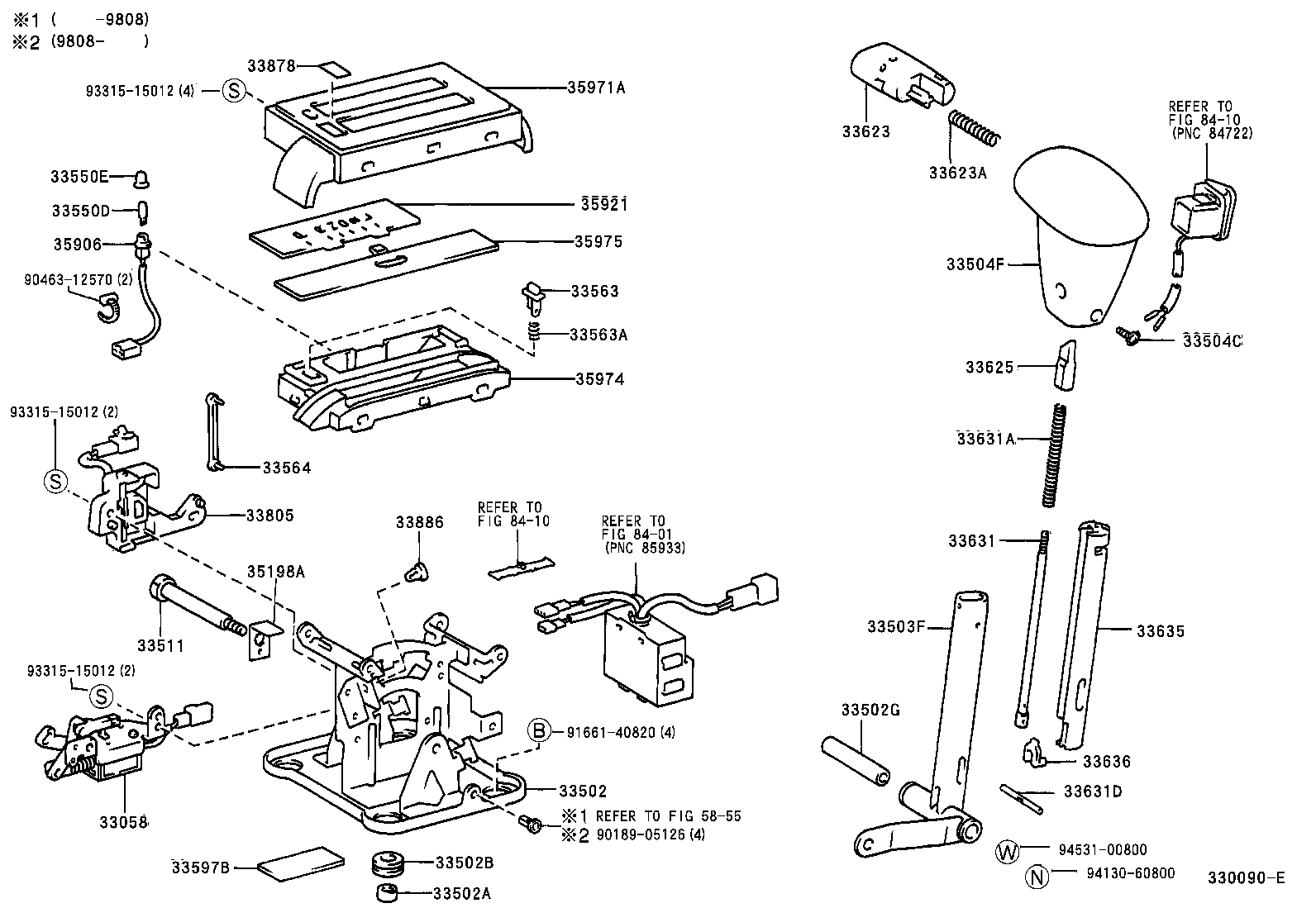

ILLUST NO. 1 OF 2(8908-9308)4FC ; (9308-9608)4FC..CD,CTM,DX,GL,SGL ; (9608- )KZH11#,LH103,11#,123
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502G - COLLAR (FOR SHIFT LEVER PLATE) | ||||
| 90387-08064 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-26010 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2401058 |
LH100,107,110,115,117,120,125,RZH100,110,124..(08S,10S,15S)..5F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NEW MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90189-05126 | ||||
| 90463-12570 | ||||
| 91661-40820 | ||||
| 93315-15012 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 5855 | ||||
| 8401 | ||||
| 8410 | ||||

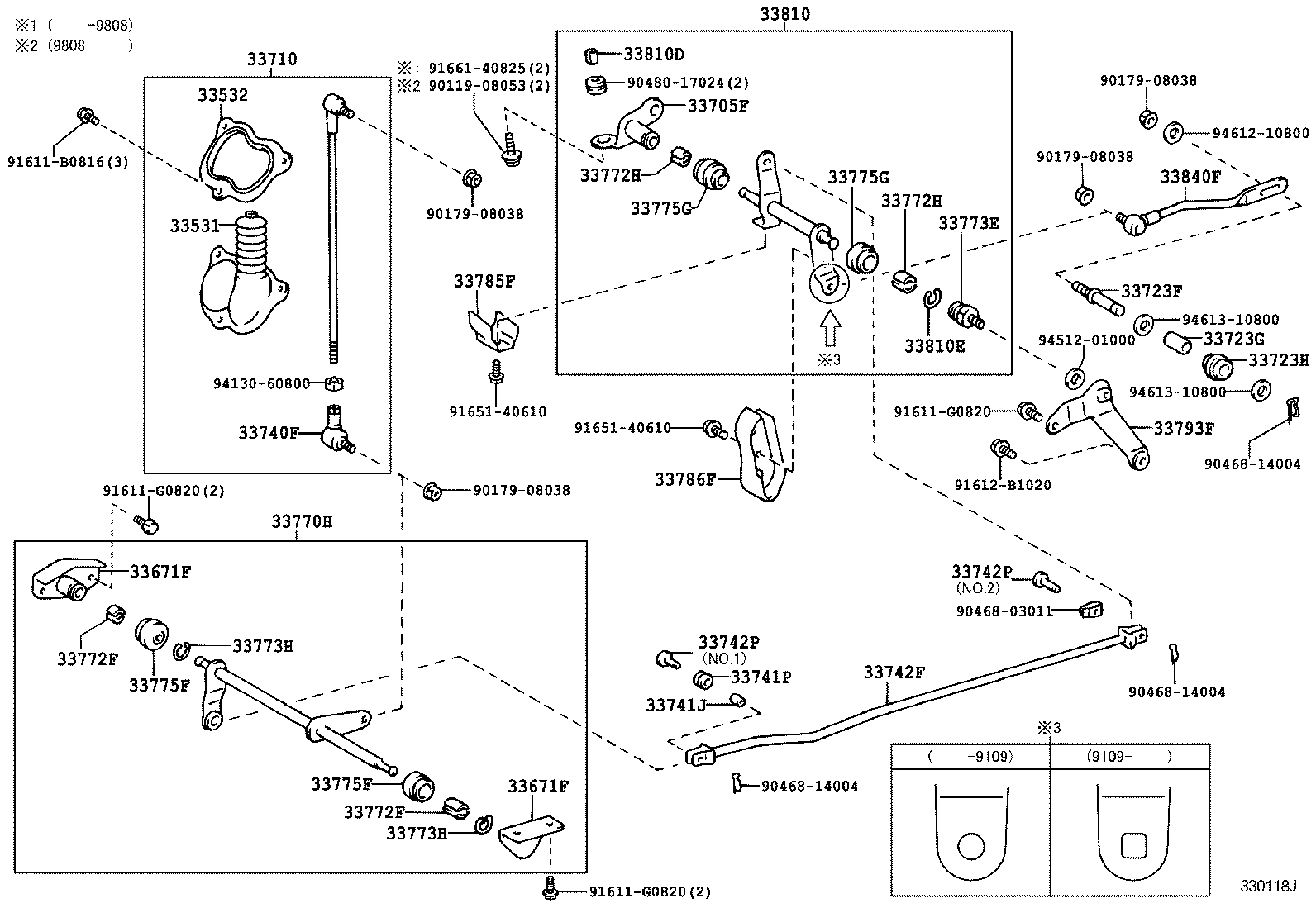

ILLUST NO. 2 OF 2(8908- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33673-26100 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 右側 |
1 | ||
| 33671-26160 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 左側 |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33673-26100 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 右側 |
1 | ||
| 33671-26160 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 左側 |
1 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-26100 |
LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-15110 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-15110 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33736-26200 |
LH10#,11#,123,125,129,140,16#,17#,18#,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33736P - PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD) | ||||
| 90240-08042 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33736P - PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD) | ||||
| 90240-08042 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-26200 |
LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 NO.1 |
1 | ||
| 90240-08042 |
LH10#,11#,12#,RZH10#,11#,12# NO.2 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 NO.1 |
1 | ||
| 90240-08042 |
LH10#,11#,12#,RZH10#,11#,12# NO.2 |
1 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-26010 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F ﾘﾔ |
1 | ||
| 33740-26010 |
LH10#,11#,12#,140,RZH100,102,11#,12#..5F ﾌﾛﾝﾄ |
1 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-26010 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F ﾘﾔ |
1 | ||
| 33740-26010 |
LH10#,11#,12#,140,RZH100,102,11#,12#..5F ﾌﾛﾝﾄ |
1 | ||
| 33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT) | ||||
| 33767-25010 |
LH10#,11#,12#,140,RZH100,102,11#,12#..5F |
1 | ||
| 33770H - CROSS SHAFT ASSY (FOR FLOOR SHIFT) | ||||
| 33770-26120 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33770U - PIN, GROOVED(FOR CROSS SHAFT NO.1) | ||||
| 90256-08001 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33770U - PIN, GROOVED(FOR CROSS SHAFT NO.1) | ||||
| 90256-08001 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
LH162,17#,18#..5F;KZH10#,11#,12#,13#,LH10#,11#,12#,140,168,RZH10#,11#,12#,133 |
2 | ||
| 33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
LH162,17#,18#..5F;KZH10#,11#,12#,13#,LH10#,11#,12#,140,168,RZH10#,11#,12#,133 |
2 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
LH162,17#,18#..5F;KZH10#,11#,12#,13#,LH10#,11#,12#,140,168,RZH10#,11#,12#,133 左側 |
1 | ||
| 33775-35030 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 右側 |
1 | ||
| 33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
LH162,17#,18#..5F;KZH10#,11#,12#,13#,LH10#,11#,12#,140,168,RZH10#,11#,12#,133 左側 |
1 | ||
| 33775-35030 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 右側 |
1 | ||
| 33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF | ||||
| 33785-26050 |
LH100..07S,09S;LH100,120..(08S,10S)..4FC;LH102,103,107,109,11#,123,125,129,140,RZH10#,11#,12#,133 RH&LH |
2 | ||
| 33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF | ||||
| 33785-26050 |
LH100..07S,09S;LH100,120..(08S,10S)..4FC;LH102,103,107,109,11#,123,125,129,140,RZH10#,11#,12#,133 RH&LH |
2 | ||
| 33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF | ||||
| 33786-26030 |
LH10#,11#,12#,140,RZH100,102,11#,12#..5F |
1 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33789-36030 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33789-36030 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33789G - COVER, CROSS SHAFT DUST, NO.2(FOR FLOOR SHIFT) | ||||
| 33789-36030 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33789G - COVER, CROSS SHAFT DUST, NO.2(FOR FLOOR SHIFT) | ||||
| 33789-36030 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33793-26070 |
LH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33810 - SHAFT ASSY, CROSS, NO.2 | ||||
| 33810-26030 |
LH100,102,110,113,115,123,125,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33810B - PIN, GROOVED (FOR CROSS SHAFT) | ||||
| 90256-08001 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33810C - BUSH (FOR CROSS SHAFT) | ||||
| 90386-15110 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33810C - BUSH (FOR CROSS SHAFT) | ||||
| 90386-15110 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33810D - COLLAR (FOR CROSS SHAFT) | ||||
| 90387-09034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33810E - RING, SNAP (FOR CROSS SHAFT) | ||||
| 96151-01600 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-26160 |
LH100,102,110,113,115,123,125,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33850F - ROD ASSY, GEAR SELECTING, NO.3 | ||||
| 33850-26100 |
LH100,102,110,113,115,123,125,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| Common parts | ||||
| 90119-08053 | ||||
| 90170-08052 | ||||
| 90179-08038 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 90480-17024 | ||||
| 91611-B0816 | ||||
| 91612-B1020 | ||||
| 91651-40610 | ||||
| 91661-40825 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
ILLUST NO. 2 OF 2(8908- )KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-26020 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33532 - PLATE, DUST BOOT | ||||
| 33532-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33673-26100 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 右側 |
1 | ||
| 33671-26160 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 左側 |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33673-26100 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 右側 |
1 | ||
| 33671-26160 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 左側 |
1 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-26100 |
LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-26190 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26020 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
2 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-26200 |
LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 NO.1 |
1 | ||
| 90240-08042 |
LH10#,11#,12#,RZH10#,11#,12# NO.2 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 NO.1 |
1 | ||
| 90240-08042 |
LH10#,11#,12#,RZH10#,11#,12# NO.2 |
1 | ||
| 33770H - CROSS SHAFT ASSY (FOR FLOOR SHIFT) | ||||
| 33770-26120 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F |
1 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
LH162,17#,18#..5F;KZH10#,11#,12#,13#,LH10#,11#,12#,140,168,RZH10#,11#,12#,133 |
2 | ||
| 33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
LH162,17#,18#..5F;KZH10#,11#,12#,13#,LH10#,11#,12#,140,168,RZH10#,11#,12#,133 |
2 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
LH162,17#,18#..5F;KZH10#,11#,12#,13#,LH10#,11#,12#,140,168,RZH10#,11#,12#,133 左側 |
1 | ||
| 33775-35030 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 右側 |
1 | ||
| 33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
LH162,17#,18#..5F;KZH10#,11#,12#,13#,LH10#,11#,12#,140,168,RZH10#,11#,12#,133 左側 |
1 | ||
| 33775-35030 |
KZH10#,11#,12#,LH10#,11#,12#,140,16#,17#,18#,RZH100,102,110,112,122,124..5F 右側 |
1 | ||
| 33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF | ||||
| 33785-26050 |
LH100..07S,09S;LH100,120..(08S,10S)..4FC;LH102,103,107,109,11#,123,125,129,140,RZH10#,11#,12#,133 RH&LH |
2 | ||
| 33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF | ||||
| 33786-26030 |
LH10#,11#,12#,140,RZH100,102,11#,12#..5F |
1 | ||
| 33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33793-26070 |
LH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI) |
1 | ||
| 33810 - SHAFT ASSY, CROSS, NO.2 | ||||
| 33810-26030 |
LH100,102,110,113,115,123,125,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| 33810D - COLLAR (FOR CROSS SHAFT) | ||||
| 90387-09034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33810E - RING, SNAP (FOR CROSS SHAFT) | ||||
| 96151-01600 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-26160 |
LH100,102,110,113,115,123,125,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI) |
1 | ||
| Common parts | ||||
| 90119-08053 | ||||
| 90179-08038 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 90480-17024 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91651-40610 | ||||
| 91661-40825 | ||||
| 94130-60800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
