RZH110G-GHMDE (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)5F..TD,TDE ; (9308- )KZH100,110,120,132

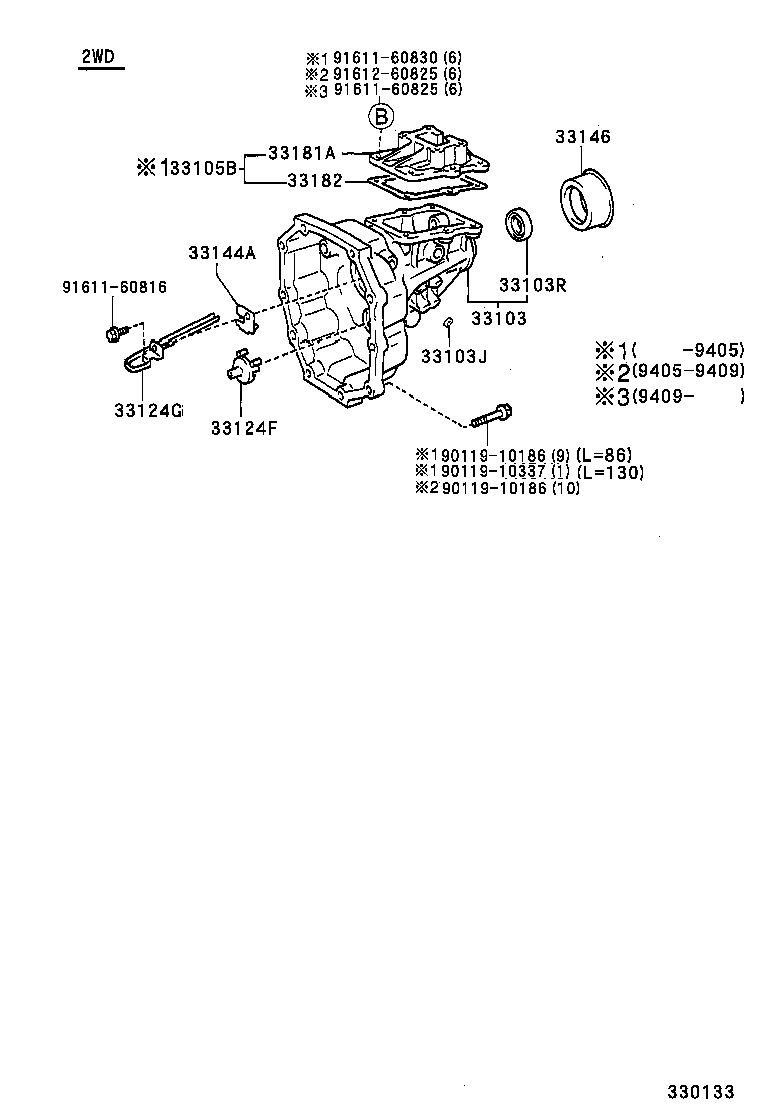

Click highlighted areas on diagram

R350

diagram 33103 33103J 33103R 33105B 33124F 33124G 33144A 33146 33181A 33182 9011910186 9011910186 9011910337 9161160816 9161160825 9161160830 9161260825
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-28041

LH100,102,103,110,113,115,123,125,140,RZH100,102,110,112,12#..5F..(CBR,DSL,EFI)

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38032

LH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-36010

KZH10#,11#,12#,LH100,102,103,110,113,115,120,123,125,140,RZH100,102,11#,12#..5F

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33124-28011

LH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

LH100,102,110,113,115,120,123,125,140,RZH100,102,11#,12#..5F

 1
Common parts
90119-10186
90119-10337
91611-60816
91611-60825
91611-60830
91612-60825

ILLUST NO. 2 OF 2(8908- )5F..CBR,DSL,EFI

Click highlighted areas on diagram

G52,G55

diagram
Part # Description Qty Price

ILLUST NO. 1 OF 2(8908- )LH10#,110,113,115,123,125,140,162,172,182,184,RZH100,102,110,112,122,124

Click highlighted areas on diagram

G55

diagram 33103 33103A 33103R 33124F 33124G 33146 9011908371 9011910186 9011910337
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-28041

LH100,102,103,110,113,115,123,125,140,RZH100,102,110,112,12#..5F..(CBR,DSL,EFI)

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-73120

RZH102..SG..5F;RZH112..5F..CBR;RZH112..V2..5D..5F..EFI;RZH112..V1..SRF..SG..5F..EFI;LH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH100,110,122,124..5F..(CBR,DSL,EFI)

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38032

LH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-36010

KZH10#,11#,12#,LH100,102,103,110,113,115,120,123,125,140,RZH100,102,11#,12#..5F

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33124-28011

LH100,102,103,110,113,115,123,125,140,162,172,182,184,RZH100,102,110,112,122,124..5F..(CBR,DSL,EFI)

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

LH100,102,110,113,115,120,123,125,140,RZH100,102,11#,12#..5F

 1
Common parts
90119-08371
90119-10186
90119-10337
