RZH102V-SRPDE (1996)
Toyota Hiace/Regiusace

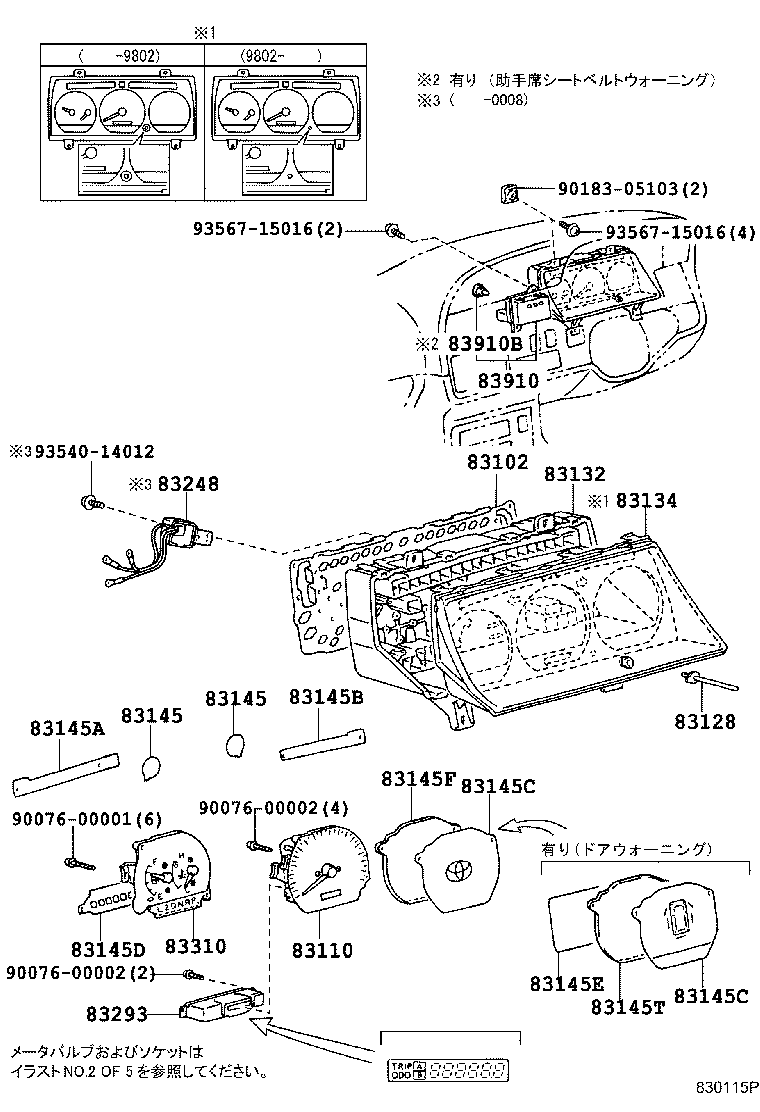

ILLUST NO. 1 OF 5(9608-9907) ; (9907- )KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#..03S,0
ｽﾋﾟｰﾄﾞﾒｰﾀ(ｱﾅﾛｸﾞ:ﾅｼ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83861-26370 |
RZH102,112,133..V1..4FC ｱﾘ(ﾄﾞｱ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 83861-26360 |
RZH102,11#,124..4FC |
1 | ||
| 83861-26361 |
RZH102,11#,125..4FC..DX |
1 | ||
| 83861-26371 |
RZH125..GL;RZH102,112,133..4FC..DX ｱﾘ(ﾄﾞｱ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95J71 |
RZH100,102,11#,12#..CD,CTM,DX,GL YAZAKI |
1 | ||
| 83220-26110 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S YAZAKI |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-26380 |
RZH102,112,12#,18# |
1 | ||
| 83224-26380 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95N01 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 83841-26280 |
KZH11#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133..CD,DX,GL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N10 |
LH100,102,113,119,120,123,RZH100,102,112..4FC..(CTM,DX,GL,SGL) |
1 | ||
| 83821-26300 |
KZH11#,LH103,11#,123,129,RZH102,11#,124,133..4FC..(CD,DX) |
1 | ||
| 83822-26300 |
KZH11#,LH103,11#,123,129,162,17#,18#,RZH102,11#,12#,133..4FC..(CD,DX,GL) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N26 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83833-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N26 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83833-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95N28 |
LH100,102,107,113,119,123,RZH10#,112..(05S,06S,08S,09S)..4FC |
1 | ||
| 83831-26390 |
KZH10#,11#,120,13#,LH103,11#,123,129,RZH10#,11#,124,133..4FC..(CD,DX,GCGE,GCGN,SCM,SCMM) |
1 | ||
| 83831-26390 |
KZH11#,LH162,17#,18#,RZH102,11#,125,133..4FC..(CD,DX,GL) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95N27 |
LH100,102,107,113,119,123,RZH10#,112..(05S,06S,08S,09S)..4FC |
1 | ||
| 83831-26410 |
RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83831-26280 |
KZH11#,LH10#,11#,12#,RZH102,11#,124..CD,DX |
1 | ||
| 83831-26590 |
RZH125..GL;KZH116..4FC;KZH110,LH16#,17#,18#,RZH102,112,124,133..DX,GL ｱﾘ(ﾄﾞｱ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 83811-26280 |
KZH11#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#..CD,DX |
1 | ||
| 83831-26290 |
LH123..06S..5F;KZH116,RZH133..4FC;LH119,129,RZH102,112..V1..DX;KZH110,LH10#,113,125,RZH124..(COM,V1,WG)..5F..(DX,GL) ｱﾘ(ﾄﾞｱ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 83831-26590 |
LH123..06S;RZH124..5F;KZH116..4FC;KZH110,LH10#,11#,125,129,RZH102,112,133..(COM,V1,WG)..(DX,GL) ｱﾘ(ﾄﾞｱ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83831-26280 |
KZH11#,LH10#,11#,12#,RZH102,11#,124..CD,DX |
1 | ||
| 83831-26590 |
RZH125..GL;KZH116..4FC;KZH110,LH16#,17#,18#,RZH102,112,124,133..DX,GL ｱﾘ(ﾄﾞｱ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 83811-26280 |
KZH11#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#..CD,DX |
1 | ||
| 83831-26290 |
LH123..06S..5F;KZH116,RZH133..4FC;LH119,129,RZH102,112..V1..DX;KZH110,LH10#,113,125,RZH124..(COM,V1,WG)..5F..(DX,GL) ｱﾘ(ﾄﾞｱ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 83831-26590 |
LH123..06S;RZH124..5F;KZH116..4FC;KZH110,LH10#,11#,125,129,RZH102,112,133..(COM,V1,WG)..(DX,GL) ｱﾘ(ﾄﾞｱ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N13 |
LH102,109,113,115,119,123,125,129,RZH102,112,12#..CD,DX |
1 | ||
| 83832-26390 |
KZH10#,11#,120,13#,LH103,11#,123,129,162,17#,18#,RZH10#,11#,12#,133..(03S,05S,06S,08S,09S,10S,15S)..4FC |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-95N18 |
RZH102,112,12# |
1 | ||
| 83145-95N19 |
LH107,119..5F;LH100,102,109,110,113,115,117,123,125,129,140..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83145-26280 |
LH123..06S;RZH124..5F;KZH116..4FC;KZH110,LH10#,11#,125,129,RZH102,112,133..(COM,V1,WG)..(DX,GL) |
1 | ||
| 83145-26280 |
RZH125..GL;KZH116..4FC;KZH110,LH16#,17#,18#,RZH102,112,124,133..DX,GL |
1 | ||
| 83145F - LENS, METER, NO.7 | ||||
| 83145-95N23 |
LH119..5F;LH100,102,109,110,113,115,117,123,125,129,140,RZH100,102,11#,12#..(CD,CTM,DX,GL,SGL,SW)..(CBR,DSL,EFI) |
1 | ||
| 83145T - LENS, METER, NO.8 | ||||
| 83134-26260 |
LH123..06S;RZH124..5F;KZH116..4FC;KZH110,LH10#,11#,125,129,RZH102,112,133..(COM,V1,WG)..(DX,GL) |
1 | ||
| 83134-26260 |
RZH102,112,12#,18#..DX,GL |
1 | ||
| 83134-26260 |
RZH125..GL;KZH116..4FC;KZH110,LH16#,17#,18#,RZH102,112,124,133..DX,GL |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12# |
1 | ||
| 86650-30140 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-26020 |
RZH102,112,12#,18# |
1 | ||
| 83293-26020 |
RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95N07 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW YAZAKI |
1 | ||
| 83882-26390 |
KZH10#,11#,120,13#,LH103,11#,123,129,162,17#,18#,RZH10#,11#,12#,133..(03S,05S,06S,08S,09S,10S,15S)..4FC YAZAKI |
1 | ||
| 83882-26390 |
RZH102,112,125,183..4FC YAZAKI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J05 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| Common parts | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 90183-05103 | ||||
| 93540-14012 | ||||
| 93567-15016 | ||||
ILLUST NO. 1 OF 5(9608-9907) ; (9907- )KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#..03S,0
ｽﾋﾟｰﾄﾞﾒｰﾀ(ｱﾅﾛｸﾞ:ｱﾘ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83861-26370 |
RZH102,112,133..V1..4FC ｱﾘ(ﾄﾞｱ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 83861-26360 |
RZH102,11#,124..4FC |
1 | ||
| 83861-26361 |
RZH102,11#,125..4FC..DX |
1 | ||
| 83861-26371 |
RZH125..GL;RZH102,112,133..4FC..DX ｱﾘ(ﾄﾞｱ ｳｵ-ﾆﾝｸﾞ) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95J71 |
RZH100,102,11#,12#..CD,CTM,DX,GL YAZAKI |
1 | ||
| 83220-26110 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S YAZAKI |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-26380 |
RZH102,112,12#,18# |
1 | ||
| 83224-26380 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95N01 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 83841-26280 |
KZH11#,LH10#,11#,12#,16#,17#,18#,RZH102,11#,12#,133..CD,DX,GL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N10 |
LH100,102,113,119,120,123,RZH100,102,112..4FC..(CTM,DX,GL,SGL) |
1 | ||
| 83821-26300 |
KZH11#,LH103,11#,123,129,RZH102,11#,124,133..4FC..(CD,DX) |
1 | ||
| 83822-26300 |
KZH11#,LH103,11#,123,129,162,17#,18#,RZH102,11#,12#,133..4FC..(CD,DX,GL) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N26 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83833-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N26 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83833-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95N28 |
LH100,102,107,113,119,123,RZH10#,112..(05S,06S,08S,09S)..4FC |
1 | ||
| 83831-26390 |
KZH10#,11#,120,13#,LH103,11#,123,129,RZH10#,11#,124,133..4FC..(CD,DX,GCGE,GCGN,SCM,SCMM) |
1 | ||
| 83831-26390 |
KZH11#,LH162,17#,18#,RZH102,11#,125,133..4FC..(CD,DX,GL) |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95N27 |
LH100,102,107,113,119,123,RZH10#,112..(05S,06S,08S,09S)..4FC |
1 | ||
| 83831-26410 |
RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N13 |
LH102,109,113,115,119,123,125,129,RZH102,112,12#..CD,DX |
1 | ||
| 83832-26390 |
KZH10#,11#,120,13#,LH103,11#,123,129,162,17#,18#,RZH10#,11#,12#,133..(03S,05S,06S,08S,09S,10S,15S)..4FC |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12# |
1 | ||
| 86650-30140 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-26020 |
RZH102,112,12#,18# |
1 | ||
| 83293-26020 |
RZH10#,11#,12#,133..CD,DX,GL,SCM,SCMM,SGL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95N07 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW YAZAKI |
1 | ||
| 83882-26390 |
KZH10#,11#,120,13#,LH103,11#,123,129,162,17#,18#,RZH10#,11#,12#,133..(03S,05S,06S,08S,09S,10S,15S)..4FC YAZAKI |
1 | ||
| 83882-26390 |
RZH102,112,125,183..4FC YAZAKI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J05 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| Common parts | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 90183-05103 | ||||
| 93540-14012 | ||||
| 93567-15016 | ||||

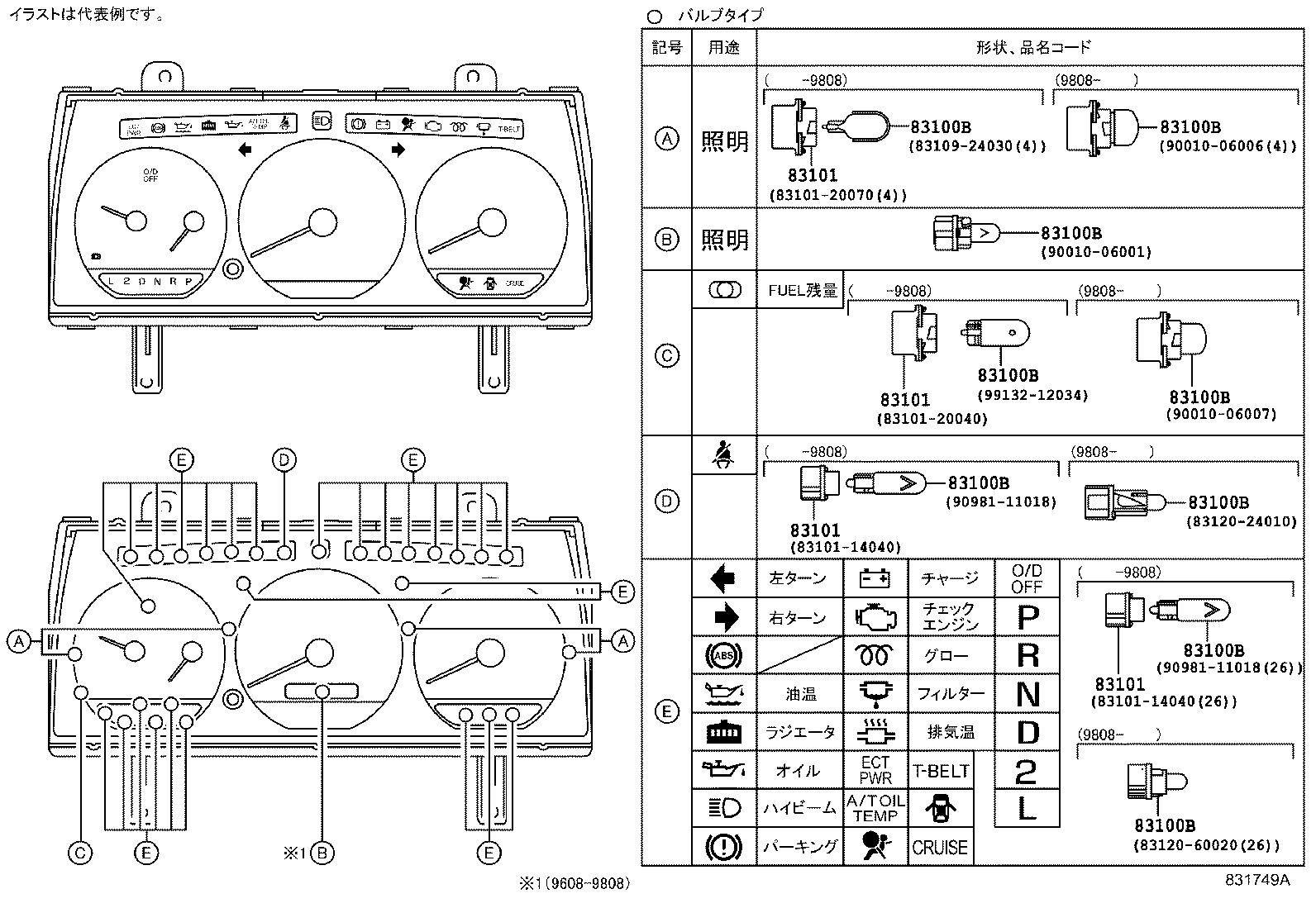

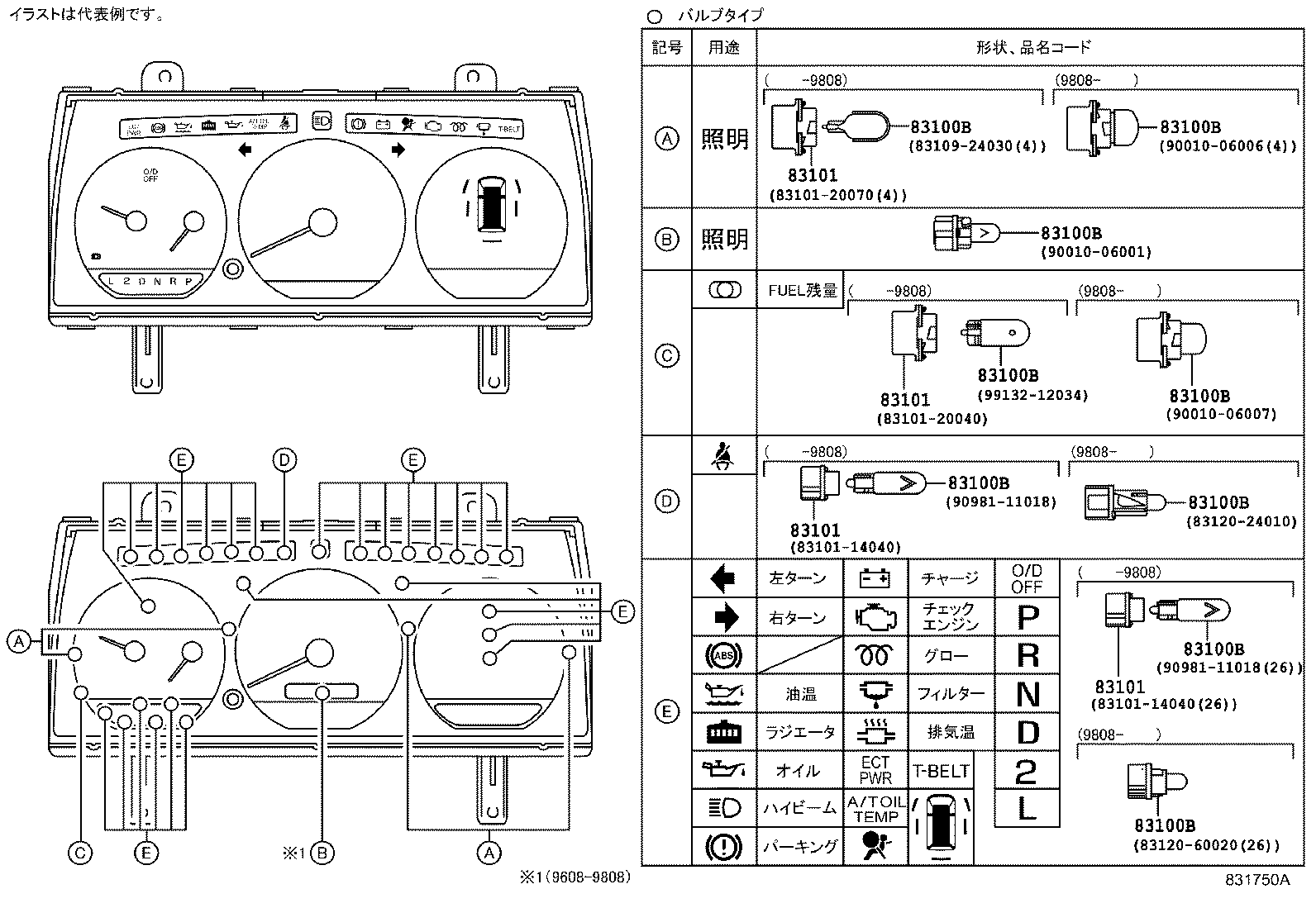

ILLUST NO. 2 OF 5(9608-9907) ; (9907- )KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#..03S,0
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ:ｱﾘ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
ILLUST NO. 2 OF 5(9608-9907) ; (9907- )KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#..03S,0
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ:ﾅｼ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90010-06007 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-06001 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06007 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06006 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83120-60020 |
RZH102,112,133..4FC..DX;LH178,RZH125..4FC..(GL,SGL) 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133..03S,05S,06S,08S,09S,10S,15S 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
Part Price Details
Loading price information...
Part Number:
Price:
