RZH102V-SRPDE (1996)

Toyota Hiace/Regiusace

Production Aug 1996 - Aug 2003
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

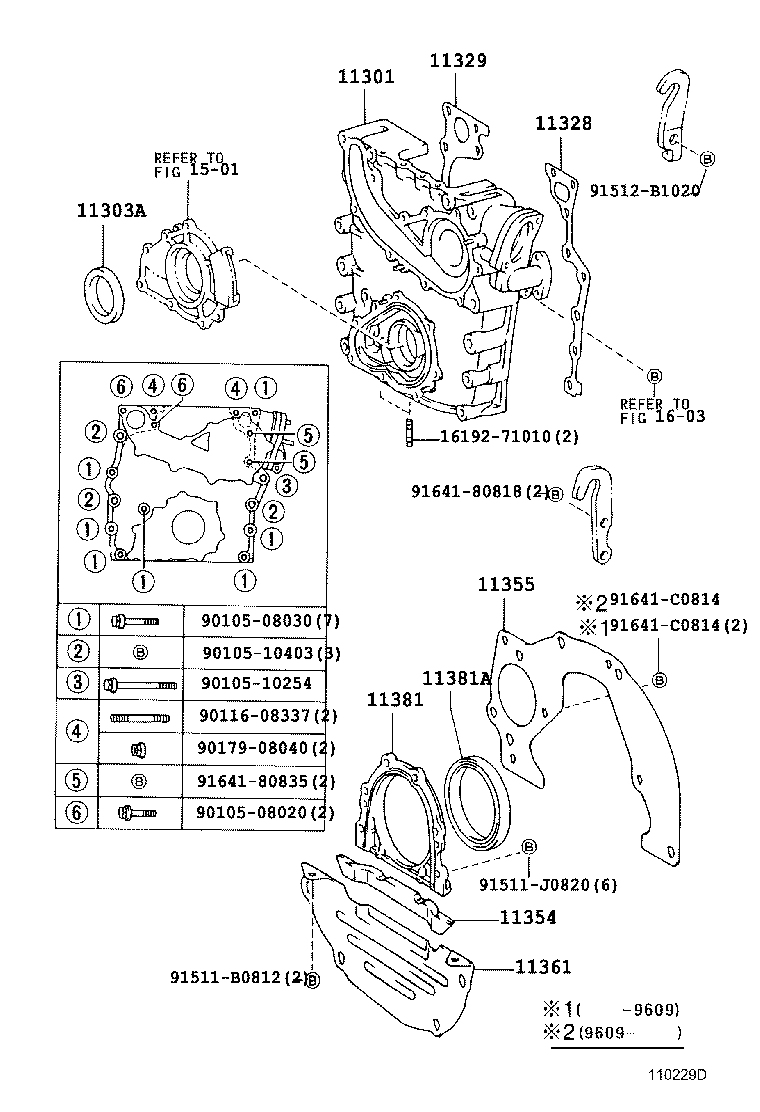

(8908-9704)1RZ#,2RZE

Click highlighted areas on diagram

diagram 11301 11303A 11328 11329 11354 11355 11361 11381 11381A 1501 1603 1619271010 9010508020 9010508030 9010510254 9010510403 9011608337 9017908040 91511B0812 91511J0820 91512B1020 9164180818 9164180835 91641C0814 91641C0814
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
11301-75050

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-48020

1RZE,2RZE..RZH10#,11#,12#,18#

NOK

 1
90311-48014

1RZE,2RZE..RZH10#,11#,12#

 1
90311-48014

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11328-75010

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-75010

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11329-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11354-75010

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11355 - PLATE, REAR END
11355-75010

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11355-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11361-75010

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-75010

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11381-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11381A - SEAL, ENGINE REAR OIL
90311-88001

1RZ#,2RZE..RZH10#,11#,12#

 1
90311-88005

1RZE,2RZE..RZH10#,11#,12#,18#

NOK

 1
90311-88003

1RZE,2RZE..RZH10#,11#,12#

 1
Common parts
16192-71010
90105-08020
90105-08030
90105-10254
90105-10403
90116-08337
90179-08040
91511-B0812
91511-J0820
91512-B1020
91641-80818
91641-80835
91641-C0814
Linked diagrams
1501
1603

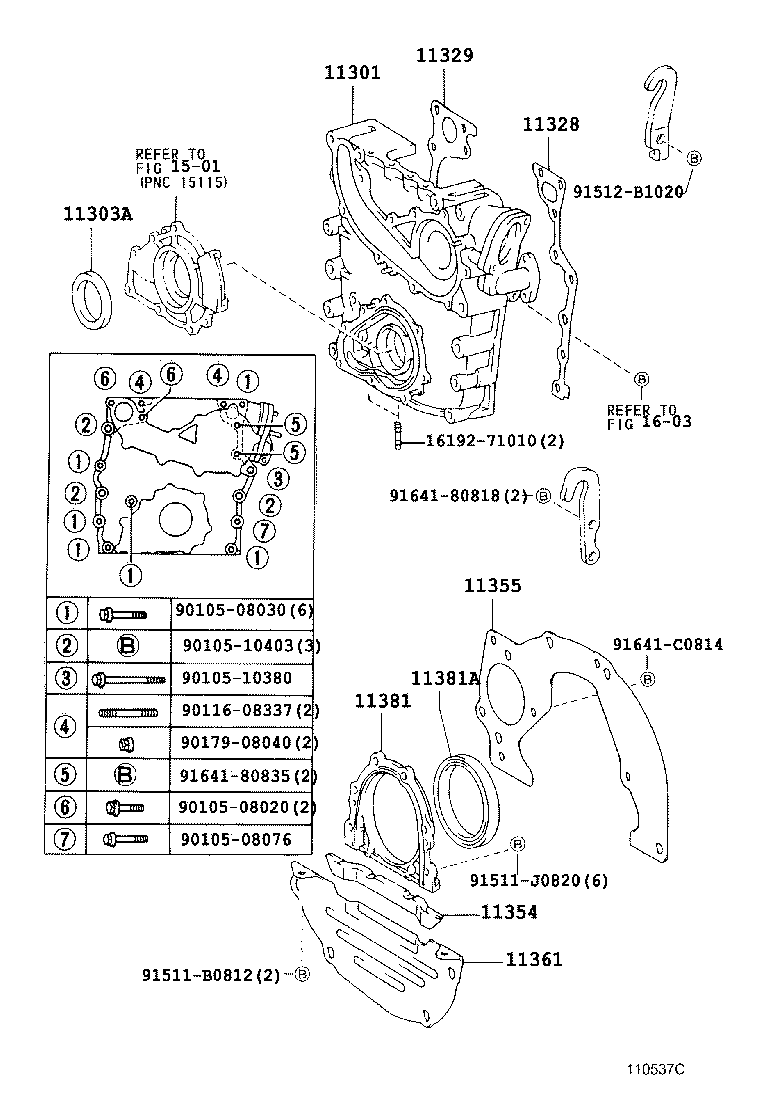

(9704- )1RZE,2RZE

Click highlighted areas on diagram

diagram 11301 11303A 11328 11329 11354 11355 11361 11381 11381A 1501 1603 1619271010 9010508020 9010508030 9010508076 9010510380 9010510403 9011608337 9017908040 91511B0812 91511J0820 91512B1020 9164180818 9164180835 91641C0814
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
11301-75050

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11303A - SEAL, OIL(FOR CRANKSHAFT FRONT)
90311-48020

1RZE,2RZE..RZH10#,11#,12#,18#

NOK

 1
90311-48014

1RZE,2RZE..RZH10#,11#,12#

 1
90311-48014

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11328-75010

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-75010

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11329-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11354-75010

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11355 - PLATE, REAR END
11355-75010

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11355-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11361-75010

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-75010

1RZE,2RZE..RZH10#,11#,12#,18#

 1
11381-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
11381A - SEAL, ENGINE REAR OIL
90311-88001

1RZ#,2RZE..RZH10#,11#,12#

 1
90311-88005

1RZE,2RZE..RZH10#,11#,12#,18#

NOK

 1
90311-88003

1RZE,2RZE..RZH10#,11#,12#

 1
Common parts
16192-71010
90105-08020
90105-08030
90105-08076
90105-10380
90105-10403
90116-08337
90179-08040
91511-B0812
91511-J0820
91512-B1020
91641-80818
91641-80835
91641-C0814
Linked diagrams
1501
1603
