RZH102V-SMMDE (1998)
Toyota Hiace/Regiusace
(9808- )1RZE..5F
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

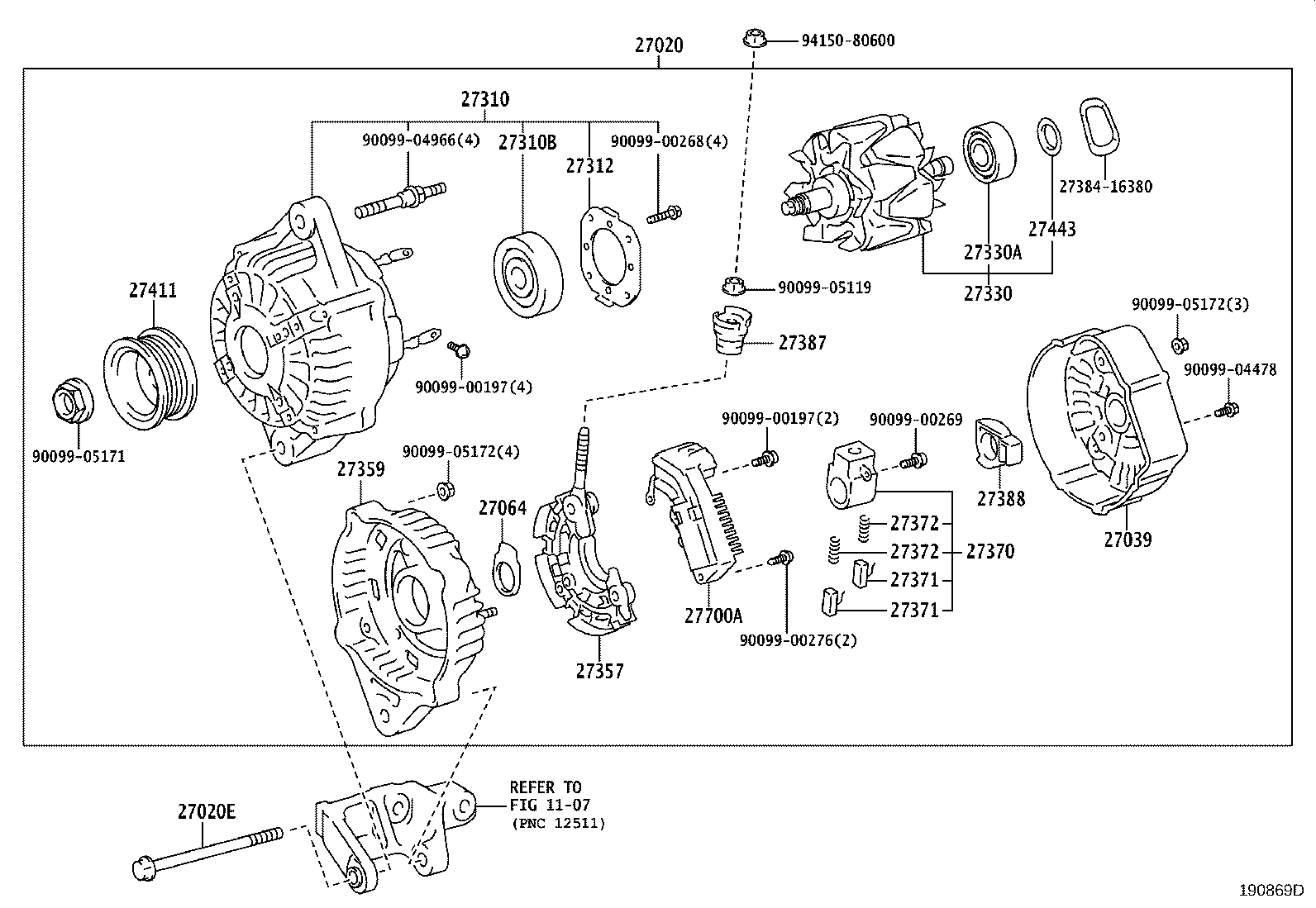

| 27020 - ALTERNATOR ASSY | ||||
| 27060-72150 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27060-75020 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27060-75150 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27060-75150 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27060-75020 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27060-75020 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10282 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 90105-10221 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72110 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27039-11190 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27039-11190 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27039-67100 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27039-67100 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27039-11190 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72180 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27310-75160 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27310-75020 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27310-75160 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27310-75020 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27310-75020 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10159 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 90099-10159 |
1RZE..RZH102,112,124,182..5F |
1 | ||
| 90099-10199 |
1RZE..RZH102,112,124..5F ｵﾙﾀﾈ-ﾀ 12V 70A |
1 | ||
| 90099-10198 |
1RZE..RZH102,112,182..(03S,06S)..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 90099-10198 |
1RZE..RZH102,112..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 90099-10198 |
1RZE..RZH102,112..06S..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1RZE..RZH102,112,124..5F |
1 | ||
| 27312-72100 |
1RZE..RZH102,112,124,182..5F |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-10021 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27330-67100 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27330-11160 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27330-11160 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27330-11160 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27330-67100 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1RZ..RZH102,112;1RZE..RZH112..09S;1RZE..RZH102,112..4FC;1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,12#,133 |
1 | ||
| 90099-10154 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 90099-10154 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 90099-10216 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 90099-10154 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 90099-10216 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-11170 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27357-63040 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27357-67100 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27357-11170 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27357-67100 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27357-11170 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16081 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27359-72150 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27359-72150 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27359-72150 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27359-75160 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27359-75160 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
1RZE..RZH102,112,124,182..5F |
1 | ||
| 27370-63021 |
1RZ#..RZH100,102,11#,12#..5F 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1RZE..RZH102,112,124,182..5F |
2 | ||
| 27371-63020 |
1RZ..RZH112..4FC..DX;1RZ#..RZH100,102,11#,12#..5F |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1RZE..RZH102,112,124,182..5F |
2 | ||
| 27371-63020 |
1RZ..RZH112..4FC..DX;1RZ#..RZH100,102,11#,12#..5F |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3L..LH113..09S..4FC;1RZ..RZH112..4FC..DX;1RZ#..RZH100,102,112,122..5F;2L,3L,1RZ#..LH102,109,113,119,123,129,RZH110,124..(03S,06S,10S,15S)..(CD,DX) |
2 | ||
| 27372-87501 |
1RZE..RZH102,182..5F;1RZE..RZH112..(03S,06S)..5F |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3L..LH113..09S..4FC;1RZ..RZH112..4FC..DX;1RZ#..RZH100,102,112,122..5F;2L,3L,1RZ#..LH102,109,113,119,123,129,RZH110,124..(03S,06S,10S,15S)..(CD,DX) |
2 | ||
| 27372-87501 |
1RZE..RZH102,182..5F;1RZE..RZH112..(03S,06S)..5F |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70170 |
3L..LH113..09S..4FC;1RZ..RZH112..4FC..DX;1RZ#..RZH100,102,112,122..5F;2L,3L,1RZ#..LH102,109,113,119,123,129,RZH110,124..(03S,06S,10S,15S)..(CD,DX) 12V 60A |
1 | ||
| 27387-10081 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27387-70171 |
5L..LH17#,182..(03S,06S)..5F;5L,1RZE..LH16#,188,RZH102,112,124..5F 12V 70A |
1 | ||
| 27387-70171 |
1RZE..RZH102,112,124,182..5F |
1 | ||
| 27387-10081 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27387-10081 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16150 |
1RZ..RZH102,112..5F;1RZ..RZH112..4FC..DX;1RZE..RZH112..09S..5F;1RZ#..RZH100,110,122,124..5F ｵﾙﾀﾈ-ﾀ 12V 70A;ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27411-16150 |
1RZE..RZH102,112..06S..5F ｵﾙﾀﾈ-ﾀ 12V 70A |
1 | ||
| 27411-72120 |
1RZE..RZH102,112..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27411-72120 |
1RZE..RZH102,112,182..(03S,06S)..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27411-16150 |
1RZE..RZH102..5F..DX;1RZE..RZH112..5D..5F;1RZE..RZH112..V1..SRF..4D..06S..5F ｵﾙﾀﾈ-ﾀ 12V 70A |
1 | ||
| 27411-72120 |
1RZE..RZH102,112..06S..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-70030 |
1RZ#,2RZE..RZH10#,11#,12# |
1 | ||
| 27700-66030 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27700-66030 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27700-75020 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27700-75020 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27700-66030 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1107 | ||||
(0012- )1RZE..RZH112..V2..4D..4FC ; (0012-)1RZE..RZH112..V1..4FC..CD ; (0012
12V 70A,90A,120A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-72150 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27060-72150 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27060-75020 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27060-75020 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27060-75150 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27060-75150 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27060-75150 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27060-75150 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27060-75020 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27060-75020 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27060-75020 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27060-75020 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10282 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 90105-10282 |
1RZ#,2RZE..RZH10#,11#,12#,133 |
1 | ||
| 90105-10221 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 90105-10221 |
1RZE,2RZE..RZH10#,11#,12#,18# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72110 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27039-72110 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27039-11190 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27039-11190 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27039-11190 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27039-11190 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27039-67100 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27039-67100 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27039-67100 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27039-67100 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27039-11190 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27039-11190 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-72100 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27312-72100 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27312-72120 |
1RZE..RZH102..V2..5F;1RZE..RZH112..09S..5F |
1 | ||
| 27312-72120 |
1RZE..RZH102..V2..5F;1RZE..RZH112..09S..5F |
1 | ||
| 27312-72120 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27312-72120 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27312-72120 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27312-72120 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-72180 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27310-72180 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27310-75160 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27310-75160 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27310-75020 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27310-75020 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27310-75160 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27310-75160 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27310-75020 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27310-75020 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27310-75020 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27310-75020 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10159 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 90099-10159 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 90099-10159 |
1RZE..RZH102,112,124,182..5F |
1 | ||
| 90099-10159 |
1RZE..RZH102,112,124,182..5F |
1 | ||
| 90099-10199 |
1RZE..RZH102,112,124..5F ｵﾙﾀﾈ-ﾀ 12V 70A |
1 | ||
| 90099-10199 |
1RZE..RZH102,112,124..5F ｵﾙﾀﾈ-ﾀ 12V 70A |
1 | ||
| 90099-10198 |
1RZE..RZH102,112,182..(03S,06S)..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 90099-10198 |
1RZE..RZH102,112,182..(03S,06S)..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 90099-10198 |
1RZE..RZH102,112..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 90099-10198 |
1RZE..RZH102,112..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 90099-10198 |
1RZE..RZH102,112..06S..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 90099-10198 |
1RZE..RZH102,112..06S..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-10021 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27330-10021 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27330-67100 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27330-67100 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27330-11160 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27330-11160 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27330-11160 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27330-11160 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27330-11160 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27330-11160 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27330-67100 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27330-67100 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1RZ..RZH102,112;1RZE..RZH112..09S;1RZE..RZH102,112..4FC;1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,12#,133 |
1 | ||
| 90099-10140 |
1RZ..RZH102,112;1RZE..RZH112..09S;1RZE..RZH102,112..4FC;1KZTE,2L,2LT#,3L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH100,101,110,111,12#,133 |
1 | ||
| 90099-10154 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 90099-10154 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 90099-10154 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 90099-10154 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 90099-10216 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 90099-10216 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 90099-10154 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 90099-10154 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 90099-10216 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 90099-10216 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-11170 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27357-11170 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27357-63040 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27357-63040 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27357-67100 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27357-67100 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27357-11170 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27357-11170 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27357-67100 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27357-67100 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27357-11170 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27357-11170 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16081 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27359-16081 |
1RZ..RZH102,112,12#..(03S,06S,15S)..(CD,DX) 12V 55A |
1 | ||
| 27359-72150 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27359-72150 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27359-72150 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27359-72150 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27359-72150 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27359-72150 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27359-75160 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27359-75160 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27359-75160 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27359-75160 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
1RZE..RZH102,112,124,182..5F |
1 | ||
| 27370-35060 |
1RZE..RZH102,112,124,182..5F |
1 | ||
| 27370-63021 |
1RZ#..RZH100,102,11#,12#..5F 12V 55A |
1 | ||
| 27370-63021 |
1RZ#..RZH100,102,11#,12#..5F 12V 55A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70170 |
3L..LH113..09S..4FC;1RZ..RZH112..4FC..DX;1RZ#..RZH100,102,112,122..5F;2L,3L,1RZ#..LH102,109,113,119,123,129,RZH110,124..(03S,06S,10S,15S)..(CD,DX) 12V 60A |
1 | ||
| 27387-70170 |
3L..LH113..09S..4FC;1RZ..RZH112..4FC..DX;1RZ#..RZH100,102,112,122..5F;2L,3L,1RZ#..LH102,109,113,119,123,129,RZH110,124..(03S,06S,10S,15S)..(CD,DX) 12V 60A |
1 | ||
| 27387-10081 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27387-10081 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27387-70171 |
5L..LH17#,182..(03S,06S)..5F;5L,1RZE..LH16#,188,RZH102,112,124..5F 12V 70A |
1 | ||
| 27387-70171 |
5L..LH17#,182..(03S,06S)..5F;5L,1RZE..LH16#,188,RZH102,112,124..5F 12V 70A |
1 | ||
| 27387-70171 |
1RZE..RZH102,112,124,182..5F |
1 | ||
| 27387-70171 |
1RZE..RZH102,112,124,182..5F |
1 | ||
| 27387-10081 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27387-10081 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27387-10081 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27387-10081 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16150 |
1RZ..RZH102,112..5F;1RZ..RZH112..4FC..DX;1RZE..RZH112..09S..5F;1RZ#..RZH100,110,122,124..5F ｵﾙﾀﾈ-ﾀ 12V 70A;ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27411-16150 |
1RZ..RZH102,112..5F;1RZ..RZH112..4FC..DX;1RZE..RZH112..09S..5F;1RZ#..RZH100,110,122,124..5F ｵﾙﾀﾈ-ﾀ 12V 70A;ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27411-16150 |
1RZE..RZH102,112..06S..5F ｵﾙﾀﾈ-ﾀ 12V 70A |
1 | ||
| 27411-16150 |
1RZE..RZH102,112..06S..5F ｵﾙﾀﾈ-ﾀ 12V 70A |
1 | ||
| 27411-72120 |
1RZE..RZH102,112..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27411-72120 |
1RZE..RZH102,112..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27411-72120 |
1RZE..RZH102,112,182..(03S,06S)..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27411-72120 |
1RZE..RZH102,112,182..(03S,06S)..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27411-16150 |
1RZE..RZH102..5F..DX;1RZE..RZH112..5D..5F;1RZE..RZH112..V1..SRF..4D..06S..5F ｵﾙﾀﾈ-ﾀ 12V 70A |
1 | ||
| 27411-16150 |
1RZE..RZH102..5F..DX;1RZE..RZH112..5D..5F;1RZE..RZH112..V1..SRF..4D..06S..5F ｵﾙﾀﾈ-ﾀ 12V 70A |
1 | ||
| 27411-72120 |
1RZE..RZH102,112..06S..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27411-72120 |
1RZE..RZH102,112..06S..5F ｵﾙﾀﾈｰﾀ 12V 55A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A |
1 | ||
| 27443-63020 |
1KZTE,2L,2LT#,3L,5L,1RZ#,2RZE..KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12V 70A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-70030 |
1RZ#,2RZE..RZH10#,11#,12# |
1 | ||
| 27700-70030 |
1RZ#,2RZE..RZH10#,11#,12# |
1 | ||
| 27700-66030 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27700-66030 |
1RZE..RZH102,112..5F 12V 55A |
1 | ||
| 27700-66030 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27700-66030 |
1RZE..RZH102,112..06S..5F 12V 55A |
1 | ||
| 27700-75020 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27700-75020 |
1RZE..RZH102,112,124..5F 12V 70A |
1 | ||
| 27700-75020 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27700-75020 |
1RZE..RZH102,112,124,182..5F 12V 70A |
1 | ||
| 27700-66030 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| 27700-66030 |
1RZE..RZH102,112,182..(03S,06S)..5F 12V 55A |
1 | ||
| Common parts | ||||
| 27365-55080 | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1107 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
