RZH102V-SFMBS (1989)
Toyota Hiace/Regiusace
ILLUST NO. 3 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-26010 |
LH102,110,113,115,123,125,140,RZH102,112,12#..03S,05S,06S,09S,15S |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26160 |
LH102,109,113,119,123,129,RZH102,112,122 |
1 | ||
| 47910-26200 |
LH102,110,113,123,140,RZH102,112,122..03S,05S,06S,09S |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-26080 |
LH102,110,113,115,123,125,140,RZH102,112,12#..(COM,V1,WG)..(03S,05S,06S,09S,15S) |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-26110 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..(COM,V1,WG)..(03S,05S,06S,08S,09S,15S) |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-26090 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..(COM,V1,WG)..(03S,05S,06S,08S,09S,15S) |
1 | ||
| 47933-26091 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..(COM,V1,WG)..(03S,05S,06S,08S,09S,15S) |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35020 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
2 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35040 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..(COM,V1,WG)..(03S,05S,06S,08S,09S,15S) |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-26020 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
1 | ||
| 47938 - INSULATOR, LOAD SENSING SPRING SHACKLE HAET | ||||
| 47938-26010 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..03S,05S,06S,08S,09S,15S |
1 | ||
| Common parts | ||||
| 90015-AD101 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 95381-02020 | ||||

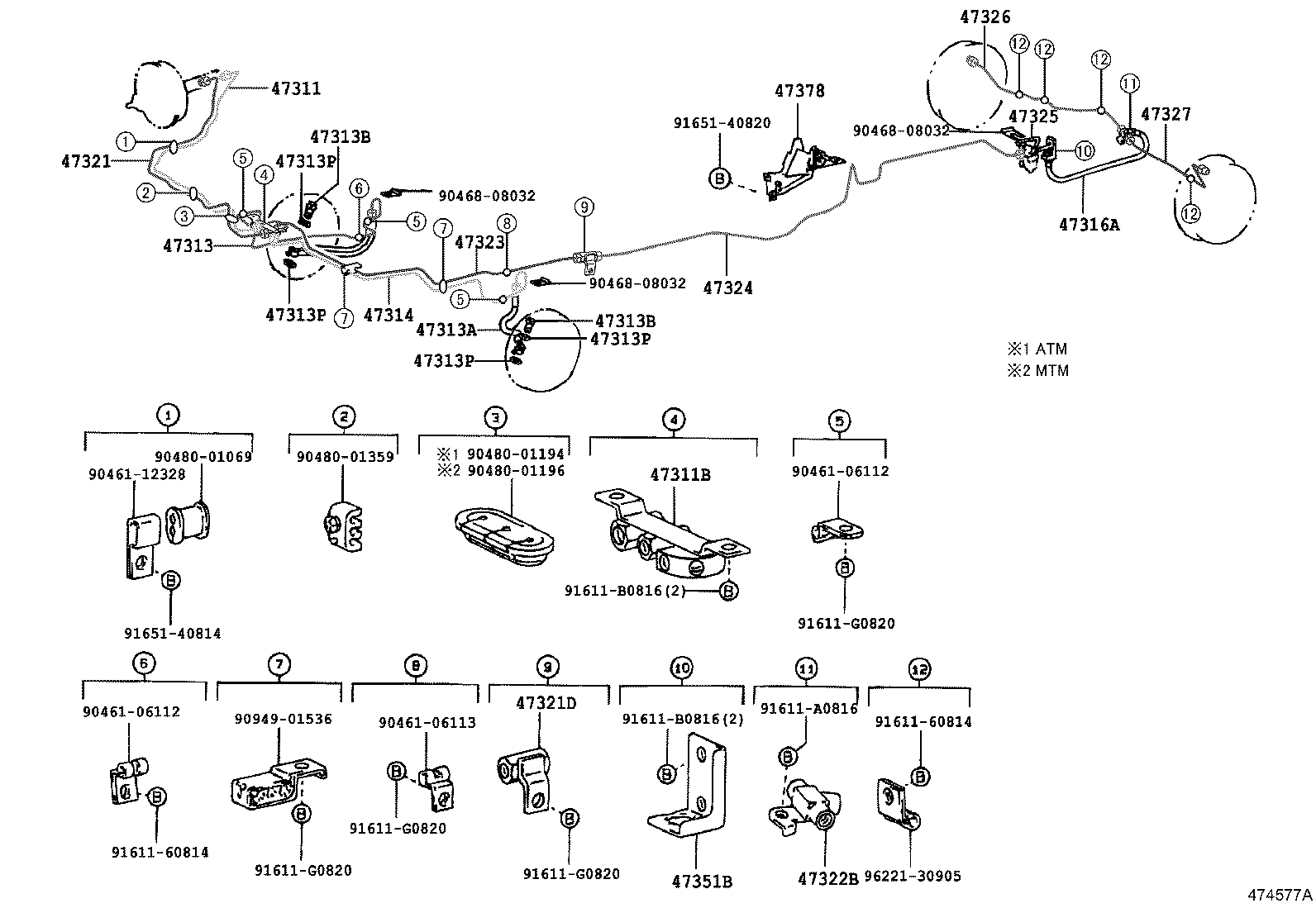

ILLUST NO. 1 OF 3(8908-9308)LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..COM,V1,WG..03S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26360 |
RZH102,112,12# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10237 |
LH10#,11#,12#,140,RZH100,102,11#,12#..5F |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26140 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,RZH10#,11#,12#,133 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02590 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 右側 |
1 | ||
| 90947-02591 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# 左側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26140 |
LH100,102,110,113,115,120,123,125,140,RZH10#,11#,12# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33456 |
LH102,110,113,115,120,123,125,140,RZH102,11#,12#..COM,V1,WG |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26270 |
RZH102,112,12# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10165 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10243 |
LH102,103,109,11#,12#,140,16#,17#,18#,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26310 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26170 |
LH102,103,109,140,16#,RZH102..V1,WG |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26250 |
LH102,109,110,113,115,119,123,125,129,140,RZH102,112,12#..(COM,V1,WG)..(03S,05S,06S,08S,09S,15S) |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26270 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26120 |
LH102,103,110,113,115,120,123,125,140,RZH102,110,112,12#..COM,V1,WG |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-26020 |
KZH100..(MRF,SMRF)..5F;LH100,107,120,123,129,RZH100,101,122..HRF,MRF,SMRF;KZH106,11#,12#,LH102,103,125,RZH102,124..(03S,08S,09S,10S,15S)..5F |
1 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-06113 | ||||
| 90461-12328 | ||||
| 90468-08032 | ||||
| 90480-01069 | ||||
| 90480-01194 | ||||
| 90480-01196 | ||||
| 90480-01359 | ||||
| 90949-01536 | ||||
| 91611-60814 | ||||
| 91611-A0816 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 96221-30905 | ||||
