RZH102V-SFMBS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908-9308)1RZ

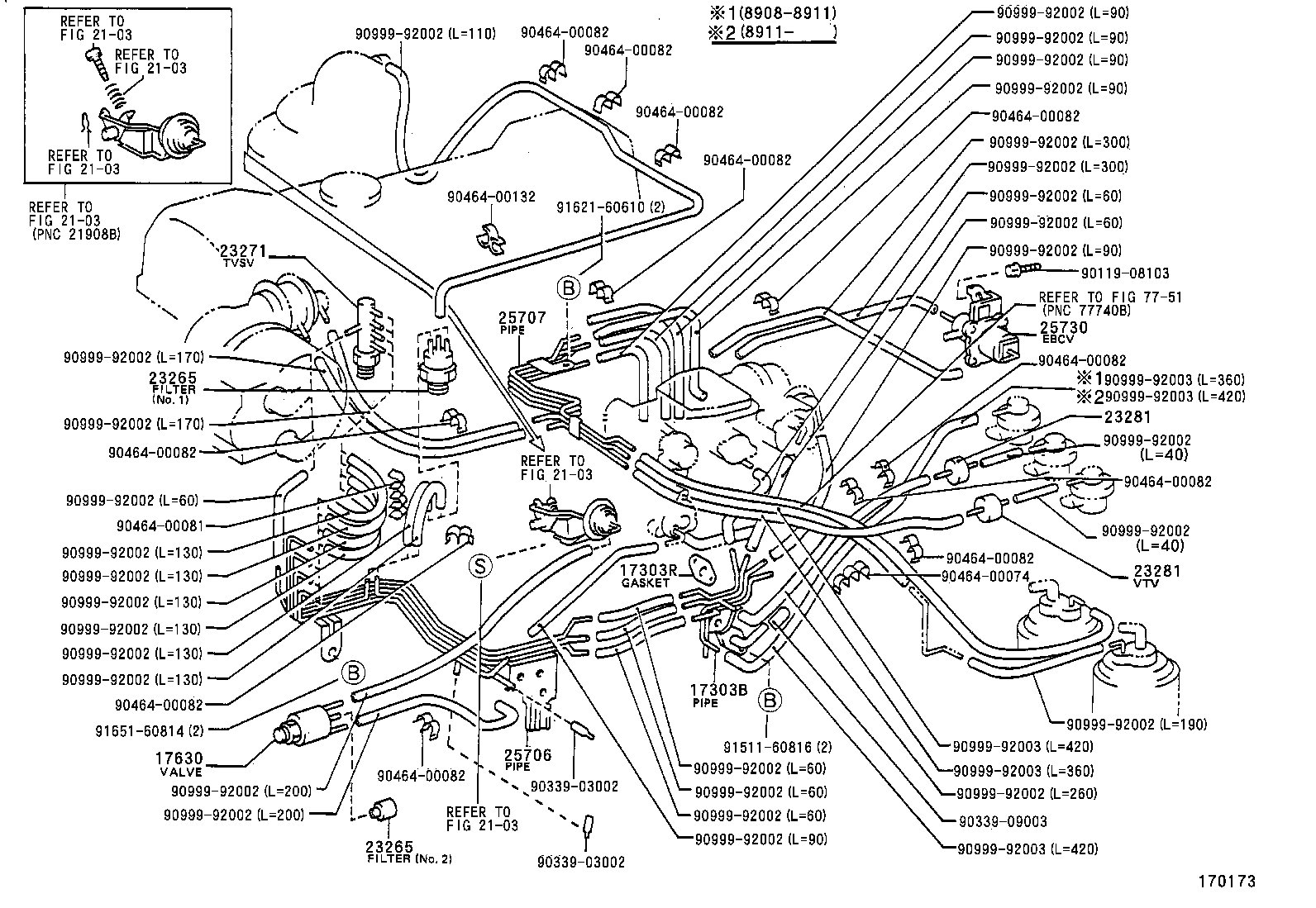

Click highlighted areas on diagram

diagram 17303B 17303R 17630 2103 2103 2103 2103 2103 2103 23265 23265 23271 23281 23281 25706 25707 25730 7751 9011908103 9033903002 9033903002 9033909003 9046400074 9046400081 9046400082 9046400082 9046400082 9046400082 9046400082 9046400082 9046400082 9046400082 9046400082 9046400082 9046400082 9046400132 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9099992003 9151160816 9162160610 9165160814
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-75010

1RZ..RZH102,112,12#

 1
17303R - GASKET(FOR AIR PIPE)
25627-75020

1RZ..RZH102,112,12#

 1
17376-75010

1RZ..RZH102,112,12#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-28020

1RZ..RZH102,112,12#

 1
23265 - FILTER, GAS, NO.1
90917-11027

1RZ#,2RZE..RZH10#,11#,12#

NO.1

 1
90925-06007

1RZ..RZH102,112,12#

NO.2

 1
23265 - FILTER, GAS, NO.1
90917-11027

1RZ#,2RZE..RZH10#,11#,12#

NO.1

 1
90925-06007

1RZ..RZH102,112,12#

NO.2

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02082

1RZ..RZH102,112,12#

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01084

1RZ..RZH102,112,12#

 2
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01084

1RZ..RZH102,112,12#

 2
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-75011

1RZ..RZH102,112,12#

 1
25706-75010

1RZ..RZH102,112,12#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-75010

1RZ..RZH102,112,12#

 1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-75010

1RZ..RZH102,112,12#

 1
Common parts
90119-08103
90339-03002
90339-09003
90464-00074
90464-00081
90464-00082
90464-00132
90999-92002
90999-92003
91511-60816
91621-60610
91651-60814
