RZH102V-RRMNS (1989)
Toyota Hiace/Regiusace

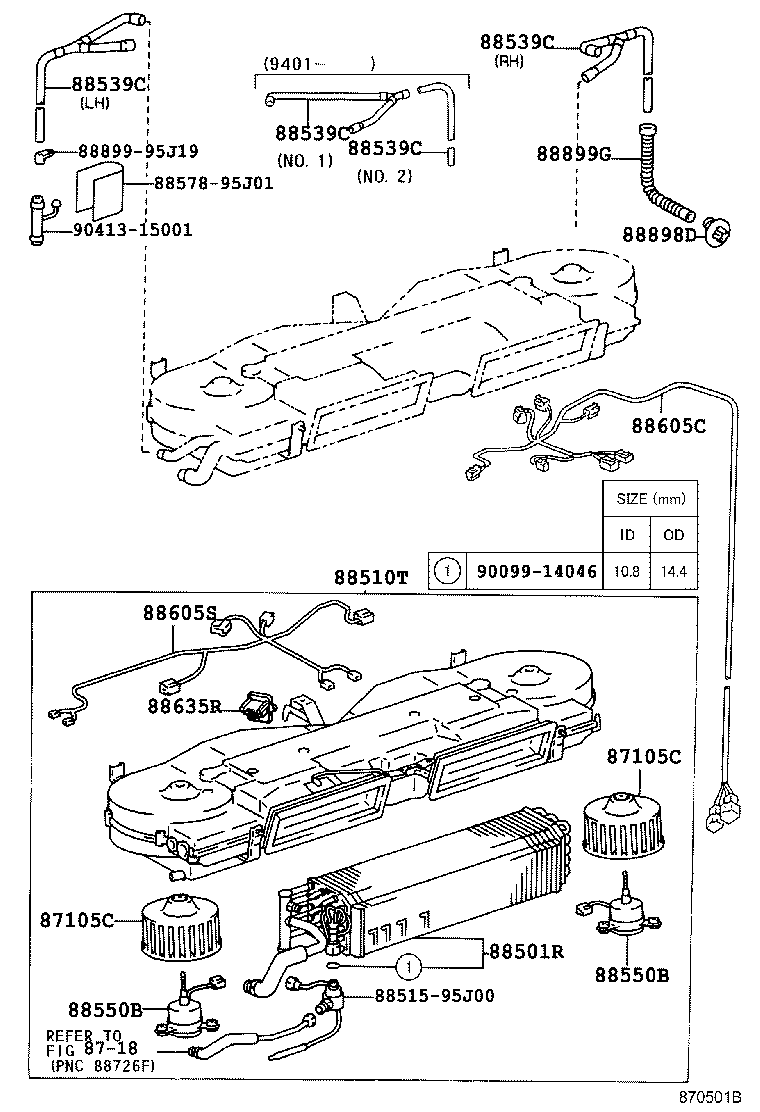

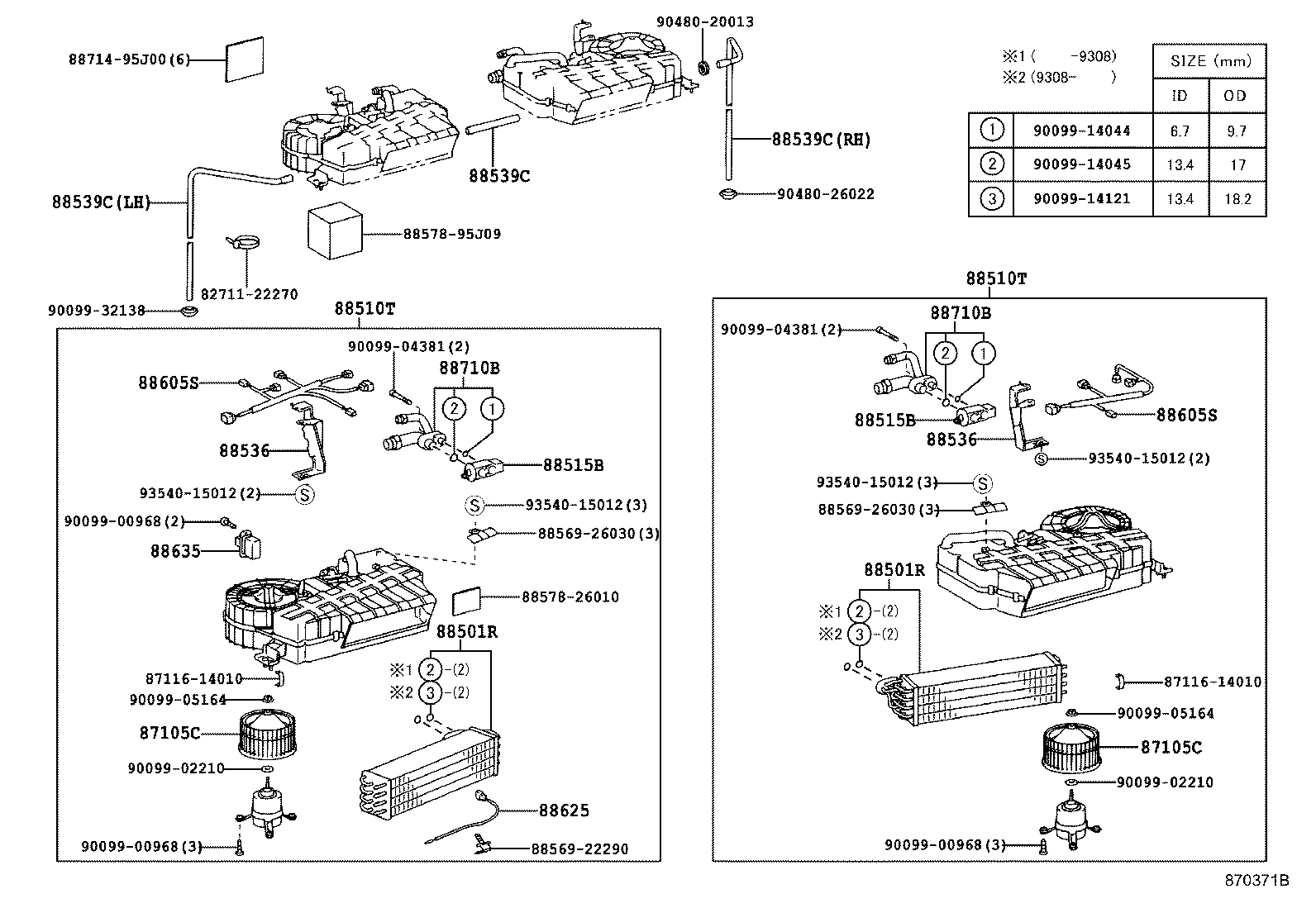

ILLUST NO. 2 OF 5(9103- )
REAR UNIT (CANPING CAR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-95N03 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-95N03 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J12 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536-95J13 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J12 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536-95J13 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH123..4FC;LH113,119,123,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..HRF,SRF |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH123..4FC;LH113,119,123,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..HRF,SRF |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-90A00 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88625-90A00 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 87116-14010 | ||||
| 88569-22290 | ||||
| 88569-26030 | ||||
| 88578-26010 | ||||
| 88578-95J09 | ||||
| 88714-95J00 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-04381 | ||||
| 90099-05164 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14121 | ||||
| 90099-32138 | ||||
| 90480-20013 | ||||
| 90480-26022 | ||||
| 93540-15012 | ||||

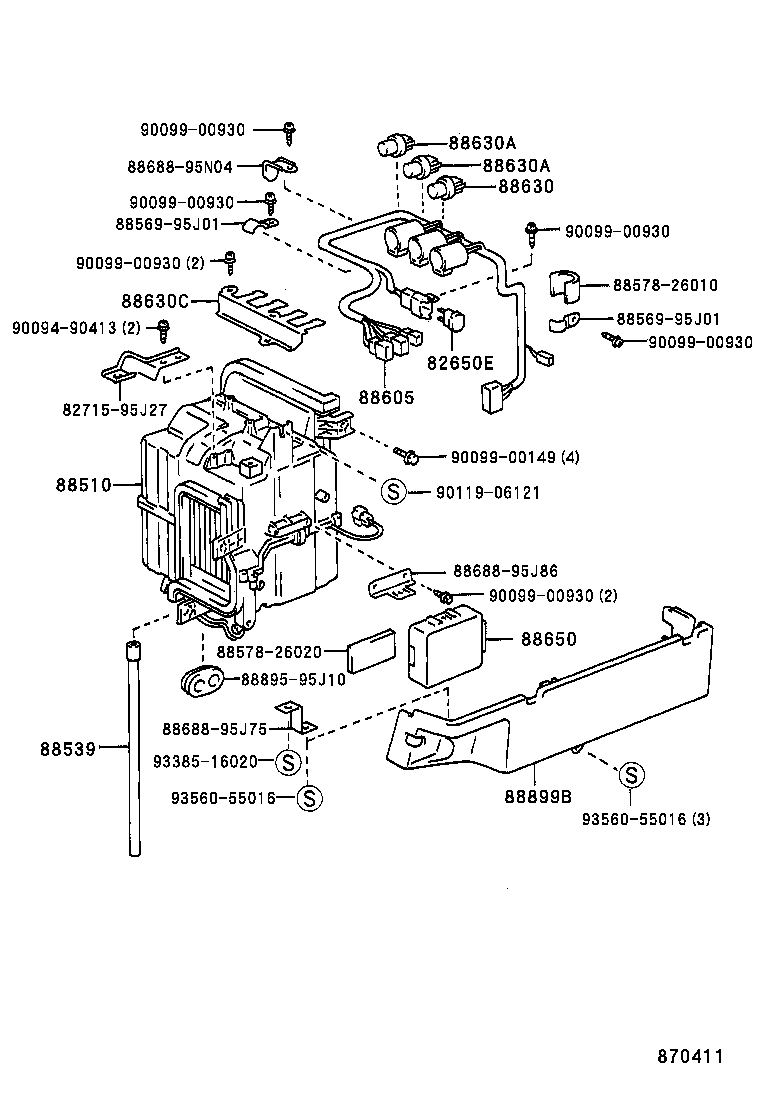

ILLUST NO. 1 OF 5(8908-9308)
FRONT SINGLE (DEALER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82650E - BREAKER ASSY, WIRING CIRCUIT | ||||
| 82650-35010 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) 20A |
2 | ||
| 82650-35010 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) 20A |
2 | ||
| 82650-35010 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 20A |
2 | ||
| 82650-35010 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW 20A |
2 | ||
| 82650-35010 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) 20A |
2 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95J58 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88510-95J58 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95701 |
RZH112..SRF;LH129,RZH102;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88539-95701 |
LH113,RZH112..09S..DX;LH129,RZH100..DX,SCL,SCM,SCMM;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88539-95701 |
RZH112..SRF;LH129,RZH102;LH113..09S..DX;LH102,109,113,119,RZH101..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88539-95701 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88539-95701 |
LH113..5D..GL;RZH102,112..SRF;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88539-95701 |
LH123..4FC;RZH112..SRF;LH113..5D..GL;LH119,123..09S;LH102,109,119..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);LH100,107,110,115,117,120,125,140,RZH10#,110,124 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J17 |
RZH102,112..GL;RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM) |
1 | ||
| 88605-95J17 |
RZH101,102,112..GL,SCM,SCMM;RZH100,11#,12#..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM) |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-14030 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88630-14030 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-95702 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
2 | ||
| 88630-95702 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
2 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-95702 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
2 | ||
| 88630-95702 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
2 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88631-95J00 |
LH119..09S;LH113..09S..GL;LH113,RZH122..03S,05S,06S;LH100,107,109,119,RZH101..CTM,GL,SCM,SCMM,SGL;LH102,120,123,129,RZH100,102,11#,124..CD,CTM,DX,GL,SCM,SCMM,SGL ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88631-95J00 |
LH113..09S..GL;LH109,119..5D..GL;LH119..05S,08S,09S;LH113,RZH122..03S,05S,06S;LH102,110,117,RZH100,102,11#..CD,CTM,DX,GL,SCM,SCMM,SGL;LH100,107,123,129,RZH101,124..(HRF,MRF,SMRF)..(CTM,DX,SCM,SCMM) ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88631-95J00 |
LH119..09S;LH113..09S..GL;LH113,RZH101,122..03S,05S,06S,08S;LH100,107,109,119..CTM,GL,SCM,SCMM,SGL;LH102,110,123,129,RZH100,102,11#,124..CD,CTM,DX,GL,SCM,SCMM,SGL ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95J12 |
RZH102,112..GL;RZH112,12#..(09S,15S)..DX ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88650-87101 |
RZH102,112,122 |
1 | ||
| 88899B - COVER, COOLER CONTROL | ||||
| 88891-26050 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88891-95J27 |
LH113,119,RZH112,122..03S,05S,06S,09S;LH10#,120,123,129,RZH10#..03S,05S,06S,07S,08S,10S |
1 | ||
| 88891-26050 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88891-26050 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88891-26050 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88891-26050 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 82715-95J27 | ||||
| 88569-95J01 | ||||
| 88578-26010 | ||||
| 88578-26020 | ||||
| 88688-95J75 | ||||
| 88688-95J86 | ||||
| 88688-95N04 | ||||
| 88895-95J10 | ||||
| 90094-90413 | ||||
| 90099-00149 | ||||
| 90099-00930 | ||||
| 90119-06121 | ||||
| 93385-16020 | ||||
| 93560-55016 | ||||

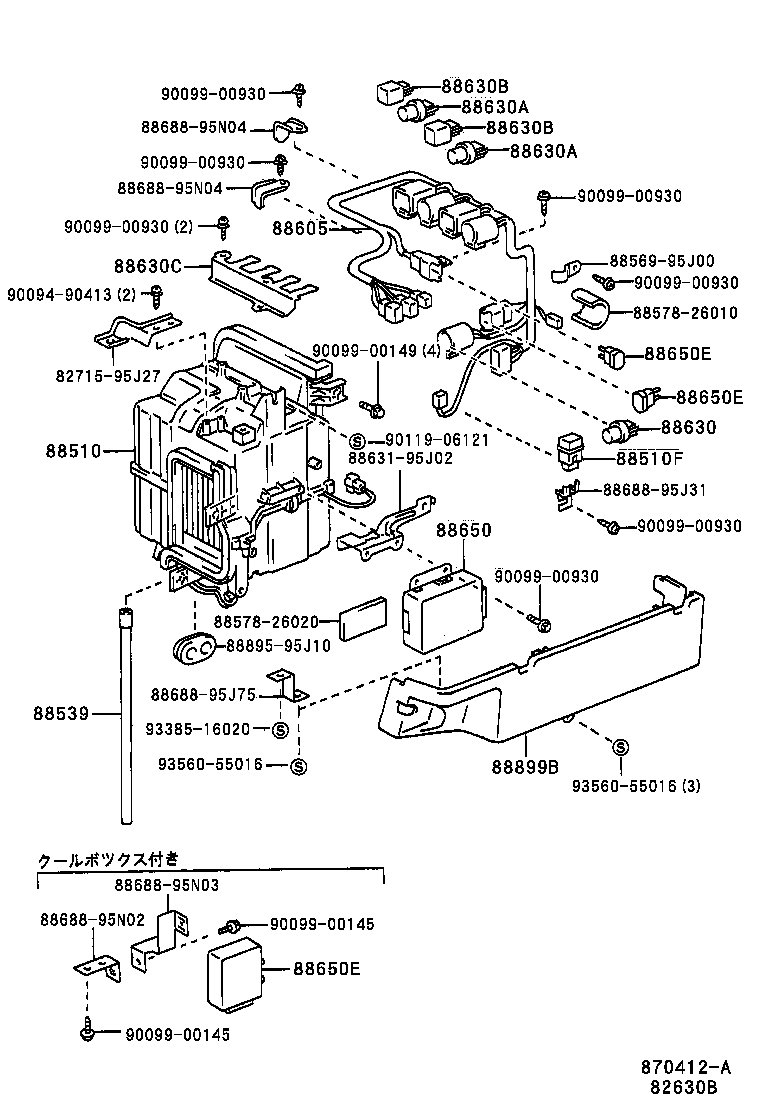

ILLUST NO. 1 OF 5(8908-9308)
FRONT DUAL (DEALER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95J58 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88510-95J58 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88510F - HOLDER, FUSE | ||||
| 82630-95J03 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW |
1 | ||
| 82630-95J03 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 82630-95J03 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) |
1 | ||
| 82630-95J03 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) |
1 | ||
| 82630-95J03 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95701 |
RZH112..SRF;LH129,RZH102;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88539-95701 |
LH113,RZH112..09S..DX;LH129,RZH100..DX,SCL,SCM,SCMM;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88539-95701 |
RZH112..SRF;LH129,RZH102;LH113..09S..DX;LH102,109,113,119,RZH101..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88539-95701 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88539-95701 |
LH113..5D..GL;RZH102,112..SRF;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88539-95701 |
LH123..4FC;RZH112..SRF;LH113..5D..GL;LH119,123..09S;LH102,109,119..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);LH100,107,110,115,117,120,125,140,RZH10#,110,124 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J17 |
RZH102,112..GL;RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM) |
1 | ||
| 88605-95J17 |
RZH101,102,112..GL,SCM,SCMM;RZH100,11#,12#..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM) |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-14030 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88630-14030 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-95702 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
2 | ||
| 88630-95702 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
2 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-95702 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
2 | ||
| 88630-95702 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
2 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-16090 |
LH113..5D..GL;RZH112..09S..DX;LH120,129..DSL,TDE;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88630-16090 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
2 | ||
| 88630-16090 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88630-16090 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
2 | ||
| 88630-16090 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW NO.1 |
2 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-16090 |
LH113..5D..GL;RZH112..09S..DX;LH120,129..DSL,TDE;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88630-16090 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
2 | ||
| 88630-16090 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88630-16090 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
2 | ||
| 88630-16090 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW NO.1 |
2 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88631-95J00 |
LH119..09S;LH113..09S..GL;LH113,RZH122..03S,05S,06S;LH100,107,109,119,RZH101..CTM,GL,SCM,SCMM,SGL;LH102,120,123,129,RZH100,102,11#,124..CD,CTM,DX,GL,SCM,SCMM,SGL ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88631-95J00 |
LH113..09S..GL;LH109,119..5D..GL;LH119..05S,08S,09S;LH113,RZH122..03S,05S,06S;LH102,110,117,RZH100,102,11#..CD,CTM,DX,GL,SCM,SCMM,SGL;LH100,107,123,129,RZH101,124..(HRF,MRF,SMRF)..(CTM,DX,SCM,SCMM) ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88631-95J00 |
LH119..09S;LH113..09S..GL;LH113,RZH101,122..03S,05S,06S,08S;LH100,107,109,119..CTM,GL,SCM,SCMM,SGL;LH102,110,123,129,RZH100,102,11#,124..CD,CTM,DX,GL,SCM,SCMM,SGL ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95J12 |
RZH102,112..GL;RZH112,12#..(09S,15S)..DX ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88650-87101 |
RZH102,112,122 |
1 | ||
| 88899B - COVER, COOLER CONTROL | ||||
| 88891-26050 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88891-95J27 |
LH113,119,RZH112,122..03S,05S,06S,09S;LH10#,120,123,129,RZH10#..03S,05S,06S,07S,08S,10S |
1 | ||
| 88891-26050 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88891-26050 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88891-26050 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88891-26050 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 82715-95J27 | ||||
| 88569-95J00 | ||||
| 88578-26010 | ||||
| 88578-26020 | ||||
| 88631-95J02 | ||||
| 88688-95J31 | ||||
| 88688-95J75 | ||||
| 88688-95N02 | ||||
| 88688-95N03 | ||||
| 88688-95N04 | ||||
| 88895-95J10 | ||||
| 90094-90413 | ||||
| 90099-00145 | ||||
| 90099-00149 | ||||
| 90099-00930 | ||||
| 90119-06121 | ||||
| 93385-16020 | ||||
| 93560-55016 | ||||
ILLUST NO. 1 OF 5(8908-9508)
FRONT (MAKER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95J11 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88501-95J11 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95J58 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88510-95J58 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-28020 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95701 |
RZH112..SRF;LH129,RZH102;LH113..5D..GL;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101..GL,SCL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88539-95701 |
LH113,RZH112..09S..DX;LH129,RZH100..DX,SCL,SCM,SCMM;LH102,109,113,119,RZH101,102,112..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88539-95701 |
RZH112..SRF;LH129,RZH102;LH113..09S..DX;LH102,109,113,119,RZH101..GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88539-95701 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88539-95701 |
LH113..5D..GL;RZH102,112..SRF;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,107,109,119,140,RZH101..GL,SCL,SCM,SCMM,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SW) |
1 | ||
| 88539-95701 |
LH123..4FC;RZH112..SRF;LH113..5D..GL;LH119,123..09S;LH102,109,119..GL,SGL;LH113..V1..SRF..4D..(DX,GL,SGL);LH100,107,110,115,117,120,125,140,RZH10#,110,124 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95J17 |
RZH102,112..GL;RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM) |
1 | ||
| 88605-95J17 |
RZH101,102,112..GL,SCM,SCMM;RZH100,11#,12#..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-90A00 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88625-90A00 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-33010 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-14030 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88630-14030 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-14030 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88630-14030 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 88630-95702 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
2 | ||
| 88630-95702 |
RZH101..08S;LH10#,11#,12#,140,RZH100,102,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
2 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-16090 |
LH113..5D..GL;RZH112..09S..DX;LH120,129..DSL,TDE;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88630-16090 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
2 | ||
| 88630-16090 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88630-16090 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
2 | ||
| 88630-16090 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW NO.1 |
2 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-16090 |
LH113..5D..GL;RZH112..09S..DX;LH120,129..DSL,TDE;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88630-16090 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
2 | ||
| 88630-16090 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
2 | ||
| 88630-16090 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
2 | ||
| 88630-16090 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW NO.1 |
2 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88631-95J00 |
LH119..09S;LH113..09S..GL;LH113,RZH122..03S,05S,06S;LH100,107,109,119,RZH101..CTM,GL,SCM,SCMM,SGL;LH102,120,123,129,RZH100,102,11#,124..CD,CTM,DX,GL,SCM,SCMM,SGL ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88631-95J00 |
LH113..09S..GL;LH109,119..5D..GL;LH119..05S,08S,09S;LH113,RZH122..03S,05S,06S;LH102,110,117,RZH100,102,11#..CD,CTM,DX,GL,SCM,SCMM,SGL;LH100,107,123,129,RZH101,124..(HRF,MRF,SMRF)..(CTM,DX,SCM,SCMM) ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88631-95J00 |
LH119..09S;LH113..09S..GL;LH113,RZH101,122..03S,05S,06S,08S;LH100,107,109,119..CTM,GL,SCM,SCMM,SGL;LH102,110,123,129,RZH100,102,11#,124..CD,CTM,DX,GL,SCM,SCMM,SGL ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-95J12 |
RZH102,112..GL;RZH112,12#..(09S,15S)..DX ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88650-87101 |
RZH102,112,122 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26010 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88710-26010 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88899B - COVER, COOLER CONTROL | ||||
| 88891-26050 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH101,102,112..GL,SCM,SCMM,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88891-95J27 |
LH113,119,RZH112,122..03S,05S,06S,09S;LH10#,120,123,129,RZH10#..03S,05S,06S,07S,08S,10S |
1 | ||
| 88891-26050 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88891-26050 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,107,110,115,117,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM,SW) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88891-26050 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88891-26050 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,107,110,115,117,120,125,140,RZH100,101,110,124..CTM,DX,GL,SCM,SCMM,SW ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 82715-95J27 | ||||
| 87116-14010 | ||||
| 88631-95J02 | ||||
| 88688-95J75 | ||||
| 88688-95N03 | ||||
| 88899-26030 | ||||
| 90099-00930 | ||||
| 90099-00968 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90159-60096 | ||||
| 90189-06084 | ||||
| 90468-05047 | ||||
| 91621-40616 | ||||
| 91651-40616 | ||||
| 93540-15010 | ||||
| 93560-55016 | ||||
ILLUST NO. 2 OF 5(8908- )
REAR UNIT---TWIN TYPE (MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-95N03 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-95N03 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J12 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536-95J13 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J12 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536-95J13 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-95N07 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605-95N07 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605-95N07 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605-95N07 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..HRF,SRF |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH123..4FC;LH113,119,123,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..HRF,SRF |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH123..4FC;LH113,119,123,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..HRF,SRF |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 88515-28040 | ||||
| 88578-95J01 | ||||
| 88714-95J00 | ||||
| 88899-95J19 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14121 | ||||
| 90413-15001 | ||||
| 90480-26022 | ||||
ILLUST NO. 2 OF 5(8908- )
REAR UNIT (DEALER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-95N03 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-95A08 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-95A08 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-95J07 |
LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL,SW) ﾌﾛﾝﾄ |
2 | ||
| 88539-95J07 |
LH123..4FC;LH113,119,123,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..DX,GL,SW ﾌﾛﾝﾄ |
2 | ||
| 88539-95J06 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF ﾘﾔ |
2 | ||
| 88539-95J07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) ﾌﾛﾝﾄ |
2 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-95J07 |
LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL,SW) ﾌﾛﾝﾄ |
2 | ||
| 88539-95J07 |
LH123..4FC;LH113,119,123,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..DX,GL,SW ﾌﾛﾝﾄ |
2 | ||
| 88539-95J06 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF ﾘﾔ |
2 | ||
| 88539-95J07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) ﾌﾛﾝﾄ |
2 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-95J07 |
LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL,SW) ﾌﾛﾝﾄ |
2 | ||
| 88539-95J07 |
LH123..4FC;LH113,119,123,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..DX,GL,SW ﾌﾛﾝﾄ |
2 | ||
| 88539-95J06 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF ﾘﾔ |
2 | ||
| 88539-95J07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) ﾌﾛﾝﾄ |
2 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-95J07 |
LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL,SW) ﾌﾛﾝﾄ |
2 | ||
| 88539-95J07 |
LH123..4FC;LH113,119,123,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..DX,GL,SW ﾌﾛﾝﾄ |
2 | ||
| 88539-95J06 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF ﾘﾔ |
2 | ||
| 88539-95J07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) ﾌﾛﾝﾄ |
2 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-95N07 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605-95N07 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605-95N07 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605-95N07 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..HRF,SRF |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH123..4FC;LH113,119,123,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..HRF,SRF |
1 | ||
| 88898D - GROMMET | ||||
| 88898-90C00B1 |
RZH102,112..GL..CBR;LH129,RZH124..5F..(CBR,DSL);LH113,119,RZH112..09S..5F..DX..(CBR,DSL);LH102,107,109,113,119,RZH101..CTM,GL,SCM,SCMM,SGL;LH100,110,115,120,123,125,RZH100,110,122..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM)..(CBR,DSL,EFI,TD) LT.BLUISH GRAY |
1 | ||
| 88898-90C00B0 |
RZH102,112..GL..CBR;LH129,RZH124..5F..(CBR,DSL);LH113,119,RZH112..09S..5F..DX..(CBR,DSL);LH102,107,109,113,119,RZH101..CTM,GL,SCM,SCMM,SGL;LH100,110,115,120,123,125,RZH100,110,122..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM)..(CBR,DSL,EFI,TD) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 82711-95704 | ||||
| 88569-95J00 | ||||
| 88578-95J01 | ||||
| 88578-95J09 | ||||
| 88897-87101 | ||||
| 88899-95J19 | ||||
| 90099-32138 | ||||
| 90413-15001 | ||||
| 90480-20013 | ||||
| 90480-26022 | ||||
| 93385-16014 | ||||
| 93540-14012 | ||||
| 93540-15012 | ||||
ILLUST NO. 2 OF 5(8908- )
REAR UNIT---TWIN TYPE (DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-95N03 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-95N03 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-95N07 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605-95N07 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605-95N07 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605-95N07 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..HRF,SRF |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH123..4FC;LH113,119,123,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..HRF,SRF |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH123..4FC;LH113,119,123,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..HRF,SRF |
1 | ||
| Common parts | ||||
| 87211-95704 | ||||
| 88569-95J00 | ||||
| 88578-95J01 | ||||
| 88578-95J09 | ||||
| 88899-95J19 | ||||
| 90413-15001 | ||||
| 90480-20013 | ||||
| 90480-26022 | ||||
| 93385-16014 | ||||
| 93540-15012 | ||||
ILLUST NO. 4 OF 5(8908-9608)
COOL BOX (MAKER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88630C - BRACKET, COOLER RELAY | ||||
| 88631-95J00 |
LH119..09S;LH113..09S..GL;LH113,RZH122..03S,05S,06S;LH100,107,109,119,RZH101..CTM,GL,SCM,SCMM,SGL;LH102,120,123,129,RZH100,102,11#,124..CD,CTM,DX,GL,SCM,SCMM,SGL ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88631-95J00 |
LH113..09S..GL;LH109,119..5D..GL;LH119..05S,08S,09S;LH113,RZH122..03S,05S,06S;LH102,110,117,RZH100,102,11#..CD,CTM,DX,GL,SCM,SCMM,SGL;LH100,107,123,129,RZH101,124..(HRF,MRF,SMRF)..(CTM,DX,SCM,SCMM) ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88631-95J00 |
LH119..09S;LH113..09S..GL;LH113,RZH101,122..03S,05S,06S,08S;LH100,107,109,119..CTM,GL,SCM,SCMM,SGL;LH102,110,123,129,RZH100,102,11#,124..CD,CTM,DX,GL,SCM,SCMM,SGL ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 88578-26030 | ||||
| 88578-95J07 | ||||
| 88578-95J10 | ||||
| 88688-95N03 | ||||
| 88718-26200 | ||||
| 88718-95J67 | ||||
| 88718-95J69 | ||||
| 88897-95J06 | ||||
| 88897-95J07 | ||||
| 90094-90414 | ||||
| 90099-00145 | ||||
| 90099-14046 | ||||
| 90099-14120 | ||||
| 90480-25024 | ||||
| 91651-40625 | ||||
| 93540-15010 | ||||
| 93540-15016 | ||||
| 93540-15025 | ||||
| 93590-16014 | ||||
ILLUST NO. 3 OF 5(8908- )
REAR UNIT BRACKET (MAKER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J12 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536-95J13 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J12 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536-95J13 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| Common parts | ||||
| 90119-06311 | ||||
| 90179-06274 | ||||
| 91651-40614 | ||||
| 93540-25010 | ||||
ILLUST NO. 2 OF 5(8908-9308)
REAR UNIT (MAKER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-95N03 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95J02 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF |
2 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-95N07 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605-95N07 |
LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605-95N07 |
LH129;LH113..5D..GL;RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..GL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH100,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605-95N07 |
LH123..4FC;LH113..5D..GL;LH119,123,RZH112..09S..DX;LH113..V1..SRF..4D..(DX,GL,SGL);LH102,109,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..HRF,SRF |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605-95N17 |
LH123..4FC;LH113,119,123,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,120,125,140,RZH100,110,124..HRF,SRF |
1 | ||
| 88898D - GROMMET | ||||
| 88898-90C00B1 |
RZH102,112..GL..CBR;LH129,RZH124..5F..(CBR,DSL);LH113,119,RZH112..09S..5F..DX..(CBR,DSL);LH102,107,109,113,119,RZH101..CTM,GL,SCM,SCMM,SGL;LH100,110,115,120,123,125,RZH100,110,122..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM)..(CBR,DSL,EFI,TD) LT.BLUISH GRAY |
1 | ||
| 88898-90C00B0 |
RZH102,112..GL..CBR;LH129,RZH124..5F..(CBR,DSL);LH113,119,RZH112..09S..5F..DX..(CBR,DSL);LH102,107,109,113,119,RZH101..CTM,GL,SCM,SCMM,SGL;LH100,110,115,120,123,125,RZH100,110,122..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM)..(CBR,DSL,EFI,TD) GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 88515-95J00 | ||||
| 88578-95J01 | ||||
| 88899-95J19 | ||||
| 90099-14046 | ||||
| 90413-15001 | ||||
| Linked diagrams | ||||
| 8718 | ||||
ILLUST NO. 1 OF 5(8908-9308)
FRONT (DEALER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95J11 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88501-95J11 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95J58 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88510-95J58 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-28020 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-90A00 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88625-90A00 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-33010 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26010 |
RZH101..07S,08S;LH10#,11#,12#,140,RZH100,102,11#,12# |
1 | ||
| 88710-26010 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 88899-95J20 | ||||
| 90099-00930 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 93315-15010 | ||||
ILLUST NO. 3 OF 5(8908- )
REAR UNIT BRACKET (DEALER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J12 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536-95J13 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J12 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536-95J13 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J12 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536-95J13 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95J12 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536-95J13 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| Common parts | ||||
| 88688-26010 | ||||
| 90091-20604 | ||||
| 90179-06274 | ||||
| 93385-16014 | ||||
| 93540-15012 | ||||
ILLUST NO. 3 OF 5(8908- )
REAR UNIT BRACKET (DEALER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 93385-16014 | ||||
| 93385-18016 | ||||
| 93540-55012 | ||||
ILLUST NO. 5 OF 5(8908-9308)

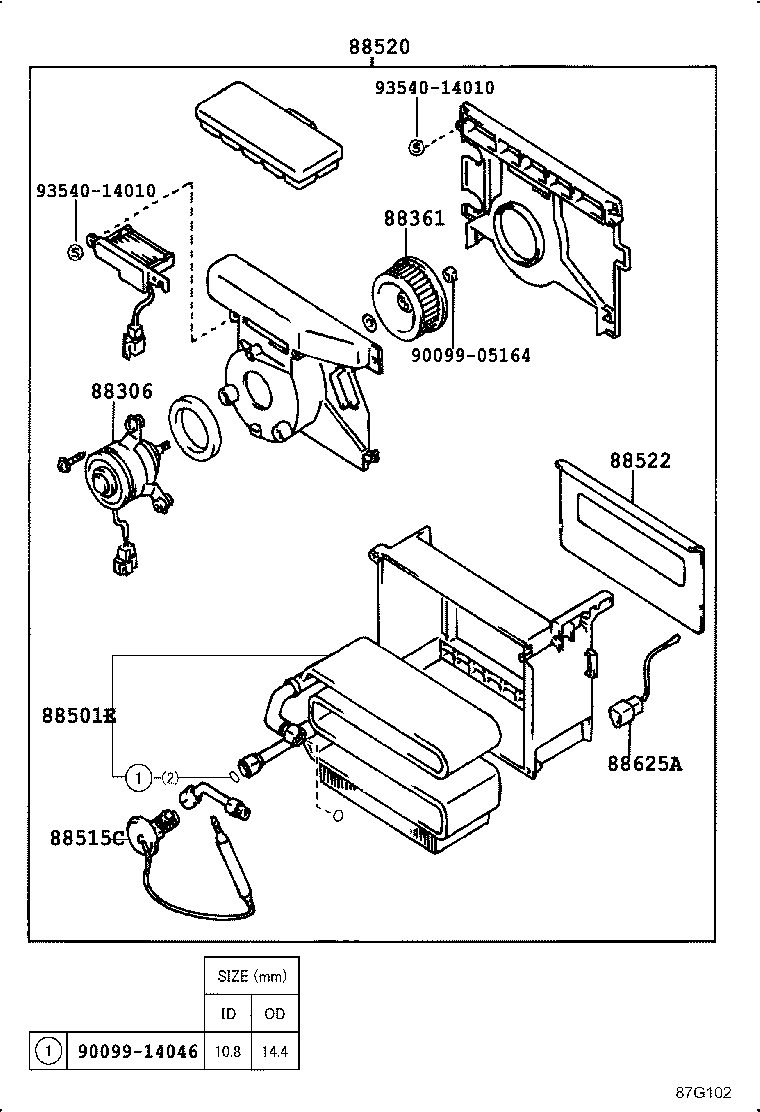

COOL BOX UNIT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-05164 | ||||
| 90099-14046 | ||||
| 93540-14010 | ||||
ILLUST NO. 3 OF 5(8908-9308)

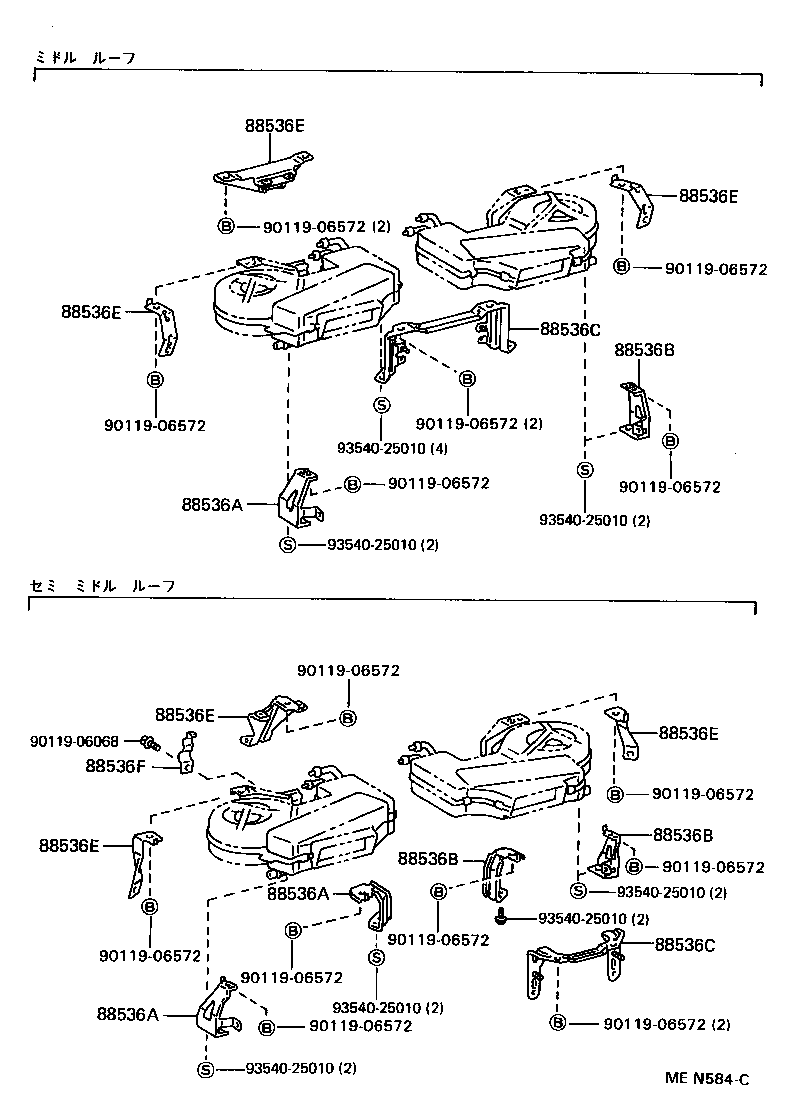

REAR UNIT BRACKET (MAKER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95J15 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 左側 |
1 | ||
| 88536-95J14 |
LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF 右側 |
1 | ||
| Common parts | ||||
| 90119-06068 | ||||
| 90119-06572 | ||||
| 93540-25010 | ||||
ILLUST NO. 4 OF 5(8908-9608)
COOL BOX (DEALER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88630C - BRACKET, COOLER RELAY | ||||
| 88631-95J00 |
LH119..09S;LH113..09S..GL;LH113,RZH122..03S,05S,06S;LH100,107,109,119,RZH101..CTM,GL,SCM,SCMM,SGL;LH102,120,123,129,RZH100,102,11#,124..CD,CTM,DX,GL,SCM,SCMM,SGL ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88631-95J00 |
LH113..09S..GL;LH109,119..5D..GL;LH119..05S,08S,09S;LH113,RZH122..03S,05S,06S;LH102,110,117,RZH100,102,11#..CD,CTM,DX,GL,SCM,SCMM,SGL;LH100,107,123,129,RZH101,124..(HRF,MRF,SMRF)..(CTM,DX,SCM,SCMM) ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| 88631-95J00 |
LH119..09S;LH113..09S..GL;LH113,RZH101,122..03S,05S,06S,08S;LH100,107,109,119..CTM,GL,SCM,SCMM,SGL;LH102,110,123,129,RZH100,102,11#,124..CD,CTM,DX,GL,SCM,SCMM,SGL ﾌﾛﾝﾄ ﾕﾆｯﾄ ﾘﾚｰ ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 88578-95J07 | ||||
| 88688-95N02 | ||||
| 88688-95N03 | ||||
| 88718-95J67 | ||||
| 88718-95J68 | ||||
| 88718-95J69 | ||||
| 88897-95J06 | ||||
| 88897-95J07 | ||||
| 90099-00145 | ||||
| 90480-25024 | ||||
| 93540-15016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
