RZH102V-RFMBS (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1993
Engine 1RZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )1RZ#,2RZE

Click highlighted areas on diagram

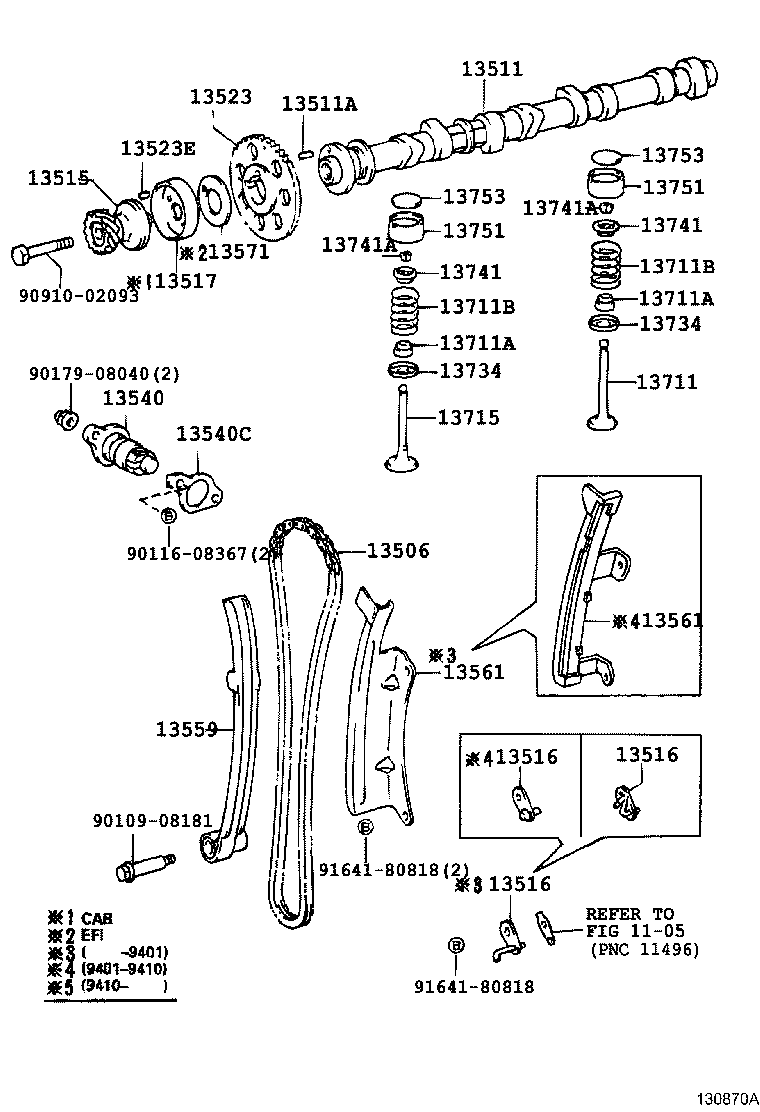

diagram 1105 13506 13511 13511A 13515 13516 13516 13516 13517 13523 13523E 13540 13540C 13559 13561 13561 13571 13711 13711A 13711A 13711B 13711B 13715 13734 13734 13741 13741 13741A 13741A 13751 13751 13753 13753 9010908181 9011608367 9017908040 9091002093 9164180818 9164180818
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
13511 - CAMSHAFT
13501-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-06068

1RZ#,2RZE..RZH10#,11#,12#,133

長さ=11,外径=6

 1
13515 - GEAR, DISTRIBUTOR DRIVE
13515-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
13516 - JET, OIL
13516-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
13516 - JET, OIL
13516-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
13516 - JET, OIL
13516-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
13517 - CAM, FUEL PUMP DRIVE
13517-37010

1RZ..RZH102,112,12#

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
13523E - PIN, STRAIGHT(FOR TIMING GEAR)
90250-05021

1RZ#,2RZE..RZH10#,11#,12#,133

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
13540C - GASKET(FOR CHAIN TENSIONER)
13552-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 1
13559 - SLIPPER, CHAIN TENSIONER
13559-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-75010

1RZ#,2RZE..RZH10#,11#,12#

 1
13711 - VALVE, INTAKE
13711-75010

1RZ#..RZH100,102,110,112,122,124

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02053

1RZ#,2RZE..RZH10#,11#,12#,133

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02053

1RZ#,2RZE..RZH10#,11#,12#,133

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-45033

1RZ#,2RZE..RZH10#,11#,12#,133

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-45033

1RZ#,2RZE..RZH10#,11#,12#,133

 8
13715 - VALVE, EXHAUST
13715-75020

1RZ#..RZH100,102,110,112,122,124

 4
13734 - SEAT, VALVE SPRING
13734-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 8
13734 - SEAT, VALVE SPRING
13734-75010

1RZ#,2RZE..RZH10#,11#,12#,133

 8
13741 - RETAINER, VALVE SPRING
13741-43010

1RZ#,2RZE..RZH10#,11#,12#,133

 8
13741 - RETAINER, VALVE SPRING
13741-43010

1RZ#,2RZE..RZH10#,11#,12#,133

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03014

1RZ#,2RZE..RZH10#,11#,12#,133

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03014

1RZ#,2RZE..RZH10#,11#,12#,133

 16
13751 - LIFTER, VALVE
13751-64011

1RZ#,2RZE..RZH10#,11#,12#,133

 8
13751 - LIFTER, VALVE
13751-64011

1RZ#,2RZE..RZH10#,11#,12#,133

 8
13753 - SHIM, VALVE ADJUSTING
13753-65600

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.25

 8
13753-65620

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.30

 8
13753-65640

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.35

 8
13753-65680

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.45

 8
13753-65720

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.55

 8
13753-65840

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.85

 8
13753-65660

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.40

 8
13753-65700

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.50

 8
13753-65820

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.80

 8
13753-6B030

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.05

 8
13753-65780

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.70

 8
13753-65800

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.75

 8
13753-6B070

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.15

 8
13753-6B090

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.20

 8
13753-65880

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.95

 8
13753-6B010

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.00

 8
13753-65860

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.90

 8
13753-65760

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.65

 8
13753-6B130

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.30

 8
13753-65740

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.60

 8
13753-6B050

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.10

 8
13753-6B110

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.25

 8
13753-6B150

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.35

 8
13753-6B170

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.40

 8
13753 - SHIM, VALVE ADJUSTING
13753-65600

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.25

 8
13753-65620

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.30

 8
13753-65640

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.35

 8
13753-65680

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.45

 8
13753-65720

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.55

 8
13753-65840

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.85

 8
13753-65660

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.40

 8
13753-65700

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.50

 8
13753-65820

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.80

 8
13753-6B030

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.05

 8
13753-65780

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.70

 8
13753-65800

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.75

 8
13753-6B070

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.15

 8
13753-6B090

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.20

 8
13753-65880

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.95

 8
13753-6B010

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.00

 8
13753-65860

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.90

 8
13753-65760

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.65

 8
13753-6B130

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.30

 8
13753-65740

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=2.60

 8
13753-6B050

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.10

 8
13753-6B110

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.25

 8
13753-6B150

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.35

 8
13753-6B170

1RZ#,2RZE..RZH10#,11#,12#,133

厚さ=3.40

 8
Common parts
90109-08181
90116-08367
90179-08040
90910-02093
91641-80818
Linked diagrams
1105
