RZH102V-RFMBE (1993)

Toyota Hiace/Regiusace

Production Aug 1993 - Aug 1998
Engine 1RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

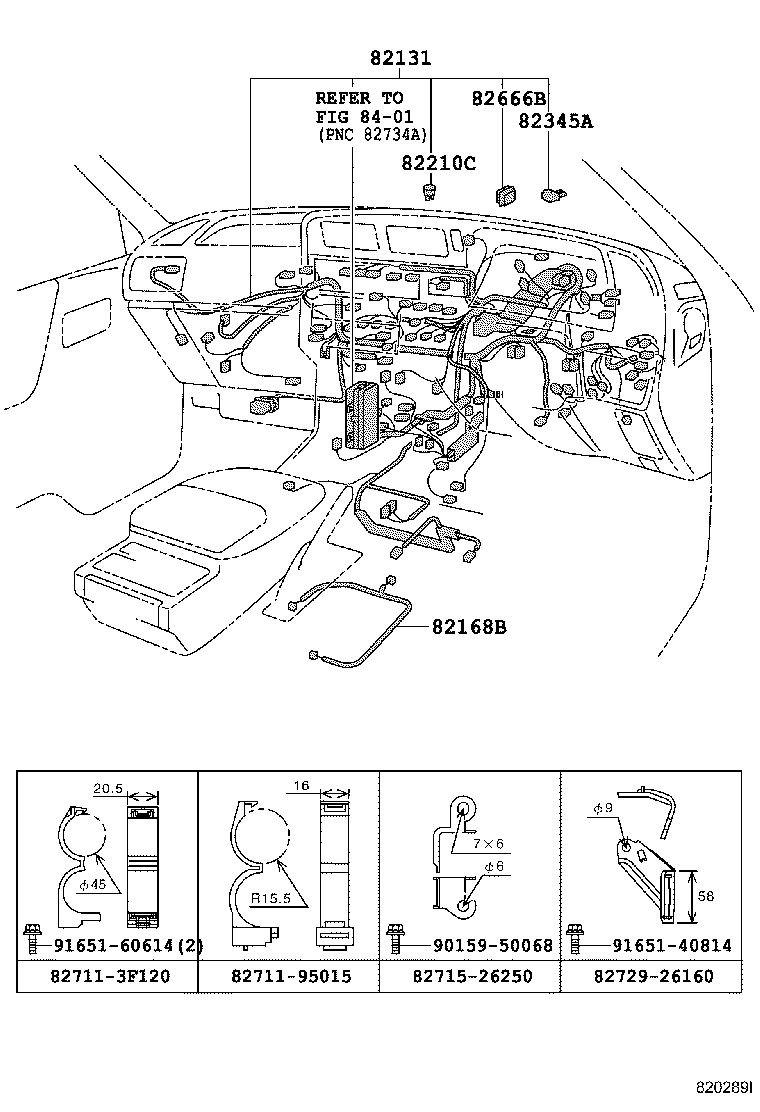

ILLUST NO. 4 OF13(9608- )

Click highlighted areas on diagram

ｶｳﾙ

diagram 82131 82168B 82210C 82345A 82666B 827113F120 8271195015 8271526250 8272926160 8401 9015950068 9165140814 9165160614
Part # Description Qty Price
82131 - WIRE, COWL
82131-26880

RZH102,112,124

 1
82210C - FUSIBLE LINK
90982-08202

RZH112..(03S,06S)..5F..EFI;RZH112..(03S,06S)..(CD,DX)..CBR;RZH102,12#..(03S,06S,15S)..(CD,DX)

60A,ｵｽ端子,黄

 1
90982-08280

KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133

30A,ﾒｽ端子,桃

 3
90982-08281

KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133

40A,ﾒｽ端子,緑,YAZAKI

 1
90982-08246

KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL

100A,ｵｽ端子,青

 1
90982-08246

LH10#,11#,12#,RZH102,112,124,133

100A,ｵｽ端子,青

 1
90982-08203

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

80A,ｵｽ端子,黒

 2
90982-08227

RZH112..5F;RZH112..4FC..GL;LH102,113,119,123..4FC;LH100,107,110,RZH10#,110,12#

50A,ﾒｽ端子,赤

 1
90982-08188

LH107..SCL;LH100,RZH10#,11#,12#..CBR,EFI,TDE

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08227

KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133

50A,ﾒｽ端子,赤

 1
90982-08189

LH120..GCGE,GCGN;KZH10#,11#,12#,LH10#,11#,123,125,129,140,RZH10#,11#,12#

40A,ﾒｽ端子,緑,TAIHEIYO

 2
90982-08246

RZH112..5F;RZH112..4FC..GL;LH102,113,119,123..4FC;LH100,107,110,RZH10#,110,12#

100A,ｵｽ端子,青

 1
90982-08188

KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
Common parts
82711-3F120
82711-95015
82715-26250
82729-26160
90159-50068
91651-40814
91651-60614
Linked diagrams
8401

ILLUST NO. 3 OF13(9308- )

Click highlighted areas on diagram

ﾍｯﾄﾞﾗﾝﾌﾟ,ﾌｫｸﾞ,ABS

diagram 82020 82024 82025 8271526670 827152F270 9011908103 9011908795
Part # Description Qty Price
82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP
82020-26140

LH10#,11#,12#,RZH102,112,124..CD,DX,GL

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82020-26140

 1
Common parts
82715-26670
82715-2F270
90119-08103
90119-08795
