RZH101G-MRPGE (1989)
Toyota Hiace/Regiusace
(8908-9308)LH100,107,RZH100,101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-26040 |
LH100..SMRF,SRF;RZH100,101..08S,09S |
2 | ||
| 48231-26100 |
RZH100,101;LH100..08S,09S |
2 | ||
| 48231-26140 |
KZH100,RZH100,101 |
2 | ||
| 48231-26140 |
RZH101 |
2 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-26030 |
RZH101,111 |
2 | ||
| 48257-26030 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-26010 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48258-26010 |
RZH101,111 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26120 |
KZH100,LH100,RZH100,101 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80403 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26320,ｱﾘ(TEMS) |
1 | ||
| 48531-80402 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80423 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26321,ｱﾘ(TEMS) |
1 | ||
| 48531-80139 |
LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80429 |
KZH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80428 |
KZH100,110,120,RZH100,101..08S,09S,10S |
1 | ||
| 48531-80138 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80461 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80462 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80575 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80574 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80667 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80574 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80667 |
KZH100,110,120,132,RZH101,111,133..03S,08S,10S |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80403 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26320,ｱﾘ(TEMS) |
1 | ||
| 48531-80402 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80423 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26321,ｱﾘ(TEMS) |
1 | ||
| 48531-80139 |
LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80429 |
KZH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80428 |
KZH100,110,120,RZH100,101..08S,09S,10S |
1 | ||
| 48531-80138 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80461 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80462 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80575 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80574 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80667 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80574 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80667 |
KZH100,110,120,132,RZH101,111,133..03S,08S,10S |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-02169 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,10S |
2 | ||
| 90948-02070 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-02169 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,10S |
2 | ||
| 90948-02070 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02077 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02076 |
LH100,107,RZH100,101 |
4 | ||
| 90948-02076 |
KZH10#,LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
LH107;KZH10#,11#,12#,LH100,RZH100,101..08S,09S,10S |
4 | ||
| 90948-02165 |
KZH10#,RZH101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 上側 |
2 | ||
| 90948-02165 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 下側 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02076 |
LH100,107,RZH100,101 |
4 | ||
| 90948-02076 |
KZH10#,LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
LH107;KZH10#,11#,12#,LH100,RZH100,101..08S,09S,10S |
4 | ||
| 90948-02165 |
KZH10#,RZH101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 上側 |
2 | ||
| 90948-02165 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 下側 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02076 |
LH100,107,RZH100,101 |
4 | ||
| 90948-02076 |
KZH10#,LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
LH107;KZH10#,11#,12#,LH100,RZH100,101..08S,09S,10S |
4 | ||
| 90948-02165 |
KZH10#,RZH101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 上側 |
2 | ||
| 90948-02165 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 下側 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-02169 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-02169 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01040 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-01041 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-01040 |
RZH101,111..08S,10S |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01040 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-01041 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-01040 |
RZH101,111..08S,10S |
2 | ||
| 48530L - CUSHION, REAR SHOCK ABSORBER, NO.3 | ||||
| 90948-01046 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-01042 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-01046 |
RZH101,111..08S,10S |
2 | ||
| 48530L - CUSHION, REAR SHOCK ABSORBER, NO.3 | ||||
| 90948-01046 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-01042 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-01046 |
RZH101,111..08S,10S |
2 | ||
| 48530M - CUSHION, REAR SHOCK ABSORBER, NO.4 | ||||
| 90948-01059 |
RZH101,111 |
2 | ||
| 90948-01059 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 90948-01046 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
2 | ||
| 48530M - CUSHION, REAR SHOCK ABSORBER, NO.4 | ||||
| 90948-01059 |
RZH101,111 |
2 | ||
| 90948-01059 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 90948-01046 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
2 | ||
| 48530N - CUSHION, REAR SHOCK ABSORBER, NO.5 | ||||
| 90948-01040 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
2 | ||
| 90948-01060 |
RZH101,111 |
2 | ||
| 90948-01060 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 48530N - CUSHION, REAR SHOCK ABSORBER, NO.5 | ||||
| 90948-01040 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
2 | ||
| 90948-01060 |
RZH101,111 |
2 | ||
| 90948-01060 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 48539 - BRACKET, ACTUATOR SUPPORT, RR | ||||
| 48539-26010 |
KZH10#,LH100,107,RZH100,101..07S,08S |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80402 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80422 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26321,ｱﾘ(TEMS) |
1 | ||
| 48531-80141 |
LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80138 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80428 |
KZH100,110,120,RZH100,101..08S,09S,10S |
1 | ||
| 48531-80417 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26320,ｱﾘ(TEMS) |
1 | ||
| 48531-80429 |
KZH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80462 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80461 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80574 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80574 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80575 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80667 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80667 |
KZH100,110,120,132,RZH101,111,133..03S,08S,10S |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80402 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80422 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26321,ｱﾘ(TEMS) |
1 | ||
| 48531-80141 |
LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80138 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80428 |
KZH100,110,120,RZH100,101..08S,09S,10S |
1 | ||
| 48531-80417 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26320,ｱﾘ(TEMS) |
1 | ||
| 48531-80429 |
KZH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80462 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80461 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80574 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80574 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80575 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80667 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80667 |
KZH100,110,120,132,RZH101,111,133..03S,08S,10S |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 48597-26020 |
KZH10#,LH100,107,RZH100,101..07S,08S 左側 |
1 | ||
| 48597-26010 |
KZH10#,LH100,107,RZH100,101..07S,08S 右側 |
1 | ||
| 48702 - BUSH SUB-ASSY, UPPER CONTROL ARM | ||||
| 48702-28080 |
RZH101,111 |
4 | ||
| 48702-26060 |
LH100,107,RZH100,101 |
2 | ||
| 48702-28080 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
4 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-26041 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 ﾌﾛﾝﾄ |
2 | ||
| 48702-26040 |
LH100,107,RZH100,101 ﾌﾛﾝﾄ |
2 | ||
| 48702-26050 |
LH100,107,RZH100,101 ﾘﾔ |
2 | ||
| 48702-26051 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 ﾘﾔ |
2 | ||
| 48702-26051 |
RZH101,111 ﾘﾔ |
2 | ||
| 48702-26041 |
RZH101,111 ﾌﾛﾝﾄ |
2 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-26041 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 ﾌﾛﾝﾄ |
2 | ||
| 48702-26040 |
LH100,107,RZH100,101 ﾌﾛﾝﾄ |
2 | ||
| 48702-26050 |
LH100,107,RZH100,101 ﾘﾔ |
2 | ||
| 48702-26051 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 ﾘﾔ |
2 | ||
| 48702-26051 |
RZH101,111 ﾘﾔ |
2 | ||
| 48702-26041 |
RZH101,111 ﾌﾛﾝﾄ |
2 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90209-21001 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 90209-21001 |
RZH101,111 |
1 | ||
| 48703G - ARM SUB-ASSY, LOWER CONTROL, RH | ||||
| 48703-26030 |
LH100,107,RZH100,101 |
1 | ||
| 48706C - BUSH SUB-ASSY, LATERAL CONTROL ROD | ||||
| 48706-30020 |
LH100,107,RZH100,101 |
1 | ||
| 48707A - ARM SUB-ASSY, LWR CONTROL, LH | ||||
| 48703-26030 |
LH100,107,RZH100,101 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48770-26020 |
RZH101,111 |
1 | ||
| 48710-26040 |
LH100,107,RZH100,101 |
2 | ||
| 48770-26020 |
LH100,107,RZH100,101 |
2 | ||
| 48770-26020 |
KZH10#,11#,126,138,RZH100,101,111 |
1 | ||
| 48724 - DAMPER, LWR CONTROL ARM DYNAMIC | ||||
| 48724-26010 |
RZH101,111 |
2 | ||
| 48724-26010 |
LH100,107,RZH100,101,111,133 |
2 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-26020 |
LH100,107,RZH100,101 |
1 | ||
| 48740-26040 |
KZH10#,11#,RZH100,101,111 |
1 | ||
| 48740-26040 |
RZH101,111 |
1 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90385-20005 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
2 | ||
| 90385-20005 |
RZH101,111 |
2 | ||
| 90385-20006 |
LH100,107,RZH100,101 |
2 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90385-20005 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
2 | ||
| 90385-20005 |
RZH101,111 |
2 | ||
| 90385-20006 |
LH100,107,RZH100,101 |
2 | ||
| 48749 - COVER, LATERAL CONTROL ROD NUT | ||||
| 48749-26010 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-26060 |
LH100,RZH100,101 |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13008 |
RZH101,111 |
4 | ||
| 90385-13008 |
KZH10#,11#,120,13#,RZH101,111 |
4 | ||
| 90385-13004 |
KZH10#,11#,12#,RZH100,101 |
4 | ||
| 90385-13008 |
KZH10#,11#,12#,13#,RZH101,111,133 |
4 | ||
| 90385-11021 |
LH100,107,RZH100,101 |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90387-10161 |
KZH10#,11#,120,13#,RZH101,111 NO.2 |
2 | ||
| 90560-10044 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
4 | ||
| 90387-10161 |
RZH101,111 |
4 | ||
| 90387-10161 |
KZH10#,11#,12#,13#,RZH101,111,133 |
4 | ||
| 90560-10275 |
LH100,107,RZH100,101 |
2 | ||
| 90560-10044 |
KZH10#,11#,120,13#,RZH101,111 NO.1 |
2 | ||
| 90560-10044 |
KZH10#,11#,12#,13#,RZH101,111,133 NO.1 |
2 | ||
| 90387-10161 |
KZH10#,11#,12#,13#,RZH101,111,133 NO.2 |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-26080 |
LH100,RZH100,101 |
1 | ||
| 48805-26140 |
KZH100,110,RZH100,101,111 |
1 | ||
| 48805-26140 |
KZH100,110,RZH101,111 |
1 | ||
| 48805-26141 |
RZH101,111 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-26140 |
KZH100,110,RZH100,101,111 |
2 | ||
| 48815-26140 |
RZH101,111 |
2 | ||
| 48815-26080 |
LH100,107,RZH100,101 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-22020 |
LH100,107,RZH100,101 |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-22020 |
LH100,107,RZH100,101 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
LH100,107,RZH100,101 NO.1 |
2 | ||
| 90948-02032 |
LH100,107,RZH100,101 NO.2 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
LH100,107,RZH100,101 NO.1 |
2 | ||
| 90948-02032 |
LH100,107,RZH100,101 NO.2 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
LH100,107,RZH100,101 NO.1 |
2 | ||
| 90948-02032 |
LH100,107,RZH100,101 NO.2 |
4 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 91112-71040 |
LH100,107,RZH100,101 |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-26050 |
LH100,107,RZH100,101 |
2 | ||
| 48823-26130 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
2 | ||
| 48823-26120 |
LH100,107,RZH100,101 |
2 | ||
| 48823-26130 |
RZH101,111 |
2 | ||
| Common parts | ||||
| 90105-16008 | ||||
| 90105-16012 | ||||
| 90105-16013 | ||||
| 90119-08583 | ||||
| 90119-08915 | ||||
| 90170-08015 | ||||
| 90179-10022 | ||||
| 90179-10172 | ||||
| 91611-60820 | ||||
| 94182-10800 | ||||
| 94184-61600 | ||||
| 94187-11200 | ||||
| 94612-10800 | ||||
| 94613-11600 | ||||

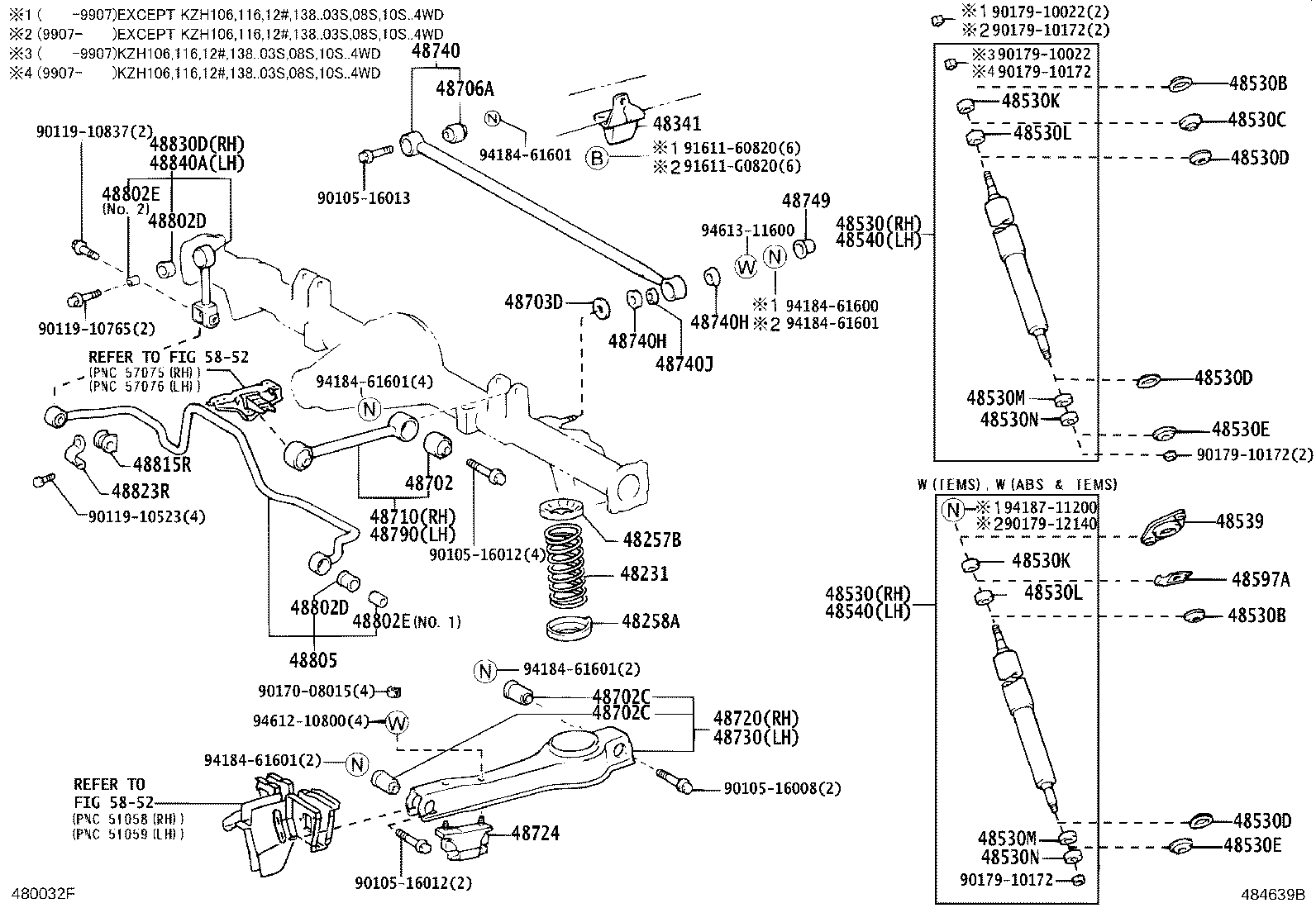

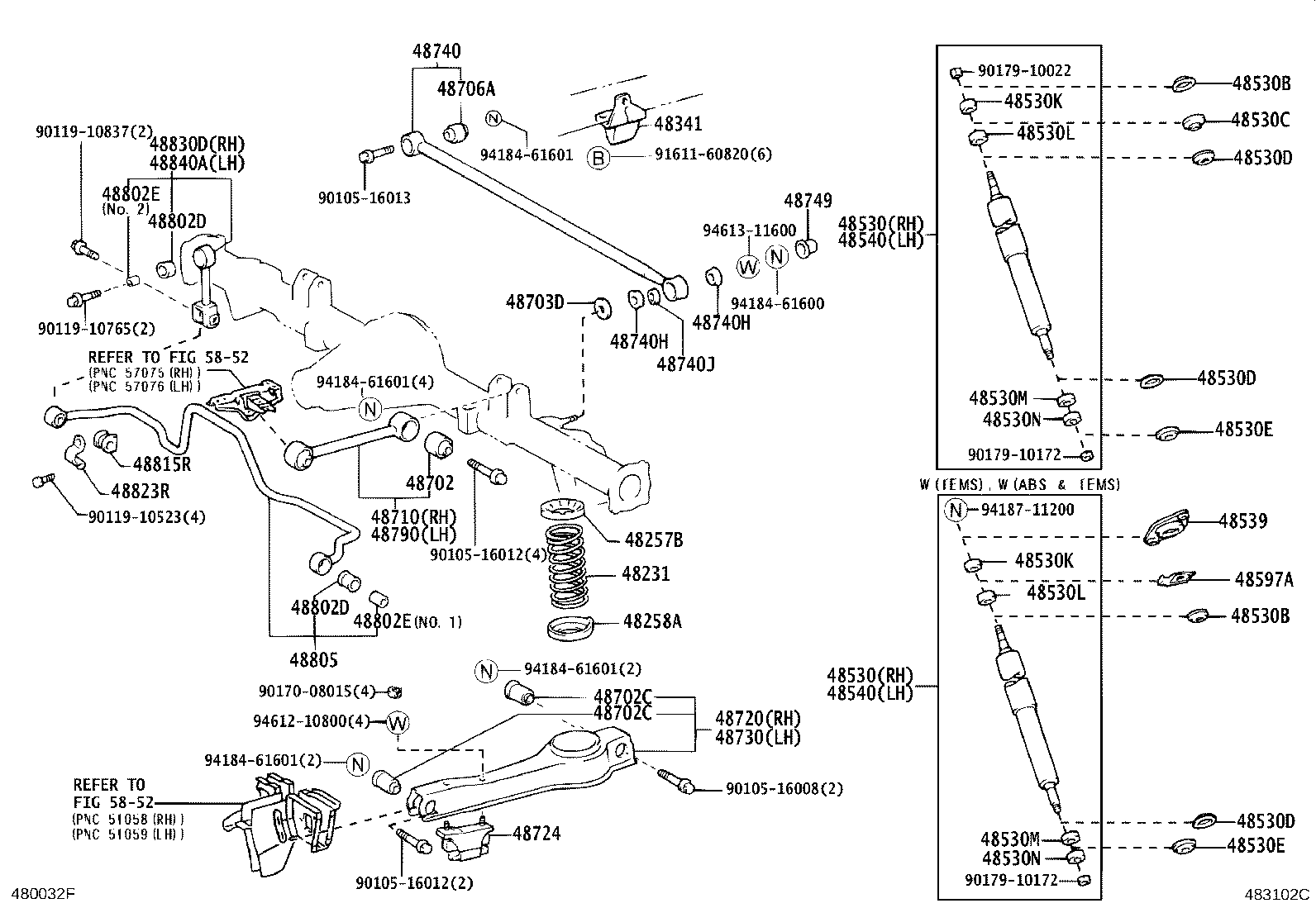

(9308-9607)KZH10#,11#,12#,13#,RZH100,101,111,133
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-26040 |
LH100..SMRF,SRF;RZH100,101..08S,09S |
2 | ||
| 48231-26100 |
RZH100,101;LH100..08S,09S |
2 | ||
| 48231-26140 |
KZH100,RZH100,101 |
2 | ||
| 48231-26140 |
RZH101 |
2 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-26030 |
RZH101,111 |
2 | ||
| 48257-26030 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-26010 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48258-26010 |
RZH101,111 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26120 |
KZH100,LH100,RZH100,101 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80403 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26320,ｱﾘ(TEMS) |
1 | ||
| 48531-80402 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80423 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26321,ｱﾘ(TEMS) |
1 | ||
| 48531-80139 |
LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80429 |
KZH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80428 |
KZH100,110,120,RZH100,101..08S,09S,10S |
1 | ||
| 48531-80138 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80461 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80462 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80575 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80574 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80667 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80574 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80667 |
KZH100,110,120,132,RZH101,111,133..03S,08S,10S |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80403 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26320,ｱﾘ(TEMS) |
1 | ||
| 48531-80402 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80423 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26321,ｱﾘ(TEMS) |
1 | ||
| 48531-80139 |
LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80429 |
KZH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80428 |
KZH100,110,120,RZH100,101..08S,09S,10S |
1 | ||
| 48531-80138 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80461 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80462 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80575 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80574 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80667 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80574 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80667 |
KZH100,110,120,132,RZH101,111,133..03S,08S,10S |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-02169 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,10S |
2 | ||
| 90948-02070 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-02169 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,10S |
2 | ||
| 90948-02070 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02077 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02076 |
LH100,107,RZH100,101 |
4 | ||
| 90948-02076 |
KZH10#,LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
LH107;KZH10#,11#,12#,LH100,RZH100,101..08S,09S,10S |
4 | ||
| 90948-02165 |
KZH10#,RZH101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 上側 |
2 | ||
| 90948-02165 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 下側 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02076 |
LH100,107,RZH100,101 |
4 | ||
| 90948-02076 |
KZH10#,LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
LH107;KZH10#,11#,12#,LH100,RZH100,101..08S,09S,10S |
4 | ||
| 90948-02165 |
KZH10#,RZH101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 上側 |
2 | ||
| 90948-02165 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 下側 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02076 |
LH100,107,RZH100,101 |
4 | ||
| 90948-02076 |
KZH10#,LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
LH107;KZH10#,11#,12#,LH100,RZH100,101..08S,09S,10S |
4 | ||
| 90948-02165 |
KZH10#,RZH101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 上側 |
2 | ||
| 90948-02165 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 下側 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-02169 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-02169 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01040 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-01041 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-01040 |
RZH101,111..08S,10S |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01040 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-01041 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-01040 |
RZH101,111..08S,10S |
2 | ||
| 48530L - CUSHION, REAR SHOCK ABSORBER, NO.3 | ||||
| 90948-01046 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-01042 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-01046 |
RZH101,111..08S,10S |
2 | ||
| 48530L - CUSHION, REAR SHOCK ABSORBER, NO.3 | ||||
| 90948-01046 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-01042 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-01046 |
RZH101,111..08S,10S |
2 | ||
| 48530M - CUSHION, REAR SHOCK ABSORBER, NO.4 | ||||
| 90948-01059 |
RZH101,111 |
2 | ||
| 90948-01059 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 90948-01046 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
2 | ||
| 48530M - CUSHION, REAR SHOCK ABSORBER, NO.4 | ||||
| 90948-01059 |
RZH101,111 |
2 | ||
| 90948-01059 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 90948-01046 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
2 | ||
| 48530N - CUSHION, REAR SHOCK ABSORBER, NO.5 | ||||
| 90948-01040 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
2 | ||
| 90948-01060 |
RZH101,111 |
2 | ||
| 90948-01060 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 48530N - CUSHION, REAR SHOCK ABSORBER, NO.5 | ||||
| 90948-01040 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
2 | ||
| 90948-01060 |
RZH101,111 |
2 | ||
| 90948-01060 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 48539 - BRACKET, ACTUATOR SUPPORT, RR | ||||
| 48539-26010 |
KZH10#,LH100,107,RZH100,101..07S,08S |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80402 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80422 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26321,ｱﾘ(TEMS) |
1 | ||
| 48531-80141 |
LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80138 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80428 |
KZH100,110,120,RZH100,101..08S,09S,10S |
1 | ||
| 48531-80417 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26320,ｱﾘ(TEMS) |
1 | ||
| 48531-80429 |
KZH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80462 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80461 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80574 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80574 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80575 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80667 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80667 |
KZH100,110,120,132,RZH101,111,133..03S,08S,10S |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80402 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80422 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26321,ｱﾘ(TEMS) |
1 | ||
| 48531-80141 |
LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80138 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80428 |
KZH100,110,120,RZH100,101..08S,09S,10S |
1 | ||
| 48531-80417 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26320,ｱﾘ(TEMS) |
1 | ||
| 48531-80429 |
KZH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80462 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80461 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80574 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80574 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80575 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80667 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80667 |
KZH100,110,120,132,RZH101,111,133..03S,08S,10S |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 48597-26020 |
KZH10#,LH100,107,RZH100,101..07S,08S 左側 |
1 | ||
| 48597-26010 |
KZH10#,LH100,107,RZH100,101..07S,08S 右側 |
1 | ||
| 48702 - BUSH SUB-ASSY, UPPER CONTROL ARM | ||||
| 48702-28080 |
RZH101,111 |
4 | ||
| 48702-26060 |
LH100,107,RZH100,101 |
2 | ||
| 48702-28080 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
4 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-26041 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 ﾌﾛﾝﾄ |
2 | ||
| 48702-26040 |
LH100,107,RZH100,101 ﾌﾛﾝﾄ |
2 | ||
| 48702-26050 |
LH100,107,RZH100,101 ﾘﾔ |
2 | ||
| 48702-26051 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 ﾘﾔ |
2 | ||
| 48702-26051 |
RZH101,111 ﾘﾔ |
2 | ||
| 48702-26041 |
RZH101,111 ﾌﾛﾝﾄ |
2 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-26041 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 ﾌﾛﾝﾄ |
2 | ||
| 48702-26040 |
LH100,107,RZH100,101 ﾌﾛﾝﾄ |
2 | ||
| 48702-26050 |
LH100,107,RZH100,101 ﾘﾔ |
2 | ||
| 48702-26051 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 ﾘﾔ |
2 | ||
| 48702-26051 |
RZH101,111 ﾘﾔ |
2 | ||
| 48702-26041 |
RZH101,111 ﾌﾛﾝﾄ |
2 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90209-21001 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 90209-21001 |
RZH101,111 |
1 | ||
| 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD | ||||
| 48706-26020 |
RZH101,111 |
1 | ||
| 48706-26020 |
KZH10#,11#,RZH100,101,111 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48770-26020 |
RZH101,111 |
1 | ||
| 48710-26040 |
LH100,107,RZH100,101 |
2 | ||
| 48770-26020 |
LH100,107,RZH100,101 |
2 | ||
| 48770-26020 |
KZH10#,11#,126,138,RZH100,101,111 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-26061 |
RZH101,111 |
1 | ||
| 48720-26061 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
1 | ||
| 48724 - DAMPER, LWR CONTROL ARM DYNAMIC | ||||
| 48724-26010 |
RZH101,111 |
2 | ||
| 48724-26010 |
LH100,107,RZH100,101,111,133 |
2 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-26061 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
1 | ||
| 48720-26061 |
RZH101,111 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-26020 |
LH100,107,RZH100,101 |
1 | ||
| 48740-26040 |
KZH10#,11#,RZH100,101,111 |
1 | ||
| 48740-26040 |
RZH101,111 |
1 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90385-20005 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
2 | ||
| 90385-20005 |
RZH101,111 |
2 | ||
| 90385-20006 |
LH100,107,RZH100,101 |
2 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90385-20005 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
2 | ||
| 90385-20005 |
RZH101,111 |
2 | ||
| 90385-20006 |
LH100,107,RZH100,101 |
2 | ||
| 48740J - BUSH, NO.2(FOR REAR LATERAL CONTROL ROD) | ||||
| 90386-20001 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
1 | ||
| 90386-20001 |
RZH101,111 |
1 | ||
| 48749 - COVER, LATERAL CONTROL ROD NUT | ||||
| 48749-26010 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-26020 |
KZH10#,11#,126,138,RZH100,101,111 |
1 | ||
| 48790-26020 |
RZH101,111 |
1 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13008 |
RZH101,111 |
4 | ||
| 90385-13008 |
KZH10#,11#,120,13#,RZH101,111 |
4 | ||
| 90385-13004 |
KZH10#,11#,12#,RZH100,101 |
4 | ||
| 90385-13008 |
KZH10#,11#,12#,13#,RZH101,111,133 |
4 | ||
| 90385-11021 |
LH100,107,RZH100,101 |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13008 |
RZH101,111 |
4 | ||
| 90385-13008 |
KZH10#,11#,120,13#,RZH101,111 |
4 | ||
| 90385-13004 |
KZH10#,11#,12#,RZH100,101 |
4 | ||
| 90385-13008 |
KZH10#,11#,12#,13#,RZH101,111,133 |
4 | ||
| 90385-11021 |
LH100,107,RZH100,101 |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90387-10161 |
KZH10#,11#,120,13#,RZH101,111 NO.2 |
2 | ||
| 90560-10044 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
4 | ||
| 90387-10161 |
RZH101,111 |
4 | ||
| 90387-10161 |
KZH10#,11#,12#,13#,RZH101,111,133 |
4 | ||
| 90560-10275 |
LH100,107,RZH100,101 |
2 | ||
| 90560-10044 |
KZH10#,11#,120,13#,RZH101,111 NO.1 |
2 | ||
| 90560-10044 |
KZH10#,11#,12#,13#,RZH101,111,133 NO.1 |
2 | ||
| 90387-10161 |
KZH10#,11#,12#,13#,RZH101,111,133 NO.2 |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90387-10161 |
KZH10#,11#,120,13#,RZH101,111 NO.2 |
2 | ||
| 90560-10044 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
4 | ||
| 90387-10161 |
RZH101,111 |
4 | ||
| 90387-10161 |
KZH10#,11#,12#,13#,RZH101,111,133 |
4 | ||
| 90560-10275 |
LH100,107,RZH100,101 |
2 | ||
| 90560-10044 |
KZH10#,11#,120,13#,RZH101,111 NO.1 |
2 | ||
| 90560-10044 |
KZH10#,11#,12#,13#,RZH101,111,133 NO.1 |
2 | ||
| 90387-10161 |
KZH10#,11#,12#,13#,RZH101,111,133 NO.2 |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-26080 |
LH100,RZH100,101 |
1 | ||
| 48805-26140 |
KZH100,110,RZH100,101,111 |
1 | ||
| 48805-26140 |
KZH100,110,RZH101,111 |
1 | ||
| 48805-26141 |
RZH101,111 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-26140 |
KZH100,110,RZH100,101,111 |
2 | ||
| 48815-26140 |
RZH101,111 |
2 | ||
| 48815-26080 |
LH100,107,RZH100,101 |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-26050 |
LH100,107,RZH100,101 |
2 | ||
| 48823-26130 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
2 | ||
| 48823-26120 |
LH100,107,RZH100,101 |
2 | ||
| 48823-26130 |
RZH101,111 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-26010 |
KZH100,110,120,132,RZH100,101,111,133 |
1 | ||
| 48830-26011 |
RZH101,111 |
1 | ||
| 48830-26010 |
KZH100,110,120,132,RZH101,111..2WD |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-26010 |
KZH100,110,120,132,RZH101,111..2WD |
1 | ||
| 48830-26010 |
KZH100,110,120,132,RZH100,101,111,133 |
1 | ||
| 48830-26011 |
RZH101,111 |
1 | ||
| Common parts | ||||
| 90105-16008 | ||||
| 90105-16012 | ||||
| 90105-16013 | ||||
| 90119-10523 | ||||
| 90119-10765 | ||||
| 90119-10837 | ||||
| 90170-08015 | ||||
| 90179-10022 | ||||
| 90179-10172 | ||||
| 91611-60820 | ||||
| 94184-61600 | ||||
| 94184-61601 | ||||
| 94187-11200 | ||||
| 94612-10800 | ||||
| 94613-11600 | ||||

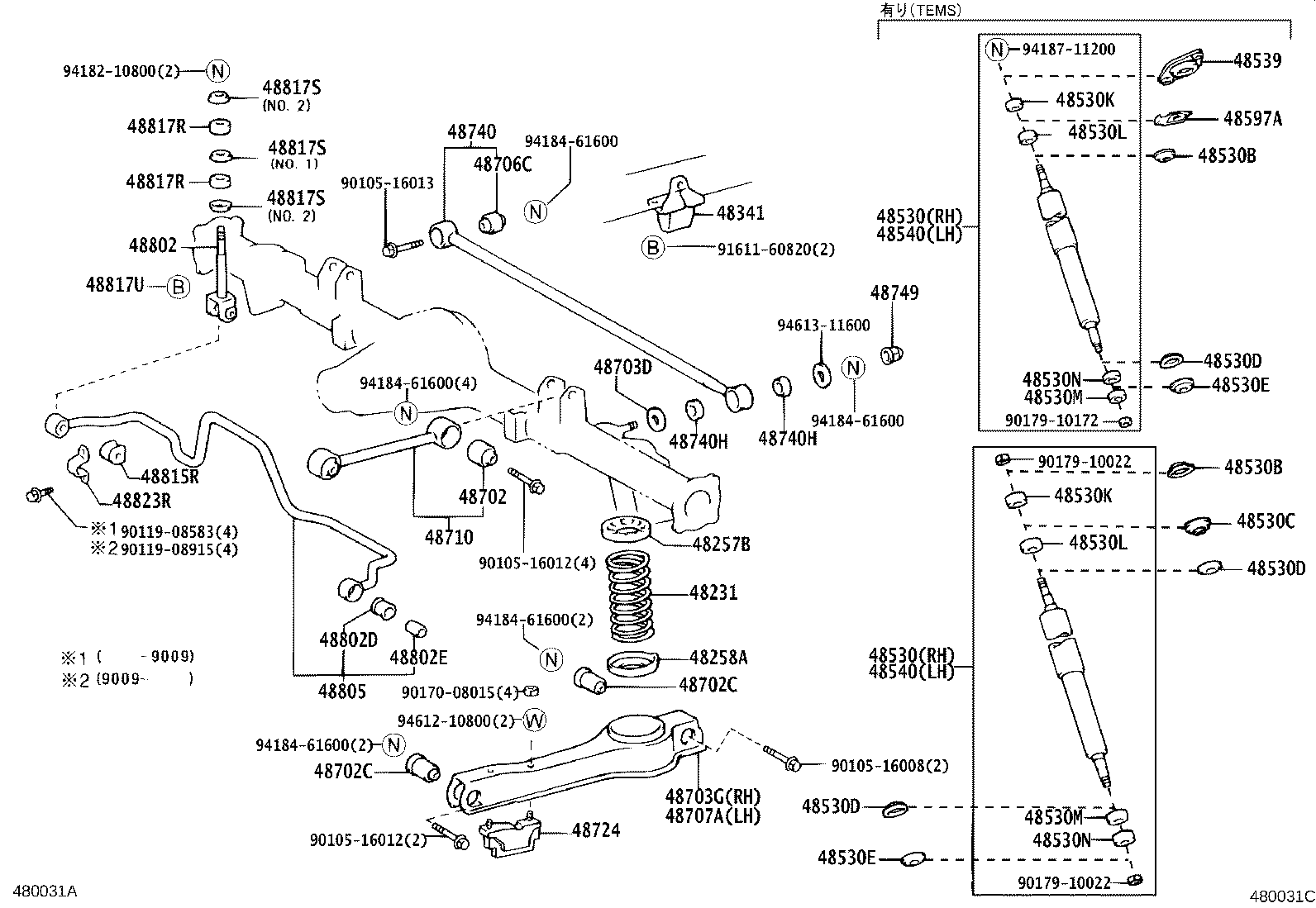

| Linked diagrams | ||||
| 5852 | ||||
(9607- )KZH10#,11#,12#,13#,RZH101,111,133,TRH102,112,12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-26040 |
LH100..SMRF,SRF;RZH100,101..08S,09S |
2 | ||
| 48231-26100 |
RZH100,101;LH100..08S,09S |
2 | ||
| 48231-26140 |
KZH100,RZH100,101 |
2 | ||
| 48231-26140 |
RZH101 |
2 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-26030 |
RZH101,111 |
2 | ||
| 48257-26030 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-26010 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48258-26010 |
RZH101,111 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26120 |
KZH100,LH100,RZH100,101 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80403 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26320,ｱﾘ(TEMS) |
1 | ||
| 48531-80402 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80423 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26321,ｱﾘ(TEMS) |
1 | ||
| 48531-80139 |
LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80429 |
KZH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80428 |
KZH100,110,120,RZH100,101..08S,09S,10S |
1 | ||
| 48531-80138 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80461 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80462 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80575 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80574 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80667 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80574 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80667 |
KZH100,110,120,132,RZH101,111,133..03S,08S,10S |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80403 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26320,ｱﾘ(TEMS) |
1 | ||
| 48531-80402 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80423 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26321,ｱﾘ(TEMS) |
1 | ||
| 48531-80139 |
LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80429 |
KZH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80428 |
KZH100,110,120,RZH100,101..08S,09S,10S |
1 | ||
| 48531-80138 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80461 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80462 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80575 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80574 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80667 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80574 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80667 |
KZH100,110,120,132,RZH101,111,133..03S,08S,10S |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-02169 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,10S |
2 | ||
| 90948-02070 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-02169 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,10S |
2 | ||
| 90948-02070 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02077 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02076 |
LH100,107,RZH100,101 |
4 | ||
| 90948-02076 |
KZH10#,LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
LH107;KZH10#,11#,12#,LH100,RZH100,101..08S,09S,10S |
4 | ||
| 90948-02165 |
KZH10#,RZH101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 上側 |
2 | ||
| 90948-02165 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 下側 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02076 |
LH100,107,RZH100,101 |
4 | ||
| 90948-02076 |
KZH10#,LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
LH107;KZH10#,11#,12#,LH100,RZH100,101..08S,09S,10S |
4 | ||
| 90948-02165 |
KZH10#,RZH101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 上側 |
2 | ||
| 90948-02165 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 下側 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02076 |
LH100,107,RZH100,101 |
4 | ||
| 90948-02076 |
KZH10#,LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
LH107;KZH10#,11#,12#,LH100,RZH100,101..08S,09S,10S |
4 | ||
| 90948-02165 |
KZH10#,RZH101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-02076 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 上側 |
2 | ||
| 90948-02165 |
KZH10#,11#,12#,13#,RZH101,111,133..03S,08S,09S,10S 下側 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-02169 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-02169 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 90948-02125 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01040 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-01041 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-01040 |
RZH101,111..08S,10S |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01040 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-01041 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-01040 |
RZH101,111..08S,10S |
2 | ||
| 48530L - CUSHION, REAR SHOCK ABSORBER, NO.3 | ||||
| 90948-01046 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-01042 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-01046 |
RZH101,111..08S,10S |
2 | ||
| 48530L - CUSHION, REAR SHOCK ABSORBER, NO.3 | ||||
| 90948-01046 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133..03S,08S,09S,10S |
2 | ||
| 90948-01042 |
KZH10#,LH100,107,RZH100,101..07S,08S ｱﾘ(TEMS) |
2 | ||
| 90948-01046 |
RZH101,111..08S,10S |
2 | ||
| 48530M - CUSHION, REAR SHOCK ABSORBER, NO.4 | ||||
| 90948-01059 |
RZH101,111 |
2 | ||
| 90948-01059 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 90948-01046 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
2 | ||
| 48530M - CUSHION, REAR SHOCK ABSORBER, NO.4 | ||||
| 90948-01059 |
RZH101,111 |
2 | ||
| 90948-01059 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 90948-01046 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
2 | ||
| 48530N - CUSHION, REAR SHOCK ABSORBER, NO.5 | ||||
| 90948-01040 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
2 | ||
| 90948-01060 |
RZH101,111 |
2 | ||
| 90948-01060 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 48530N - CUSHION, REAR SHOCK ABSORBER, NO.5 | ||||
| 90948-01040 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
2 | ||
| 90948-01060 |
RZH101,111 |
2 | ||
| 90948-01060 |
KZH10#,11#,12#,13#,RZH101,111,133 |
2 | ||
| 48539 - BRACKET, ACTUATOR SUPPORT, RR | ||||
| 48539-26010 |
KZH10#,LH100,107,RZH100,101..07S,08S |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80402 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80422 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26321,ｱﾘ(TEMS) |
1 | ||
| 48531-80141 |
LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80138 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80428 |
KZH100,110,120,RZH100,101..08S,09S,10S |
1 | ||
| 48531-80417 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26320,ｱﾘ(TEMS) |
1 | ||
| 48531-80429 |
KZH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80462 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80461 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80574 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80574 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80575 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80667 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80667 |
KZH100,110,120,132,RZH101,111,133..03S,08S,10S |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80402 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80422 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26321,ｱﾘ(TEMS) |
1 | ||
| 48531-80141 |
LH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80138 |
LH100,RZH100,101..08S,09S |
1 | ||
| 48531-80428 |
KZH100,110,120,RZH100,101..08S,09S,10S |
1 | ||
| 48531-80417 |
LH100,RZH100,101..07S,08S ﾏｰｸ 48531−26320,ｱﾘ(TEMS) |
1 | ||
| 48531-80429 |
KZH100,RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80462 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80461 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80574 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80574 |
KZH100,110,120,132,RZH101,111,133..03S,08S,09S,10S |
1 | ||
| 48531-80575 |
KZH100,RZH101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 48531-80667 |
KZH100,110,RZH101,111..08S,10S |
1 | ||
| 48531-80667 |
KZH100,110,120,132,RZH101,111,133..03S,08S,10S |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 48597-26020 |
KZH10#,LH100,107,RZH100,101..07S,08S 左側 |
1 | ||
| 48597-26010 |
KZH10#,LH100,107,RZH100,101..07S,08S 右側 |
1 | ||
| 48702 - BUSH SUB-ASSY, UPPER CONTROL ARM | ||||
| 48702-28080 |
RZH101,111 |
4 | ||
| 48702-26060 |
LH100,107,RZH100,101 |
2 | ||
| 48702-28080 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
4 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-26041 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 ﾌﾛﾝﾄ |
2 | ||
| 48702-26040 |
LH100,107,RZH100,101 ﾌﾛﾝﾄ |
2 | ||
| 48702-26050 |
LH100,107,RZH100,101 ﾘﾔ |
2 | ||
| 48702-26051 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 ﾘﾔ |
2 | ||
| 48702-26051 |
RZH101,111 ﾘﾔ |
2 | ||
| 48702-26041 |
RZH101,111 ﾌﾛﾝﾄ |
2 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48702-26041 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 ﾌﾛﾝﾄ |
2 | ||
| 48702-26040 |
LH100,107,RZH100,101 ﾌﾛﾝﾄ |
2 | ||
| 48702-26050 |
LH100,107,RZH100,101 ﾘﾔ |
2 | ||
| 48702-26051 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 ﾘﾔ |
2 | ||
| 48702-26051 |
RZH101,111 ﾘﾔ |
2 | ||
| 48702-26041 |
RZH101,111 ﾌﾛﾝﾄ |
2 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90209-21001 |
KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133 |
1 | ||
| 90209-21001 |
RZH101,111 |
1 | ||
| 48706A - BUSH SUB-ASSY, REAR LATERAL CONTROL ROD | ||||
| 48706-26020 |
RZH101,111 |
1 | ||
| 48706-26020 |
KZH10#,11#,RZH100,101,111 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48770-26020 |
RZH101,111 |
1 | ||
| 48710-26040 |
LH100,107,RZH100,101 |
2 | ||
| 48770-26020 |
LH100,107,RZH100,101 |
2 | ||
| 48770-26020 |
KZH10#,11#,126,138,RZH100,101,111 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-26061 |
RZH101,111 |
1 | ||
| 48720-26061 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
1 | ||
| 48724 - DAMPER, LWR CONTROL ARM DYNAMIC | ||||
| 48724-26010 |
RZH101,111 |
2 | ||
| 48724-26010 |
LH100,107,RZH100,101,111,133 |
2 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-26061 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
1 | ||
| 48720-26061 |
RZH101,111 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-26020 |
LH100,107,RZH100,101 |
1 | ||
| 48740-26040 |
KZH10#,11#,RZH100,101,111 |
1 | ||
| 48740-26040 |
RZH101,111 |
1 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90385-20005 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
2 | ||
| 90385-20005 |
RZH101,111 |
2 | ||
| 90385-20006 |
LH100,107,RZH100,101 |
2 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90385-20005 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
2 | ||
| 90385-20005 |
RZH101,111 |
2 | ||
| 90385-20006 |
LH100,107,RZH100,101 |
2 | ||
| 48740J - BUSH, NO.2(FOR REAR LATERAL CONTROL ROD) | ||||
| 90386-20001 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
1 | ||
| 90386-20001 |
RZH101,111 |
1 | ||
| 48749 - COVER, LATERAL CONTROL ROD NUT | ||||
| 48749-26010 |
KZH10#,11#,12#,LH100,107,RZH100,101 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-26020 |
KZH10#,11#,126,138,RZH100,101,111 |
1 | ||
| 48790-26020 |
RZH101,111 |
1 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13008 |
RZH101,111 |
4 | ||
| 90385-13008 |
KZH10#,11#,120,13#,RZH101,111 |
4 | ||
| 90385-13004 |
KZH10#,11#,12#,RZH100,101 |
4 | ||
| 90385-13008 |
KZH10#,11#,12#,13#,RZH101,111,133 |
4 | ||
| 90385-11021 |
LH100,107,RZH100,101 |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13008 |
RZH101,111 |
4 | ||
| 90385-13008 |
KZH10#,11#,120,13#,RZH101,111 |
4 | ||
| 90385-13004 |
KZH10#,11#,12#,RZH100,101 |
4 | ||
| 90385-13008 |
KZH10#,11#,12#,13#,RZH101,111,133 |
4 | ||
| 90385-11021 |
LH100,107,RZH100,101 |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90387-10161 |
KZH10#,11#,120,13#,RZH101,111 NO.2 |
2 | ||
| 90560-10044 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
4 | ||
| 90387-10161 |
RZH101,111 |
4 | ||
| 90387-10161 |
KZH10#,11#,12#,13#,RZH101,111,133 |
4 | ||
| 90560-10275 |
LH100,107,RZH100,101 |
2 | ||
| 90560-10044 |
KZH10#,11#,120,13#,RZH101,111 NO.1 |
2 | ||
| 90560-10044 |
KZH10#,11#,12#,13#,RZH101,111,133 NO.1 |
2 | ||
| 90387-10161 |
KZH10#,11#,12#,13#,RZH101,111,133 NO.2 |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90387-10161 |
KZH10#,11#,120,13#,RZH101,111 NO.2 |
2 | ||
| 90560-10044 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
4 | ||
| 90387-10161 |
RZH101,111 |
4 | ||
| 90387-10161 |
KZH10#,11#,12#,13#,RZH101,111,133 |
4 | ||
| 90560-10275 |
LH100,107,RZH100,101 |
2 | ||
| 90560-10044 |
KZH10#,11#,120,13#,RZH101,111 NO.1 |
2 | ||
| 90560-10044 |
KZH10#,11#,12#,13#,RZH101,111,133 NO.1 |
2 | ||
| 90387-10161 |
KZH10#,11#,12#,13#,RZH101,111,133 NO.2 |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-26080 |
LH100,RZH100,101 |
1 | ||
| 48805-26140 |
KZH100,110,RZH100,101,111 |
1 | ||
| 48805-26140 |
KZH100,110,RZH101,111 |
1 | ||
| 48805-26141 |
RZH101,111 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-26140 |
KZH100,110,RZH100,101,111 |
2 | ||
| 48815-26140 |
RZH101,111 |
2 | ||
| 48815-26080 |
LH100,107,RZH100,101 |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-26050 |
LH100,107,RZH100,101 |
2 | ||
| 48823-26130 |
KZH10#,11#,12#,13#,RZH100,101,111,133 |
2 | ||
| 48823-26120 |
LH100,107,RZH100,101 |
2 | ||
| 48823-26130 |
RZH101,111 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-26010 |
KZH100,110,120,132,RZH100,101,111,133 |
1 | ||
| 48830-26011 |
RZH101,111 |
1 | ||
| 48830-26010 |
KZH100,110,120,132,RZH101,111..2WD |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-26010 |
KZH100,110,120,132,RZH101,111..2WD |
1 | ||
| 48830-26010 |
KZH100,110,120,132,RZH100,101,111,133 |
1 | ||
| 48830-26011 |
RZH101,111 |
1 | ||
| Common parts | ||||
| 90105-16008 | ||||
| 90105-16012 | ||||
| 90105-16013 | ||||
| 90119-10523 | ||||
| 90119-10765 | ||||
| 90119-10837 | ||||
| 90170-08015 | ||||
| 90179-10022 | ||||
| 90179-10172 | ||||
| 90179-12140 | ||||
| 91611-60820 | ||||
| 91611-G0820 | ||||
| 94184-61600 | ||||
| 94184-61601 | ||||
| 94187-11200 | ||||
| 94612-10800 | ||||
| 94613-11600 | ||||
| Linked diagrams | ||||
| 5852 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
