RZH101G-MFPQE (1989)
Toyota Hiace/Regiusace

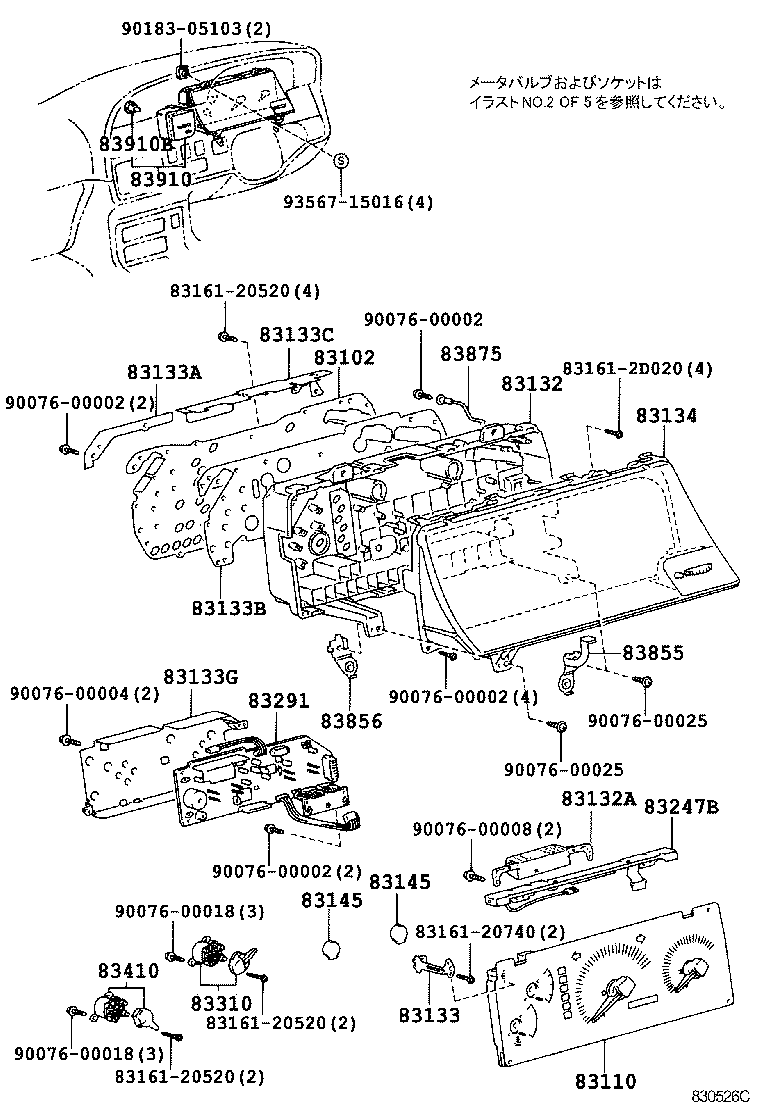

ILLUST NO. 1 OF 5(9308-9608)
ｽﾋﾟｰﾄﾞﾒｰﾀ(ｱﾅﾛｸﾞ:ﾅｼ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95N10 |
RZH100,101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83247-2C020 |
RZH101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 83861-26421 |
RZH101..SCL |
1 | ||
| 83149-2A480 |
RZH101..SCL |
1 | ||
| 83861-26420 |
RZH101..SCL |
1 | ||
| 83861-2F260 |
RZH101..SCL |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-26270 |
RZH101..SCL YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-26140 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83132-26140 |
KZH10#,RZH101..SCL |
1 | ||
| 83841-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83132-95N00 |
LH100,RZH100,101..SCL |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N00 |
RZH100,101..SCL |
1 | ||
| 83134-26280 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83134-26280 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-26560 |
RZH101..SCL |
1 | ||
| 83831-26420 |
RZH101..SCL |
1 | ||
| 83831-26421 |
RZH101..SCL |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2A660 |
KZH10#,RZH101..SCL |
1 | ||
| 83145-26580 |
KZH10#,RZH101..SCL |
1 | ||
| 83145-26890 |
RZH101..SCL |
1 | ||
| 83832-26420 |
RZH101..SCL |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N09 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-95N10 |
RZH100,101..SCL |
1 | ||
| 83145-26140 |
RZH100,101..SCL |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83882-2F260 |
RZH101..SCL YAZAKI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J06 |
LH100,102,107,113,119,RZH100,101..05S,07S,08S ｱﾘ(ｱﾗ-ﾑ & ｽﾄﾂﾌﾟ SW) |
1 | ||
| 83910-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
KZH100..08S..5F;KZH106..4FC..CTM;KZH100,LH103,11#,123,129,RZH100,112..4FC;KZH106,12#,RZH101,102..GCGE,GCGN,GL,SCL,SCM,SCMM |
1 | ||
| 83970-12020 |
KZH10#,11#,120,13#,LH103,11#,123,129,RZH10#,11#,133..4FC |
1 | ||
| 83970-22010 |
RZH100..08S..5F;LH100,RZH101..EFI,TD,TDE;LH102,107,113,119,120,123,RZH100,102,112..4FC |
1 | ||
| Common parts | ||||
| 83161-20880 | ||||
| 83161-26060 | ||||
| 83161-26080 | ||||
| 90183-05103 | ||||
| 93540-14012 | ||||
| 93567-15016 | ||||
ILLUST NO. 1 OF 5(9608-9907) ; (9907- )KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#..03S,0
ｽﾋﾟｰﾄﾞﾒｰﾀ(ｱﾅﾛｸﾞ:ﾅｼ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95N10 |
RZH100,101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83247-2C020 |
RZH101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 83861-26421 |
RZH101..SCL |
1 | ||
| 83149-2A480 |
RZH101..SCL |
1 | ||
| 83861-26420 |
RZH101..SCL |
1 | ||
| 83861-2F260 |
RZH101..SCL |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-26270 |
RZH101..SCL YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-26140 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83132-26140 |
KZH10#,RZH101..SCL |
1 | ||
| 83841-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83132-95N00 |
LH100,RZH100,101..SCL |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N00 |
RZH100,101..SCL |
1 | ||
| 83134-26280 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83134-26280 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-26560 |
RZH101..SCL |
1 | ||
| 83831-26420 |
RZH101..SCL |
1 | ||
| 83831-26421 |
RZH101..SCL |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2A660 |
KZH10#,RZH101..SCL |
1 | ||
| 83145-26580 |
KZH10#,RZH101..SCL |
1 | ||
| 83145-26890 |
RZH101..SCL |
1 | ||
| 83832-26420 |
RZH101..SCL |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N09 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-95N10 |
RZH100,101..SCL |
1 | ||
| 83145-26140 |
RZH100,101..SCL |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83882-2F260 |
RZH101..SCL YAZAKI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J06 |
LH100,102,107,113,119,RZH100,101..05S,07S,08S ｱﾘ(ｱﾗ-ﾑ & ｽﾄﾂﾌﾟ SW) |
1 | ||
| 83910-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90072-02005 |
RZH101,111 14V 1.12W |
1 | ||
| Common parts | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 90183-05103 | ||||
| 93540-14012 | ||||
| 93567-15016 | ||||
ILLUST NO. 1 OF 5(9308-9608)
ｽﾋﾟｰﾄﾞﾒｰﾀ(ｱﾅﾛｸﾞ:ｱﾘ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95N10 |
RZH100,101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83247-2C020 |
RZH101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 83861-26421 |
RZH101..SCL |
1 | ||
| 83149-2A480 |
RZH101..SCL |
1 | ||
| 83861-26420 |
RZH101..SCL |
1 | ||
| 83861-2F260 |
RZH101..SCL |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-26270 |
RZH101..SCL YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-26140 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83132-26140 |
KZH10#,RZH101..SCL |
1 | ||
| 83841-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83132-95N00 |
LH100,RZH100,101..SCL |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N00 |
RZH100,101..SCL |
1 | ||
| 83134-26280 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83134-26280 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-26560 |
RZH101..SCL |
1 | ||
| 83831-26420 |
RZH101..SCL |
1 | ||
| 83831-26421 |
RZH101..SCL |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N09 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N09 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83882-2F260 |
RZH101..SCL YAZAKI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J06 |
LH100,102,107,113,119,RZH100,101..05S,07S,08S ｱﾘ(ｱﾗ-ﾑ & ｽﾄﾂﾌﾟ SW) |
1 | ||
| 83910-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
KZH100..08S..5F;KZH106..4FC..CTM;KZH100,LH103,11#,123,129,RZH100,112..4FC;KZH106,12#,RZH101,102..GCGE,GCGN,GL,SCL,SCM,SCMM |
1 | ||
| 83970-12020 |
KZH10#,11#,120,13#,LH103,11#,123,129,RZH10#,11#,133..4FC |
1 | ||
| 83970-22010 |
RZH100..08S..5F;LH100,RZH101..EFI,TD,TDE;LH102,107,113,119,120,123,RZH100,102,112..4FC |
1 | ||
| Common parts | ||||
| 83161-20880 | ||||
| 83161-26060 | ||||
| 83162-20140 | ||||
| 90183-05103 | ||||
| 93540-14012 | ||||
| 93567-15016 | ||||
ILLUST NO. 1 OF 5(9608-9907) ; (9907- )KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#..03S,0
ｽﾋﾟｰﾄﾞﾒｰﾀ(ｱﾅﾛｸﾞ:ｱﾘ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95N10 |
RZH100,101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83247-2C020 |
RZH101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 83861-26421 |
RZH101..SCL |
1 | ||
| 83149-2A480 |
RZH101..SCL |
1 | ||
| 83861-26420 |
RZH101..SCL |
1 | ||
| 83861-2F260 |
RZH101..SCL |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-26270 |
RZH101..SCL YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-26140 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83132-26140 |
KZH10#,RZH101..SCL |
1 | ||
| 83841-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83132-95N00 |
LH100,RZH100,101..SCL |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N00 |
RZH100,101..SCL |
1 | ||
| 83134-26280 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83134-26280 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-26560 |
RZH101..SCL |
1 | ||
| 83831-26420 |
RZH101..SCL |
1 | ||
| 83831-26421 |
RZH101..SCL |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2A660 |
KZH10#,RZH101..SCL |
1 | ||
| 83145-26580 |
KZH10#,RZH101..SCL |
1 | ||
| 83145-26890 |
RZH101..SCL |
1 | ||
| 83832-26420 |
RZH101..SCL |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N09 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83882-2F260 |
RZH101..SCL YAZAKI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J06 |
LH100,102,107,113,119,RZH100,101..05S,07S,08S ｱﾘ(ｱﾗ-ﾑ & ｽﾄﾂﾌﾟ SW) |
1 | ||
| 83910-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90072-02005 |
RZH101,111 14V 1.12W |
1 | ||
| Common parts | ||||
| 90076-00001 | ||||
| 90076-00002 | ||||
| 90183-05103 | ||||
| 93540-14012 | ||||
| 93567-15016 | ||||

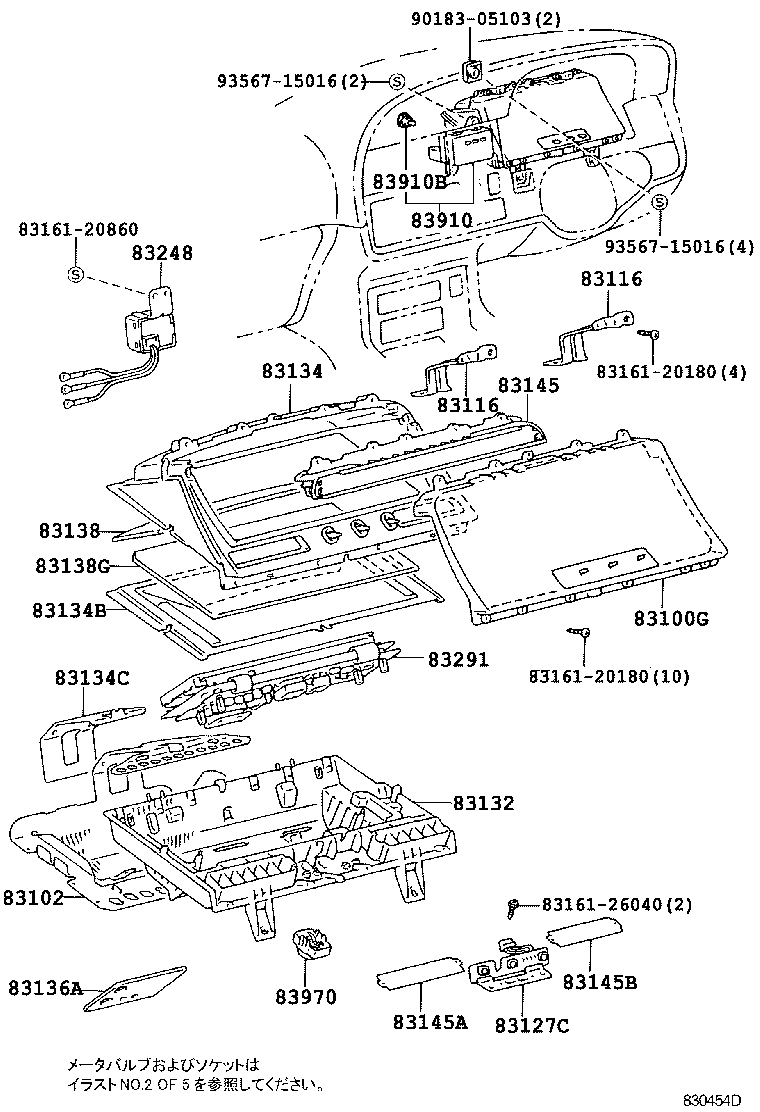

ILLUST NO. 1 OF 5(9308-9907)
ｽﾋﾟｰﾄﾞﾒｰﾀ(ﾃﾞｼﾞﾀﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-26020 |
KZH10#,RZH101..SCL |
1 | ||
| 83138-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95N10 |
RZH100,101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83247-2C020 |
RZH101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 83861-26421 |
RZH101..SCL |
1 | ||
| 83149-2A480 |
RZH101..SCL |
1 | ||
| 83861-26420 |
RZH101..SCL |
1 | ||
| 83861-2F260 |
RZH101..SCL |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
2 | ||
| 83116-26020 |
KZH10#,RZH101..SCL |
2 | ||
| 83116-95N00 |
LH100,107,RZH100,101..07S,08S |
2 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
2 | ||
| 83116-26020 |
KZH10#,RZH101..SCL |
2 | ||
| 83116-95N00 |
LH100,107,RZH100,101..07S,08S |
2 | ||
| 83127C - SWITCH, METER | ||||
| 83127-95N01 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 83145-26620 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 83145-26620 |
KZH10#,RZH101..SCL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-26140 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83132-26140 |
KZH10#,RZH101..SCL |
1 | ||
| 83841-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83132-95N00 |
LH100,RZH100,101..SCL |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N00 |
RZH100,101..SCL |
1 | ||
| 83134-26280 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83134-26280 |
KZH10#,RZH101..SCL |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83134-26100 |
RZH100,101..07S,08S |
1 | ||
| 83134-26100 |
RZH100,101..MRF |
1 | ||
| 83134-26300 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 83134-26300 |
KZH10#,RZH101..SCL |
1 | ||
| 83134-95N02 |
RZH100,101..07S,08S |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-26320 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 83134-26320 |
KZH10#,RZH101..SCL |
1 | ||
| 83136A - COVER, COMBINATION METER | ||||
| 83136-95N00 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 83136-26020 |
KZH10#,RZH101..SCL |
1 | ||
| 83136-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-26040 |
KZH10#,RZH101..SCL |
1 | ||
| 83138-26040 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83138-26060 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 83138-26060 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-26560 |
RZH101..SCL |
1 | ||
| 83831-26420 |
RZH101..SCL |
1 | ||
| 83831-26421 |
RZH101..SCL |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2A660 |
KZH10#,RZH101..SCL |
1 | ||
| 83145-26580 |
KZH10#,RZH101..SCL |
1 | ||
| 83145-26890 |
RZH101..SCL |
1 | ||
| 83832-26420 |
RZH101..SCL |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-30140 |
KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12# |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-26030 |
RZH101 YAZAKI |
1 | ||
| 83291-95J03 |
RZH101..07S,08S YAZAKI |
1 | ||
| 83291-26060 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26101 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26060 |
RZH100,101..07S,08S YAZAKI |
1 | ||
| 83291-26100 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26061 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26062 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26120 |
RZH101..SCL YAZAKI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J06 |
LH100,102,107,113,119,RZH100,101..05S,07S,08S ｱﾘ(ｱﾗ-ﾑ & ｽﾄﾂﾌﾟ SW) |
1 | ||
| 83910-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90072-02005 |
RZH101,111 14V 1.12W |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
KZH100..08S..5F;KZH106..4FC..CTM;KZH100,LH103,11#,123,129,RZH100,112..4FC;KZH106,12#,RZH101,102..GCGE,GCGN,GL,SCL,SCM,SCMM |
1 | ||
| 83970-12020 |
KZH10#,11#,120,13#,LH103,11#,123,129,RZH10#,11#,133..4FC |
1 | ||
| 83970-22010 |
RZH100..08S..5F;LH100,RZH101..EFI,TD,TDE;LH102,107,113,119,120,123,RZH100,102,112..4FC |
1 | ||
| Common parts | ||||
| 83161-20180 | ||||
| 83161-20860 | ||||
| 83161-26040 | ||||
| 90183-05103 | ||||
| 93567-15016 | ||||
ILLUST NO. 1 OF 5(9907- )SCL
ｽﾋﾟｰﾄﾞﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95N10 |
RZH100,101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83247-2C020 |
RZH101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 83861-26421 |
RZH101..SCL |
1 | ||
| 83149-2A480 |
RZH101..SCL |
1 | ||
| 83861-26420 |
RZH101..SCL |
1 | ||
| 83861-2F260 |
RZH101..SCL |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-26270 |
RZH101..SCL YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-26140 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83132-26140 |
KZH10#,RZH101..SCL |
1 | ||
| 83841-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83132-95N00 |
LH100,RZH100,101..SCL |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83132A - CASE, METER | ||||
| 83842-26510 |
RZH101..SCL |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-26510 |
RZH101..SCL |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83812-26510 |
RZH101..SCL |
1 | ||
| 83133B - PLATE, COMBINATION METER, NO.3 | ||||
| 83811-2F260 |
RZH101..SCL |
1 | ||
| 83133C - PLATE, COMBINATION METER,NO.4 | ||||
| 83812-2F260 |
RZH101..SCL |
1 | ||
| 83133G - PLATE,COMBINATION METER | ||||
| 83813-2F260 |
RZH101..SCL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N00 |
RZH100,101..SCL |
1 | ||
| 83134-26280 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83134-26280 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83862-26680 |
RZH101..SCL |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-26030 |
RZH101 YAZAKI |
1 | ||
| 83291-95J03 |
RZH101..07S,08S YAZAKI |
1 | ||
| 83291-26060 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26101 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26060 |
RZH100,101..07S,08S YAZAKI |
1 | ||
| 83291-26100 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26061 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26062 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26120 |
RZH101..SCL YAZAKI |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83882-2F260 |
RZH101..SCL YAZAKI |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-26510 |
RZH101..SCL |
1 | ||
| 83855 - BRACKET, COMBINATION METER, NO.1 | ||||
| 83855-2F260 |
RZH101..SCL |
1 | ||
| 83856 - BRACKET, COMBINATION METER, NO.2 | ||||
| 83856-2F260 |
RZH101..SCL |
1 | ||
| 83875 - WIRE, COMBINATION METER, NO.1 | ||||
| 83875-2F260 |
RZH101..SCL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J06 |
LH100,102,107,113,119,RZH100,101..05S,07S,08S ｱﾘ(ｱﾗ-ﾑ & ｽﾄﾂﾌﾟ SW) |
1 | ||
| 83910-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90072-02005 |
RZH101,111 14V 1.12W |
1 | ||
| Common parts | ||||
| 83161-20520 | ||||
| 83161-20740 | ||||
| 83161-2D020 | ||||
| 90076-00002 | ||||
| 90076-00004 | ||||
| 90076-00008 | ||||
| 90076-00018 | ||||
| 90076-00025 | ||||
| 90183-05103 | ||||
| 93567-15016 | ||||

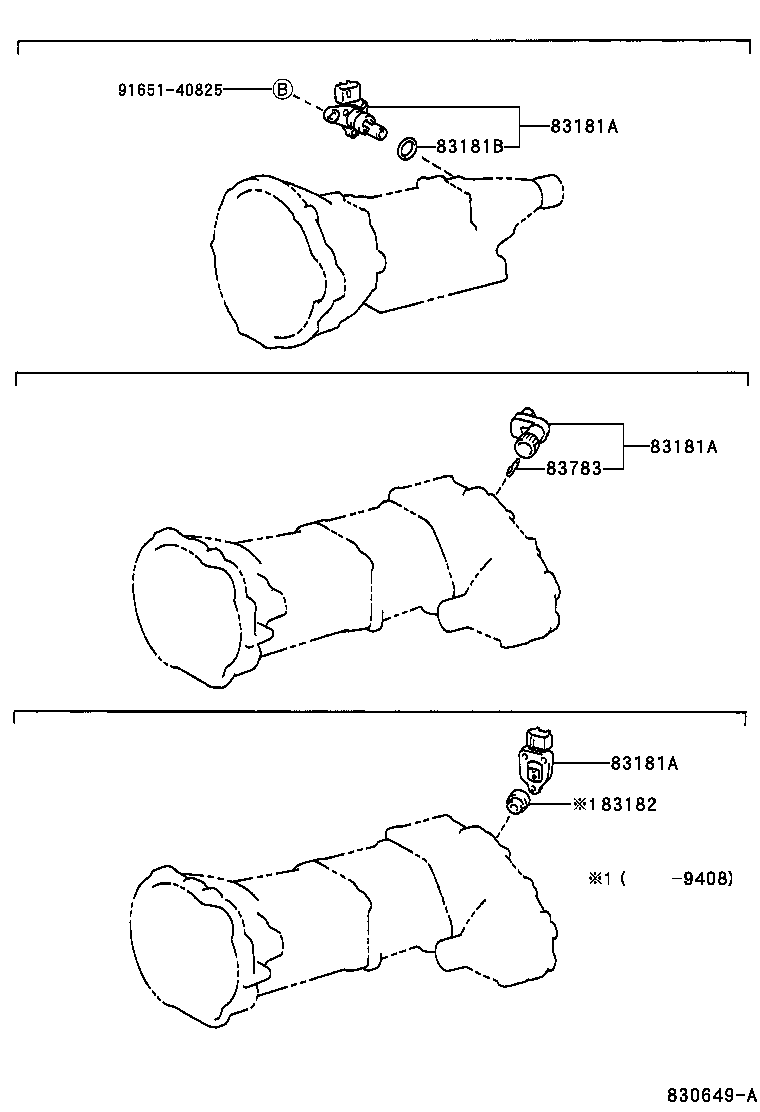

ILLUST NO. 4 OF 5(9308- )KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133,18# ; (0
ｽﾋﾟｰﾄﾞﾒｰﾀ ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-28010 |
KZH100,110,120,132,LH103,113,123,162,172,182,184,RZH10#,11#,12#,133..4FC |
1 | ||
| 83181-28020 |
KZH10#,RZH101..SCL |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-28010 |
KZH100,110,120,132,LH103,113,123,162,172,182,184,RZH10#,11#,12#,133..4FC |
1 | ||
| 83181-28020 |
KZH10#,RZH101..SCL |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-28010 |
KZH100,110,120,132,LH103,113,123,162,172,182,184,RZH10#,11#,12#,133..4FC |
1 | ||
| 83181-28020 |
KZH10#,RZH101..SCL |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18004 |
KZH100,110,120,132,LH103,113,123,162,172,182,184,RZH10#,11#,12#,133..4FC |
1 | ||
| 83182 - MAGNET, SPEEDOMETER SENSOR | ||||
| 83182-28010 |
KZH10#,RZH101..SCL |
1 | ||
| Common parts | ||||
| 91651-40825 | ||||

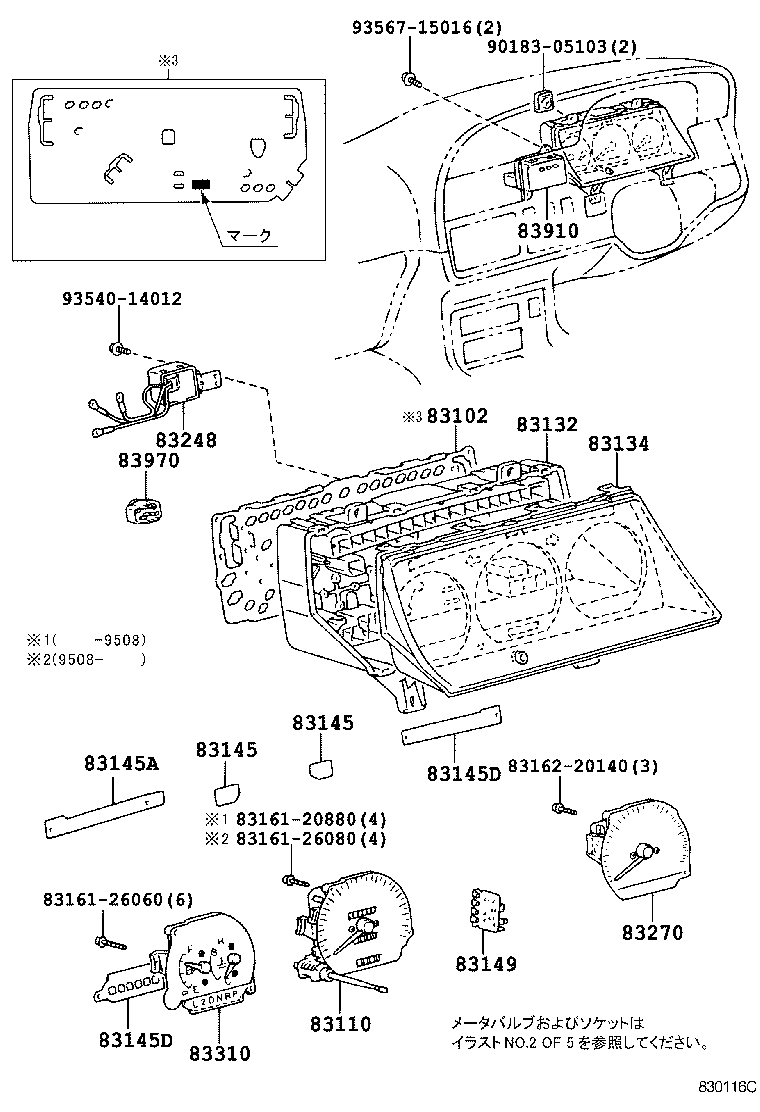

ILLUST NO. 1 OF 5(8908-9308)
ｽﾋﾟｰﾄﾞﾒｰﾀ(ｱﾅﾛｸﾞ:ﾅｼ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95N10 |
RZH100,101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83247-2C020 |
RZH101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 83861-26421 |
RZH101..SCL |
1 | ||
| 83149-2A480 |
RZH101..SCL |
1 | ||
| 83861-26420 |
RZH101..SCL |
1 | ||
| 83861-2F260 |
RZH101..SCL |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-26270 |
RZH101..SCL YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-26140 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83132-26140 |
KZH10#,RZH101..SCL |
1 | ||
| 83841-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83132-95N00 |
LH100,RZH100,101..SCL |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N00 |
RZH100,101..SCL |
1 | ||
| 83134-26280 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83134-26280 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-26560 |
RZH101..SCL |
1 | ||
| 83831-26420 |
RZH101..SCL |
1 | ||
| 83831-26421 |
RZH101..SCL |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2A660 |
KZH10#,RZH101..SCL |
1 | ||
| 83145-26580 |
KZH10#,RZH101..SCL |
1 | ||
| 83145-26890 |
RZH101..SCL |
1 | ||
| 83832-26420 |
RZH101..SCL |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N09 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-95N10 |
RZH100,101..SCL |
1 | ||
| 83145-26140 |
RZH100,101..SCL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83882-2F260 |
RZH101..SCL YAZAKI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J06 |
LH100,102,107,113,119,RZH100,101..05S,07S,08S ｱﾘ(ｱﾗ-ﾑ & ｽﾄﾂﾌﾟ SW) |
1 | ||
| 83910-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
KZH100..08S..5F;KZH106..4FC..CTM;KZH100,LH103,11#,123,129,RZH100,112..4FC;KZH106,12#,RZH101,102..GCGE,GCGN,GL,SCL,SCM,SCMM |
1 | ||
| 83970-12020 |
KZH10#,11#,120,13#,LH103,11#,123,129,RZH10#,11#,133..4FC |
1 | ||
| 83970-22010 |
RZH100..08S..5F;LH100,RZH101..EFI,TD,TDE;LH102,107,113,119,120,123,RZH100,102,112..4FC |
1 | ||
| Common parts | ||||
| 83161-20720 | ||||
| 83161-20840 | ||||
| 83161-20860 | ||||
| 90183-05103 | ||||
| 93567-15016 | ||||

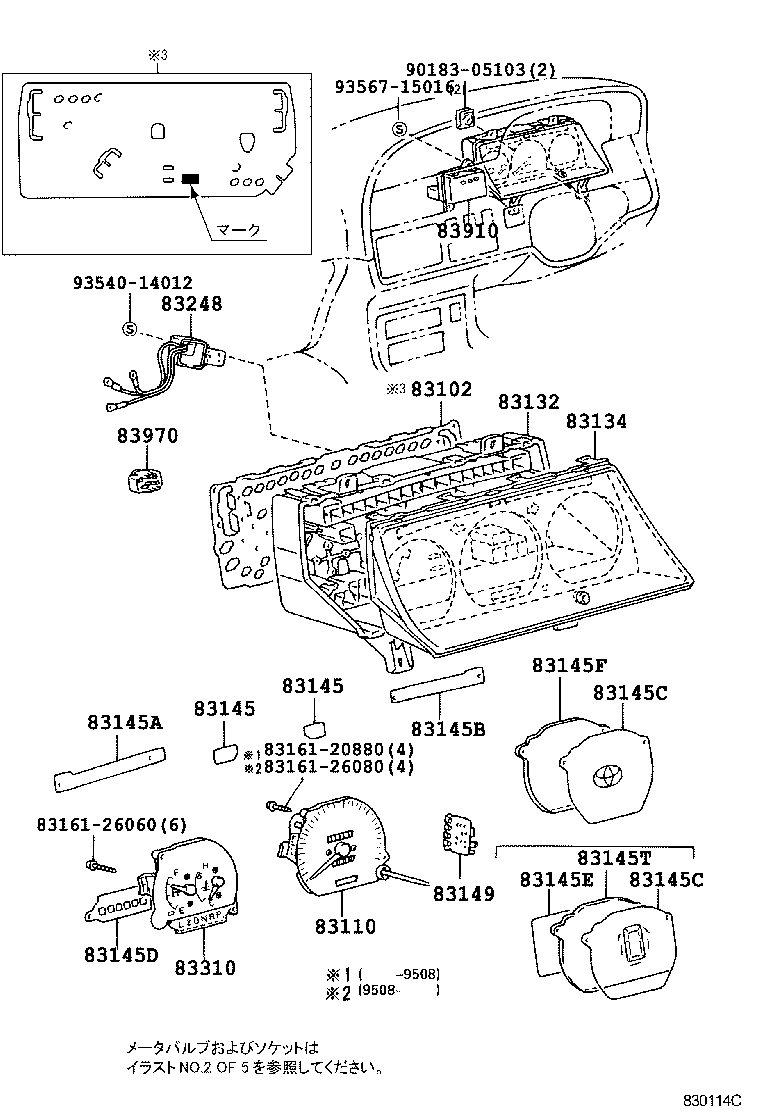

ILLUST NO. 1 OF 5(8908-9308)
ｽﾋﾟｰﾄﾞﾒｰﾀ(ｱﾅﾛｸﾞ:ｱﾘ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95N10 |
RZH100,101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83247-2C020 |
RZH101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 83861-26421 |
RZH101..SCL |
1 | ||
| 83149-2A480 |
RZH101..SCL |
1 | ||
| 83861-26420 |
RZH101..SCL |
1 | ||
| 83861-2F260 |
RZH101..SCL |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-26270 |
RZH101..SCL YAZAKI |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-26140 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83132-26140 |
KZH10#,RZH101..SCL |
1 | ||
| 83841-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83132-95N00 |
LH100,RZH100,101..SCL |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N00 |
RZH100,101..SCL |
1 | ||
| 83134-26280 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83134-26280 |
KZH10#,RZH101..SCL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-26560 |
RZH101..SCL |
1 | ||
| 83831-26420 |
RZH101..SCL |
1 | ||
| 83831-26421 |
RZH101..SCL |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2A660 |
KZH10#,RZH101..SCL |
1 | ||
| 83145-26580 |
KZH10#,RZH101..SCL |
1 | ||
| 83145-26890 |
RZH101..SCL |
1 | ||
| 83832-26420 |
RZH101..SCL |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N09 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-95N10 |
RZH100,101..SCL |
1 | ||
| 83145-26140 |
RZH100,101..SCL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83882-2F260 |
RZH101..SCL YAZAKI |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-26510 |
RZH101..SCL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J06 |
LH100,102,107,113,119,RZH100,101..05S,07S,08S ｱﾘ(ｱﾗ-ﾑ & ｽﾄﾂﾌﾟ SW) |
1 | ||
| 83910-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
KZH100..08S..5F;KZH106..4FC..CTM;KZH100,LH103,11#,123,129,RZH100,112..4FC;KZH106,12#,RZH101,102..GCGE,GCGN,GL,SCL,SCM,SCMM |
1 | ||
| 83970-12020 |
KZH10#,11#,120,13#,LH103,11#,123,129,RZH10#,11#,133..4FC |
1 | ||
| 83970-22010 |
RZH100..08S..5F;LH100,RZH101..EFI,TD,TDE;LH102,107,113,119,120,123,RZH100,102,112..4FC |
1 | ||
| Common parts | ||||
| 83161-20100 | ||||
| 83161-20720 | ||||
| 83161-20840 | ||||
| 83161-20860 | ||||
| 90183-05103 | ||||
| 93567-15016 | ||||
ILLUST NO. 1 OF 5(8908-9308)
ｽﾋﾟｰﾄﾞﾒｰﾀ(ﾃﾞｼﾞﾀﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95N10 |
RZH100,101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83247-2C020 |
RZH101..SCL |
1 | ||
| 83247-26160 |
RZH100,101..07S,08S ｱﾘ(TEMS) |
1 | ||
| 83861-26421 |
RZH101..SCL |
1 | ||
| 83149-2A480 |
RZH101..SCL |
1 | ||
| 83861-26420 |
RZH101..SCL |
1 | ||
| 83861-2F260 |
RZH101..SCL |
1 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
2 | ||
| 83116-26020 |
KZH10#,RZH101..SCL |
2 | ||
| 83116-95N00 |
LH100,107,RZH100,101..07S,08S |
2 | ||
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
2 | ||
| 83116-26020 |
KZH10#,RZH101..SCL |
2 | ||
| 83116-95N00 |
LH100,107,RZH100,101..07S,08S |
2 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-26040 |
RZH100,101..07S,08S |
1 | ||
| 83121-95N00 |
RZH100,101..07S,08S |
1 | ||
| 83121A - SENSOR, SPEED | ||||
| 83121-95N02 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 83121B - CABLE, COUNTER AND SENSOR | ||||
| 83121-95N03 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 83127C - SWITCH, METER | ||||
| 83127-95N01 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 83145-26620 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 83145-26620 |
KZH10#,RZH101..SCL |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-26140 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83132-26140 |
KZH10#,RZH101..SCL |
1 | ||
| 83841-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83132-95N00 |
LH100,RZH100,101..SCL |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..MRF ｱﾘ(TEMS) |
1 | ||
| 83132-26040 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95N00 |
RZH100,101..SCL |
1 | ||
| 83134-26280 |
KZH10#,126,RZH100,101..07S,08S,10S ｱﾘ(*80 OR TEMS) |
1 | ||
| 83134-26280 |
KZH10#,RZH101..SCL |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83134-26100 |
RZH100,101..07S,08S |
1 | ||
| 83134-26100 |
RZH100,101..MRF |
1 | ||
| 83134-26300 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 83134-26300 |
KZH10#,RZH101..SCL |
1 | ||
| 83134-95N02 |
RZH100,101..07S,08S |
1 | ||
| 83136A - COVER, COMBINATION METER | ||||
| 83136-26020 |
KZH10#,RZH101..SCL |
1 | ||
| 83136-26020 |
KZH10#,12#,RZH100,101..07S,08S,10S |
1 | ||
| 83136-95N00 |
LH100,107,RZH100,101..07S,08S |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95N08 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83821-26420 |
KZH10#,RZH101..SCL |
1 | ||
| 83821-26421 |
KZH10#,RZH101..SCL |
1 | ||
| 83149-26880 |
KZH10#,RZH101..SCL |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95N09 |
LH100,107,RZH100,101..SCL |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-95N10 |
RZH100,101..SCL |
1 | ||
| 83145-26140 |
RZH100,101..SCL |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-26030 |
RZH101 YAZAKI |
1 | ||
| 83291-95J03 |
RZH101..07S,08S YAZAKI |
1 | ||
| 83291-26060 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26101 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26060 |
RZH100,101..07S,08S YAZAKI |
1 | ||
| 83291-26100 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26061 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26062 |
RZH101..SCL YAZAKI |
1 | ||
| 83291-26120 |
RZH101..SCL YAZAKI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95J06 |
LH100,102,107,113,119,RZH100,101..05S,07S,08S ｱﾘ(ｱﾗ-ﾑ & ｽﾄﾂﾌﾟ SW) |
1 | ||
| 83910-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
KZH100..08S..5F;KZH106..4FC..CTM;KZH100,LH103,11#,123,129,RZH100,112..4FC;KZH106,12#,RZH101,102..GCGE,GCGN,GL,SCL,SCM,SCMM |
1 | ||
| 83970-12020 |
KZH10#,11#,120,13#,LH103,11#,123,129,RZH10#,11#,133..4FC |
1 | ||
| 83970-22010 |
RZH100..08S..5F;LH100,RZH101..EFI,TD,TDE;LH102,107,113,119,120,123,RZH100,102,112..4FC |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20260 | ||||
| 83161-20400 | ||||
| 83161-20820 | ||||
| 83161-20840 | ||||
| 83161-20860 | ||||
| 90183-05103 | ||||
| 93567-15016 | ||||

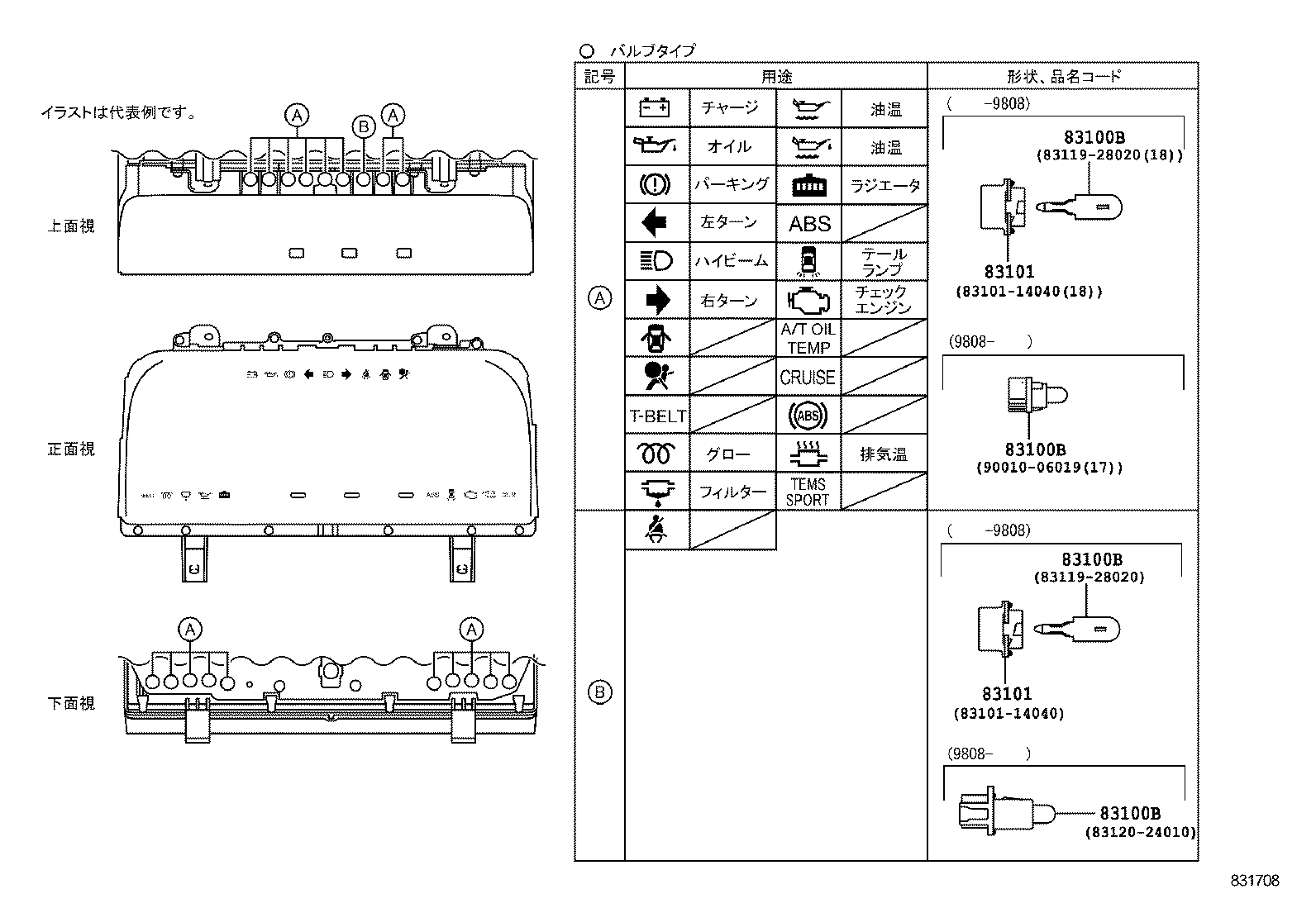

ILLUST NO. 2 OF 5(8908-9308)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
ILLUST NO. 2 OF 5(9308-9907)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||

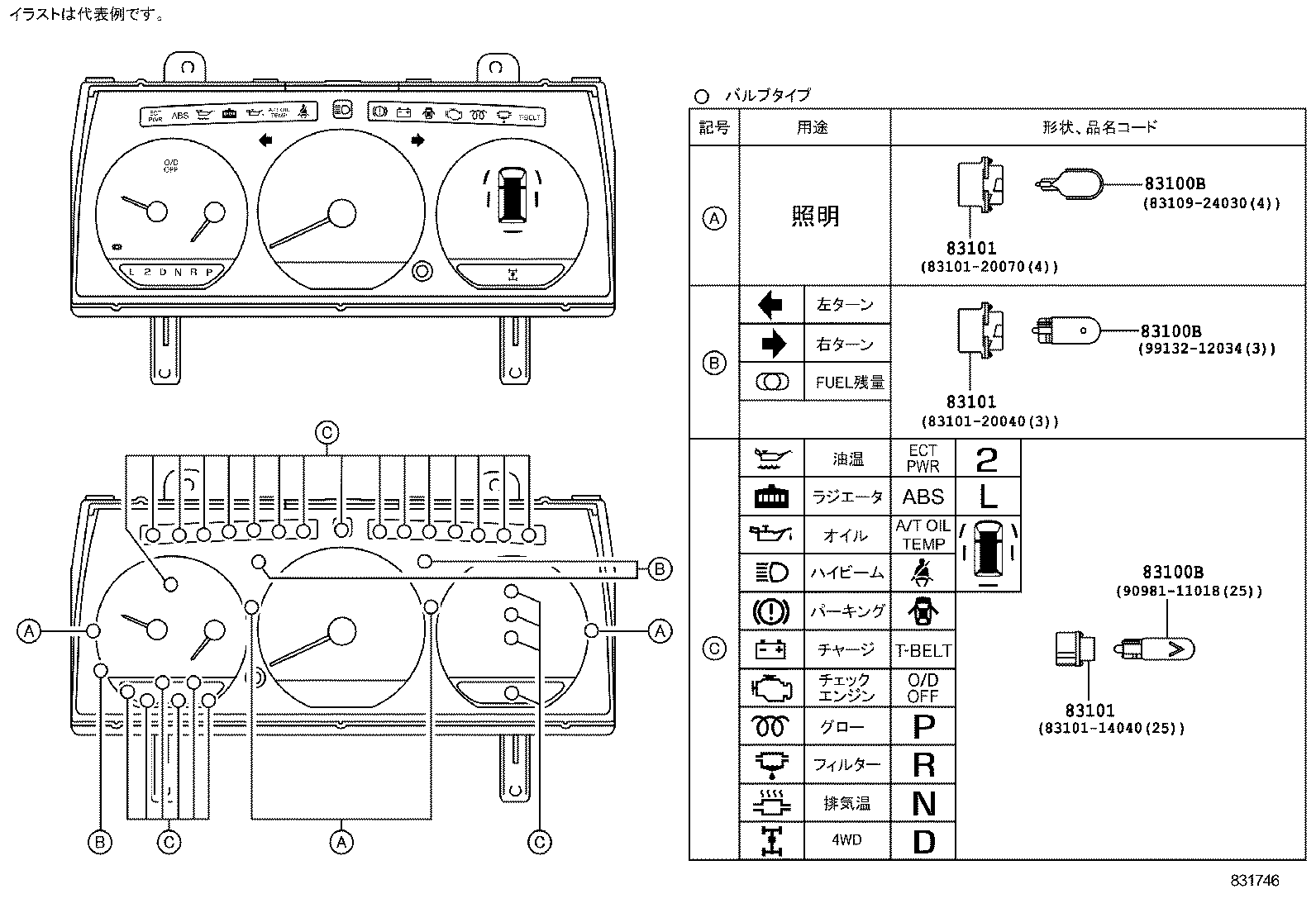

ILLUST NO. 2 OF 5(9907- )SCL
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||

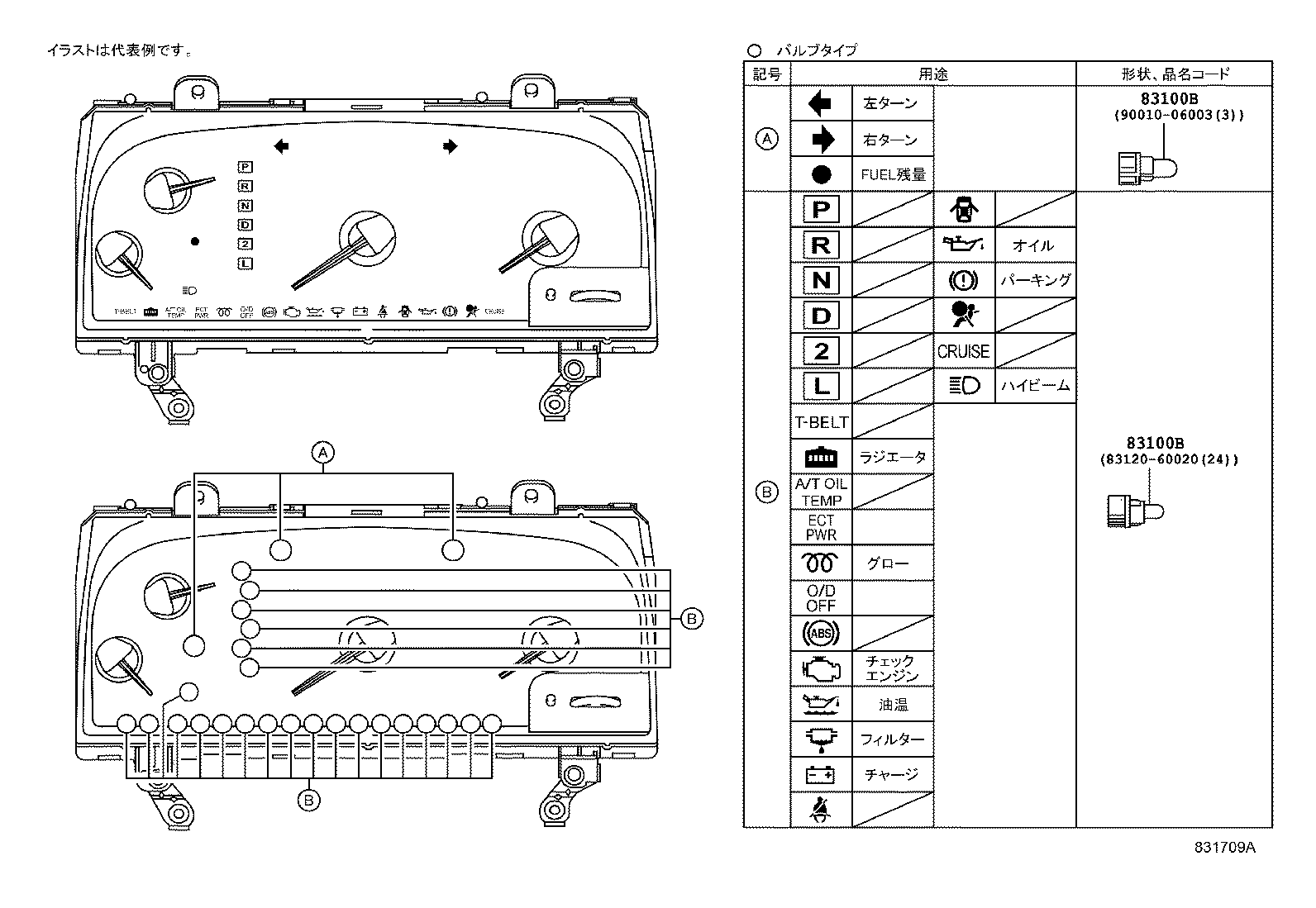

ILLUST NO. 2 OF 5(8908-9308)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ:ﾅｼ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
ILLUST NO. 2 OF 5(8908-9308)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ:ｱﾘ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
ILLUST NO. 2 OF 5(9308-9608)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ:ﾅｼ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
ILLUST NO. 2 OF 5(9308-9608)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ:ｱﾘ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
ILLUST NO. 2 OF 5(9608-9907) ; (9907- )KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#..03S,0
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ:ｱﾘ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
ILLUST NO. 2 OF 5(9608-9907) ; (9907- )KZH10#,11#,120,13#,LH16#,17#,18#,RZH10#,11#,12#,18#..03S,0
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ:ﾅｼ(ﾀｺﾒｰﾀ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-94350 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83119-28020 |
KZH10#,12#,RZH100,101..07S,08S,10S ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83109-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 14V 3.78W |
1 | ||
| 90981-11018 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83120-24010 |
KZH10#,11#,12#,13#,LH16#,17#,18#,RZH10#,11#,12#,133 13.5V,ｿｹｯﾄ付き |
1 | ||
| 83119-28020 |
KZH10#,RZH101..SCL ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 83120-60020 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 12V 1.4W,ｿｹｯﾄ付き |
1 | ||
| 90010-06019 |
RZH101..SCL 12V 1.12W |
1 | ||
| 99132-12034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 1.4W |
1 | ||
| 83101-20040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W |
4 | ||
| 83101-20070 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 12V 3.4W,ｱﾘ/GREEN CAP |
4 | ||
ILLUST NO. 3 OF 5(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ｽﾋﾟｰﾄﾞﾒｰﾀ ｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95J37 |
RZH10#,112..4FC |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
LH119,RZH101;RZH100,102,112..4FC;LH100..4FC..SCMM..TD;LH107,109,117,129..5F |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
LH119,RZH101;RZH100,102,112..4FC;LH100..4FC..SCMM..TD;LH107,109,117,129..5F |
1 | ||
ILLUST NO. 5 OF 5(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ｽﾋﾟｰﾄﾞﾒｰﾀｹｰﾌﾞﾙ ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83791-95J07 | ||||
| 83791-95J08 | ||||
| 83791-95J09 | ||||
| 83791-95J10 | ||||
| 83791-95J13 | ||||
| 83791-95J14 | ||||
| 83791-95J15 | ||||
| 83791-95J16 | ||||
| 90467-08069 | ||||
| 91611-60816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
