Toyota Hiace/regiusace RZH101 SPOILER & SIDE MUDGUARD

RZH101G-MFPQE (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 2002

Engine 2RZE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9308-9907)

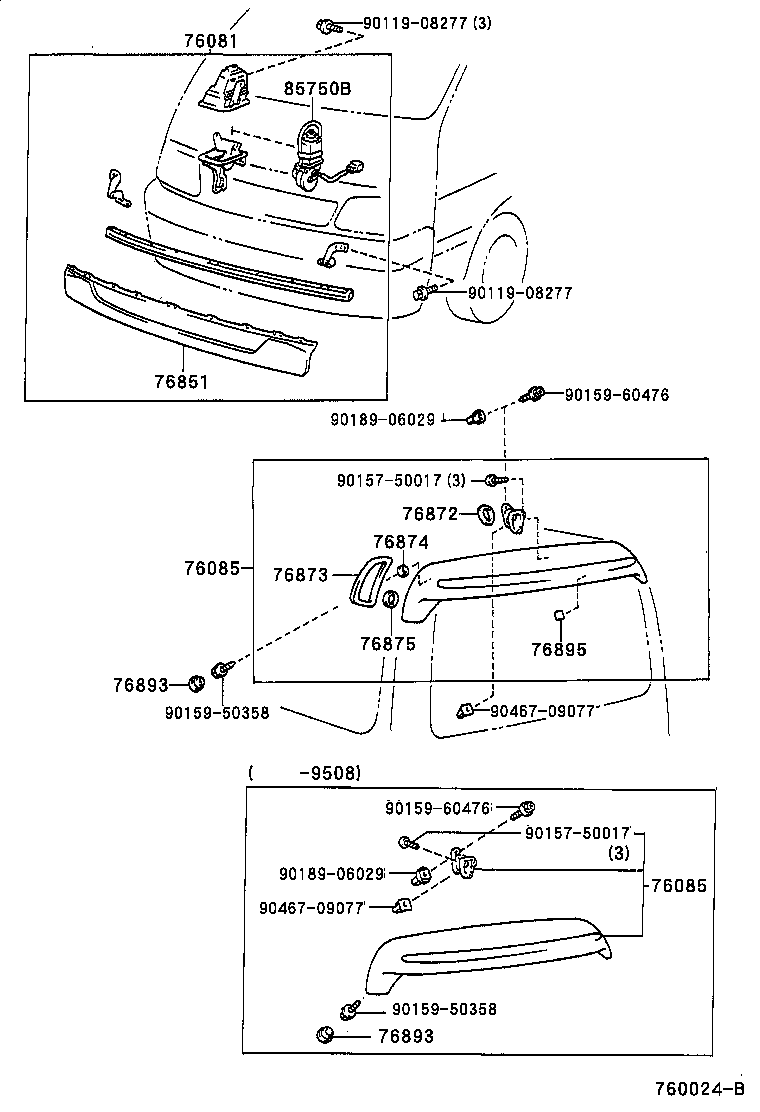

Click highlighted areas on diagram

Part #	Description	Period	Qty
76081 - SPOILER SUB-ASSY, FRONT
76081-26010	KZH10#,RZH100,101..(07S,08S)..4FC	08/1993 - 07/1999	1
76085 - SPOILER SUB-ASSY, REAR
76085-26900	KZH10#,RZH100,101..MRF 要塗装	08/1993 - 07/1996	1
76085-26901	KZH10#,RZH101..MRF 要塗装	07/1996 - 07/1999	1
76085 - SPOILER SUB-ASSY, REAR
76085-26900	KZH10#,RZH100,101..MRF 要塗装	08/1993 - 07/1996	1
76085-26901	KZH10#,RZH101..MRF 要塗装	07/1996 - 07/1999	1
76851 - COVER, FRONT SPOILER
76851-26010	KZH10#,RZH100,101..(07S,08S)..4FC	08/1993 - 07/1999	1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-26010	KZH10#,RZH101..MRF	08/1995 - 07/1999	1
76872-26010	RZH101..MRF	07/1999 - 08/2002	1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-26010	KZH10#,RZH101..MRF	08/1995 - 07/1999	2
76873-26010	RZH101..MRF	07/1999 - 08/2002	2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-26010	KZH10#,RZH101..MRF	08/1995 - 07/1999	2
76874-26010	RZH101..MRF	07/1999 - 08/2002	2
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-26010	KZH10#,RZH101..MRF	08/1995 - 07/1999	2
76875-26010	RZH101..MRF	07/1999 - 08/2002	2
76893 - COVER, REAR SPOILER, NO.1
76893-26020	KZH10#,RZH101..MRF	12/1995 - 07/1999	2
76893-26010	KZH10#,RZH100,101..MRF	08/1993 - 12/1995	2
76893-26020	RZH101..MRF	07/1999 - 08/2002	2
76893 - COVER, REAR SPOILER, NO.1
76893-26020	KZH10#,RZH101..MRF	12/1995 - 07/1999	2
76893-26010	KZH10#,RZH100,101..MRF	08/1993 - 12/1995	2
76893-26020	RZH101..MRF	07/1999 - 08/2002	2
76895 - PROTECTOR, REAR SPOILER, NO.5
76895-26010	RZH101..MRF	07/1999 - 08/2002	1
76895-26010	KZH10#,RZH101..MRF	08/1995 - 07/1999	1
85750B - MOTOR ASSY, FR SPOILER
85750-26010	KZH10#,RZH100,101..(07S,08S)..4FC	08/1993 - 07/1999	1
Common parts
90119-08277
90157-50017
90159-50358
90159-60476
90189-06029
90467-09077

(9907- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
76085 - SPOILER SUB-ASSY, REAR
76085-26900	KZH10#,RZH100,101..MRF 要塗装	08/1993 - 07/1996	1
76085-26901	KZH10#,RZH101..MRF 要塗装	07/1996 - 07/1999	1
76851A - COVER, FRONT SPOILER, RH
76851-26020	RZH101	07/1999 - 08/2002	1
76852A - COVER, FRONT SPOILER, LH
76852-26020	RZH101	07/1999 - 08/2002	1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-26010	KZH10#,RZH101..MRF	08/1995 - 07/1999	1
76872-26010	RZH101..MRF	07/1999 - 08/2002	1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-26010	KZH10#,RZH101..MRF	08/1995 - 07/1999	2
76873-26010	RZH101..MRF	07/1999 - 08/2002	2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-26010	KZH10#,RZH101..MRF	08/1995 - 07/1999	2
76874-26010	RZH101..MRF	07/1999 - 08/2002	2
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-26010	KZH10#,RZH101..MRF	08/1995 - 07/1999	2
76875-26010	RZH101..MRF	07/1999 - 08/2002	2
76893 - COVER, REAR SPOILER, NO.1
76893-26020	KZH10#,RZH101..MRF	12/1995 - 07/1999	2
76893-26010	KZH10#,RZH100,101..MRF	08/1993 - 12/1995	2
76893-26020	RZH101..MRF	07/1999 - 08/2002	2
76895 - PROTECTOR, REAR SPOILER, NO.5
76895-26010	RZH101..MRF	07/1999 - 08/2002	1
76895-26010	KZH10#,RZH101..MRF	08/1995 - 07/1999	1
Common parts
90109-06190
90109-06331
90157-50017
90159-50358
90159-60476
90179-06127
90189-06029
90467-09077
Linked diagrams
5851

RZH101G-MFPQE (1989)

(9308-9907)

(9907- )
