RZH101G-JRPNE (1989)
Toyota Hiace/Regiusace
(9308- )KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾘﾔ..ｶﾗｵｹ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-8702223 |
LH100,RZH100,101..09S LIGHT GRAY,TRIM1# |
1 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-8702223 |
LH100,RZH100,101..09S LIGHT GRAY,TRIM1# |
1 | ||
| 86269A - GRILLE, SPEAKER | ||||
| 86269-90K00 |
LH113,119..SGL;LH100,102,RZH100,101..05S,09S |
1 | ||
| 86269A - GRILLE, SPEAKER | ||||
| 86269-90K00 |
LH113,119..SGL;LH100,102,RZH100,101..05S,09S |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90189-06037 | ||||
| 93540-55016 | ||||
(8908- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-95J01 |
LH119,120..GCGE,GCGN,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,RZH100,101..05S,07S,08S,09S 左側 |
1 | ||
| 86150-95J05 |
LH119,120..GCGE,GCGN,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,RZH100,101..05S,07S,08S,09S 右側 |
1 | ||
| 86150-26030 |
LH11#..SGL;KZH10#,11#,12#,13#,LH103,RZH100,101,111..(03S,05S,07S,08S,09S,10S)..(CTM,DX,GCGE,GCGN,SCL,SCM,SCMM,SGL) 左側 |
1 | ||
| 86150-95J01 |
LH113,119..SGL;LH100,102,107,RZH100,101..05S,07S,08S,09S 左側 |
1 | ||
| 86150-26040 |
LH11#..SGL;KZH10#,11#,12#,13#,LH103,RZH100,101,111..(03S,05S,07S,08S,09S,10S)..(CTM,DX,GCGE,GCGN,SCL,SCM,SCMM,SGL) 右側 |
1 | ||
| 86150-95J05 |
LH113,119..SGL;LH100,102,107,RZH100,101..05S,07S,08S,09S 右側 |
1 | ||
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-95J01 |
LH119,120..GCGE,GCGN,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,RZH100,101..05S,07S,08S,09S 左側 |
1 | ||
| 86150-95J05 |
LH119,120..GCGE,GCGN,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,RZH100,101..05S,07S,08S,09S 右側 |
1 | ||
| 86150-26030 |
LH11#..SGL;KZH10#,11#,12#,13#,LH103,RZH100,101,111..(03S,05S,07S,08S,09S,10S)..(CTM,DX,GCGE,GCGN,SCL,SCM,SCMM,SGL) 左側 |
1 | ||
| 86150-95J01 |
LH113,119..SGL;LH100,102,107,RZH100,101..05S,07S,08S,09S 左側 |
1 | ||
| 86150-26040 |
LH11#..SGL;KZH10#,11#,12#,13#,LH103,RZH100,101,111..(03S,05S,07S,08S,09S,10S)..(CTM,DX,GCGE,GCGN,SCL,SCM,SCMM,SGL) 右側 |
1 | ||
| 86150-95J05 |
LH113,119..SGL;LH100,102,107,RZH100,101..05S,07S,08S,09S 右側 |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-95J24 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ｱﾘ(2 ｽﾋﾟ-ｶ),右側 |
1 | ||
| 86160-95J25 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ｱﾘ(2 ｽﾋﾟ-ｶ),左側 |
1 | ||
| 86160-26090 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-95J24 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ｱﾘ(2 ｽﾋﾟ-ｶ),右側 |
1 | ||
| 86160-95J25 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ｱﾘ(2 ｽﾋﾟ-ｶ),左側 |
1 | ||
| 86160-26090 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL |
1 | ||
| 86161 - BRACKET, SPEAKER, FRONT NO.1 | ||||
| 86163-95J02 |
LH113,119..SGL;LH100,102,107,RZH100,101..05S,07S,08S,09S |
1 | ||
| 86163-95J02 |
LH119,120..GCGE,GCGN,SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,RZH100,101..05S,07S,08S,09S |
1 | ||
| 86163-95J02 |
LH11#..SGL;KZH10#,11#,12#,13#,LH103,RZH100,101,111..(03S,05S,07S,08S,09S,10S)..(CTM,DX,GCGE,GCGN,SCL,SCM,SCMM,SGL) |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93560-55016 | ||||
| 93567-15016 | ||||

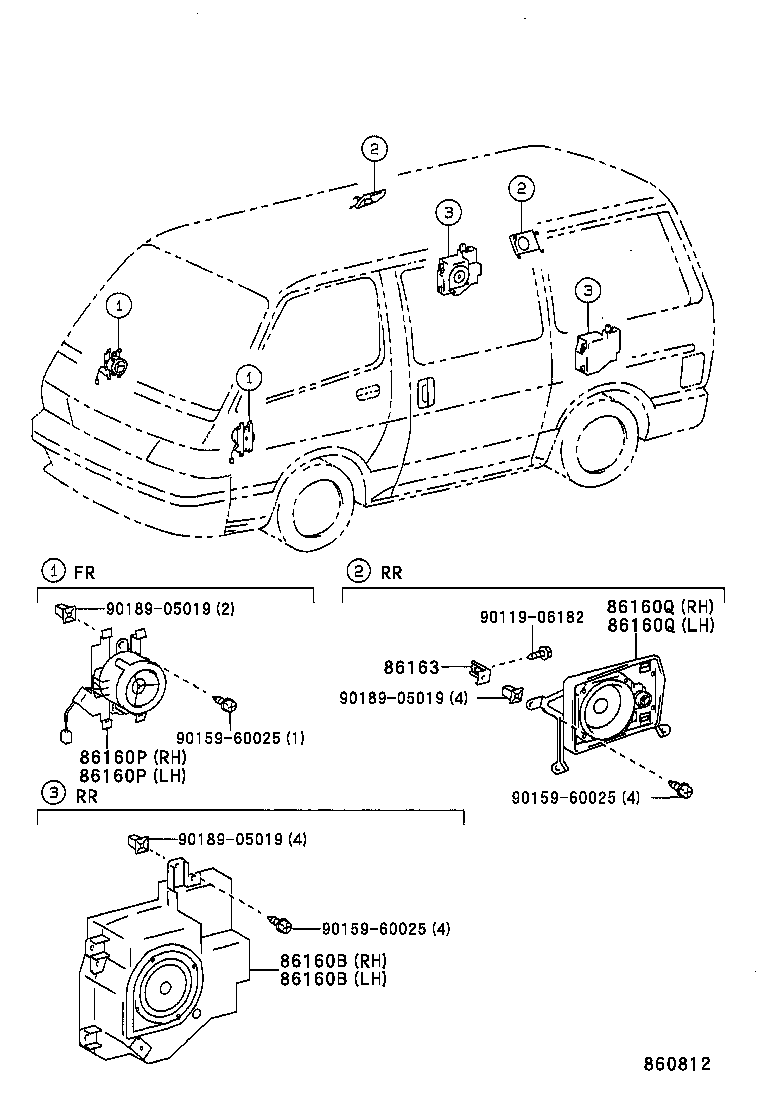

(9308-9608)
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J27 |
LH113,119..SGL;LH100,102,RZH100,101..05S,09S |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J27 |
LH113,119..SGL;LH100,102,RZH100,101..05S,09S |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-95J3006 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3# |
2 | ||
| 86160-26060 |
KZH10#,RZH100,101..MRF 左側 |
1 | ||
| 86160-26040 |
KZH10#,RZH100,101..MRF 右側 |
1 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-95J3006 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3# |
2 | ||
| 86160-26060 |
KZH10#,RZH100,101..MRF 左側 |
1 | ||
| 86160-26040 |
KZH10#,RZH100,101..MRF 右側 |
1 | ||
| 86160Q - SPEAKER ASSY, ROOF | ||||
| 86160-95J28 |
LH100,RZH100,101..MRF 右側 |
1 | ||
| 86160-26070 |
KZH10#,RZH100,101..MRF 右側 |
1 | ||
| 86160-95J29 |
LH100,RZH100,101..MRF 左側 |
1 | ||
| 86160-26080 |
KZH10#,RZH100,101..MRF 左側 |
1 | ||
| 86160Q - SPEAKER ASSY, ROOF | ||||
| 86160-95J28 |
LH100,RZH100,101..MRF 右側 |
1 | ||
| 86160-26070 |
KZH10#,RZH100,101..MRF 右側 |
1 | ||
| 86160-95J29 |
LH100,RZH100,101..MRF 左側 |
1 | ||
| 86160-26080 |
KZH10#,RZH100,101..MRF 左側 |
1 | ||
| 86163 - BRACKET, SPEAKER, NO.2 | ||||
| 86163-26020 |
KZH10#,RZH100,101..MRF |
2 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90159-60025 | ||||
| 90189-05019 | ||||

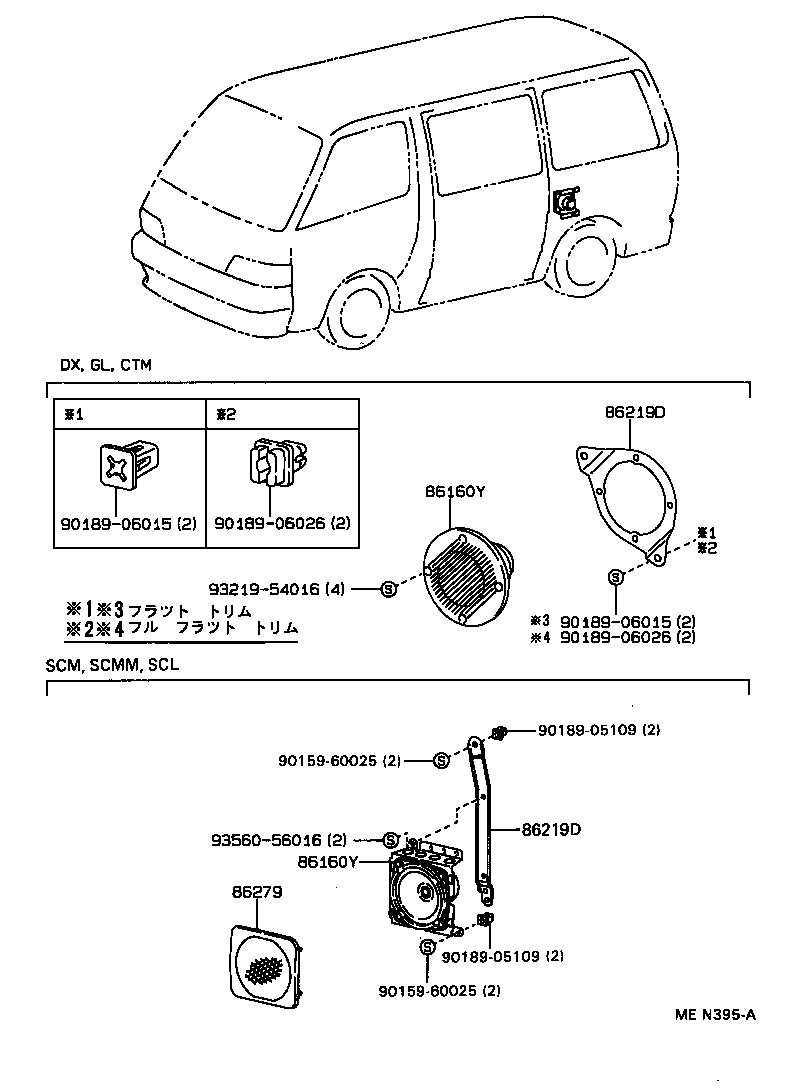

(8908-9107)
ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-8702223 |
LH100,RZH100,101..09S LIGHT GRAY,TRIM1# |
1 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-8702223 |
LH100,RZH100,101..09S LIGHT GRAY,TRIM1# |
1 | ||
| 86219D - BRACKET, SPEAKER, REAR NO.1 | ||||
| 86219-95J08 |
LH100,RZH100,101..CTM |
1 | ||
| 86219-95J08 |
LH100,110,115,RZH100,101,110..CTM,DX |
1 | ||
| 86219-95J08 |
LH100,RZH100,101..09S |
1 | ||
| 86219D - BRACKET, SPEAKER, REAR NO.1 | ||||
| 86219-95J08 |
LH100,RZH100,101..CTM |
1 | ||
| 86219-95J08 |
LH100,110,115,RZH100,101,110..CTM,DX |
1 | ||
| 86219-95J08 |
LH100,RZH100,101..09S |
1 | ||
| Common parts | ||||
| 90159-60025 | ||||
| 90189-05109 | ||||
| 90189-06015 | ||||
| 90189-06026 | ||||
| 93219-54016 | ||||
| 93560-56016 | ||||

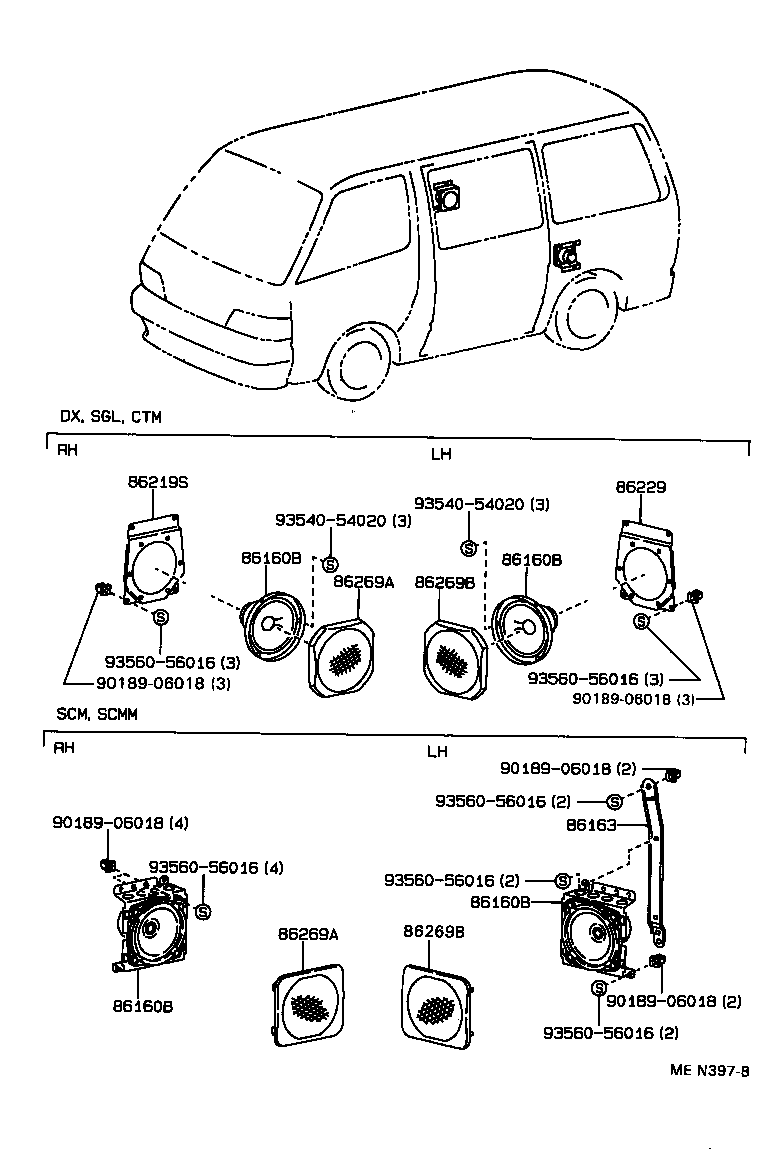

(8908-9308)
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J27 |
LH113,119..SGL;LH100,102,RZH100,101..05S,09S |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J27 |
LH113,119..SGL;LH100,102,RZH100,101..05S,09S |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J27 |
LH113,119..SGL;LH100,102,RZH100,101..05S,09S |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-95J27 |
LH113,119..SGL;LH100,102,RZH100,101..05S,09S |
2 | ||
| 86163 - BRACKET, SPEAKER, NO.2 | ||||
| 86163-26020 |
KZH10#,RZH100,101..MRF |
2 | ||
| 86219S - BRACKET, STEREO SPEAKER, RH | ||||
| 86219-95J04 |
LH100,102,113,119,RZH100,101..CTM,SGL |
1 | ||
| 86229 - BRACKET, STEREO SPEAKER, LH | ||||
| 86219-95J04 |
LH100,102,113,119,RZH100,101..CTM,SGL |
1 | ||
| 86269A - GRILLE, SPEAKER | ||||
| 86269-90K00 |
LH113,119..SGL;LH100,102,RZH100,101..05S,09S |
1 | ||
| 86269A - GRILLE, SPEAKER | ||||
| 86269-90K00 |
LH113,119..SGL;LH100,102,RZH100,101..05S,09S |
1 | ||
| 86269B - GRILLE, SPEAKER | ||||
| 86269-90K00 |
LH113,119..SGL;LH100,102,RZH100,101..05S,09S |
1 | ||
| 86269B - GRILLE, SPEAKER | ||||
| 86269-90K00 |
LH113,119..SGL;LH100,102,RZH100,101..05S,09S |
1 | ||
| Common parts | ||||
| 90189-06018 | ||||
| 93540-54020 | ||||
| 93560-56016 | ||||

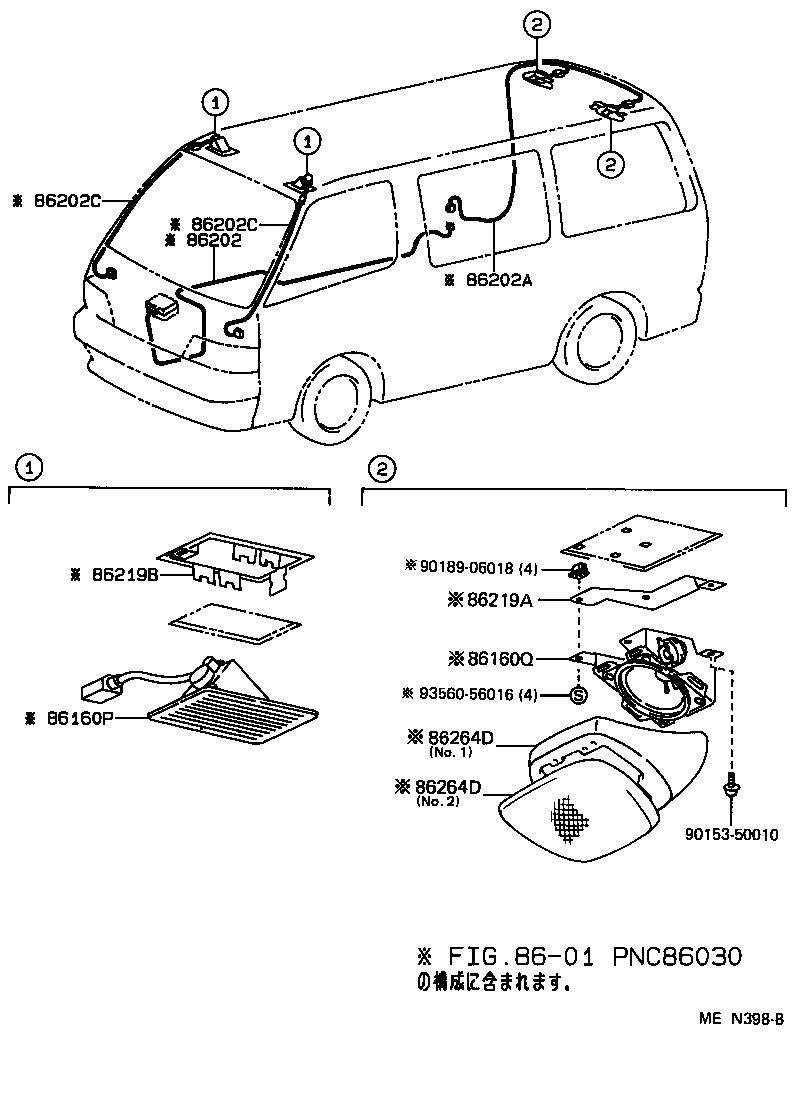

(8908-9308)LH100,RZH100,101..MRF
ｽﾃﾚｵ ｺﾝﾎﾟ(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-95J3006 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3# |
2 | ||
| 86160-26060 |
KZH10#,RZH100,101..MRF 左側 |
1 | ||
| 86160-26040 |
KZH10#,RZH100,101..MRF 右側 |
1 | ||
| 86160Q - SPEAKER ASSY, ROOF | ||||
| 86160-95J28 |
LH100,RZH100,101..MRF 右側 |
1 | ||
| 86160-26070 |
KZH10#,RZH100,101..MRF 右側 |
1 | ||
| 86160-95J29 |
LH100,RZH100,101..MRF 左側 |
1 | ||
| 86160-26080 |
KZH10#,RZH100,101..MRF 左側 |
1 | ||
| 86202 - WIRE, SPEAKER, NO.1 | ||||
| 86202-95J21 |
LH100,RZH100,101..MRF |
1 | ||
| 86202A - WIRE, SPEAKER, NO.2 | ||||
| 86202-95J22 |
LH100,RZH100,101..MRF |
1 | ||
| 86202C - WIRE, SPEAKER, NO.3 | ||||
| 86202-95J23 |
LH100,RZH100,101..MRF |
2 | ||
| 86202C - WIRE, SPEAKER, NO.3 | ||||
| 86202-95J23 |
LH100,RZH100,101..MRF |
2 | ||
| 86219A - BRACKET, STEREO COMPONENT SPEAKER, NO.2 | ||||
| 86229-95J05 |
LH100,RZH100,101..MRF 左側 |
1 | ||
| 86219-95J06 |
LH100,RZH100,101..MRF 右側 |
1 | ||
| 86219B - BRACKET, STEREO COMPONENT SPEAKER, NO.3 | ||||
| 86219-95J07 |
LH100,RZH100,101..MRF |
2 | ||
| 86264D - GRILLE, SPEAKER, ROOF | ||||
| 86269-95J0306 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,右側,NO.1 |
1 | ||
| 86269-95J0806 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,右側,NO.2 |
1 | ||
| 86279-95J0306 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,左側,NO.2 |
1 | ||
| 86279-95J0206 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,左側,NO.1 |
1 | ||
| 86264D - GRILLE, SPEAKER, ROOF | ||||
| 86269-95J0306 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,右側,NO.1 |
1 | ||
| 86269-95J0806 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,右側,NO.2 |
1 | ||
| 86279-95J0306 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,左側,NO.2 |
1 | ||
| 86279-95J0206 |
LH100,RZH100,101..MRF LIGHT SABLE,TRIM3#,左側,NO.1 |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90189-06018 | ||||
| 93560-56016 | ||||
