RZH101G-JRPNE (1989)
Toyota Hiace/Regiusace
ILLUST NO. 6 OF13(8908- )
ｴﾝｼﾞﾝ NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-95J41 |
RZH10#,112..(V1,WG)..4FC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-95J41 |
RZH10#,112..(V1,WG)..4FC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-95J41 |
RZH10#,112..(V1,WG)..4FC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-95J41 |
RZH10#,112..(V1,WG)..4FC |
1 | ||
| Common parts | ||||
| 82711-2A190 | ||||
| 82715-26100 | ||||
| 82715-26230 | ||||
| 82715-2F150 | ||||
| 82715-2F250 | ||||
| 82715-94350 | ||||
| 82715-95J12 | ||||
| 82715-95J25 | ||||
| 90119-08063 | ||||
| 90119-08103 | ||||
| 90168-60010 | ||||
| 90179-08146 | ||||
| 90461-06645 | ||||
| 90461-10275 | ||||
| 90480-01419 | ||||
| 91619-61216 | ||||
| 91651-61032 | ||||
| 91651-B0814 | ||||
| 93385-15010 | ||||
ILLUST NO. 1 OF13(8908- )RZH10#,11#,12#,133,18#
ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-95P35 |
RZH101..CTM |
1 | ||
| 82111-26114 |
RZH101,111,133..CTM,DX |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL 100A,ｵｽ端子,青 |
1 | ||
| 90982-08203 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 80A,ｵｽ端子,黒 |
2 | ||
| 90982-08246 |
RZH112..5F;LH113..5D..4FC;LH102,119,123,RZH112..V1..4FC;LH100,110,117,140,RZH10#,110,12#..CBR,DSL,EFI,TD;LH107,113..(V1,WG)..(SMRF,SRF)..4D..(05S,06S,08S)..(DX,SCM,SCMM,SGL) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08227 |
RZH102,112..4FC;KZH120,RZH112..(09S,10S)..5F;KZH10#,11#,126,LH10#,11#,12#,RZH100,101,124 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH112..5F;RZH112..4FC..GL;LH102,113,119,123..4FC;LH100,107,110,RZH10#,110,12# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH100;RZH112..5F;LH113..5D..4FC;LH113..09S..4FC;LH102,123,RZH101,112..(V1,WG)..4FC;LH119,120..(05S,10S)..(GCGE,GCGN,SGL);LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,107,110,117,140,RZH102,110,12#..(HRF,SMRF,SRF)..(CBR,DSL,EFI) 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH112..5F;LH113..5D..4FC;LH102,119,123,RZH112..V1..4FC;LH100,110,117,140,RZH10#,110,12#..CBR,DSL,EFI,TD;LH107,113..(V1,WG)..(SMRF,SRF)..4D..(05S,06S,08S)..(DX,SCM,SCMM,SGL) 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08188 |
LH107..SCL;LH100,RZH10#,11#,12#..CBR,EFI,TDE 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
RZH100;LH119..05S;RZH112..5F;LH113..5D..4FC;LH113..09S..4FC;LH102,123,RZH101,112..(V1,WG)..4FC;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,107,110,117,140,RZH102,110,12#..(HRF,SMRF,SRF)..(CBR,DSL,EFI) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08189 |
LH120..GCGE,GCGN;KZH10#,11#,12#,LH10#,11#,123,125,129,140,RZH10#,11#,12# 40A,ﾒｽ端子,緑,TAIHEIYO |
2 | ||
| 90982-08246 |
RZH112..5F;RZH112..4FC..GL;LH102,113,119,123..4FC;LH100,107,110,RZH10#,110,12# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08188 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08246 |
RZH102,112..4FC;KZH120,RZH112..(09S,10S)..5F;KZH10#,11#,126,LH10#,11#,12#,RZH100,101,124 100A,ｵｽ端子,青 |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-95J01 |
LH10#,11#,123,125,129,RZH10#,11#,12# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
LH10#,11#,123,125,129,RZH10#,11#,12# ﾀｲﾌﾟ A |
1 | ||
| Common parts | ||||
| 90119-06219 | ||||
| 90119-06611 | ||||
| 90119-06909 | ||||
| 90119-08103 | ||||
| 90179-06158 | ||||
| 91621-40814 | ||||
| 91621-60814 | ||||
| 91631-J0612 | ||||
| 91651-B0814 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF13(8908- )
ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐｯｼｮﾝ (ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
| 82711-24010 | ||||
| 82711-26110 | ||||
| 82711-30260 | ||||
| 82711-87009 | ||||
| 82711-95J12 | ||||
| 82711-95J26 | ||||
| 82715-22560 | ||||
| 82715-25850 | ||||
| 82715-25860 | ||||
| 82715-26030 | ||||
| 82715-26110 | ||||
| 82715-26160 | ||||
| 82715-26161 | ||||
| 82715-28430 | ||||
| 82715-30500 | ||||
| 82729-26050 | ||||
| 82729-26280 | ||||
| 82729-26290 | ||||
| 82729-26300 | ||||
| 90119-08413 | ||||
| 91162-61216 | ||||
| 91551-80814 | ||||
| 91611-60612 | ||||
| 91621-J0612 | ||||
| 91622-G1014 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91671-80612 | ||||
ILLUST NO. 7 OF13(8908- )
ﾄﾞｱ & ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-26021 |
KZH10#,RZH101..MRF ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-95J23 |
LH120;LH100,102,109,113,119,125,RZH10#,112..CTM,GL |
1 | ||
| 82151-26170 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-95J09 |
LH120;LH100,102,109,113,119,125,RZH10#,112..CTM,GL |
1 | ||
| 82152-26051 |
KZH10#,RZH100,101..MRF ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ & ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-26052 |
KZH10#,RZH101..MRF ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-26160 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CTM,DX,GL ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-95J03 |
LH119..SGL;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,102,107,110,115,117,120,125,RZH100,101,110,124..(05S,07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 82153-95J03 |
LH113,119..SGL;LH100,102,107,110,115,120,125,RZH100,101,110,124..05S,07S,08S,09S,10S,15S |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-26030 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| Common parts | ||||
| 82711-14230 | ||||
| 82715-95J06 | ||||
| 82715-95J20 | ||||
| 91651-40614 | ||||
| 91652-60616 | ||||
| 93385-16014 | ||||
ILLUST NO. 3 OF13(9308- )

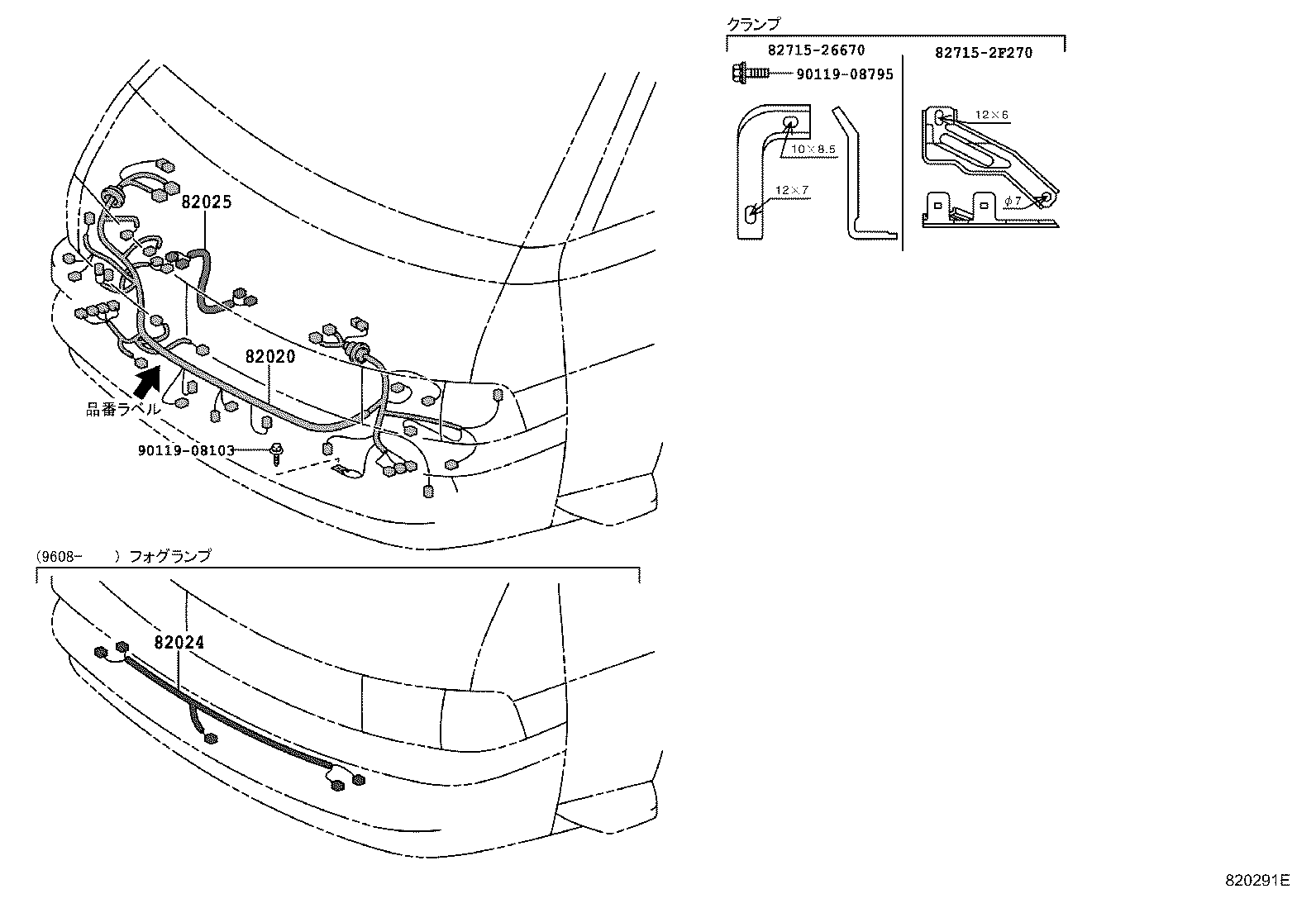

ﾍｯﾄﾞﾗﾝﾌﾟ,ﾌｫｸﾞ,ABS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP | ||||
| 82020-26012 |
KZH10#,11#,RZH101,111,133..CTM,DX ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82020-26012 |
1 | ||
| Common parts | ||||
| 82715-26670 | ||||
| 82715-2F270 | ||||
| 90119-08103 | ||||
| 90119-08795 | ||||
ILLUST NO.10 OF13(8908- )
ﾊﾞｯｸ ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-95J19 |
LH100,107,RZH100,101..(MRF,SMRF)..(08S,09S) |
1 | ||
| 82184-95J19 |
LH119..05S;LH113..V1..SRF..4D..06S..DX;LH100,107,RZH100,101..(MRF,SMRF)..(08S,09S) ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 82184-26010 |
LH100,107,RZH100,101..(MRF,SMRF)..(08S,09S) |
1 | ||
| 82184-26011 |
KZH10#,RZH100,101..(MRF,SMRF)..(08S,09S) |
1 | ||
| 82184-26012 |
KZH10#,RZH100,101..(MRF,SMRF)..(08S,09S) |
1 | ||
| 82184-26013 |
KZH11#..4FC;KZH10#,RZH101..08S,09S |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-95J19 |
LH100,107,RZH100,101..(MRF,SMRF)..(08S,09S) |
1 | ||
| 82184-95J19 |
LH119..05S;LH113..V1..SRF..4D..06S..DX;LH100,107,RZH100,101..(MRF,SMRF)..(08S,09S) ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 82184-26010 |
LH100,107,RZH100,101..(MRF,SMRF)..(08S,09S) |
1 | ||
| 82184-26011 |
KZH10#,RZH100,101..(MRF,SMRF)..(08S,09S) |
1 | ||
| 82184-26012 |
KZH10#,RZH100,101..(MRF,SMRF)..(08S,09S) |
1 | ||
| 82184-26013 |
KZH11#..4FC;KZH10#,RZH101..08S,09S |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-95J19 |
LH100,107,RZH100,101..(MRF,SMRF)..(08S,09S) |
1 | ||
| 82184-95J19 |
LH119..05S;LH113..V1..SRF..4D..06S..DX;LH100,107,RZH100,101..(MRF,SMRF)..(08S,09S) ｷﾔﾝﾋﾟﾝｸﾞ ｶ- |
1 | ||
| 82184-26010 |
LH100,107,RZH100,101..(MRF,SMRF)..(08S,09S) |
1 | ||
| 82184-26011 |
KZH10#,RZH100,101..(MRF,SMRF)..(08S,09S) |
1 | ||
| 82184-26012 |
KZH10#,RZH100,101..(MRF,SMRF)..(08S,09S) |
1 | ||
| 82184-26013 |
KZH11#..4FC;KZH10#,RZH101..08S,09S |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-95J16 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 82185-26060 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 82185-26061 |
KZH10#,RZH100,101..MRF,SMRF |
1 | ||
| 82185-26062 |
KZH10#,RZH100,101..MRF,SMRF |
1 | ||
| 82185-26063 |
KZH10#,RZH101..08S,09S |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-95J16 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 82185-26060 |
LH100,107,RZH100,101..MRF,SMRF |
1 | ||
| 82185-26061 |
KZH10#,RZH100,101..MRF,SMRF |
1 | ||
| 82185-26062 |
KZH10#,RZH100,101..MRF,SMRF |
1 | ||
| 82185-26063 |
KZH10#,RZH101..08S,09S |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95J01 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ﾃﾞﾌｫｶﾞ |
2 | ||
| 82186-95J01 |
KZH10#,11#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞﾌｫｶﾞ |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95J01 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ﾃﾞﾌｫｶﾞ |
2 | ||
| 82186-95J01 |
KZH10#,11#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞﾌｫｶﾞ |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95J01 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ﾃﾞﾌｫｶﾞ |
2 | ||
| 82186-95J01 |
KZH10#,11#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞﾌｫｶﾞ |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95J01 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ﾃﾞﾌｫｶﾞ |
2 | ||
| 82186-95J01 |
KZH10#,11#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞﾌｫｶﾞ |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95J01 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ﾃﾞﾌｫｶﾞ |
2 | ||
| 82186-95J01 |
KZH10#,11#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞﾌｫｶﾞ |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95J01 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ﾃﾞﾌｫｶﾞ |
2 | ||
| 82186-95J01 |
KZH10#,11#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..CD,CTM,DX,GL,SCM,SCMM,SGL,SW ﾃﾞﾌｫｶﾞ |
2 | ||
| Common parts | ||||
| 61391-95J00 | ||||
| 82711-14560 | ||||
| 82819-26300 | ||||
| 82819-26310 | ||||
| 82819-95J18 | ||||
| 82819-95J19 | ||||
| 90154-60024 | ||||
ILLUST NO. 9 OF13(8908- )
ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-26503 |
KZH10#,RZH101..CTM |
1 | ||
| 82171-95J65 |
LH107,RZH100,101..CTM,SCM ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) |
1 | ||
| 82171-95J08 |
LH100,107,RZH100,101..CTM,SCM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82171-26330 |
LH100,107,RZH100,101..CTM,SCM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82171-26331 |
LH100,107,RZH100,101..CTM,SCM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-26503 |
KZH10#,RZH101..CTM |
1 | ||
| 82171-95J65 |
LH107,RZH100,101..CTM,SCM ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) |
1 | ||
| 82171-95J08 |
LH100,107,RZH100,101..CTM,SCM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82171-26330 |
LH100,107,RZH100,101..CTM,SCM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82171-26331 |
LH100,107,RZH100,101..CTM,SCM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-95J04 |
LH100,107,RZH100,101..MRF |
2 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-95J04 |
LH100,107,RZH100,101..MRF |
2 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-95J04 |
LH100,107,RZH100,101..MRF |
2 | ||
| Common parts | ||||
| 61391-95J00 | ||||
| 82711-14230 | ||||
| 82711-2A710 | ||||
| 82711-30130 | ||||
| 82711-95015 | ||||
| 82711-95J28 | ||||
| 82817-26290 | ||||
| 90119-06005 | ||||
| 90159-60086 | ||||
| 90189-05019 | ||||
| 91631-40612 | ||||
ILLUST NO. 8 OF13(8908- )
ﾌﾛｱ & ﾌﾚｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-95J17 |
LH100,RZH100,101..CTM |
1 | ||
| 82162-95J31 |
LH100,RZH100,101..CTM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82162-26040 |
KZH10#,LH100,RZH100,101..CTM |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-95J06 |
LH100,107,110,115,117,125,RZH100,101,110,124..CTM,DX,GL,SCL,SCM,SCMM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82163-26030 |
LH100,107,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-95J02 |
RZH10#,11#,124,133..COM,V1,WG |
1 | ||
| 82164-95J02 |
RZH100,101,110..08S,09S,10S |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08103 | ||||
| 90480-40507 | ||||
| 90980-05073 | ||||
| 91621-40820 | ||||
| 91656-40820 | ||||
| 91656-60820 | ||||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 8 OF13(8908- )
ﾌﾛｱ (ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-26070 | ||||
| 82711-22690 | ||||
| 82711-26130 | ||||
| 82711-26160 | ||||
| 82711-26200 | ||||
| 82711-2A710 | ||||
| 82711-95J22 | ||||
| 82711-95J32 | ||||
| 82715-26220 | ||||
| 82715-2F310 | ||||
| 82715-95J13 | ||||
| 82715-95J21 | ||||
| 91651-40816 | ||||
ILLUST NO. 1 OF13(8908- )
ｴﾝｼﾞﾝ ﾙｰﾑ (ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-26020 | ||||
| 82702-26030 | ||||
| 82702-95J00 | ||||
| 82711-10370 | ||||
| 82711-12320 | ||||
| 82711-22270 | ||||
| 82711-26070 | ||||
| 82711-26100 | ||||
| 82711-2A710 | ||||
| 82711-95J12 | ||||
| 82715-26130 | ||||
| 82715-2F010 | ||||
| 82715-2F240 | ||||
| 82715-2F300 | ||||
| 82715-95J00 | ||||
| 82715-95J03 | ||||
| 82715-95J11 | ||||
| 82715-95J13 | ||||
| 82715-95J26 | ||||
| 90159-50068 | ||||
| 90159-50220 | ||||
| 90159-60025 | ||||
| 90189-05055 | ||||
| 90463-10055 | ||||
| 90463-15439 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||
| 93240-16016 | ||||
| C8299-20020 | ||||
ILLUST NO. 1 OF13(8908- )
ｴﾝｼﾞﾝ ﾙｰﾑ (ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-95J24 | ||||
| 82715-2F290 | ||||
| 82729-26270 | ||||
| 90464-00500 | ||||
| 91651-B0814 | ||||
ILLUST NO. 8 OF13(8908- )
ﾌﾚｰﾑ (ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-26070 | ||||
| 82711-22690 | ||||
| 82711-26160 | ||||
| 82715-26240 | ||||
| 82715-26270 | ||||
| 82715-26570 | ||||
| 82715-2F350 | ||||
| 82715-2F360 | ||||
| 82715-95J13 | ||||
| 82715-95J30 | ||||
| 82715-95J36 | ||||
| 90651-40816 | ||||
ILLUST NO.11 OF13(8908- )LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ｹｰﾌﾞﾙ ﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07315 |
LH103,11#..4FC;LH11#..09S..5F..DX;LH10#,11#..5F..(GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH10#,11#,124,133 NO.2 OR NO.4 |
1 | ||
| 90980-07228 |
RZH10#,11#,12# NO.5 |
1 | ||
| 90980-07228 |
RZH10#,112,124 NO.5 |
1 | ||
| 90980-07329 |
RZH10#,11#,12# NO.5 |
1 | ||
| 90980-07315 |
RZH10#,11#,12# NO.4 |
1 | ||
| 90980-07228 |
LH103,11#..4FC;LH11#..09S..5F..DX;LH10#,11#..5F..(GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH10#,11#,124,133 NO.1 OR NO.5 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07315 |
LH103,11#..4FC;LH11#..09S..5F..DX;LH10#,11#..5F..(GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH10#,11#,124,133 NO.2 OR NO.4 |
1 | ||
| 90980-07228 |
RZH10#,11#,12# NO.5 |
1 | ||
| 90980-07228 |
RZH10#,112,124 NO.5 |
1 | ||
| 90980-07329 |
RZH10#,11#,12# NO.5 |
1 | ||
| 90980-07315 |
RZH10#,11#,12# NO.4 |
1 | ||
| 90980-07228 |
LH103,11#..4FC;LH11#..09S..5F..DX;LH10#,11#..5F..(GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH10#,11#,124,133 NO.1 OR NO.5 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07315 |
LH103,11#..4FC;LH11#..09S..5F..DX;LH10#,11#..5F..(GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH10#,11#,124,133 NO.2 OR NO.4 |
1 | ||
| 90980-07228 |
RZH10#,11#,12# NO.5 |
1 | ||
| 90980-07228 |
RZH10#,112,124 NO.5 |
1 | ||
| 90980-07329 |
RZH10#,11#,12# NO.5 |
1 | ||
| 90980-07315 |
RZH10#,11#,12# NO.4 |
1 | ||
| 90980-07228 |
LH103,11#..4FC;LH11#..09S..5F..DX;LH10#,11#..5F..(GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH10#,11#,124,133 NO.1 OR NO.5 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07315 |
LH103,11#..4FC;LH11#..09S..5F..DX;LH10#,11#..5F..(GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH10#,11#,124,133 NO.2 OR NO.4 |
1 | ||
| 90980-07228 |
RZH10#,11#,12# NO.5 |
1 | ||
| 90980-07228 |
RZH10#,112,124 NO.5 |
1 | ||
| 90980-07329 |
RZH10#,11#,12# NO.5 |
1 | ||
| 90980-07315 |
RZH10#,11#,12# NO.4 |
1 | ||
| 90980-07228 |
LH103,11#..4FC;LH11#..09S..5F..DX;LH10#,11#..5F..(GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH10#,11#,124,133 NO.1 OR NO.5 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07315 |
LH103,11#..4FC;LH11#..09S..5F..DX;LH10#,11#..5F..(GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH10#,11#,124,133 NO.2 OR NO.4 |
1 | ||
| 90980-07228 |
RZH10#,11#,12# NO.5 |
1 | ||
| 90980-07228 |
RZH10#,112,124 NO.5 |
1 | ||
| 90980-07329 |
RZH10#,11#,12# NO.5 |
1 | ||
| 90980-07315 |
RZH10#,11#,12# NO.4 |
1 | ||
| 90980-07228 |
LH103,11#..4FC;LH11#..09S..5F..DX;LH10#,11#..5F..(GL,SGL);KZH10#,11#,12#,13#,LH12#,RZH10#,11#,124,133 NO.1 OR NO.5 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08103 | ||||
| 90463-13003 | ||||
| 91611-60812 | ||||
| 91611-61020 | ||||
| 91651-61016 | ||||
ILLUST NO.13 OF13(8908- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10179 | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-10893 | ||||
| 90980-10942 | ||||
| 90980-11019 | ||||
| 90980-11075 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11235 | ||||
| 90980-11294 | ||||
| 90980-11314 | ||||
ILLUST NO.13 OF13(8908- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10173 | ||||
| 90980-10355 | ||||
| 90980-10795 | ||||
| 90980-10859 | ||||
| 90980-10908 | ||||
| 90980-10942 | ||||
| 90980-11011 | ||||
ILLUST NO. 2 OF13(8908- )
ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐｯｼｮﾝ (ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-25030 | ||||
| 82711-2A140 | ||||
| 82715-26120 | ||||
| 82715-26140 | ||||
| 82715-26141 | ||||
| 82715-26150 | ||||
| 82715-26290 | ||||
| 82715-28370 | ||||
| 82715-50160 | ||||
| 82715-95J39 | ||||
| 82729-26310 | ||||
| 90119-08413 | ||||
| 90461-06102 | ||||
| 91212-41016 | ||||
| 91611-60612 | ||||
| 91651-60612 | ||||
ILLUST NO. 2 OF13(8908- )LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ｴﾝｼﾞﾝ,ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26040 |
RZH101 |
1 | ||
| 82121-95J21 |
RZH101 |
1 | ||
| 82121-26041 |
RZH101 |
1 | ||
| 82121-26042 |
RZH101 |
1 | ||
| 82121-26043 |
RZH101 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-26040 |
RZH101 |
1 | ||
| 82121-95J21 |
RZH101 |
1 | ||
| 82121-26041 |
RZH101 |
1 | ||
| 82121-26042 |
RZH101 |
1 | ||
| 82121-26043 |
RZH101 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-26070 |
RZH100,101..4FC |
1 | ||
| Common parts | ||||
| 82715-26020 | ||||
| 82715-95J24 | ||||
| 90179-06158 | ||||
| 91621-40814 | ||||
ILLUST NO. 5 OF13(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ｴﾝｼﾞﾝ ﾙｰﾑ NO.2 1-ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-26190 |
RZH124;RZH10#,11#..(V1,WG)..4FC..(CTM,DX,GL) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL 100A,ｵｽ端子,青 |
1 | ||
| 90982-08203 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 80A,ｵｽ端子,黒 |
2 | ||
| 90982-08246 |
RZH112..5F;LH113..5D..4FC;LH102,119,123,RZH112..V1..4FC;LH100,110,117,140,RZH10#,110,12#..CBR,DSL,EFI,TD;LH107,113..(V1,WG)..(SMRF,SRF)..4D..(05S,06S,08S)..(DX,SCM,SCMM,SGL) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08227 |
RZH102,112..4FC;KZH120,RZH112..(09S,10S)..5F;KZH10#,11#,126,LH10#,11#,12#,RZH100,101,124 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH112..5F;RZH112..4FC..GL;LH102,113,119,123..4FC;LH100,107,110,RZH10#,110,12# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH100;RZH112..5F;LH113..5D..4FC;LH113..09S..4FC;LH102,123,RZH101,112..(V1,WG)..4FC;LH119,120..(05S,10S)..(GCGE,GCGN,SGL);LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,107,110,117,140,RZH102,110,12#..(HRF,SMRF,SRF)..(CBR,DSL,EFI) 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH112..5F;LH113..5D..4FC;LH102,119,123,RZH112..V1..4FC;LH100,110,117,140,RZH10#,110,12#..CBR,DSL,EFI,TD;LH107,113..(V1,WG)..(SMRF,SRF)..4D..(05S,06S,08S)..(DX,SCM,SCMM,SGL) 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08188 |
LH107..SCL;LH100,RZH10#,11#,12#..CBR,EFI,TDE 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
RZH100;LH119..05S;RZH112..5F;LH113..5D..4FC;LH113..09S..4FC;LH102,123,RZH101,112..(V1,WG)..4FC;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,107,110,117,140,RZH102,110,12#..(HRF,SMRF,SRF)..(CBR,DSL,EFI) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08189 |
LH120..GCGE,GCGN;KZH10#,11#,12#,LH10#,11#,123,125,129,140,RZH10#,11#,12# 40A,ﾒｽ端子,緑,TAIHEIYO |
2 | ||
| 90982-08246 |
RZH112..5F;RZH112..4FC..GL;LH102,113,119,123..4FC;LH100,107,110,RZH10#,110,12# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08188 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08246 |
RZH102,112..4FC;KZH120,RZH112..(09S,10S)..5F;KZH10#,11#,126,LH10#,11#,12#,RZH100,101,124 100A,ｵｽ端子,青 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL 100A,ｵｽ端子,青 |
1 | ||
| 90982-08203 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 80A,ｵｽ端子,黒 |
2 | ||
| 90982-08246 |
RZH112..5F;LH113..5D..4FC;LH102,119,123,RZH112..V1..4FC;LH100,110,117,140,RZH10#,110,12#..CBR,DSL,EFI,TD;LH107,113..(V1,WG)..(SMRF,SRF)..4D..(05S,06S,08S)..(DX,SCM,SCMM,SGL) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08227 |
RZH102,112..4FC;KZH120,RZH112..(09S,10S)..5F;KZH10#,11#,126,LH10#,11#,12#,RZH100,101,124 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH112..5F;RZH112..4FC..GL;LH102,113,119,123..4FC;LH100,107,110,RZH10#,110,12# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH100;RZH112..5F;LH113..5D..4FC;LH113..09S..4FC;LH102,123,RZH101,112..(V1,WG)..4FC;LH119,120..(05S,10S)..(GCGE,GCGN,SGL);LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,107,110,117,140,RZH102,110,12#..(HRF,SMRF,SRF)..(CBR,DSL,EFI) 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH112..5F;LH113..5D..4FC;LH102,119,123,RZH112..V1..4FC;LH100,110,117,140,RZH10#,110,12#..CBR,DSL,EFI,TD;LH107,113..(V1,WG)..(SMRF,SRF)..4D..(05S,06S,08S)..(DX,SCM,SCMM,SGL) 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08188 |
LH107..SCL;LH100,RZH10#,11#,12#..CBR,EFI,TDE 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
RZH100;LH119..05S;RZH112..5F;LH113..5D..4FC;LH113..09S..4FC;LH102,123,RZH101,112..(V1,WG)..4FC;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,107,110,117,140,RZH102,110,12#..(HRF,SMRF,SRF)..(CBR,DSL,EFI) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08189 |
LH120..GCGE,GCGN;KZH10#,11#,12#,LH10#,11#,123,125,129,140,RZH10#,11#,12# 40A,ﾒｽ端子,緑,TAIHEIYO |
2 | ||
| 90982-08246 |
RZH112..5F;RZH112..4FC..GL;LH102,113,119,123..4FC;LH100,107,110,RZH10#,110,12# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08188 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08246 |
RZH102,112..4FC;KZH120,RZH112..(09S,10S)..5F;KZH10#,11#,126,LH10#,11#,12#,RZH100,101,124 100A,ｵｽ端子,青 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-95J04 |
RZH112..5F;RZH10#,110,12#;RZH112..4FC..GL ｱﾘ(AM/FM ﾗｼﾞｵ OR ﾘﾔﾋ-ﾀ) |
1 | ||
| 82620-95J19 |
RZH112..5F;RZH10#,110,12#;RZH112..4FC..GL ｱﾘ(ﾘﾔ ﾋ-ﾀ);ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82620-26160 |
RZH102,112..4FC;RZH100,101,112,124..07S,08S,09S,15S |
1 | ||
| 82620-26170 |
RZH102,112..4FC;RZH100,101,112..07S,08S,09S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 82711-26070 | ||||
| 82711-26110 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 5 OF13(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,18#
ｴﾝｼﾞﾝ ﾙｰﾑ NO.2 2-ﾊﾞｯﾃﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-26190 |
RZH124;RZH10#,11#..(V1,WG)..4FC..(CTM,DX,GL) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL 100A,ｵｽ端子,青 |
1 | ||
| 90982-08203 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 80A,ｵｽ端子,黒 |
2 | ||
| 90982-08246 |
RZH112..5F;LH113..5D..4FC;LH102,119,123,RZH112..V1..4FC;LH100,110,117,140,RZH10#,110,12#..CBR,DSL,EFI,TD;LH107,113..(V1,WG)..(SMRF,SRF)..4D..(05S,06S,08S)..(DX,SCM,SCMM,SGL) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08227 |
RZH102,112..4FC;KZH120,RZH112..(09S,10S)..5F;KZH10#,11#,126,LH10#,11#,12#,RZH100,101,124 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH112..5F;RZH112..4FC..GL;LH102,113,119,123..4FC;LH100,107,110,RZH10#,110,12# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH100;RZH112..5F;LH113..5D..4FC;LH113..09S..4FC;LH102,123,RZH101,112..(V1,WG)..4FC;LH119,120..(05S,10S)..(GCGE,GCGN,SGL);LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,107,110,117,140,RZH102,110,12#..(HRF,SMRF,SRF)..(CBR,DSL,EFI) 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH112..5F;LH113..5D..4FC;LH102,119,123,RZH112..V1..4FC;LH100,110,117,140,RZH10#,110,12#..CBR,DSL,EFI,TD;LH107,113..(V1,WG)..(SMRF,SRF)..4D..(05S,06S,08S)..(DX,SCM,SCMM,SGL) 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08188 |
LH107..SCL;LH100,RZH10#,11#,12#..CBR,EFI,TDE 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
RZH100;LH119..05S;RZH112..5F;LH113..5D..4FC;LH113..09S..4FC;LH102,123,RZH101,112..(V1,WG)..4FC;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,107,110,117,140,RZH102,110,12#..(HRF,SMRF,SRF)..(CBR,DSL,EFI) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08189 |
LH120..GCGE,GCGN;KZH10#,11#,12#,LH10#,11#,123,125,129,140,RZH10#,11#,12# 40A,ﾒｽ端子,緑,TAIHEIYO |
2 | ||
| 90982-08246 |
RZH112..5F;RZH112..4FC..GL;LH102,113,119,123..4FC;LH100,107,110,RZH10#,110,12# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08188 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08246 |
RZH102,112..4FC;KZH120,RZH112..(09S,10S)..5F;KZH10#,11#,126,LH10#,11#,12#,RZH100,101,124 100A,ｵｽ端子,青 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
KZH10#,11#,LH10#,11#,12#,RZH10#,11#,124,133..CD,CTM,DX,GL,SGL 100A,ｵｽ端子,青 |
1 | ||
| 90982-08203 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 80A,ｵｽ端子,黒 |
2 | ||
| 90982-08246 |
RZH112..5F;LH113..5D..4FC;LH102,119,123,RZH112..V1..4FC;LH100,110,117,140,RZH10#,110,12#..CBR,DSL,EFI,TD;LH107,113..(V1,WG)..(SMRF,SRF)..4D..(05S,06S,08S)..(DX,SCM,SCMM,SGL) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08227 |
RZH102,112..4FC;KZH120,RZH112..(09S,10S)..5F;KZH10#,11#,126,LH10#,11#,12#,RZH100,101,124 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH112..5F;RZH112..4FC..GL;LH102,113,119,123..4FC;LH100,107,110,RZH10#,110,12# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH100;RZH112..5F;LH113..5D..4FC;LH113..09S..4FC;LH102,123,RZH101,112..(V1,WG)..4FC;LH119,120..(05S,10S)..(GCGE,GCGN,SGL);LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,107,110,117,140,RZH102,110,12#..(HRF,SMRF,SRF)..(CBR,DSL,EFI) 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08227 |
RZH112..5F;LH113..5D..4FC;LH102,119,123,RZH112..V1..4FC;LH100,110,117,140,RZH10#,110,12#..CBR,DSL,EFI,TD;LH107,113..(V1,WG)..(SMRF,SRF)..4D..(05S,06S,08S)..(DX,SCM,SCMM,SGL) 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08188 |
LH107..SCL;LH100,RZH10#,11#,12#..CBR,EFI,TDE 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
RZH100;LH119..05S;RZH112..5F;LH113..5D..4FC;LH113..09S..4FC;LH102,123,RZH101,112..(V1,WG)..4FC;LH113..V1..SRF..4D..(05S,06S)..(DX,SGL);LH100,107,110,117,140,RZH102,110,12#..(HRF,SMRF,SRF)..(CBR,DSL,EFI) 100A,ｵｽ端子,青 |
1 | ||
| 90982-08189 |
LH120..GCGE,GCGN;KZH10#,11#,12#,LH10#,11#,123,125,129,140,RZH10#,11#,12# 40A,ﾒｽ端子,緑,TAIHEIYO |
2 | ||
| 90982-08246 |
RZH112..5F;RZH112..4FC..GL;LH102,113,119,123..4FC;LH100,107,110,RZH10#,110,12# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08188 |
KZH10#,11#,12#,13#,LH10#,11#,12#,RZH10#,11#,124,133 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08246 |
RZH102,112..4FC;KZH120,RZH112..(09S,10S)..5F;KZH10#,11#,126,LH10#,11#,12#,RZH100,101,124 100A,ｵｽ端子,青 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-95J04 |
RZH112..5F;RZH10#,110,12#;RZH112..4FC..GL ｱﾘ(AM/FM ﾗｼﾞｵ OR ﾘﾔﾋ-ﾀ) |
1 | ||
| 82620-95J19 |
RZH112..5F;RZH10#,110,12#;RZH112..4FC..GL ｱﾘ(ﾘﾔ ﾋ-ﾀ);ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82620-26160 |
RZH102,112..4FC;RZH100,101,112,124..07S,08S,09S,15S |
1 | ||
| 82620-26170 |
RZH102,112..4FC;RZH100,101,112..07S,08S,09S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 82711-26070 | ||||
| 82711-26110 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
