RZH101G-JRPNE (1989)

Toyota Hiace/Regiusace

Production Aug 1989 - Aug 1996
Engine 2RZE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308-9608)

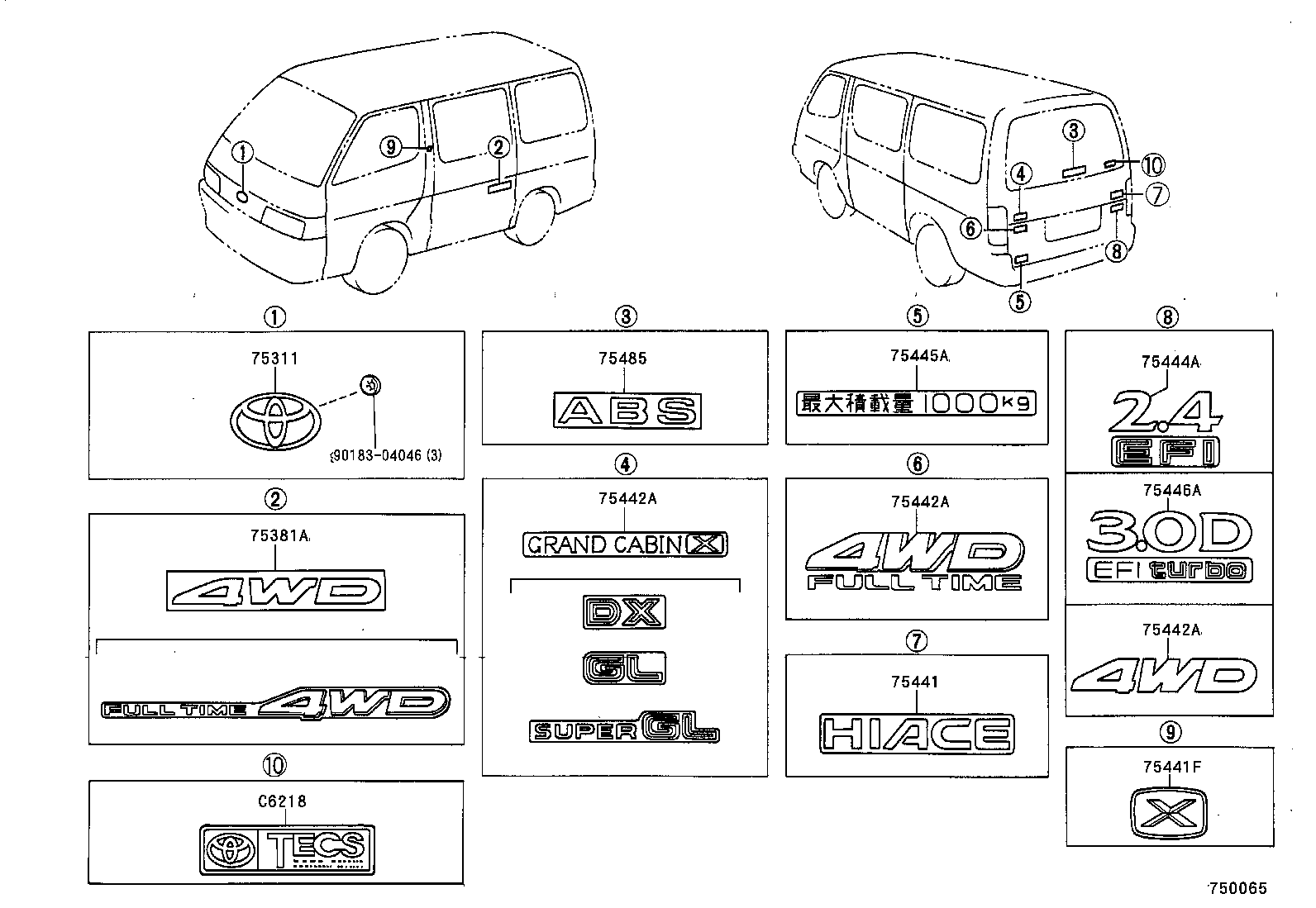

Click highlighted areas on diagram

diagram 75311 75381A 75441 75441F 75442A 75442A 75442A 75444A 75445A 75446A 75485 9018304046 C6218
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-95J04

LH100,120,RZH100,101..(HRF,SMRF)..(CTM,DX)

 1
75311-95J04

LH119..05S;LH113..V1..SRF..4D..06S..DX;LH100,107,120,RZH100,101..(HRF,MRF,SMRF)..(08S,09S,10S)

 1
75311-95J04

LH113..V1..SRF..4D..06S..DX;LH100,107,120,RZH100,101..(HRF,MRF,SMRF)..(08S,09S,10S)

 1
75444A - PLATE, BACK DOOR NAME, NO.4
75446-26010B0

RZH101..CTM

2.4 EFI,SILVER,TRIM1#&6L1 ,8G8

 1
75485 - PLATE, BACK WINDOW NAME
75485-95J00

RZH100,101,110

EFI

 1
Common parts
90183-04046

(8908-9308)

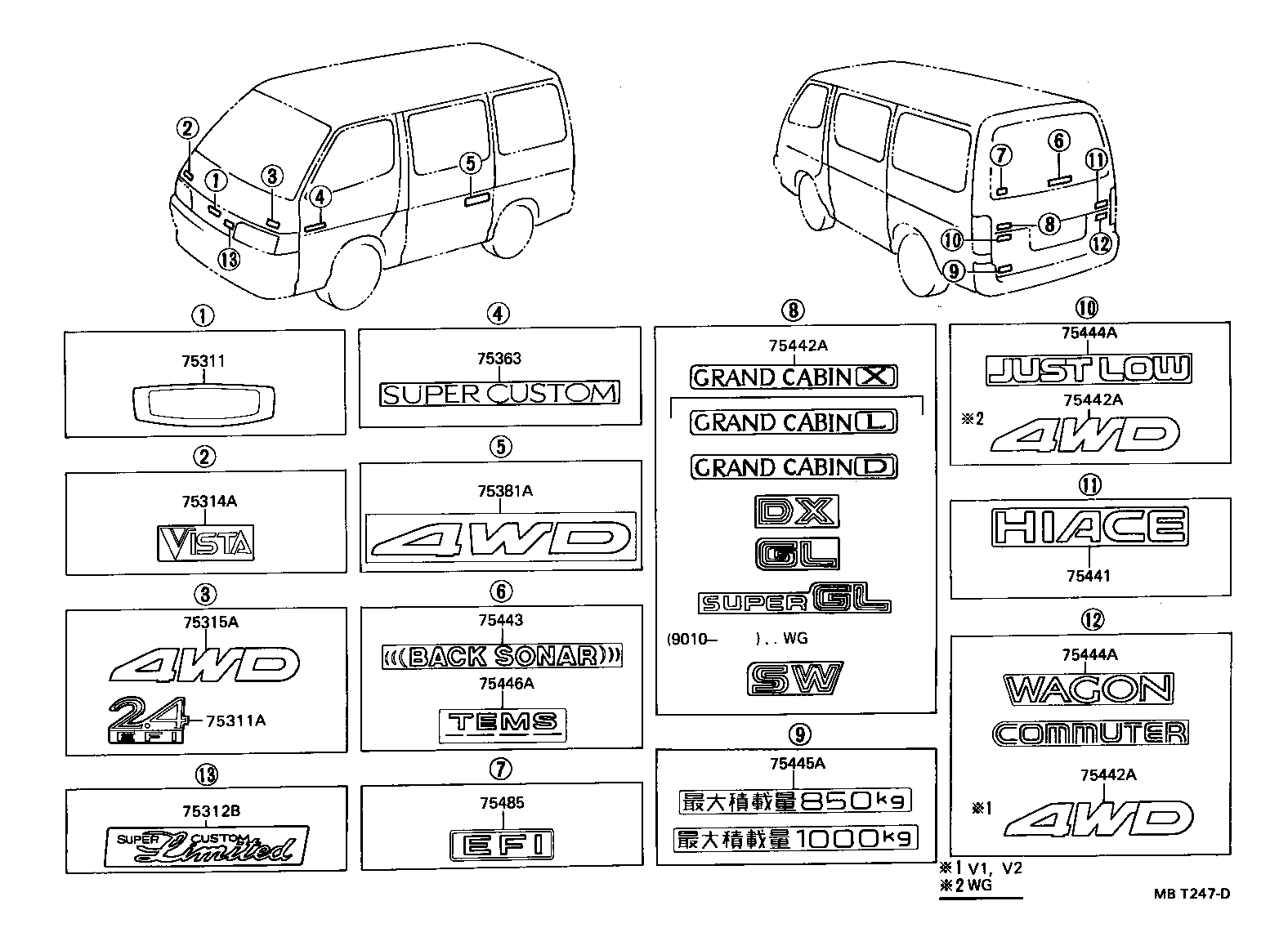

Click highlighted areas on diagram

diagram 75311 75311A 75312B 75314A 75315A 75363 75381A 75441 75442A 75442A 75442A 75443 75444A 75444A 75445A 75446A 75485
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-95J04

LH100,120,RZH100,101..(HRF,SMRF)..(CTM,DX)

 1
75311-95J04

LH119..05S;LH113..V1..SRF..4D..06S..DX;LH100,107,120,RZH100,101..(HRF,MRF,SMRF)..(08S,09S,10S)

 1
75311-95J04

LH113..V1..SRF..4D..06S..DX;LH100,107,120,RZH100,101..(HRF,MRF,SMRF)..(08S,09S,10S)

 1
75311A - PLATE, FRONT NAME, NO.1
75311-95J07

RZH101..08S,09S

2.4 EFI

 1
75314A - EMBLEM, RADIATOR GRILLE, NO,4
75313-26010

LH10#,11#,12#,140,RZH10#,11#,12#

 1
75314-95J01

LH10#,11#,12#,140,RZH10#,11#,12#

 1
75313-26010

LH120..GCGE,GCGN;LH10#,11#,123,125,129,140,RZH10#,11#,12#

 1
75444A - PLATE, BACK DOOR NAME, NO.4
75446-26010B0

RZH101..CTM

2.4 EFI,SILVER,TRIM1#&6L1 ,8G8

 1
75444A - PLATE, BACK DOOR NAME, NO.4
75446-26010B0

RZH101..CTM

2.4 EFI,SILVER,TRIM1#&6L1 ,8G8

 1
75485 - PLATE, BACK WINDOW NAME
75485-95J00

RZH100,101,110

EFI

 1
